Grey Goat Hardware  |  SKU: PFIT10BS

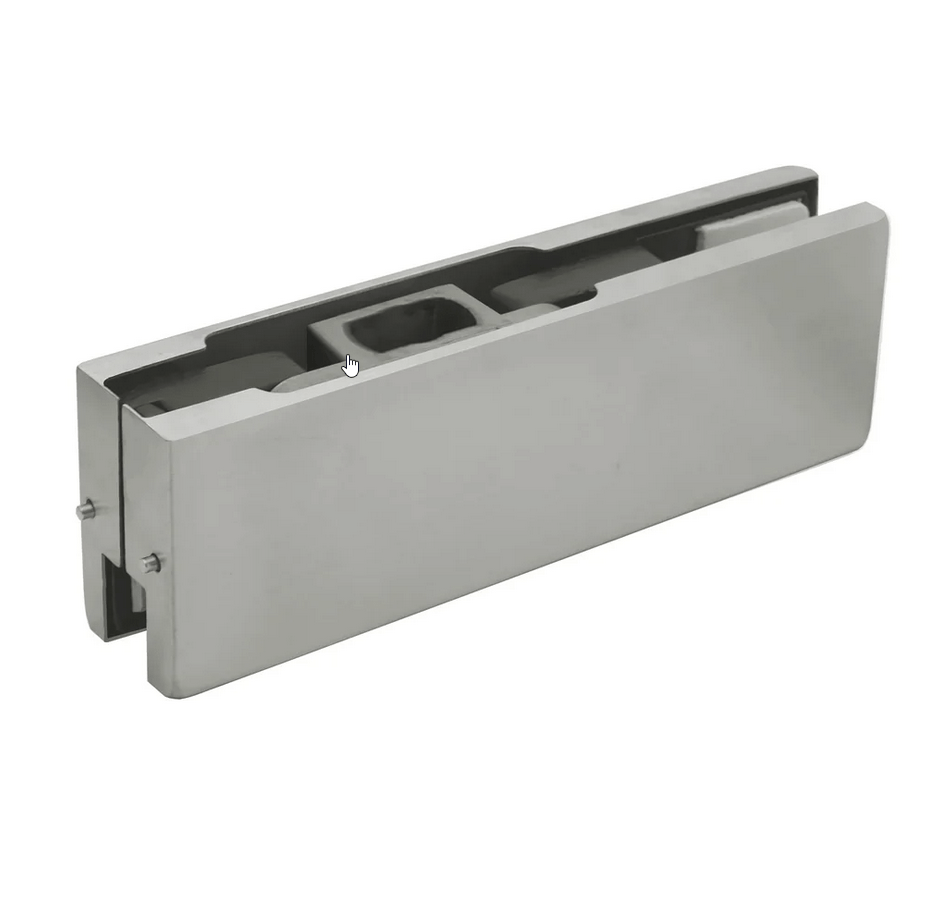

Patch Fitting (PFIT Series)

$36.99 CAD
Shipping calculated at checkout.
Color: Brushed Stainless Steel

Pickup available at Warehouse

Usually ready in 2-4 days

Pick up and Shipping

For custom-made glass orders, please note that shipping generally takes1–2 weeksfrom our supplier before we receive the panels and can proceed with fulfillment.

For Wine Cellar racks we have a 30 days production delay.

Pick up at 1250 rue Tellier, Laval, Québec, H7C 2H2.

Description
Product Details+−

Patch Fitting (PFIT Series)

Grey Goat Top Patch Fitting

Product Overview

The Grey Goat Top Door Patch Fitting integrates seamlessly with overhead concealed closers. Designed with PFINTOP insert compatibility (PPIV401 patch pin sold separately), it includes neoprene gaskets for 3/8" or 1/2" (10 / 12 mm) glass thickness, ensuring a secure and rattle-free installation.

Product Features

  • Max Weight: 88 kg (194 lb)
  • Max Door Width: 42" (1000 mm)
  • Max Door Height: 102" (2590 mm)
  • Cycle Tested: 500,000 operations
  • Backset: European 2-9/16"
  • Material: Aluminum body with Grade 304 stainless steel cover plate
  • Glass Compatibility: 3/8" or 1/2" (10 / 12 mm)
  • Application: Interior and exterior glass door systems

Technical Specifications

  • Type: Top Patch Fitting
  • Insert: PFINTOP
  • Pin Compatibility: PPIV401 (sold separately)

Available Finishes

  • Brushed Stainless
  • Matte Black
  • Polished Stainless
  • Satin Brass
  • Satin Anodized
  • Custom Finishes (contact us)

Technical Drawings

Important Notes

  • Patch pin sold separately
  • Ensure proper glass preparation before installation
  • Compatible with concealed door closer systems

Grey Goat Bottom Patch Fitting

Product Overview

The Grey Goat Bottom Door Patch Fitting secures the glass panel at floor level and works in conjunction with the PFINTBOT insert and PPIV402 (sold separately). It includes neoprene gaskets for 3/8" or 1/2" (10 / 12 mm) glass, providing a stable and durable installation.

Product Features

  • Max Weight: 88 kg (194 lb)
  • Max Door Width: 42" (1000 mm)
  • Max Door Height: 102" (2590 mm)
  • Cycle Tested: 500,000 operations
  • Material: Aluminum body with Grade 304 stainless steel cover plate
  • Glass Compatibility: 3/8" or 1/2" (10 / 12 mm)
  • Application: Interior and exterior glass door systems

Technical Specifications

  • Type: Bottom Patch Fitting
  • Insert: PFINTBOT
  • Pin Compatibility: PPIV402 (sold separately)

Available Finishes

  • Brushed Stainless
  • Matte Black
  • Polished Stainless
  • Satin Brass
  • Satin Anodized
  • Custom Finishes (contact us)

Technical Drawings

Important Notes

  • Patch pin sold separately
  • Ensure proper glass preparation before installation
  • Compatible with floor pivots and door closer systems

PFIT10BS — Bottom Patch with Pivot Insert / Brushed Stainless Steel

Product Details

  • SKU: PFIT10BS
  • Use: Bottom Patch with Pivot Insert
  • Color: Brushed Stainless Steel

PFIT10PS — Bottom Patch with Pivot Insert / Polished Stainless Steel

Product Details

  • SKU: PFIT10PS
  • Use: Bottom Patch with Pivot Insert
  • Color: Polished Stainless Steel

PFIT10MBL — Bottom Patch with Pivot Insert / Matte Black

Product Details

  • SKU: PFIT10MBL
  • Use: Bottom Patch with Pivot Insert
  • Color: Matte Black

PFIT10SA — Bottom Patch with Pivot Insert / Satin Anodized

Product Details

  • SKU: PFIT10SA
  • Use: Bottom Patch with Pivot Insert
  • Color: Satin Anodized

PFIT10SB — Bottom Patch with Pivot Insert / Satin Brass

Product Details

  • SKU: PFIT10SB
  • Use: Bottom Patch with Pivot Insert
  • Color: Satin Brass

PFIT20ABS — Top Patch with Pivot Insert / Brushed Stainless Steel

Product Details

  • SKU: PFIT20ABS
  • Use: Top Patch with Pivot Insert
  • Color: Brushed Stainless Steel

PFIT20APS — Top Patch with Pivot Insert / Polished Stainless Steel

Product Details

  • SKU: PFIT20APS
  • Use: Top Patch with Pivot Insert
  • Color: Polished Stainless Steel

PFIT20AMBL — Top Patch with Pivot Insert / Matte Black

Product Details

  • SKU: PFIT20AMBL
  • Use: Top Patch with Pivot Insert
  • Color: Matte Black

PFIT20ASA — Top Patch with Pivot Insert / Satin Anodized

Product Details

  • SKU: PFIT20ASA
  • Use: Top Patch with Pivot Insert
  • Color: Satin Anodized

PFIT20ASB — Top Patch with Pivot Insert / Satin Brass

Product Details

  • SKU: PFIT20ASB
  • Use: Top Patch with Pivot Insert
  • Color: Satin Brass
