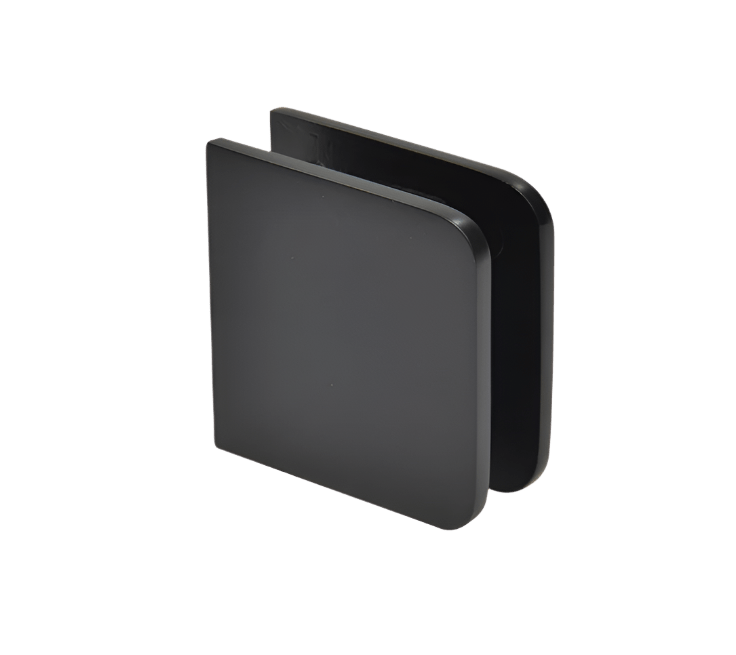

CRL Traditional Style Fixed Panel U-Clamp
CRL Standard Fixed Panel U-Clamp
Product Overview
The CRL Standard Fixed Panel U-Clamp provides a secure and minimalist solution for mounting fixed glass panels in frameless shower enclosures. Designed as an alternative to U-channels, it creates a clean all-glass look while maintaining strong and reliable support.
Product Features
- Compatible with frameless fixed panels
- Solid brass construction
- Wall, ceiling, or floor mounting options
- Clean and modern appearance

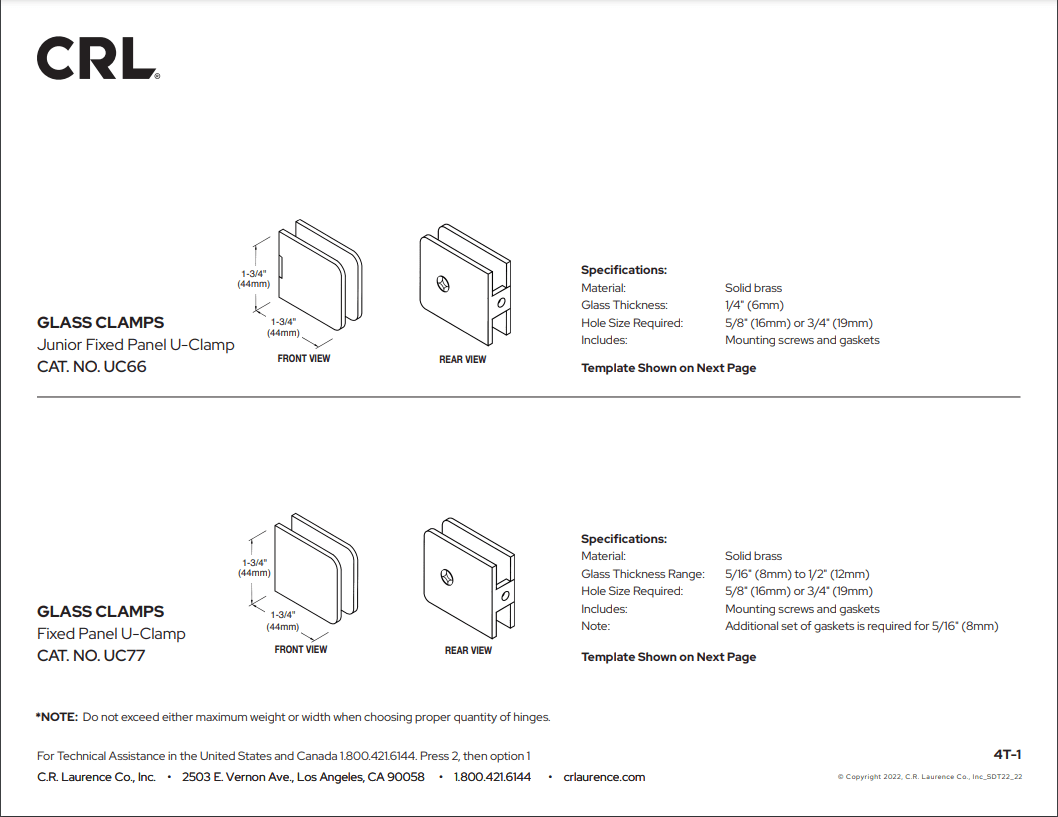

Technical Specifications
- Glass Thickness: 5/16" to 1/2" (8–12 mm)
- Material: Solid Brass
- Dimensions: 1-3/4" x 1-3/4" (44 mm x 44 mm)
- Mounting Type: Wall / Ceiling / Floor
- Hole Diameter Required: 5/8" or 3/4"
Included Product(s)
- U-clamp
- Mounting screws
- Clear protective gaskets
Important Notes
- Glass fabrication is required prior to installation
- Additional gasket (UCG77) required for 5/16" glass

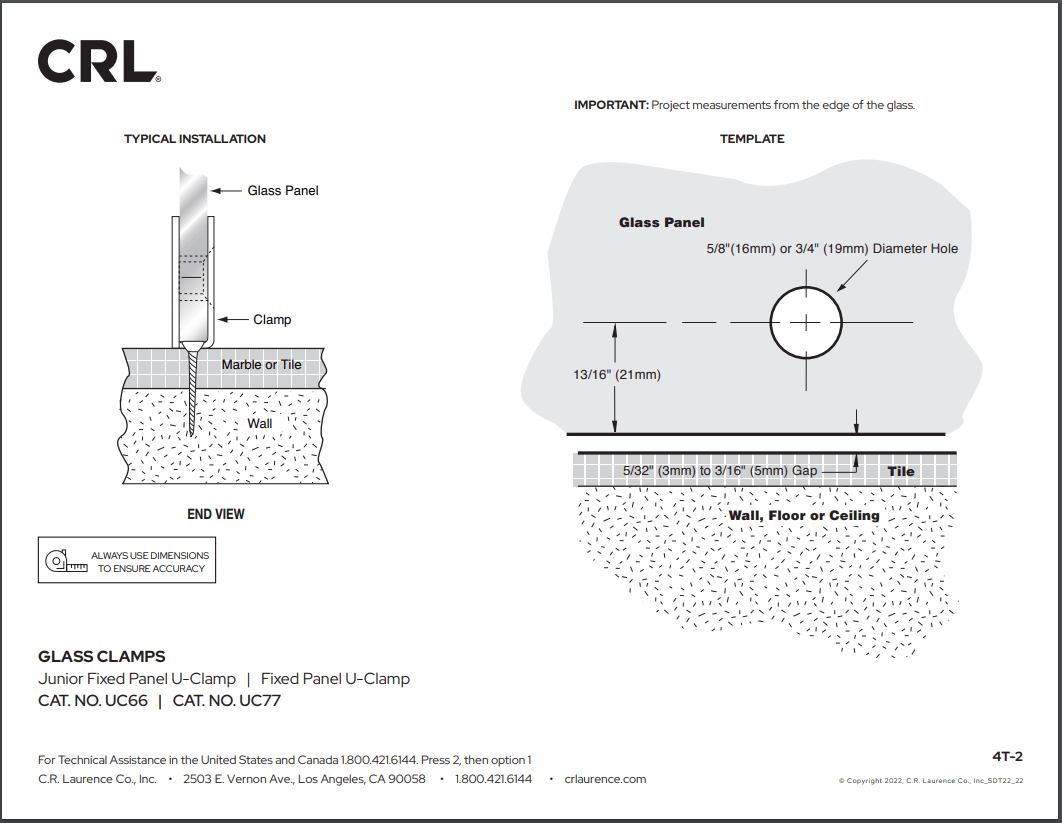

- Recommended gap of 5/32" to 3/16" for silicone sealing
- Finishes may vary depending on lighting and display
Technical Documents
UC770RB — Oil Rubbed Bronze
Product Details
- SKU: UC770RB
- Color: Oil Rubbed Bronze

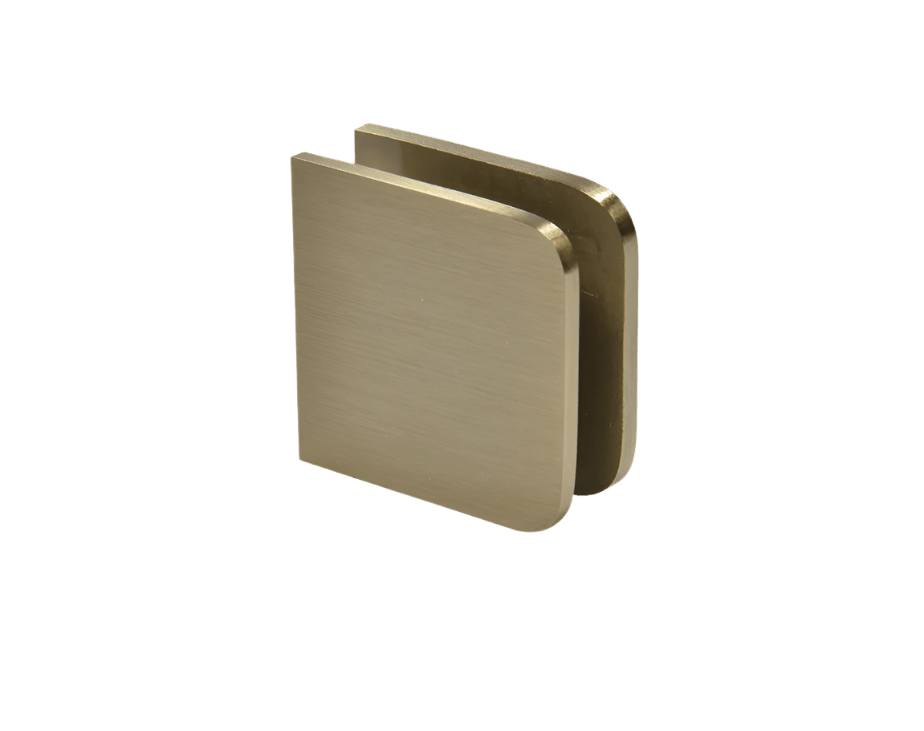

UC77BBRZ — Brushed Bronze
Product Details
- SKU: UC77BBRZ
- Color: Brushed Bronze

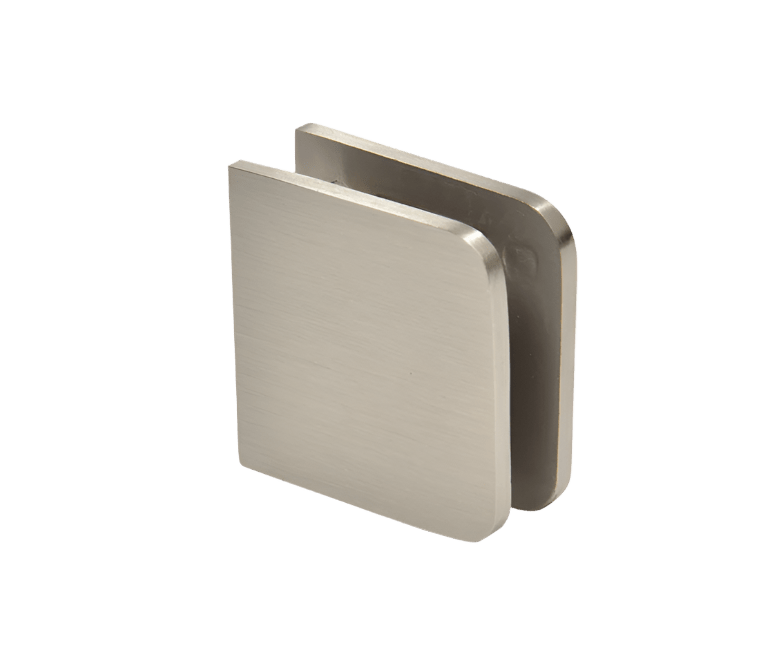

UC77BN — Brushed Nickel
Product Details
- SKU: UC77BN
- Color: Brushed Nickel

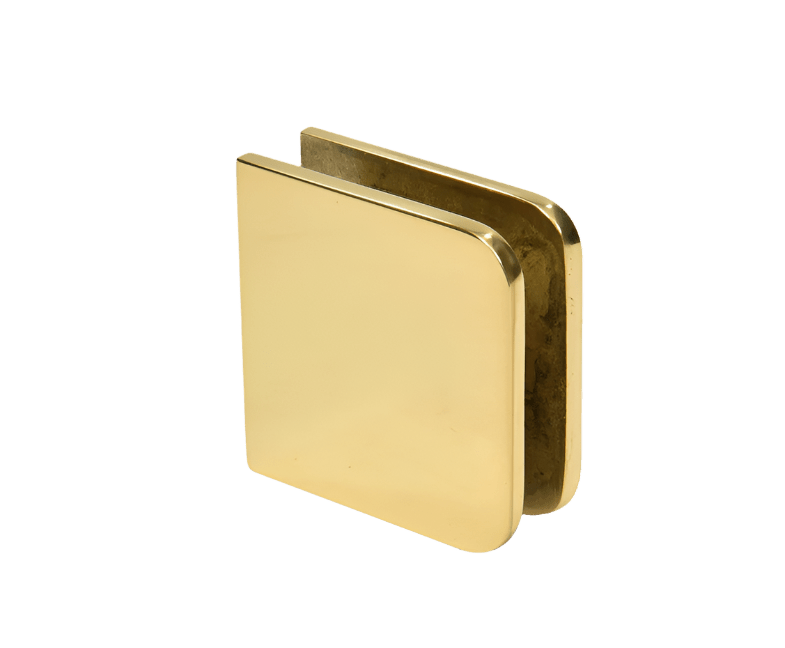

UC77BR — Polished Brass
Product Details
- SKU: UC77BR
- Color: Polished Brass

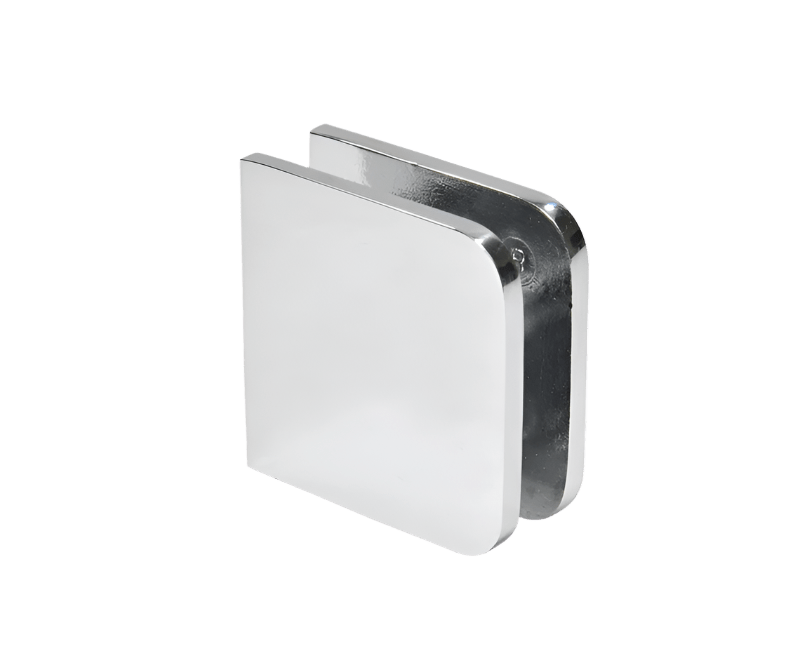

UC77CH — Polished Chrome
Product Details
- SKU: UC77CH
- Color: Polished Chrome
UC77GM — Gun Metal
Product Details
- SKU: UC77GM
- Color: Gun Metal

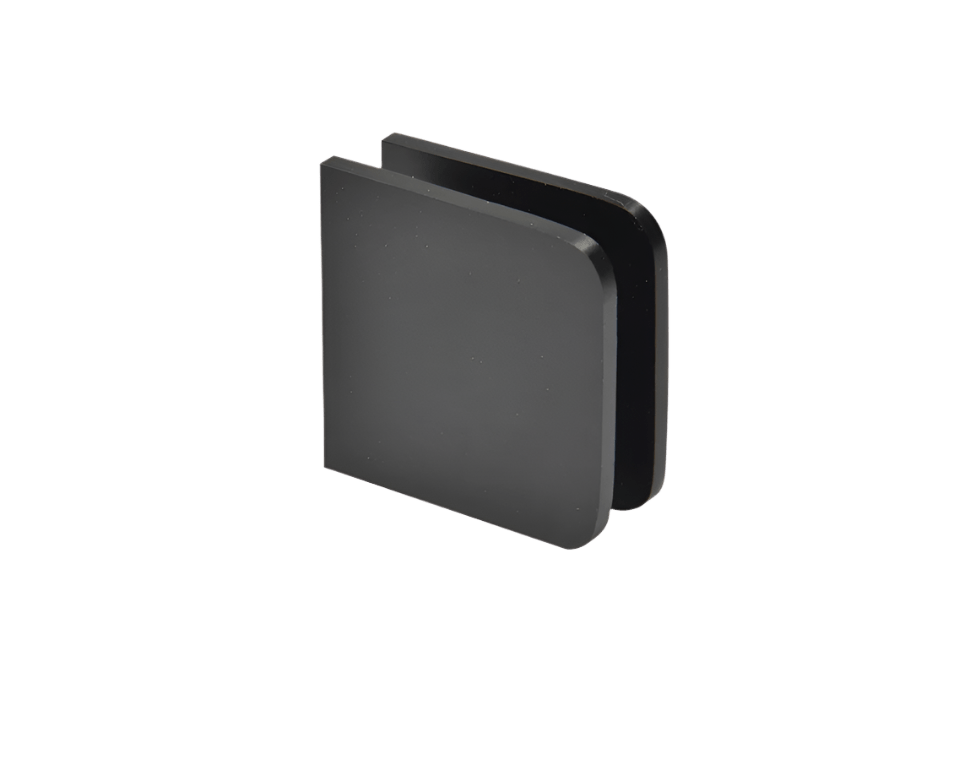

UC77MBL — Matte Black
Product Details
- SKU: UC77MBL
- Color: Matte Black

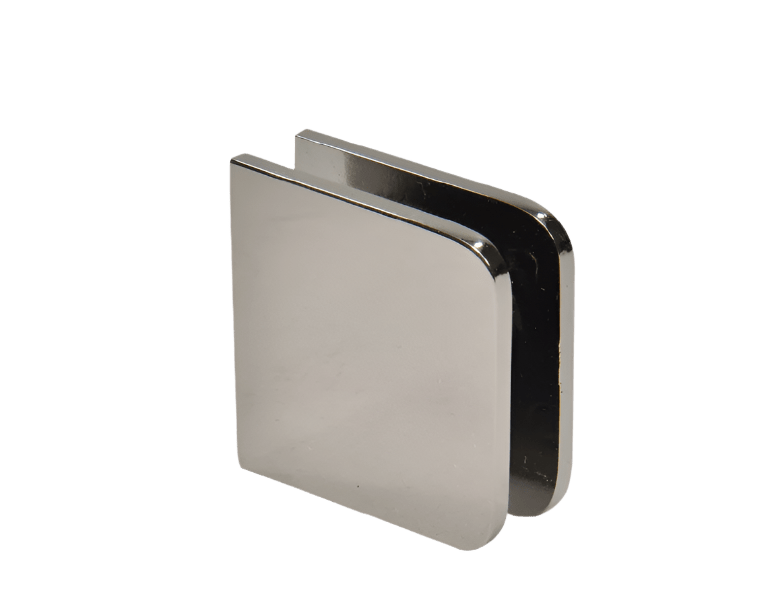

UC77PN — Polished Nickel
Product Details
- SKU: UC77PN
- Color: Polished Nickel

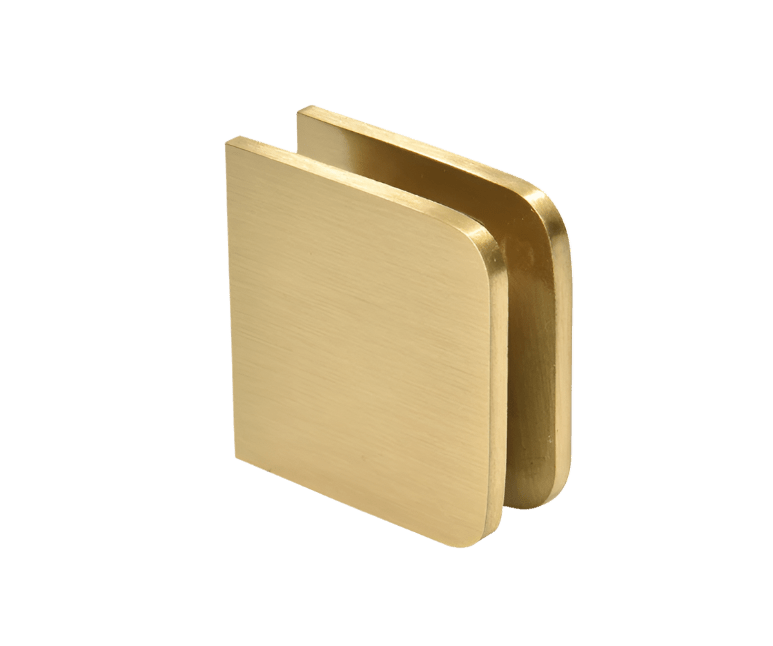

UC77SB — Satin Brass
Product Details
- SKU: UC77SB
- Color: Satin Brass

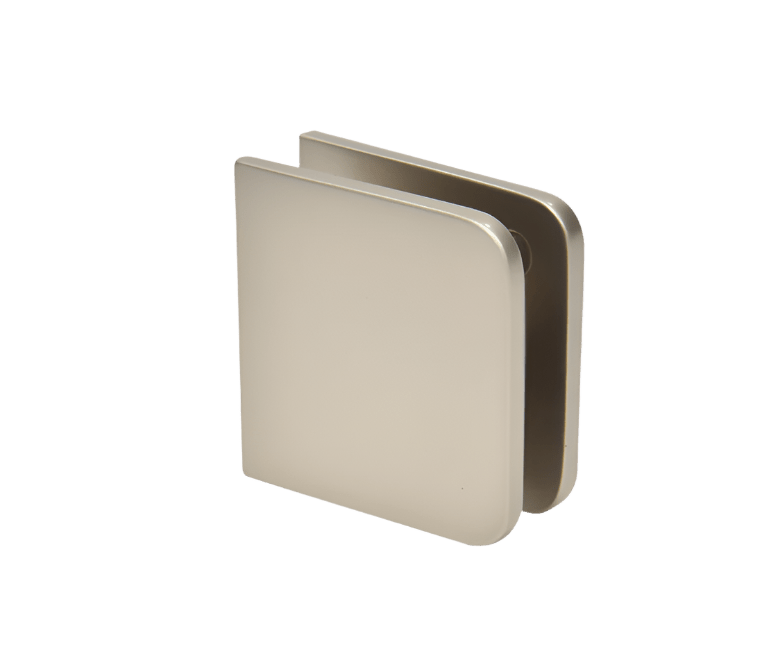

UC77SN — Satin Nickel
Product Details
- SKU: UC77SN
- Color: Satin Nickel
