C. R. Laurence
CRL Tremco® Wedge Gasket Glazing Spline
CRL Tremco® Wedge Gasket Glazing Spline
Couldn't load pickup availability

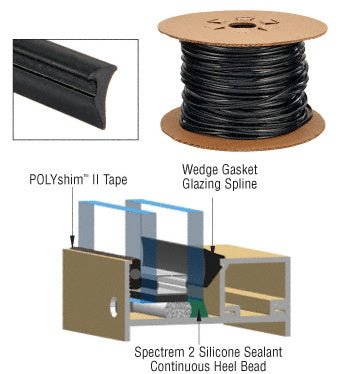

Tremco® Wedge Gasket Glazing Spline
All models are designed for compression glazing systems using Tremco® POLYshim II Glazing Tape.
A mock-up is recommended by Tremco® to verify proper engagement with the metal nib before installation.
Model: 0.120 in. Face Clearance
- Brand: Tremco
- Durometer: 70
- Face Clearance: 0.120 in. (3 mm)
- Material: EPDM
- Finish/Color: Black
- Roll Length: 500 ft. (152.4 m)
- Metal Requirements: 0.062 in. × 0.09 in. Metal Nib (1.5 mm × 2 mm)
This wedge gasket is made of dense 70 durometer extruded EPDM, designed for compatibility with Tremco® POLYshim II Glazing Tapes. Requires a properly sized metal nib for effective sealing in compression glazing systems.
Model: 0.160 in. Face Clearance
- Brand: Tremco
- Durometer: 70
- Face Clearance: 0.160 in. (4.1 mm)
- Material: EPDM
- Finish/Color: Black
- Roll Length: 500 ft. (152.4 m)
- Metal Requirements: 0.062 in. × 0.09 in. Metal Nib (1.5 mm × 2 mm)
This version offers a slightly wider face clearance while maintaining the same strength and flexibility. It is ideal where a tighter compression or tolerance adjustment is required.
Model: 0.200 in. Face Clearance
- Brand: Tremco
- Durometer: 70
- Face Clearance: 0.200 in. (5.1 mm)
- Material: EPDM
- Finish/Color: Black
- Roll Length: 500 ft. (152.4 m)
- Metal Requirements: 0.062 in. × 0.09 in. Metal Nib (1.5 mm × 2 mm)
The largest of the three models, this gasket accommodates wider spacing between surfaces while delivering the same weather-sealing performance expected of Tremco® systems.
Comparison Table
| Specification | Model 1 (0.120 in.) |
Model 2 (0.160 in.) |
Model 3 (0.200 in.) |
|---|---|---|---|
| Brand | Tremco | Tremco | Tremco |
| Face Clearance | 0.120 in. (3 mm) | 0.160 in. (4.1 mm) | 0.200 in. (5.1 mm) |
| Material | EPDM | EPDM | EPDM |
| Durometer | 70 | 70 | 70 |
| Finish/Color | Black | Black | Black |
| Roll Length | 500 ft. (152.4 m) | 500 ft. (152.4 m) | 500 ft. (152.4 m) |
| Metal Nib Requirement | 0.062 in. × 0.09 in. (1.5 mm × 2 mm) |
0.062 in. × 0.09 in. (1.5 mm × 2 mm) |
0.062 in. × 0.09 in. (1.5 mm × 2 mm) |
