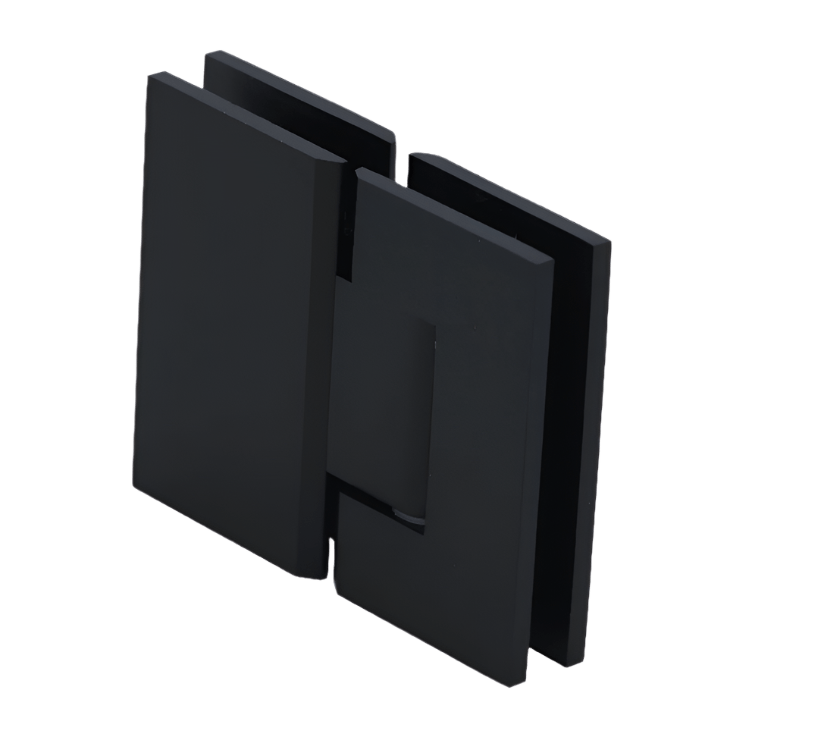

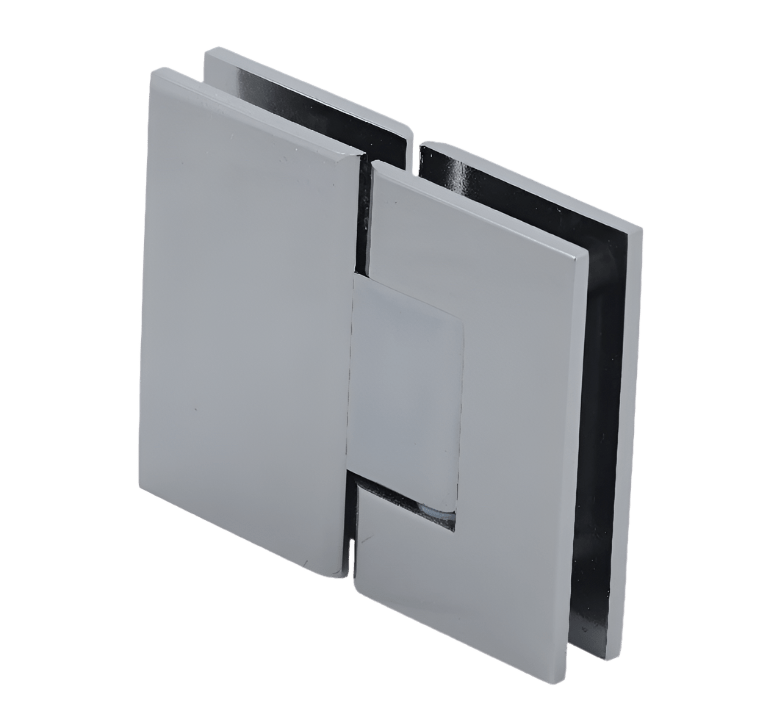

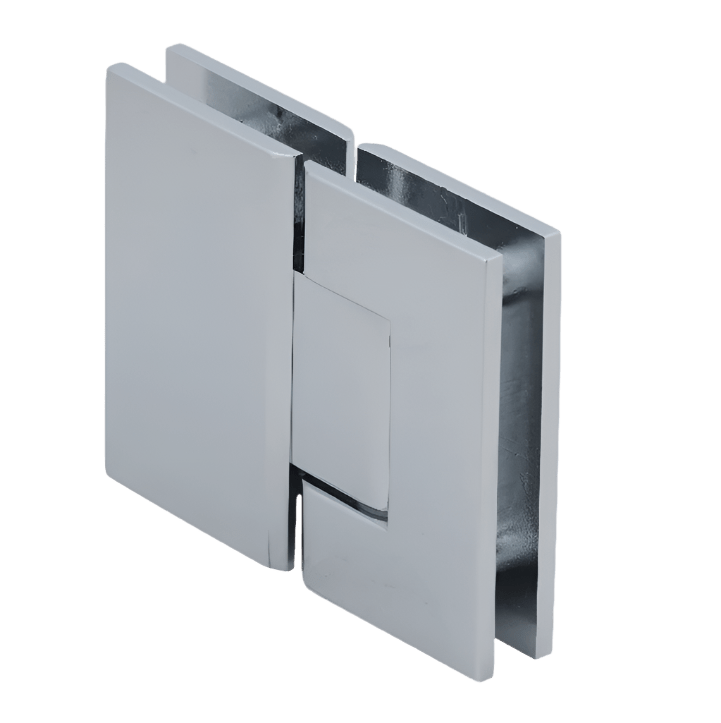

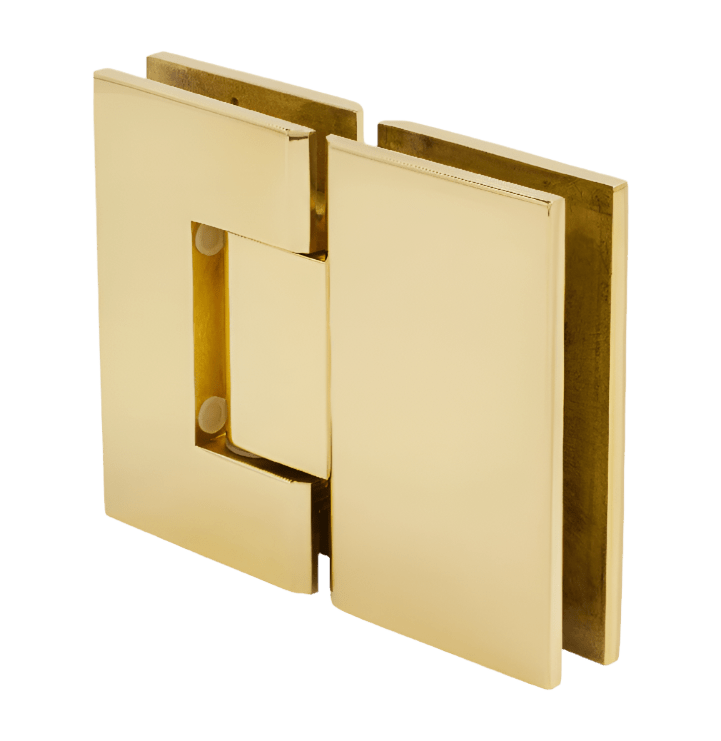

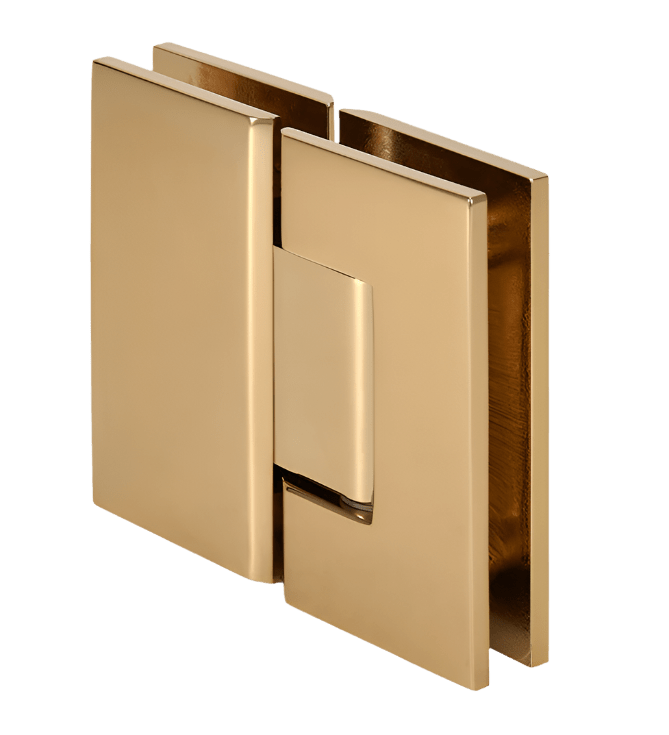

CRL Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge
CRL Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge
Couldn't load pickup availability

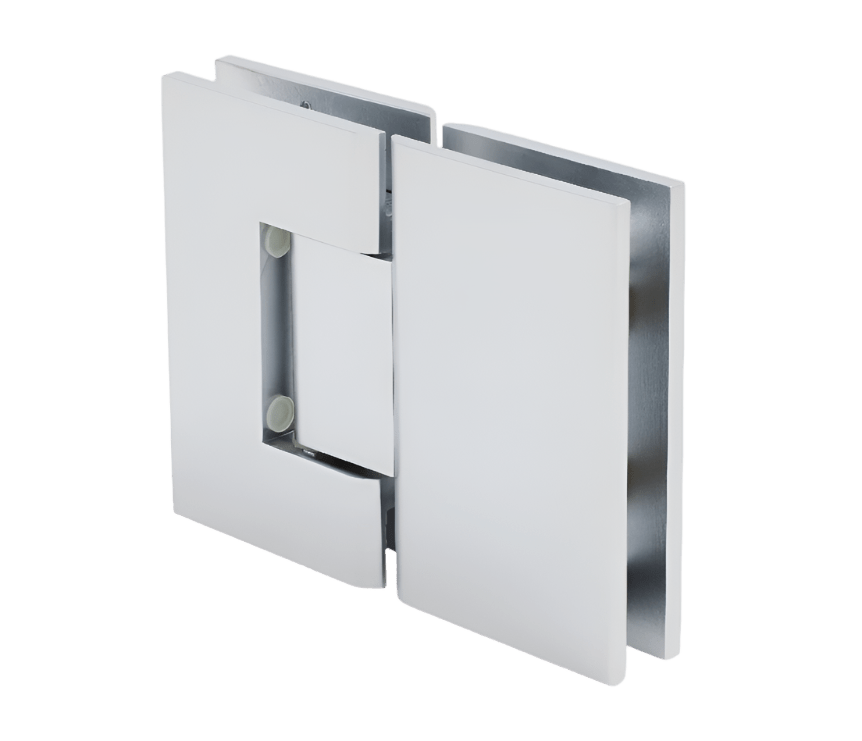

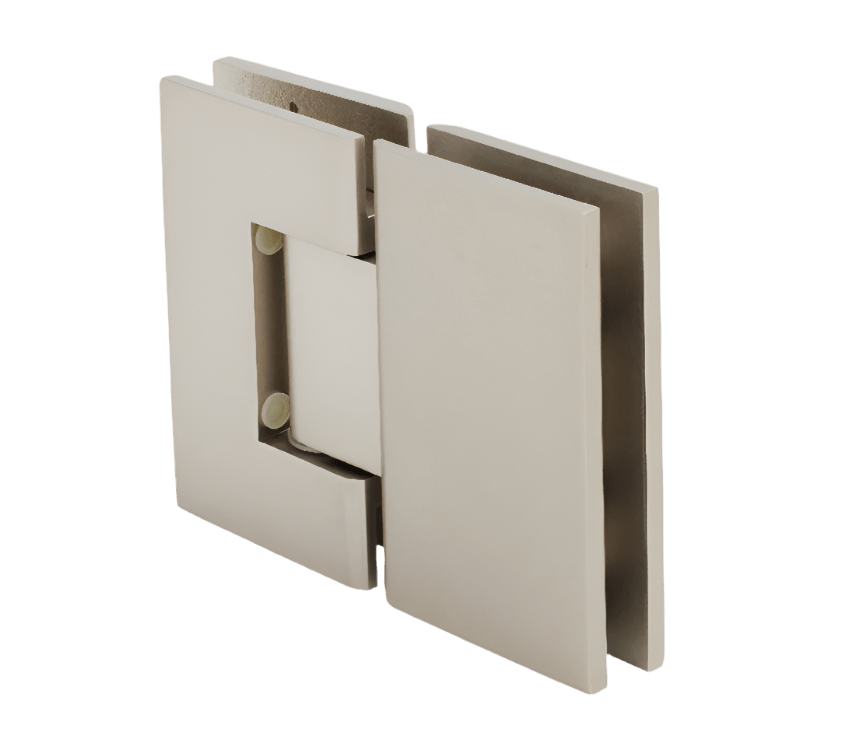

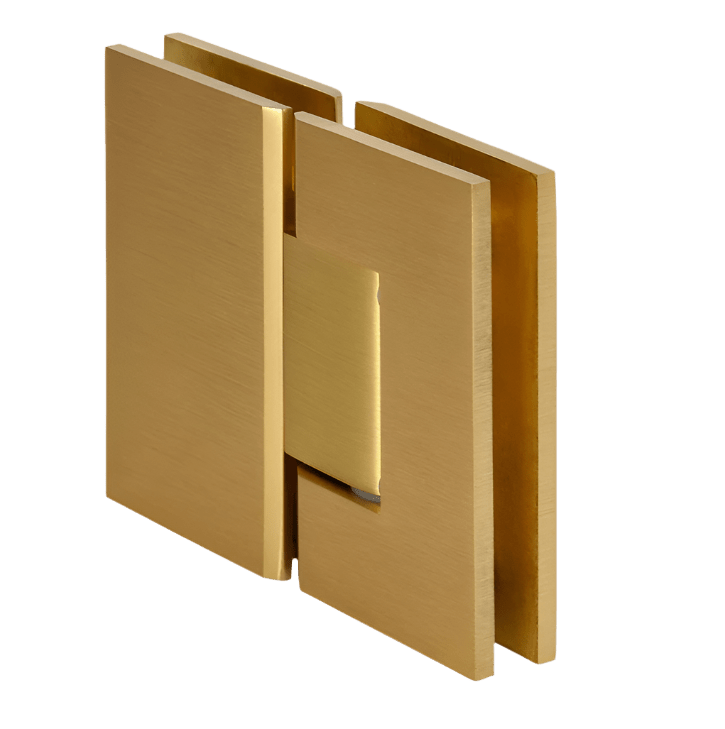

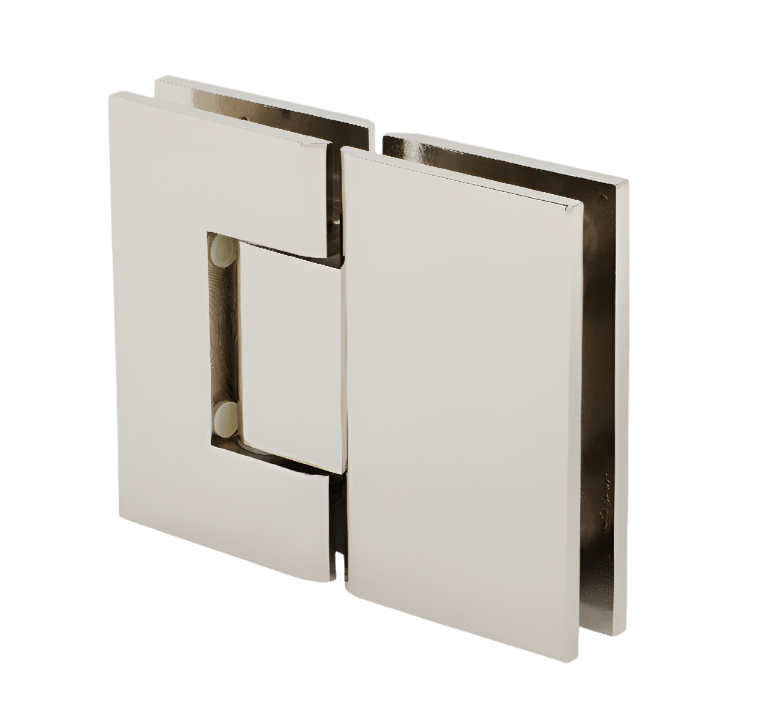

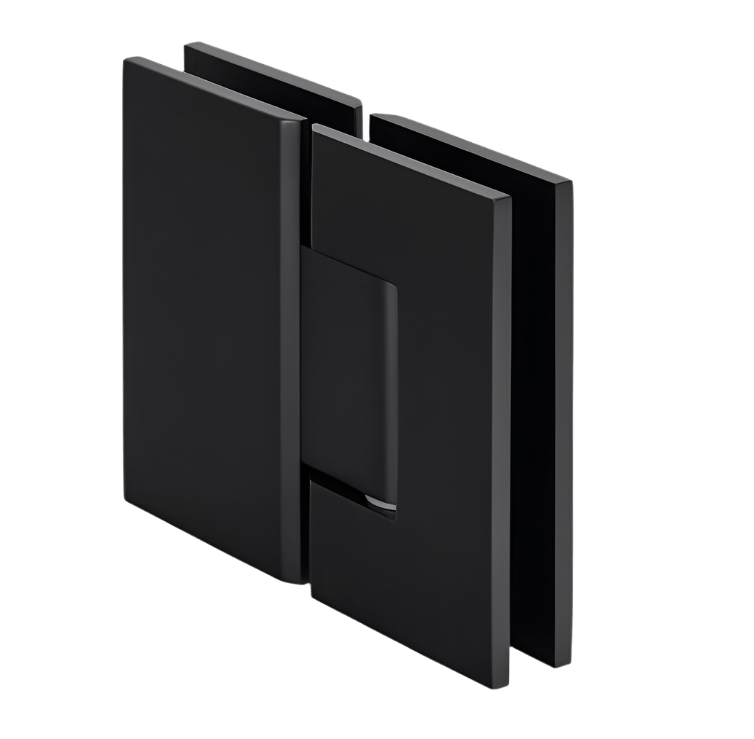

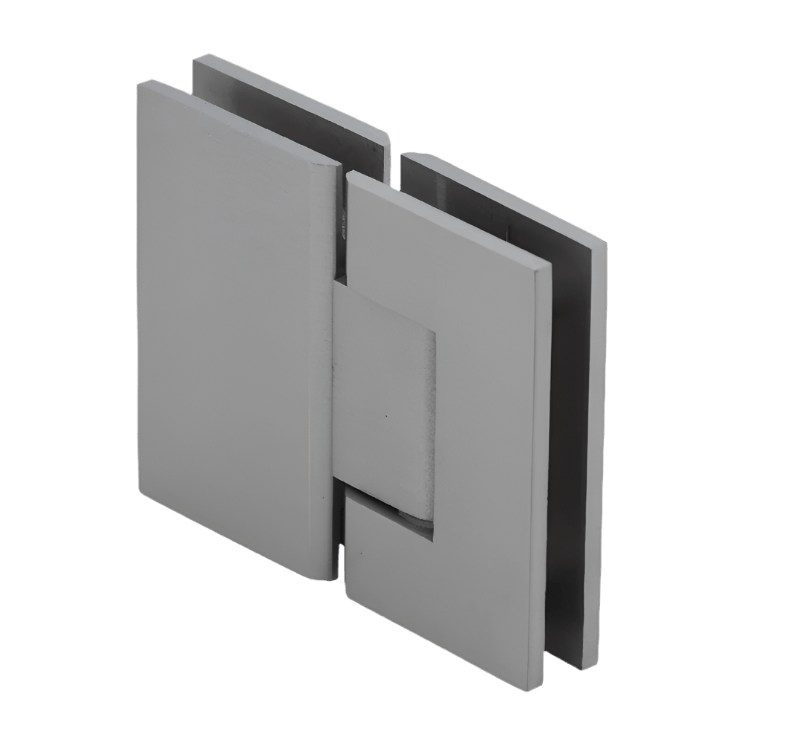

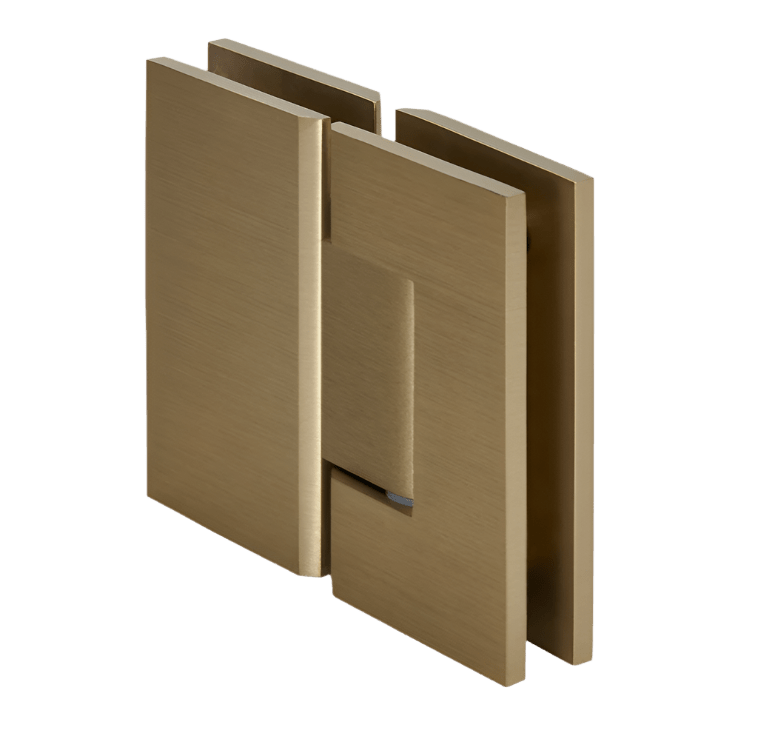

Geneva Series 180° Glass-to-Glass Hinge
Product Features
- 5 Degree Pre-Set: No
- Adjustable: No
- Edge Profile: Square
- Glass-to-Glass Angle: 180°
- Glazing Thickness: 5/16" to 1/2" (8 mm to 12 mm)

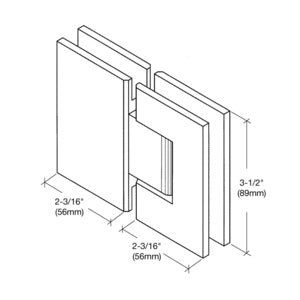

- Height: 3-1/2" (89 mm)
- Material: Brass
- Maximum Door Weight (2 Hinges): 80 lbs (36.3 kg)
- Maximum Door Weight (3 Hinges): 120 lbs (54.4 kg)
- Maximum Door Width (2 Hinges): 28" (711 mm)
- Maximum Door Width (3 Hinges): 32" (813 mm)
- Mounting Type: Glass-to-Glass
- Self-Centering: Yes
- Series: Geneva
- Door Portion Width: 2-3/16" (56 mm)
- Sidelite Portion Width: 2-3/16" (56 mm)
Product Overview
The Geneva Series 180° Glass-to-Glass Hinge is engineered for use with 5/16" to 1/2" (8 to 12 mm) monolithic tempered glass. Designed to deliver smooth operation and structural integrity, this hinge features a reversible pivot pin that allows the installer to choose between a 90° or 85° closing position.
Made from solid brass with stainless steel internal components, it offers durability, style, and ease of alignment. This model is perfect for inline glass installations and is compatible with residential and hotel shower applications.
Specifications
- Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
- Construction: Solid Brass
- Hinge Swing: 90° In and 90° Out
- Closing Type: Self-centering when within 15° of the closed position
- Cut-Out Required: Yes
- Included: Gaskets, screws, and fabrication dimensions
- Note: GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) glass
Important Information
- Use Only Included Template: Cut-out dimensions may vary by brand
- Application: For residential or hotel showers only
- For Non-Standard Use: Contact our technical department for approval
