CRL Hydraulic Patch Fitting with 2-9/16" Setback
CRL Hydraulic Patch Fitting with 2-9/16" Setback - Satin Anodized / No Hold Open is backordered and will ship as soon as it is back in stock.
Description
Description
Product Description + –
CRL380 Hydraulic Patch Fitting – Standard No Hold Open + –
CRL380 Hydraulic Patch Fitting – Standard No Hold Open
The CRL380 Series Hydraulic Patch Fitting is a medium-duty hydraulic hinge system designed for interior frameless glass door applications. Engineered with an integrated hydraulic closing mechanism, it eliminates the need for separate floor closers or overhead closing devices while maintaining a clean and minimalist appearance.
Designed for 3/8" to 1/2" tempered glass, this fitting provides smooth and controlled door operation with adjustable latching and swing speeds. The flush-mount design requires no floor hole, making installation cleaner and more efficient.
Key Features
- Pivot Point: 2-9/16" (65 mm)
- Glass Thickness: 3/8" to 1/2" (10 to 12 mm)
- Maximum Door Width: 39" (991 mm)
- Maximum Door Weight: 220 lbs (99.8 kg)
- Hydraulic System: Integrated hydraulic self-closing mechanism
- Adjustment: Adjustable latching and swing speed
- Installation: Flush mount – no floor hole required
- Application: Interior use only
- Compatibility: Must be used with PH21A top patches
Available Finishes
- Polished Stainless Steel
- Brushed Stainless Steel
- Satin Anodized
- Matte Black
Technical Specifications
| Specification | Details |
|---|---|
| Finish | Polished Stainless Steel |
| Glass Thickness | 3/8" to 1/2" (10 to 12 mm) |
| Height | 2-3/4" (70 mm) |
| Width | 1-5/8" (41 mm) |
| Hold Open | No |
| Maximum Door Width | 39" (991 mm) |
| Maximum Door Weight | 220 lbs (99.8 kg) |
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if required. These fittings are not compatible with stock NH36xx and NH72xx headers.
Stainless steel is corrosion resistant but not stain or rust proof. Periodic maintenance is recommended to preserve the original finish.
Compliance & Restrictions:
Warning Reproductive Harm - www.p65warnings.ca.gov
Technical References & CAD Drawings
CRL380 Hydraulic Patch Fitting – Hold Open + –
CRL380 Hydraulic Patch Fitting – Hold Open
The CRL380 Hydraulic Patch Fitting with Hold Open combines smooth hydraulic closing action with a built-in hold-open feature for frameless interior glass doors. Designed for modern architectural applications, this system provides reliable door control without requiring additional floor closers or overhead devices.
The integrated hydraulic mechanism allows adjustable latching and swing speed while supporting tempered glass doors up to 220 lbs. The hold-open function provides additional convenience for commercial and residential applications.
Key Features
- Pivot Point: 2-9/16" (65 mm)
- Glass Thickness: 3/8" to 1/2" (10 to 12 mm)
- Maximum Door Width: 39" (991 mm)
- Maximum Door Weight: 220 lbs (99.8 kg)
- Hydraulic System: Integrated hydraulic closing mechanism
- Hold Open: Yes
- Adjustment: Adjustable latching and swing speed
- Installation: Flush mount – no floor hole required
- Application: Interior use only
- Compatibility: Must be used with PH21A top patches
Available Finishes
- Polished Stainless Steel
- Brushed Stainless Steel
- Satin Anodized
- Matte Black
Technical Specifications
| Specification | Details |
|---|---|
| Finish | Polished Stainless Steel |
| Glass Thickness | 3/8" to 1/2" (10 to 12 mm) |

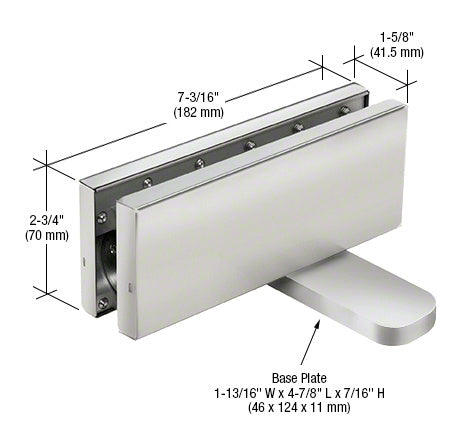

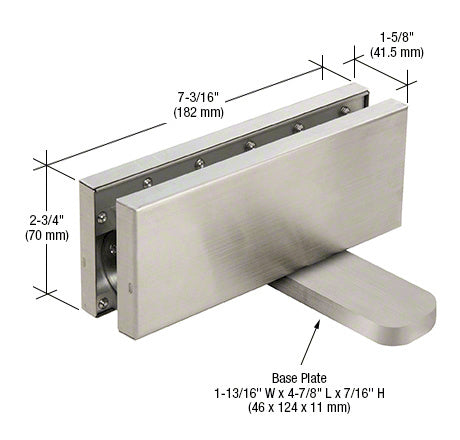

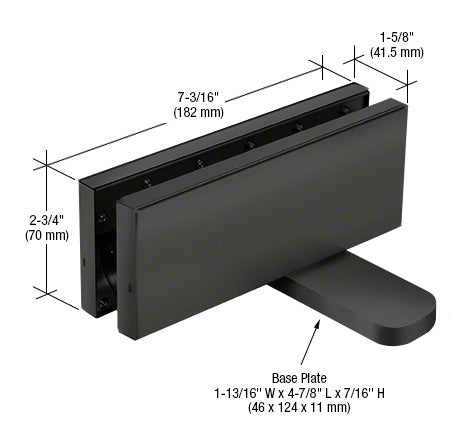

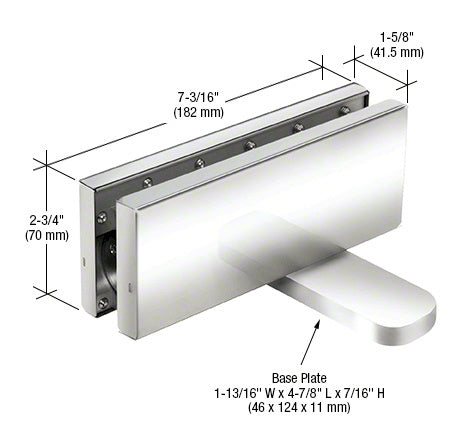

| Height | 2-3/4" (70 mm) |
| Length | 7-3/16" (183 mm) |
| Width | 1-5/8" (41 mm) |
| Hold Open | Yes |
| Pivot Setback | 2-9/16" |
| Maximum Door Width | 39" (991 mm) |
| Maximum Door Weight | 220 lbs (99.8 kg) |
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if required. These fittings are not compatible with stock NH36xx and NH72xx headers.
Stainless steel is corrosion resistant but not stain or rust proof. Periodic maintenance is recommended to preserve the original finish.
Compliance & Restrictions:
Warning Reproductive Harm - www.p65warnings.ca.gov
Technical References & CAD Drawings
