Hydraulic Patch All-Glass Door Set

Technical Specifications

• Glass Thickness: 3/8" and 1/2" (10 mm, 12 mm)
• Maximum Door Width: 39" (991 mm)
• Maximum Weight: 220 lbs (99.8 kg)
• Pivot Setback: 2-9/16" (65 mm)
• Use: Interior applications only

Product Overview

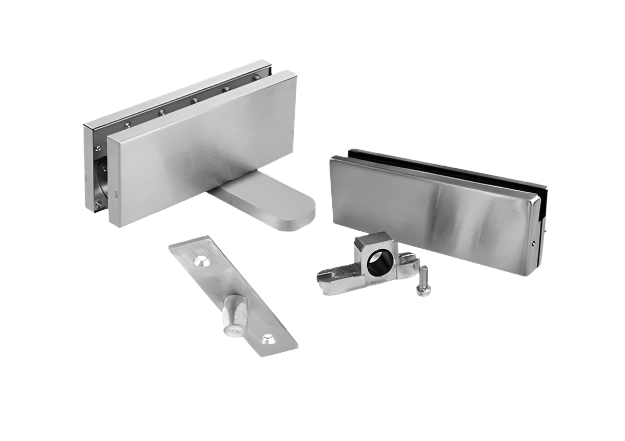

This hydraulic patch all-glass door set includes a hydraulic patch fitting with backcheck, a top door patch fitting, and a top center-hung free swing pivot. It is designed for tempered glass doors and provides smooth, controlled door operation.

The flush-mount design eliminates the need for a floor hole, making it an ideal solution for modern interior glass door installations.

Product Features

• Hydraulic system: Ensures controlled and smooth door closing
• Backcheck function: Helps prevent door slamming
• Flush mount design: No floor hole required
• Heavy-duty capacity: Supports doors up to 220 lbs
• Complete system: Includes patch fittings and pivot components

Applications

• Interior glass doors
• Commercial entrances
• Office partitions

Important Notes

• Custom headers with 2-9/16" pivot points may be required
• Not compatible with stock NH36xx and NH72xx systems
• Regular maintenance recommended for stainless steel components
