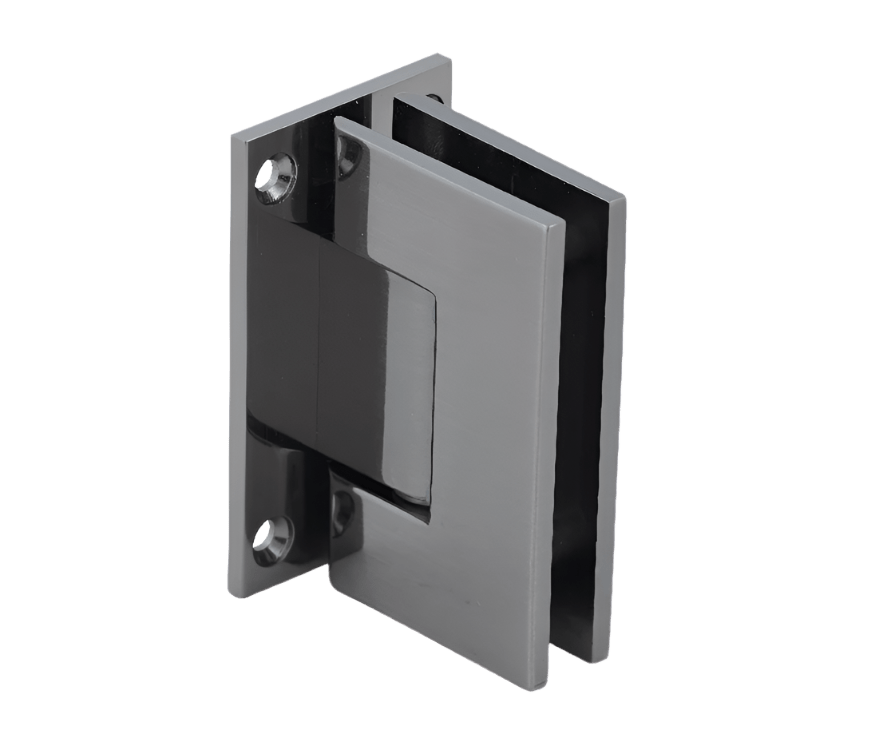

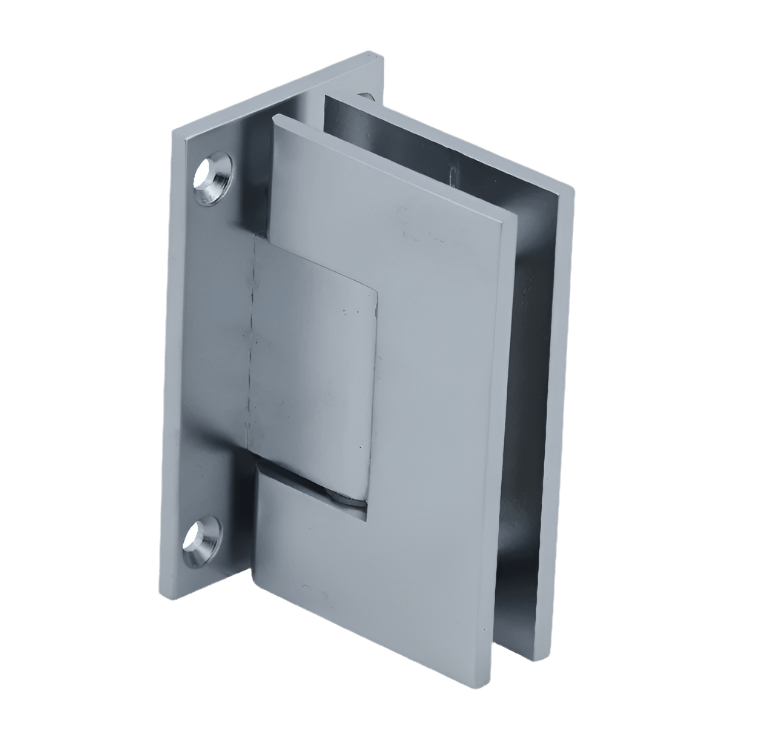

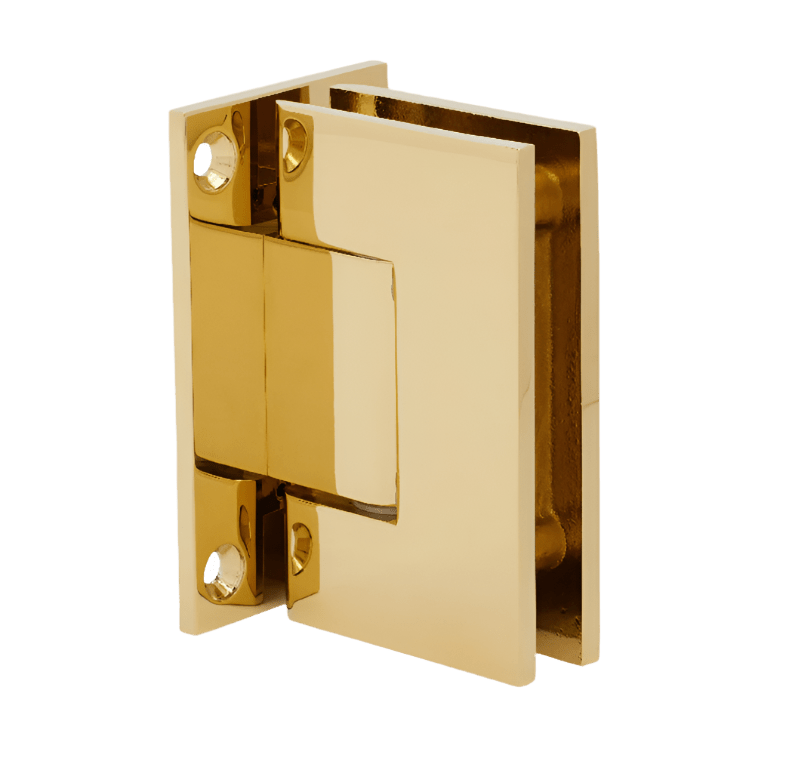

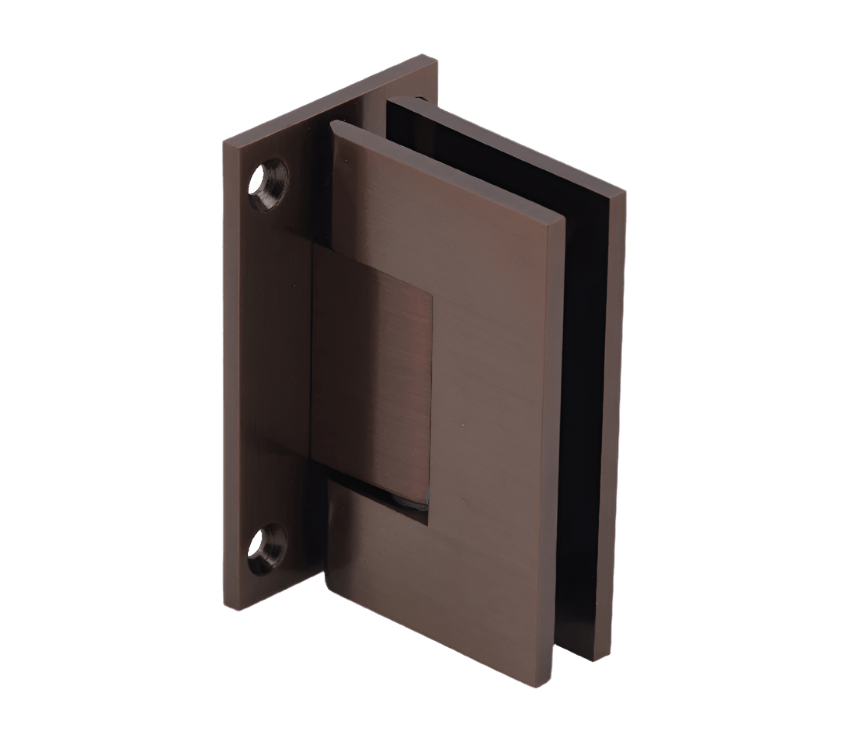

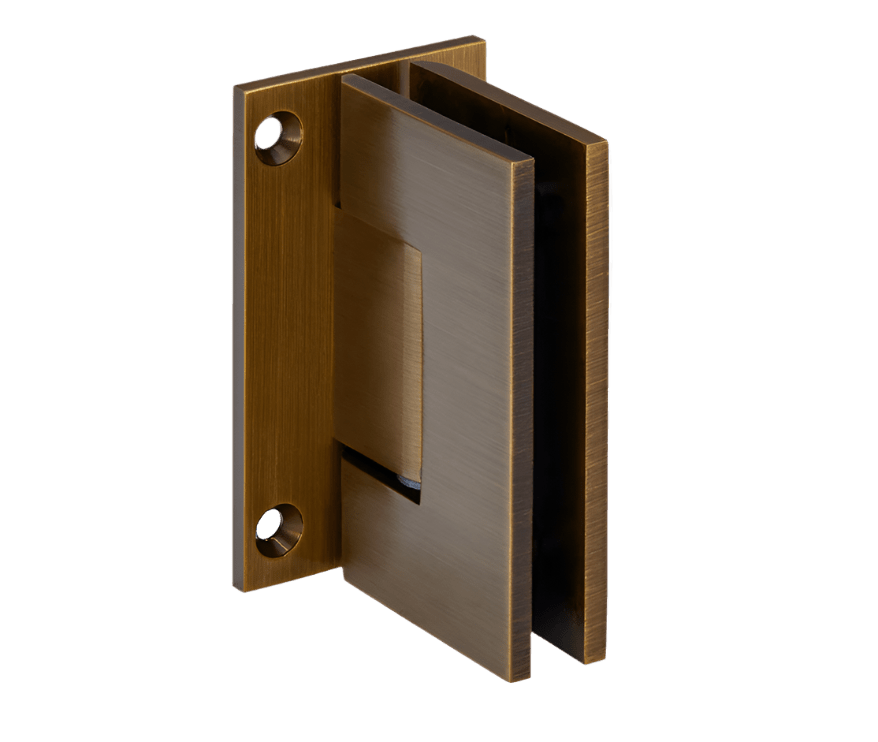

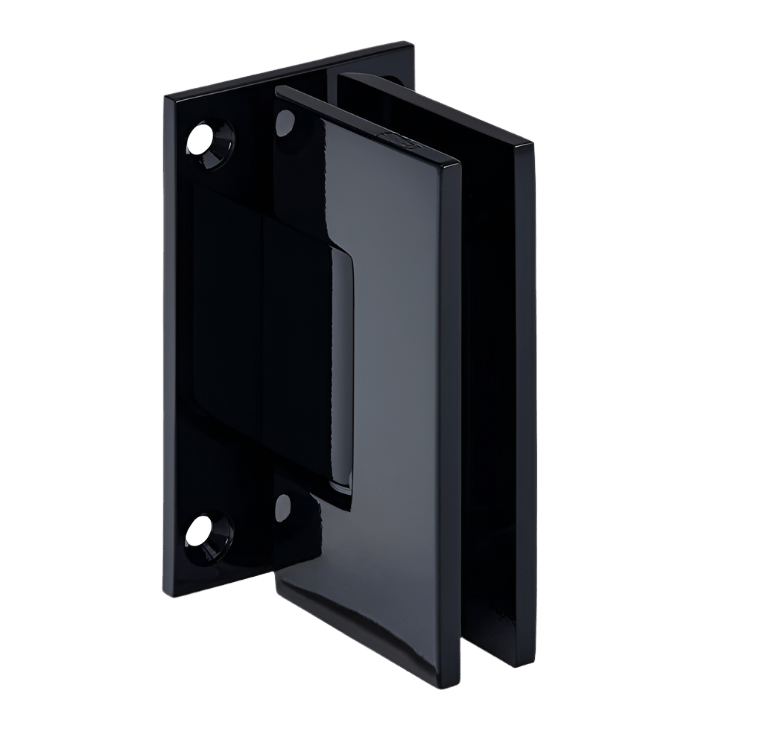

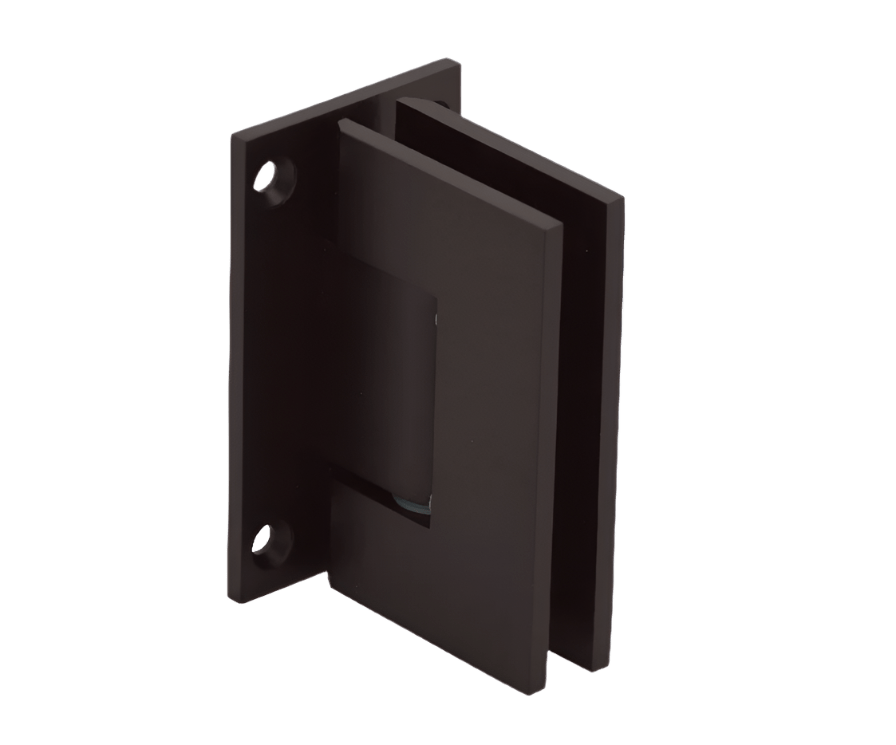

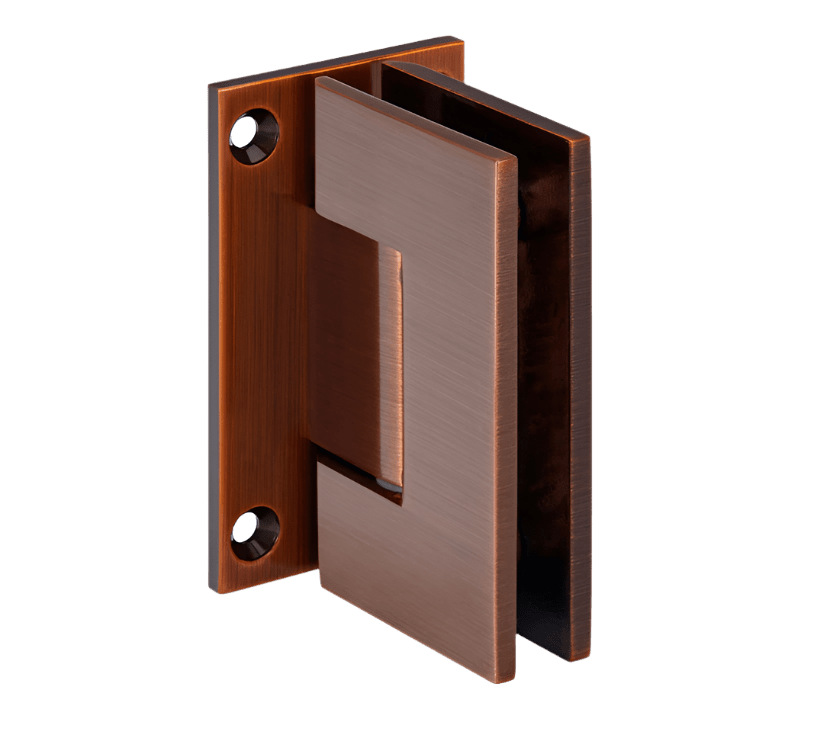

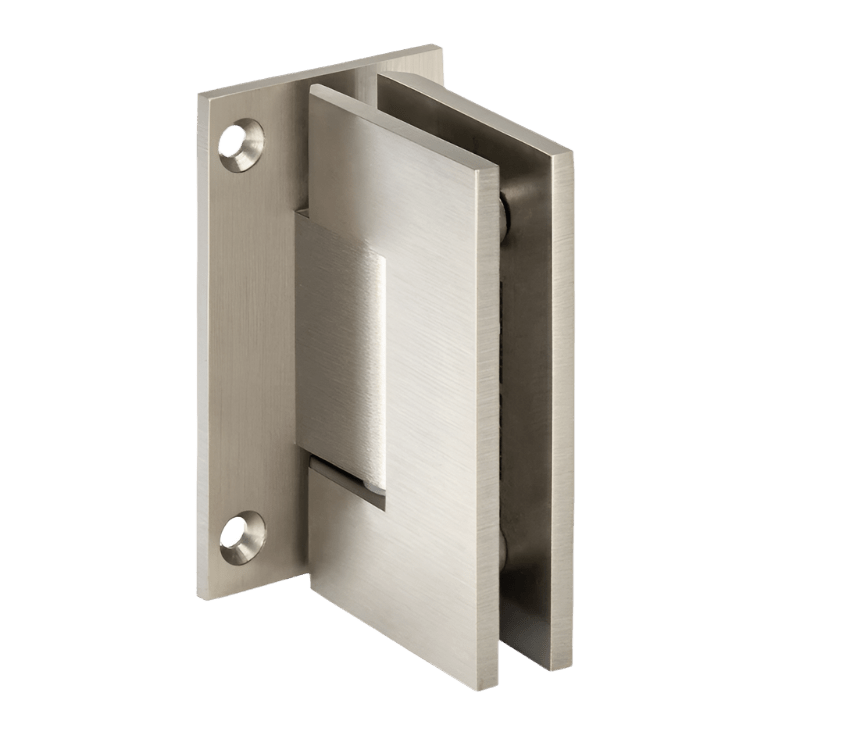

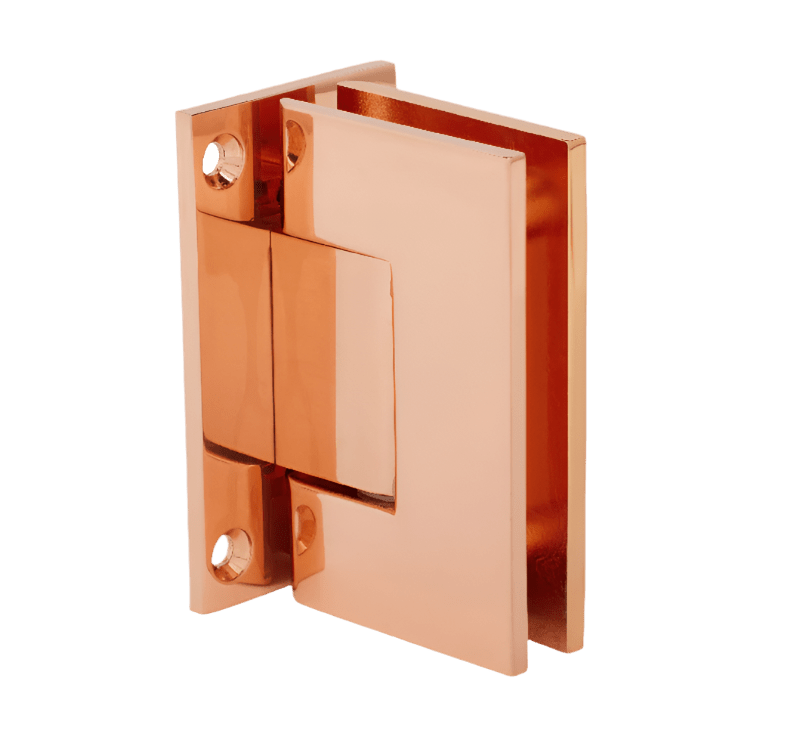

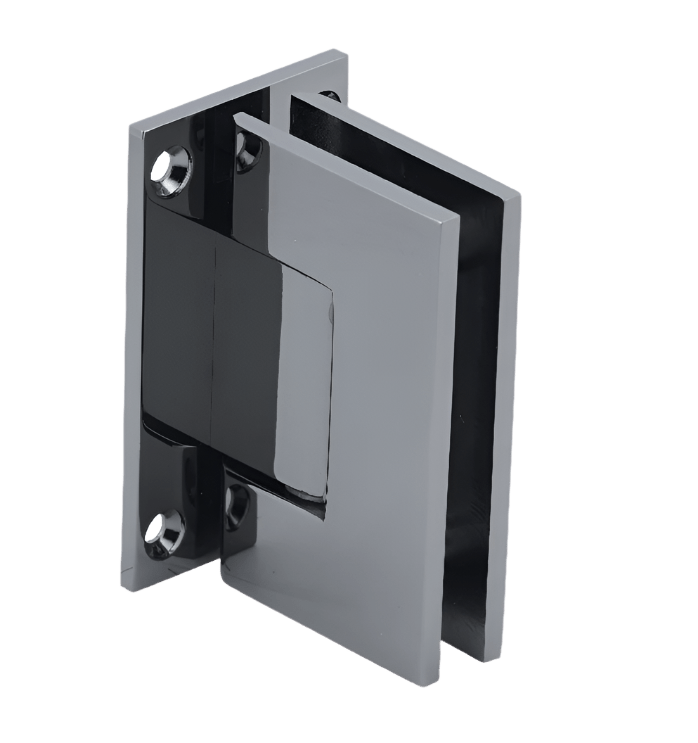

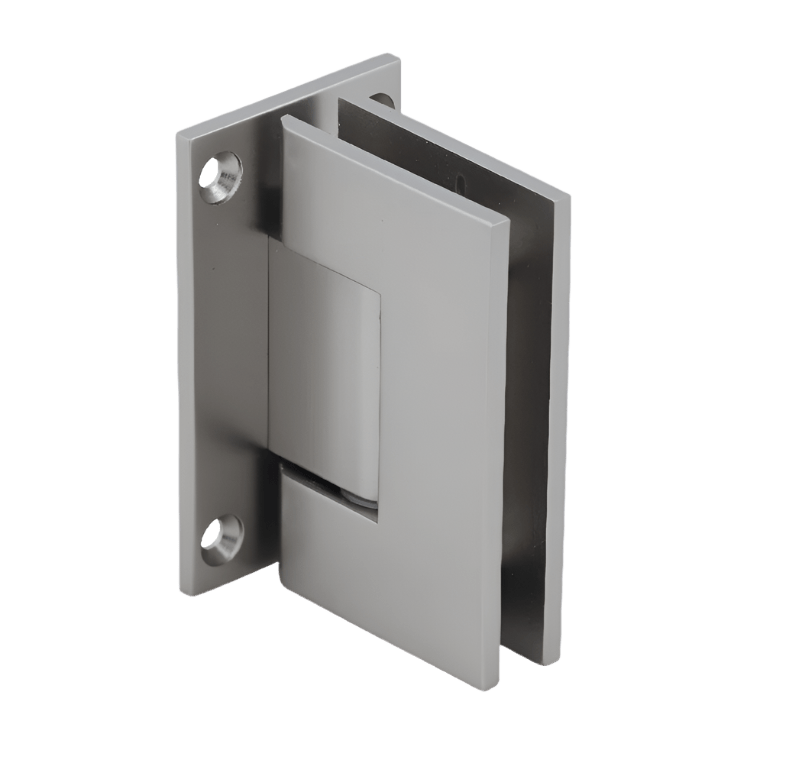

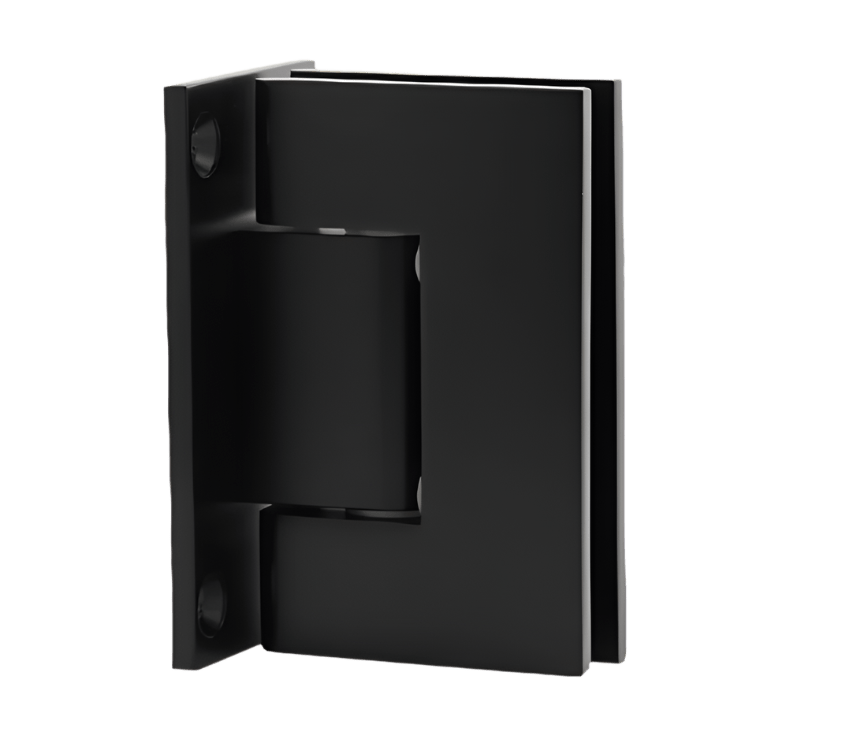

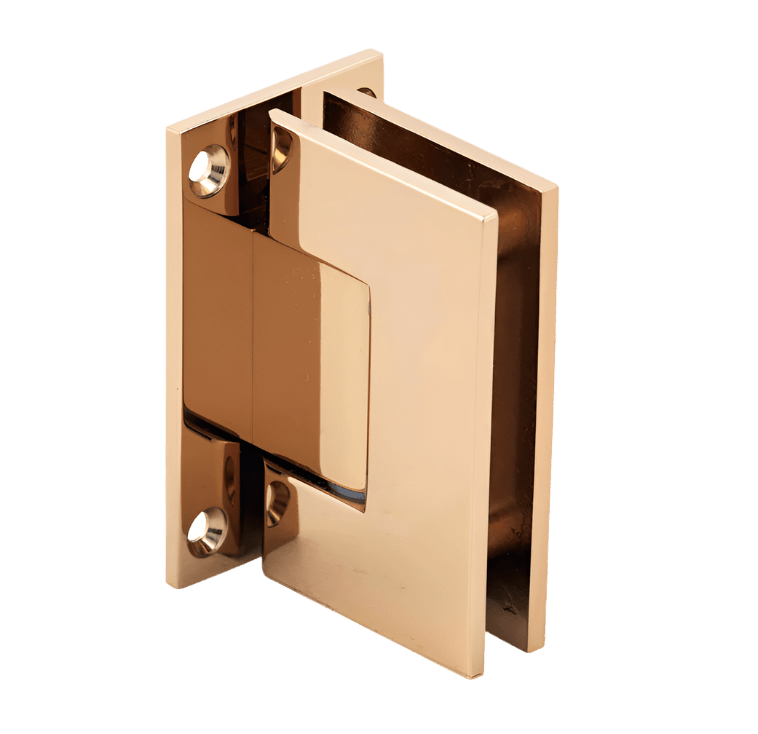

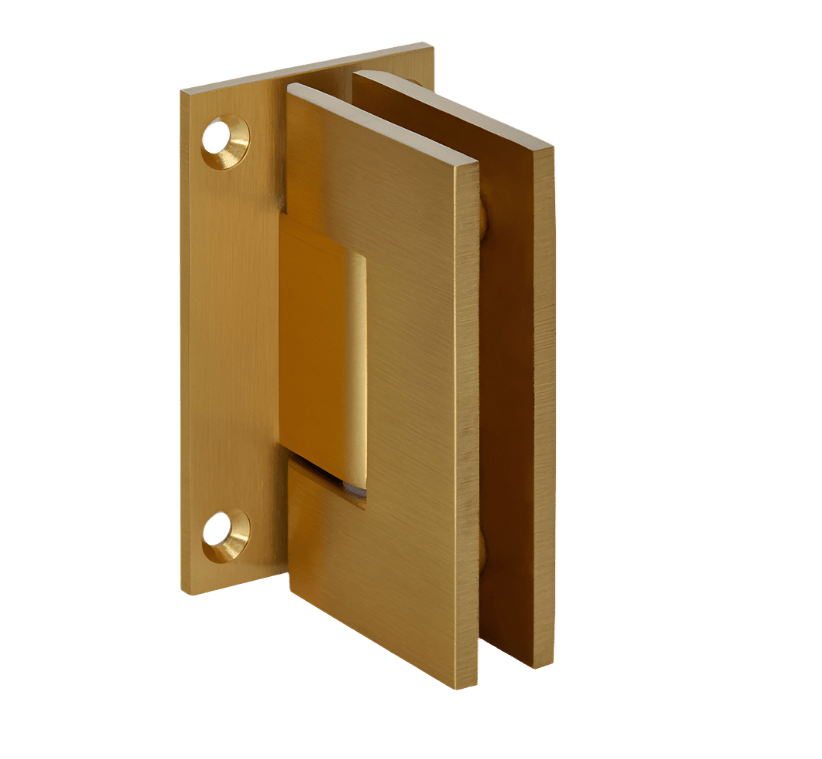

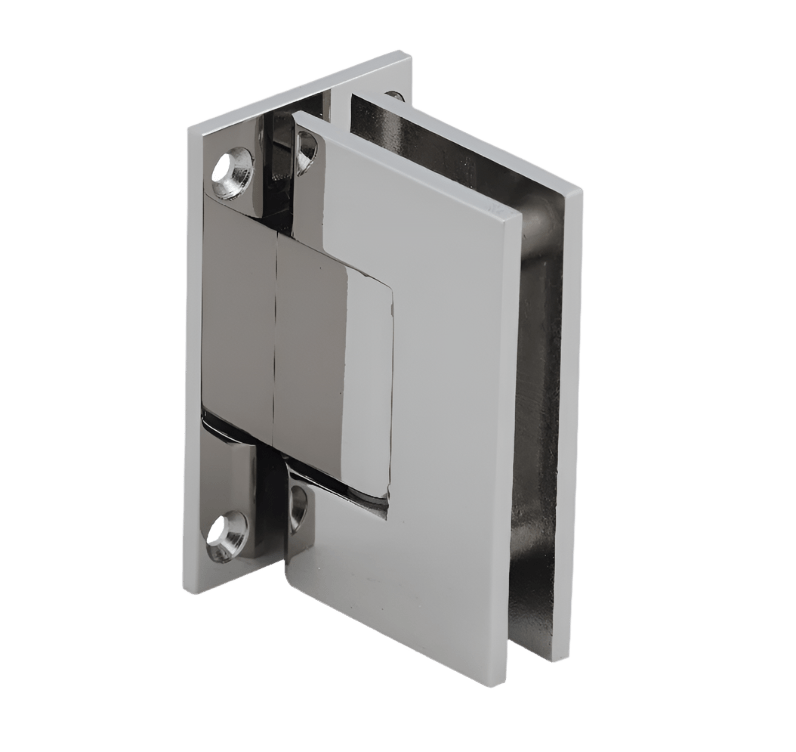

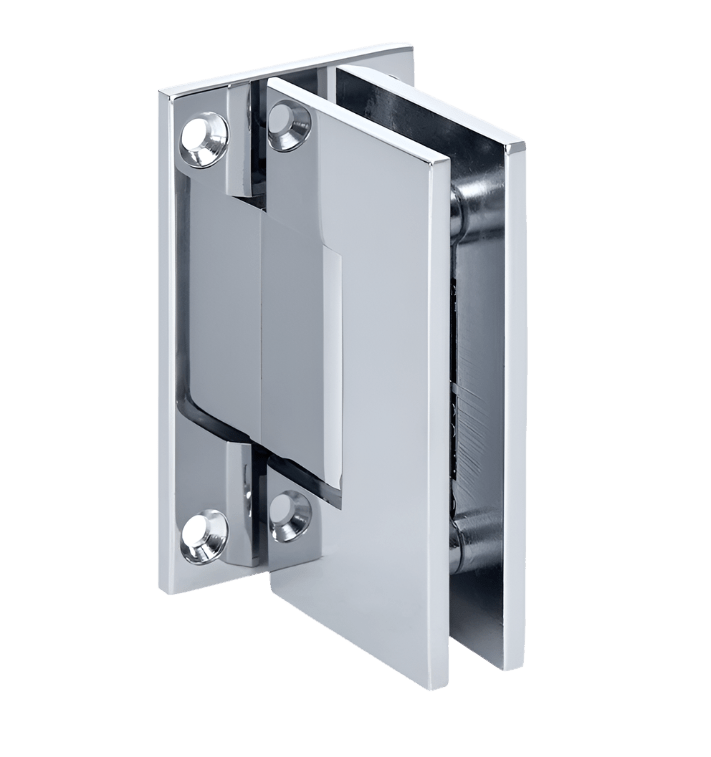

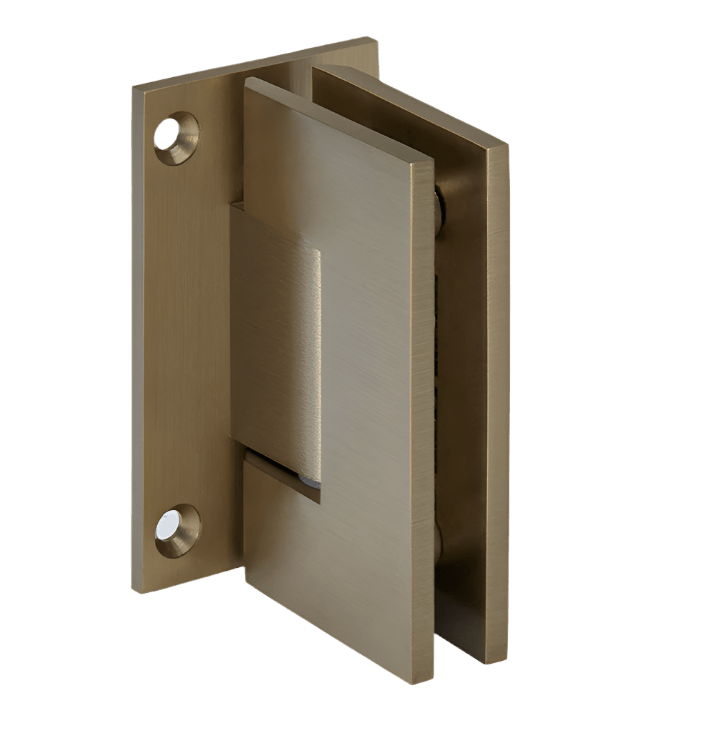

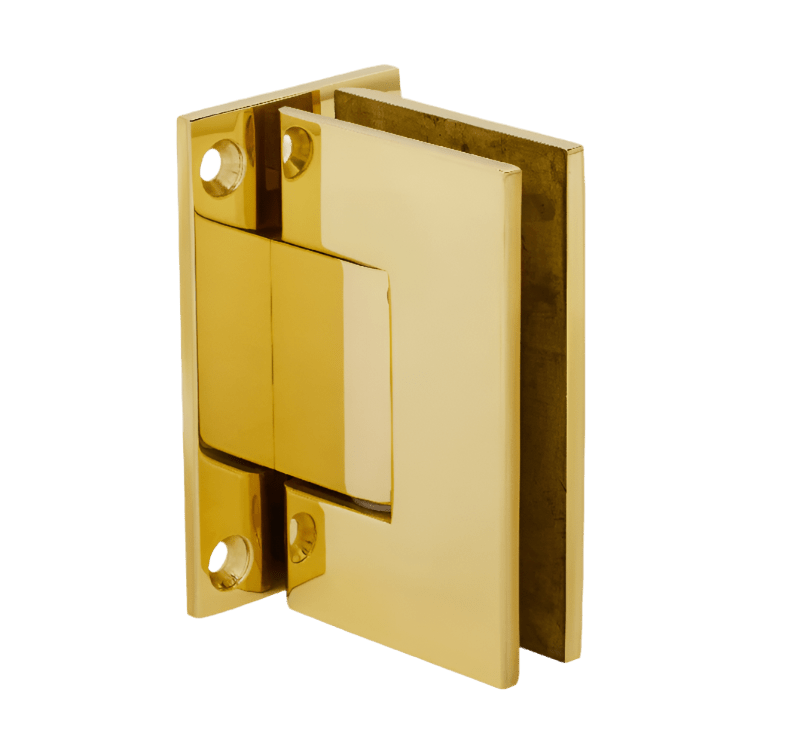

Geneva Series Full Back Plate Wall Mount Hinge

Product Overview

The Geneva Series Full Back Plate Wall Mount Hinge is designed for 5/16" to 1/2" (8–12 mm) tempered glass. It features a reversible pivot pin allowing either a 90° or 85° closing position, with a full 90° in and out swing. Built from solid brass with stainless steel internal components, it ensures durability, smooth operation, and a clean architectural look.

Product Features

• Wall mount hinge with full back plate
• Supports 5/16" to 1/2" tempered glass
• Reversible pivot pin (90° / 85° closing)
• Self-centering within 15°
• Solid brass construction
• 90° in / 90° out swing

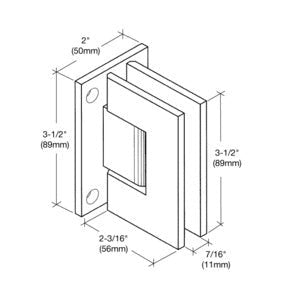

Technical Specifications

• Glass Thickness: 5/16" to 1/2" (8–12 mm)
• Max Weight (2 Hinges): 80 lbs
• Max Weight (3 Hinges): 120 lbs
• Max Door Width: 28" to 32"
• Material: Brass
• Mounting Type: Wall Mount
• Self-Centering: Yes

Included Product(s)

• Hinge
• Gaskets
• Screws
• Installation template

Important Notes

• GEN13 gasket required for 5/16" glass
• Use provided template for proper cut-out
• For residential and hotel shower applications only
