Fixed Panel Shower Door Deep U-Channel

CRL Deep U-Channel — Fixed Glass Panels

Product Overview

Deep U-Channel designed to secure fixed tempered glass panels to walls, ceilings, or floors. The 3/4" (19 mm) high profile provides strong glass engagement and can be paired with standard U-Channels for complete installations.

Ideal for frameless shower enclosures and architectural glass applications, it installs using clear neutral silicone (wet glaze) for a clean and secure finish.

Product Features

• Compatible with 3/8" and 1/2" (10 mm & 12 mm) tempered glass
• Deep pocket design for enhanced panel stability
• Can be combined with regular-depth U-Channel
• Individually wrapped to protect finish
• Available in multiple finishes
• End caps available for clean edge finishing

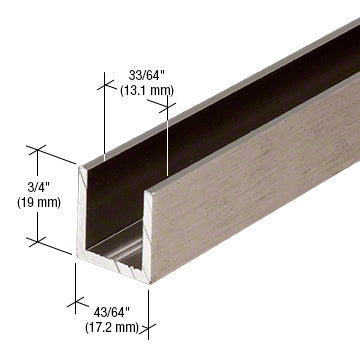

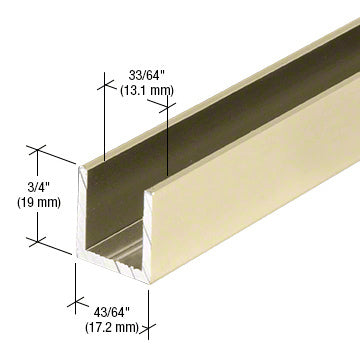

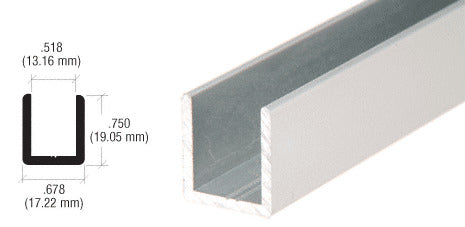

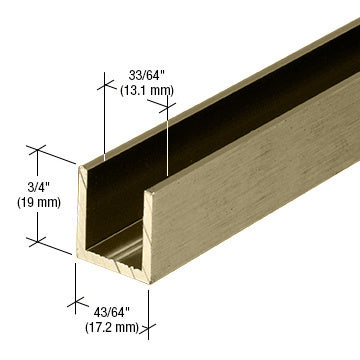

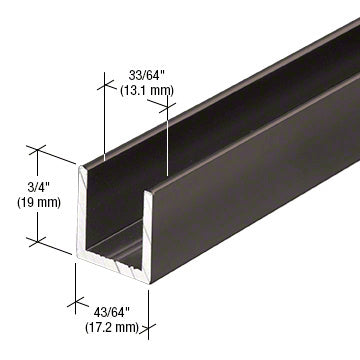

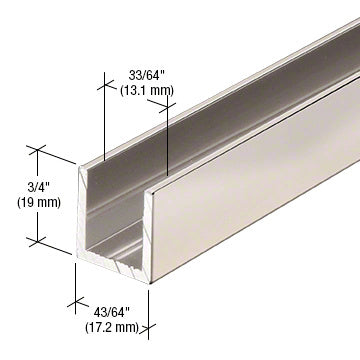

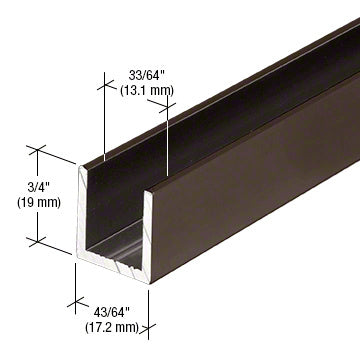

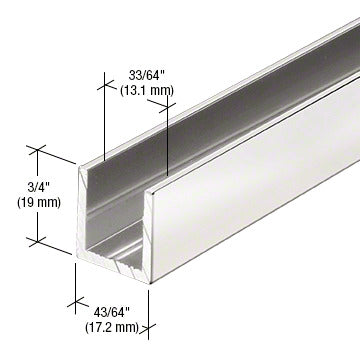

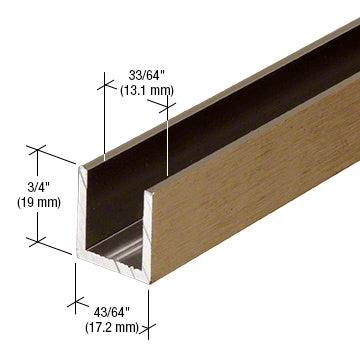

Variant — 1/2" (12 mm) Glass

Glazing Pocket	0.518"
Glass Thickness	1/2" (12 mm)
Height	3/4" (19 mm)
Length	95" (2413 mm)
Width	11/16" (17.1 mm)
Material	Aluminum

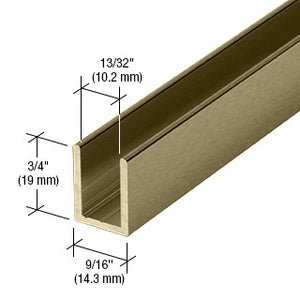

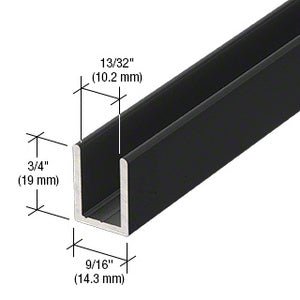

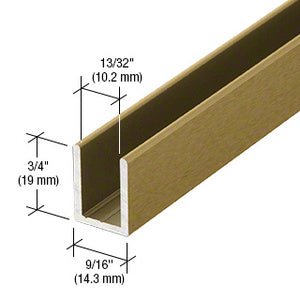

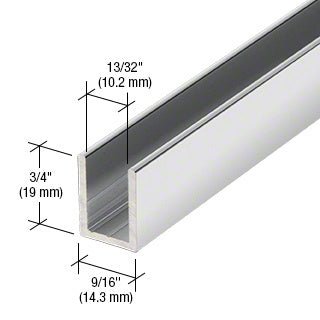

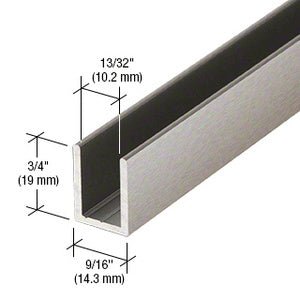

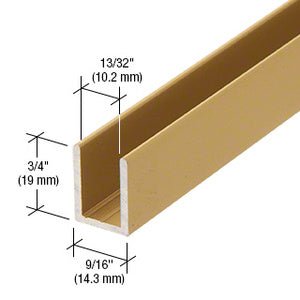

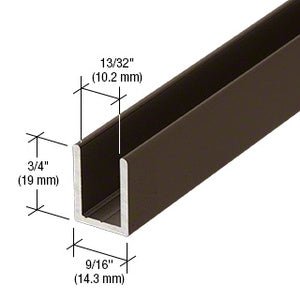

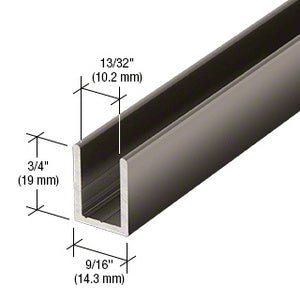

Variant — 3/8" (10 mm) Glass

Glazing Pocket	13/32" (10.32 mm)
Glass Thickness	3/8" (10 mm)
Height	3/4" (19 mm)
Lengths	95" / 144"
Width	9/16" (14 mm)
Material	Aluminum

Applications

• Frameless shower enclosures
• Fixed glass panels
• Architectural glass installations

Installation Notes

• Use clear neutral silicone (wet glaze) for installation
• Designed for monolithic tempered glass only
• End caps recommended for exposed edges

Important Notes

• Shipping weights are approximate
• Finish/color may vary depending on display settings
