CRL Edge Grip – 1-1/4" (31.8 mm) Diameter,

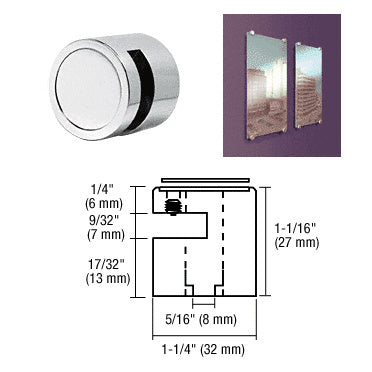

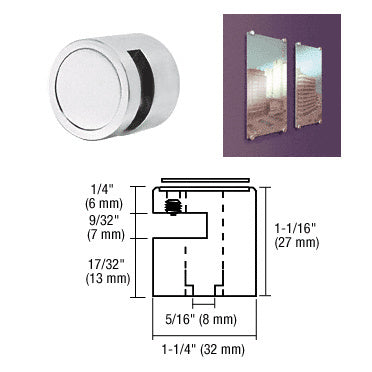

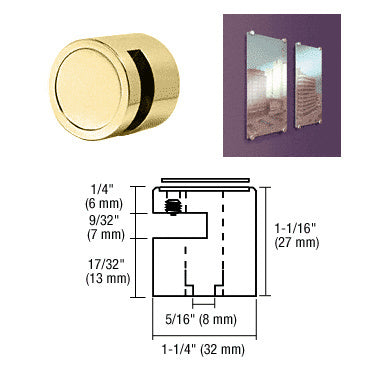

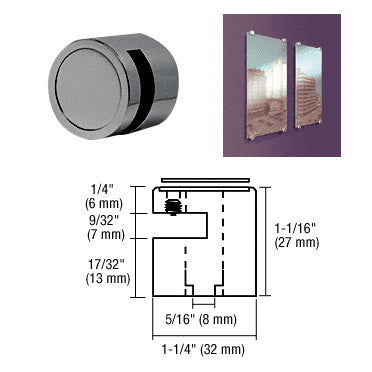

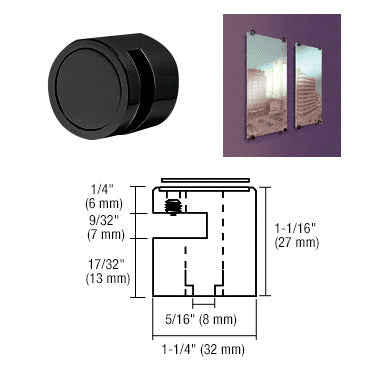

Specifications

• Diameter: 1-1/4" (31.8 mm)
• Glazing Thickness: 1/4" (6 mm)
• Height: 1-1/16" (27 mm)
• Material: Brass

Product Overview

CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held without drilling holes in the face material, enabling quick installation or adjustment. Recommended for use on corners and edges, these 1-1/4" (32 mm) diameter grips are compatible with CRL standoffs.

For heavier panels, it is advised to use Edge Grips at the top, bottom, and sides to maximize support. Supplied with an EGCS socket head cap screw.

Key Features

• No drilling required in glass or panel materials.
• For 1/4" (6 mm) material thickness.
• Usable on corners and edges of panels.
• Supplied with EGCS socket head cap screw.
• Available in multiple finishes: brass, chrome, satin chrome, brushed stainless, and gun metal.

Product Warning

For maximum support, CRL Edge Grips should be installed at the top, bottom, and sides of heavier panels. Shipping weights are approximate and may not be verified. If exact weight is needed for freight calculation, please contact GlassParts Customer Service.

Product images may differ slightly due to monitor settings. Brass finishes may tarnish over time due to oxidation.

Technical References

• Brass Finish Disclaimer
