C. R. Laurence

CRL Beveled Hole-in-Glass Style Wall Mount Heavy-Duty Glass Clamp

$22.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product Details + –

CRL Beveled Wall Mount Clamp

Product Overview

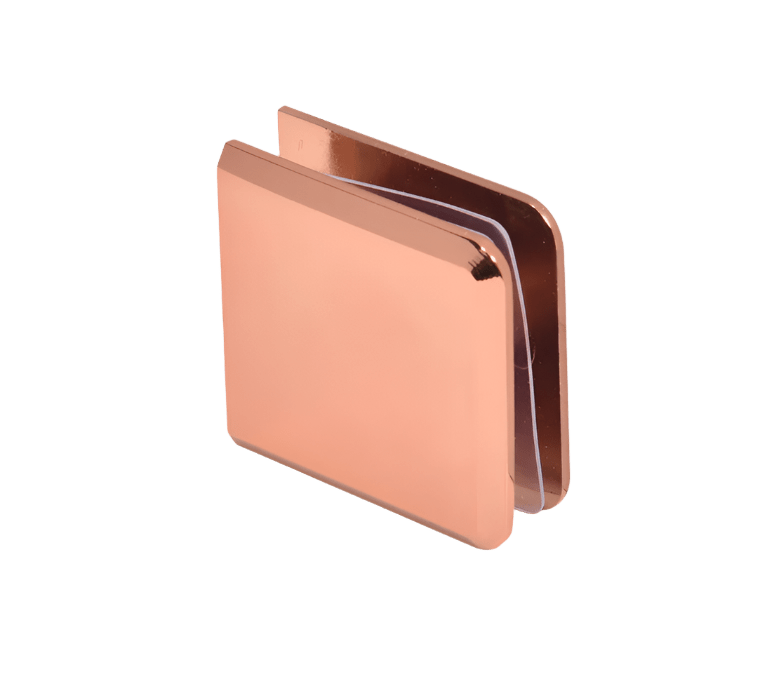

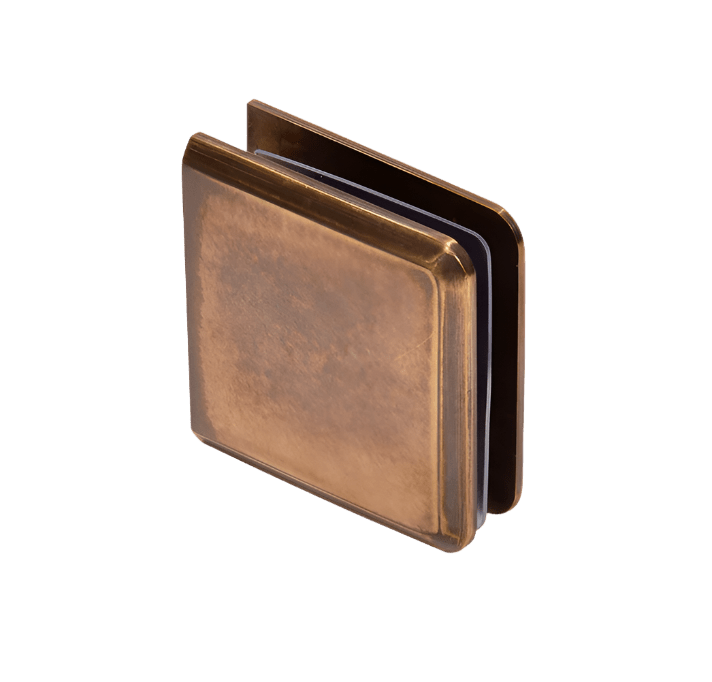

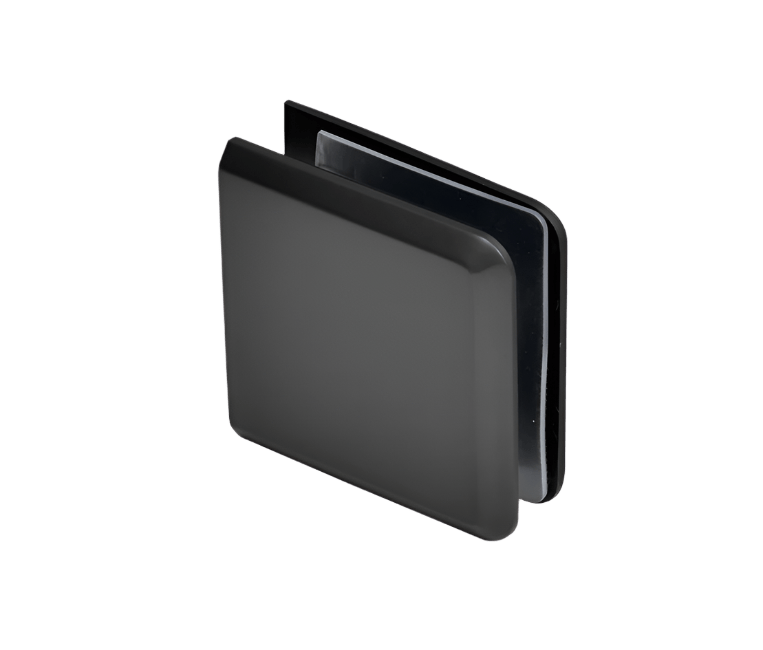

CRL Beveled Wall Mount Clamps (Hole‑in‑Glass Style) securely fasten 3/8" to 1/2" (10–12 mm) monolithic tempered glass panels in frameless shower enclosures. Mount directly to the wall, ceiling, or floor to achieve a clean, minimalistic all‑glass appearance as an elegant alternative to traditional U‑channels. A 3/16" (5 mm) clearance between the glass and mounting surface allows sealing with clear silicone for a neat, water‑resistant finish. Made from solid brass and available in multiple finishes to coordinate with CRL hardware.

Product Features

Design Style: Beveled
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Glazing Thickness: 3/8" to 1/2" (10–12 mm)
Material: Brass
Mounting Type: Wall / Ceiling Mount
Replacement Clamping Screw: P6150RB

Specifications

Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10–12 mm)

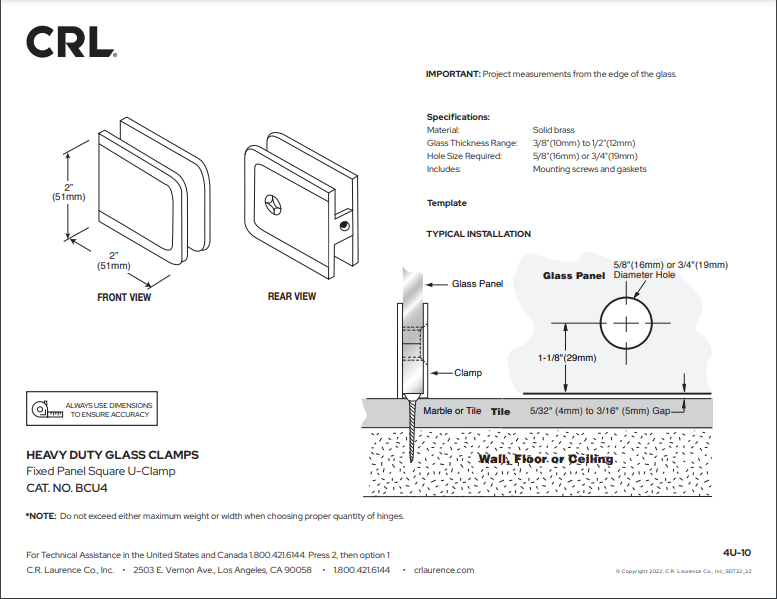

Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037, BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Product Advisory

Installation: Glass fabrication is required for clamp compatibility
Appearance: Actual color/finish may vary due to monitor and lighting settings
Shipping: If exact shipping weight is needed to calculate costs, please contact GlassParts Customer Service prior to ordering

Material Finish Advisory

For care and finish notes, consult the Brass Finish information linked below.

Technical Documents
