CRL Series Square Tubing Back-to-Back Pull Handle

CRL SQ Series Square Corner Handle

Product Overview

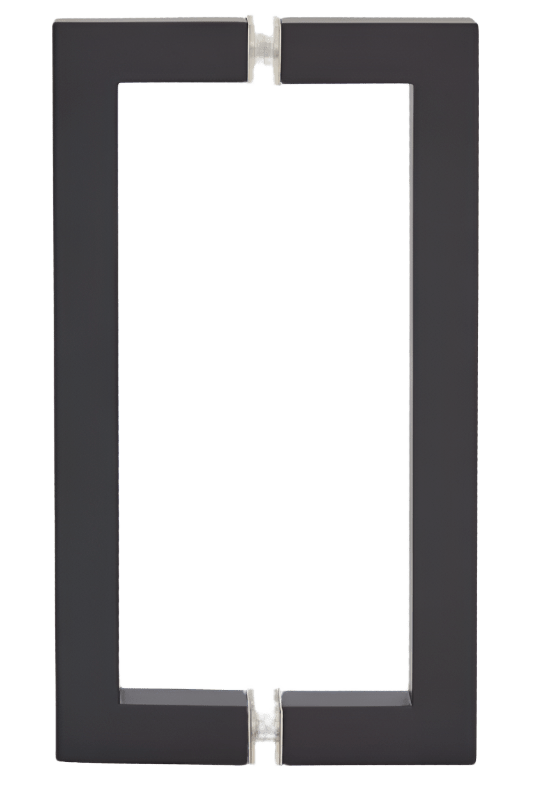

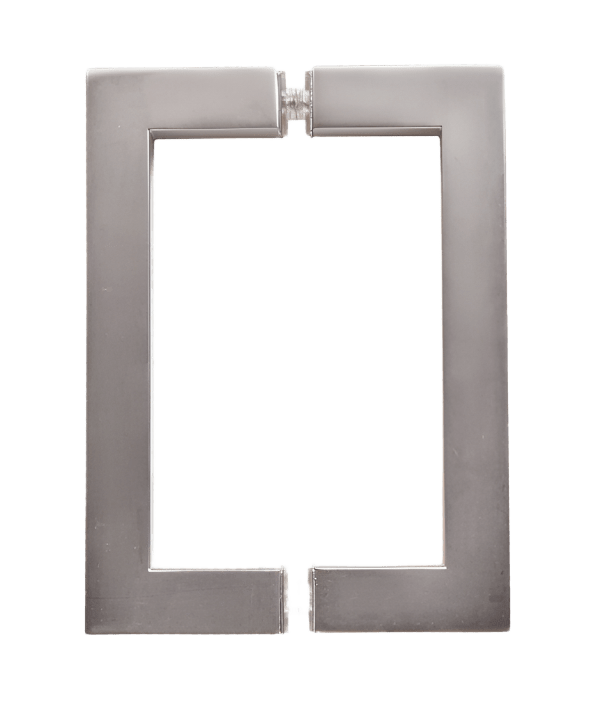

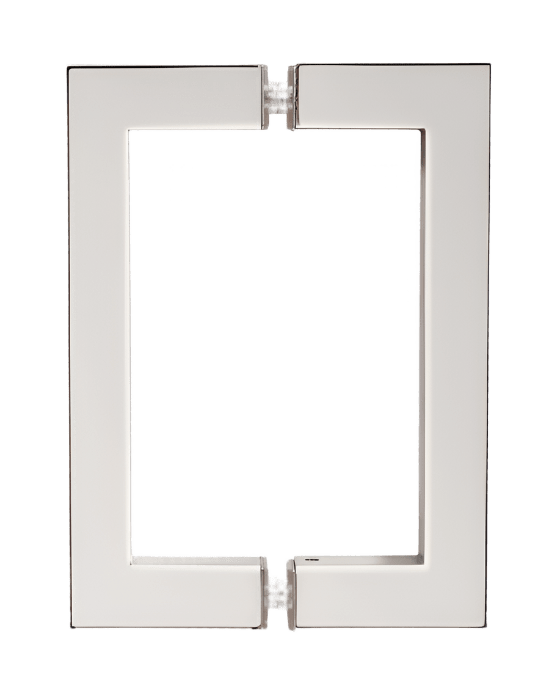

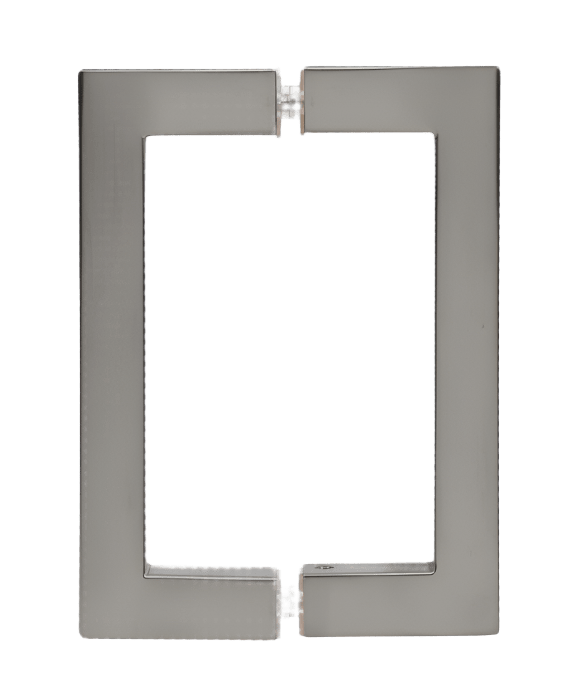

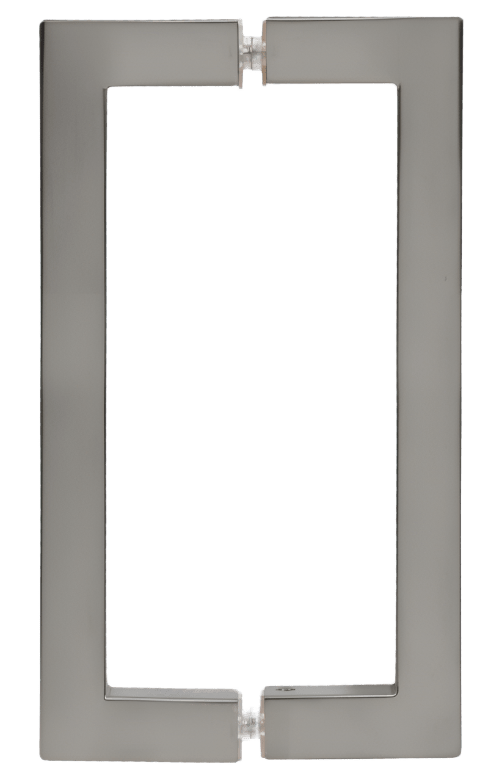

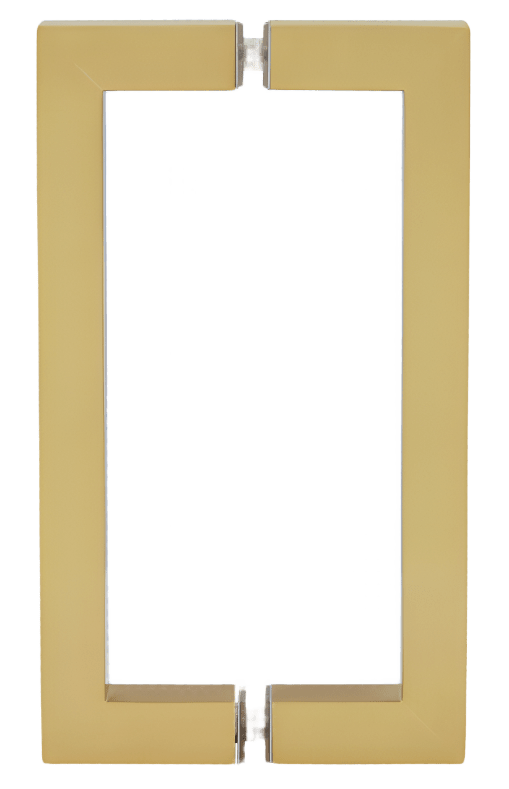

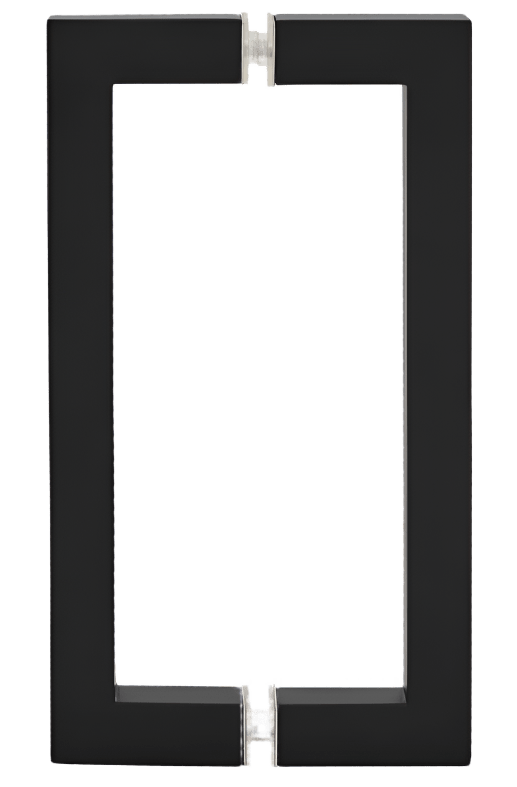

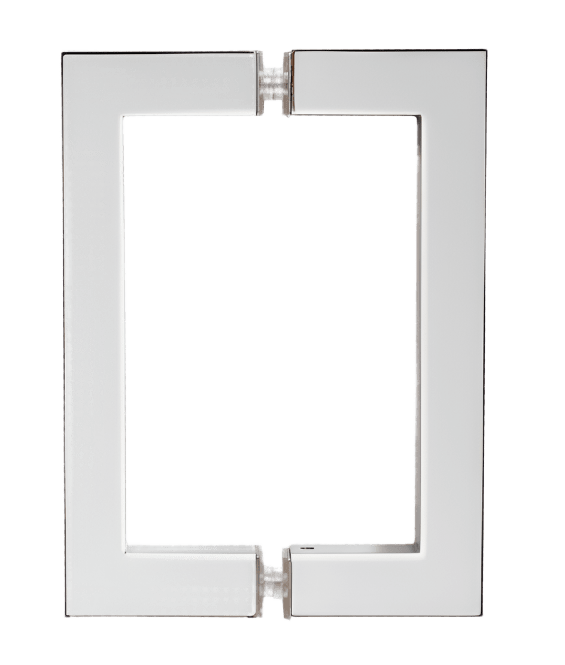

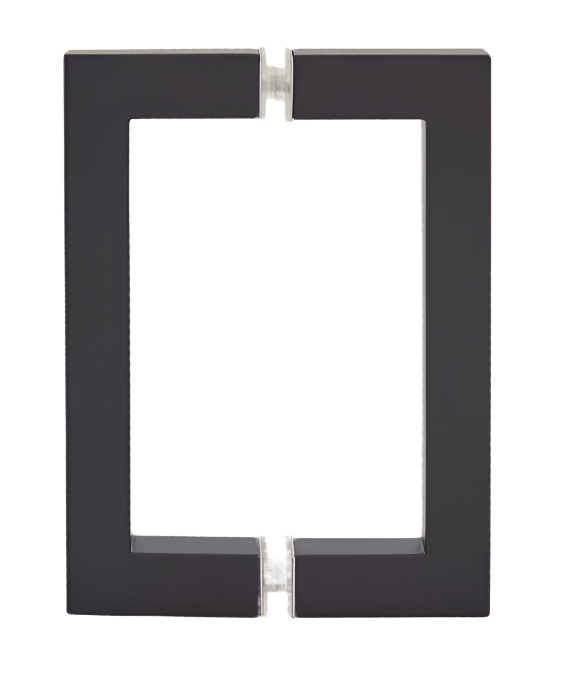

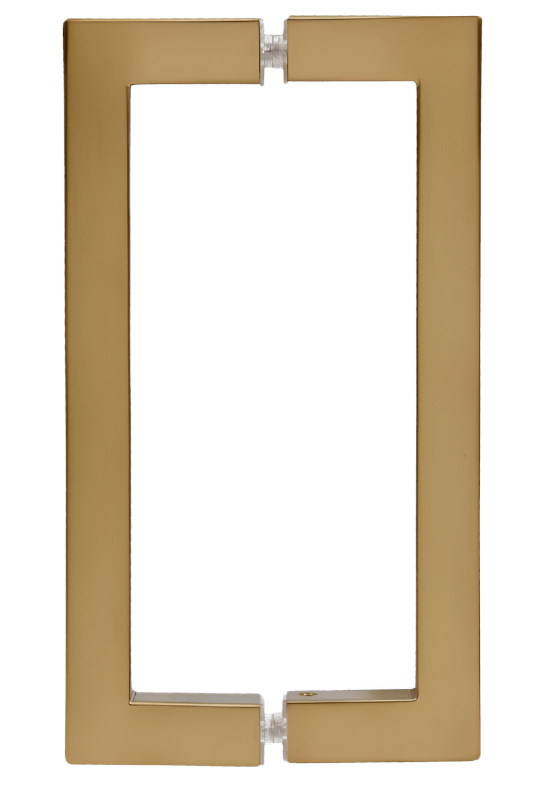

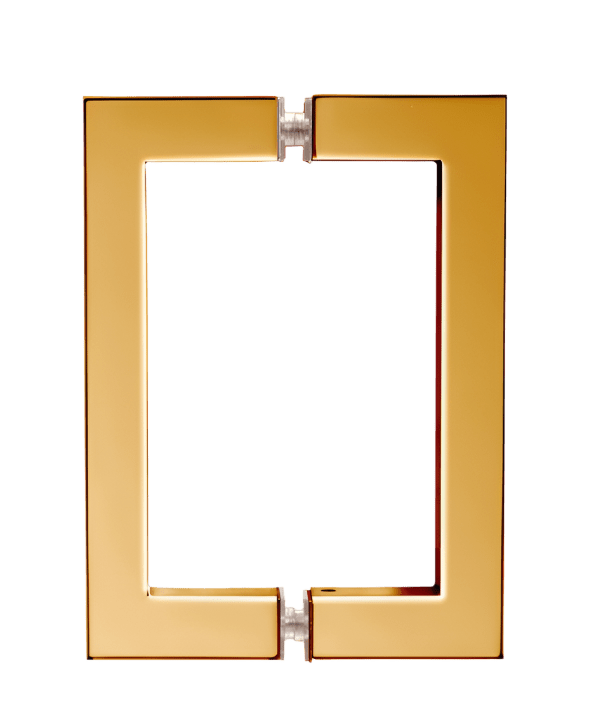

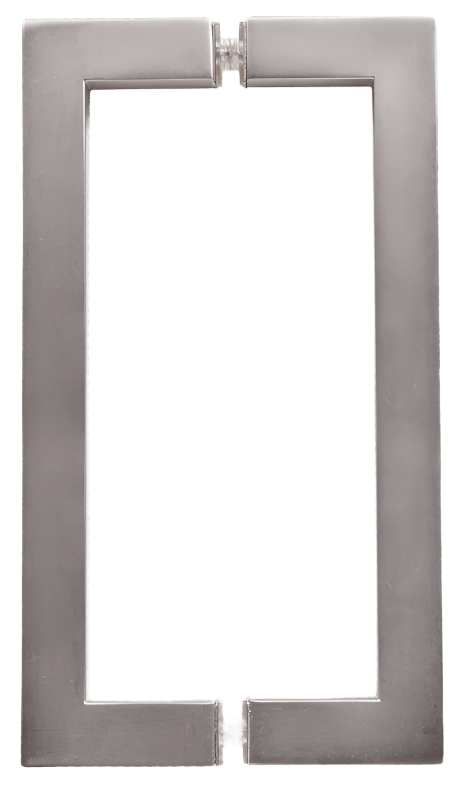

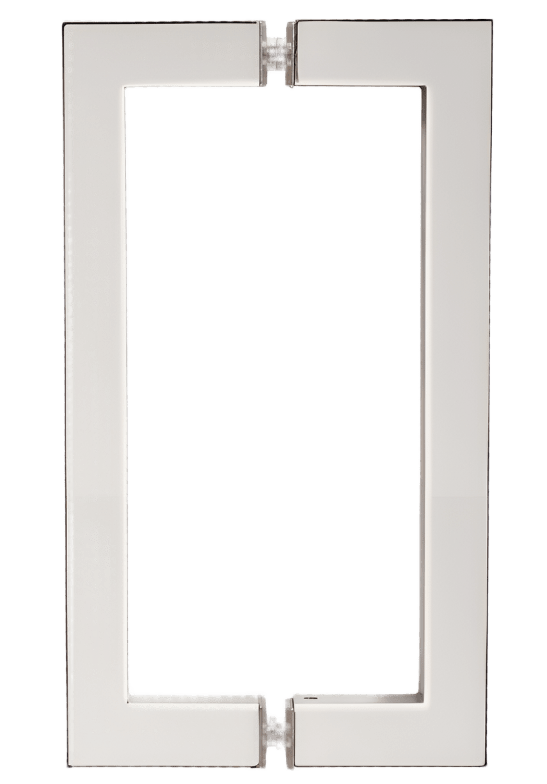

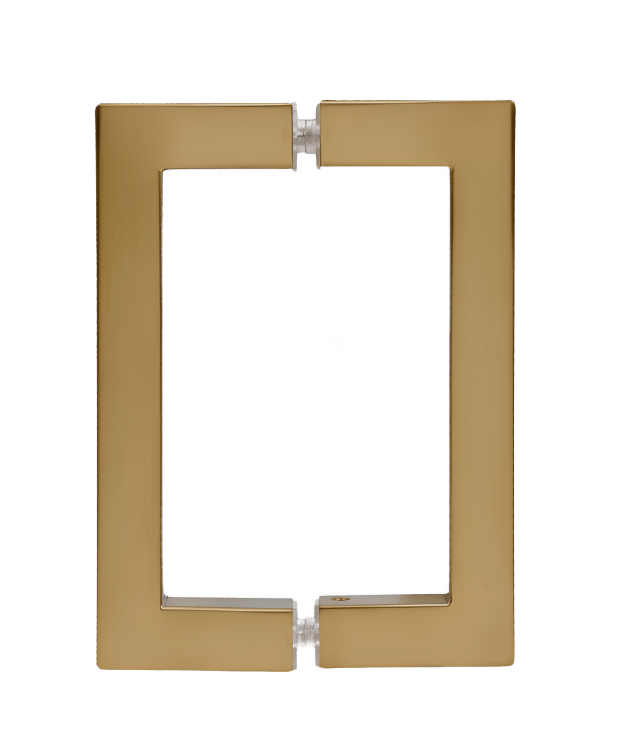

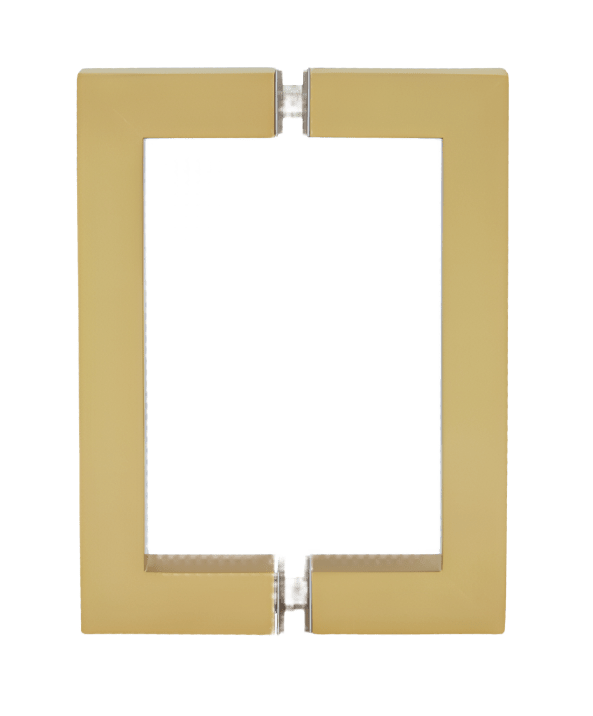

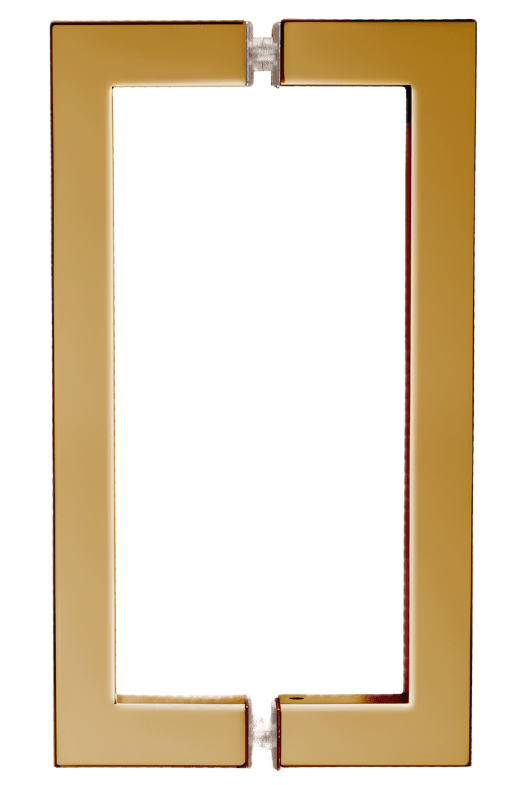

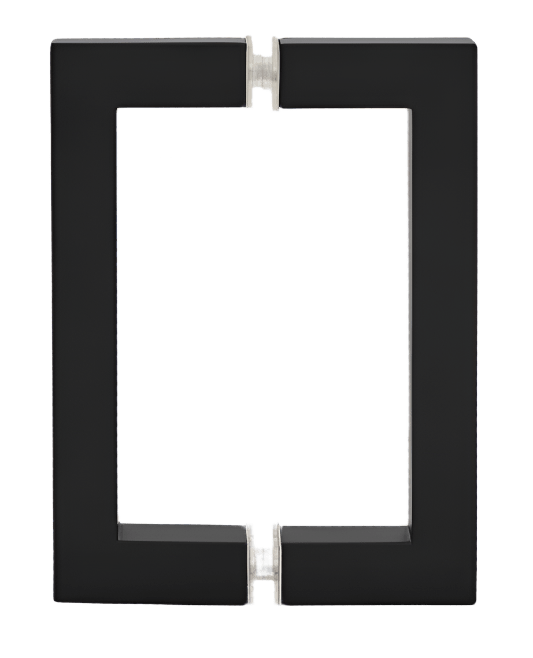

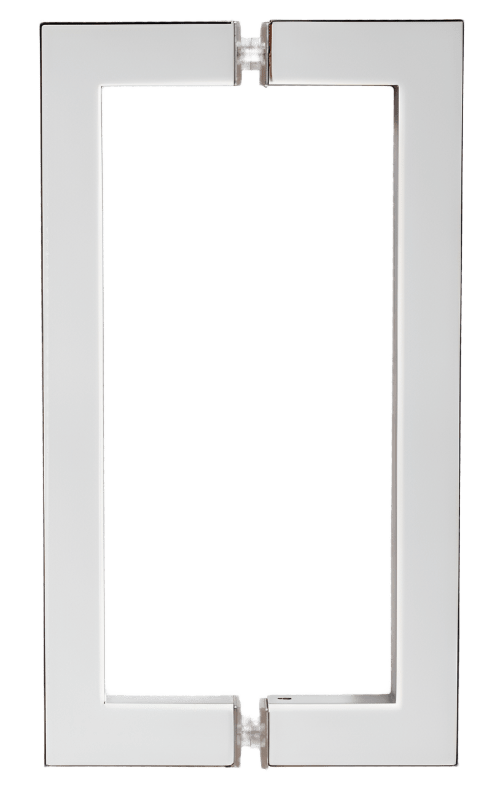

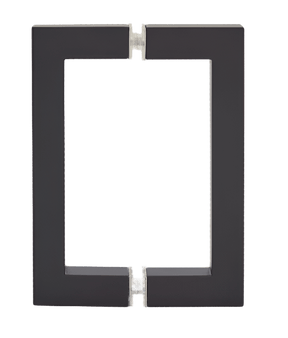

The CRL SQ Series Square Corner Handle delivers a bold, squared aesthetic that designers favor for modern frameless shower installations. Crafted from 3/4" (19 mm) brass tubing, this handle pairs seamlessly with square-cornered hinges such as Geneva, Vienna, Concord, and Cardiff series. Available in 6" and 8" center-to-center lengths, it includes back-up washers and nylon spacers to protect glass surfaces. Multiple finishes are offered to match any design, with custom options available upon request.

Product Features

• Construction: Tubular
• Diameter: 3/4" (19 mm)
• Glazing Thickness: 1/4" to 1/2" (6–12 mm)
• Material: Brass
• Mounting Center-to-Center: 6" (152 mm), 8" (203 mm)
• Mounting Type: Glass mount — back-to-back
• Projection from Surface: 2-1/2" (64 mm)
• Series: SQ
• Tube Profile: Square
• Tube Size: 3/4" (19 mm)

Specifications

• Material: 3/4" (19 mm) Brass Tubing
• Glass Thickness Range: 1/4" to 1/2" (6–12 mm)
• Hole Diameter Required: 1/2" (12 mm)

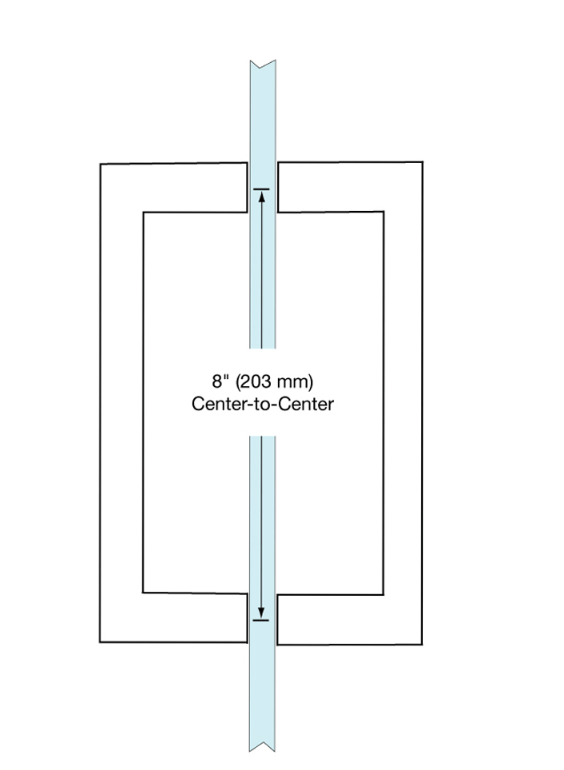

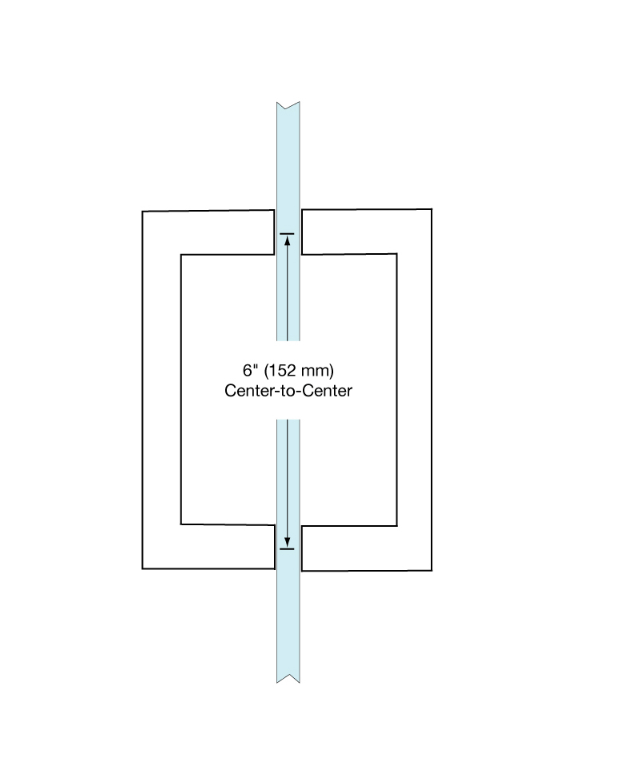

• Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)

Product Advisory

• Glass Type: For monolithic tempered glass only
• Image Disclaimer: Colors/finishes may vary by screen and lighting
• Shipping Note: For precise shipping weights, please contact GlassParts Customer Service before ordering

Compliance and Restrictions

⚠️ Warning: This product can expose you to chemicals known to the State of California to cause reproductive harm. For more information visit www.p65warnings.ca.gov.

Technical Documents

• Door Pull Specifications (PDF)
• SQ Series Back-to-Back — Detailed CAD Drawings (PDF)
• SQ Series Back-to-Back — Detailed CAD Drawings (Alt) (PDF)
• Frameless Shower Door Glass & Hardware — Cleaning Instructions (PDF)
