Grey Goat Hardware

Continuous Gear Hinge

$225.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product Details + –

GGH Aluminum Gear Hinges — Full Surface & Full Mortise

Engineered for smooth, durable performance on aluminum or wood doors, GGH aluminum gear hinges distribute weight evenly along the full door height. All models include installation fasteners and are offered in Satin Anodized and Black Bronze finishes.

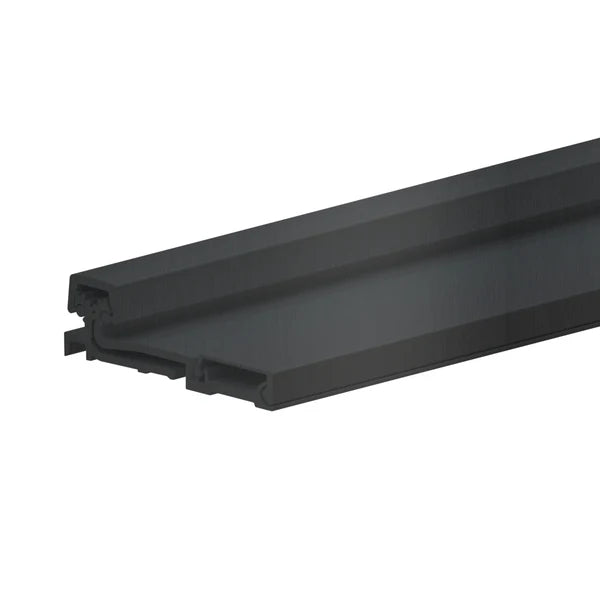

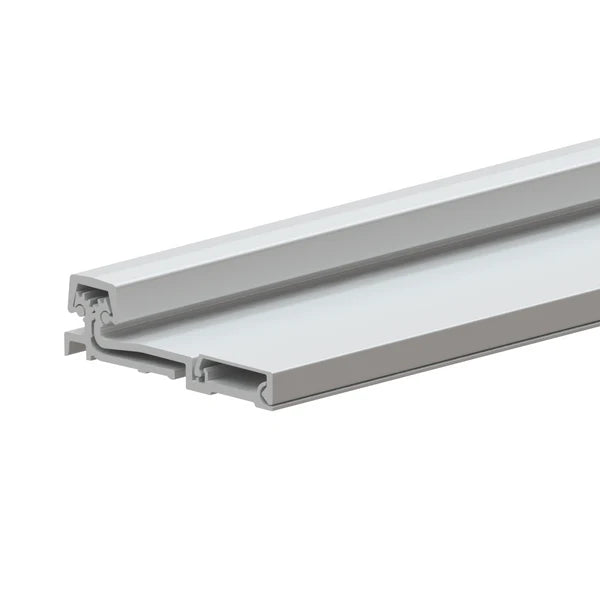

10 Series — Full Surface Aluminum Gear Hinge

Load Capacity: Supports doors up to 200 lbs
Compatibility: Aluminum and wood doors
Installation: Includes fasteners; quick setup — no extra tools required
Max Swing: 180°
Minimum Hinge Clearance: 1/16"
Length: 83" (2108 mm)
Finishes: Satin Anodized, Black Bronze

Technical Documents

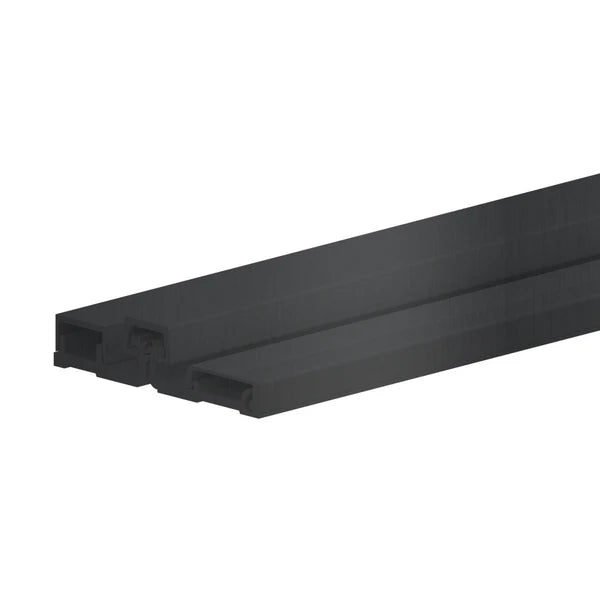

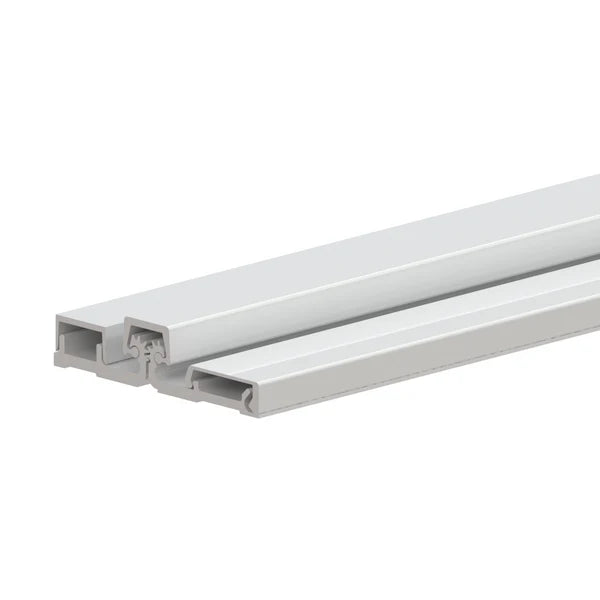

20 Series — Full Surface Aluminum Gear Hinge

Heavy-Duty Capacity: Supports doors up to 200 lbs
Application: Aluminum & wood doors; excellent for retrofits
Replaces butt hinges without frame modifications
Mounting: Full surface on exposed faces of door & frame
Max Swing: 180°
Minimum Hinge Clearance: 1/16"
Length: 83" (2108 mm)
Finishes: Satin Anodized, Black Bronze

Technical Documents

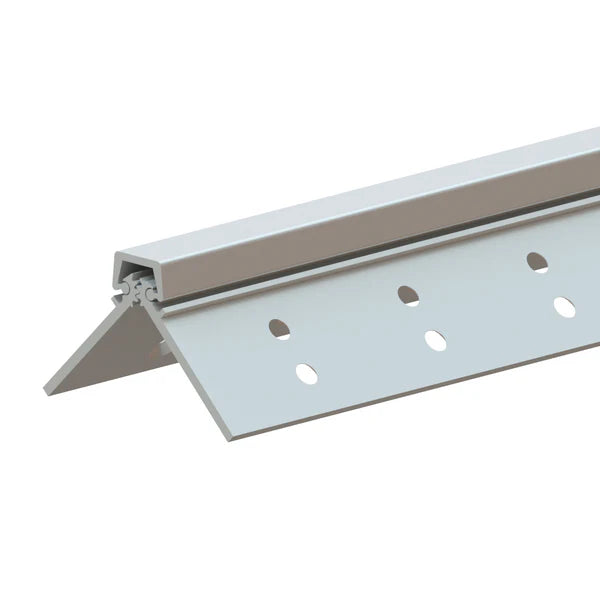

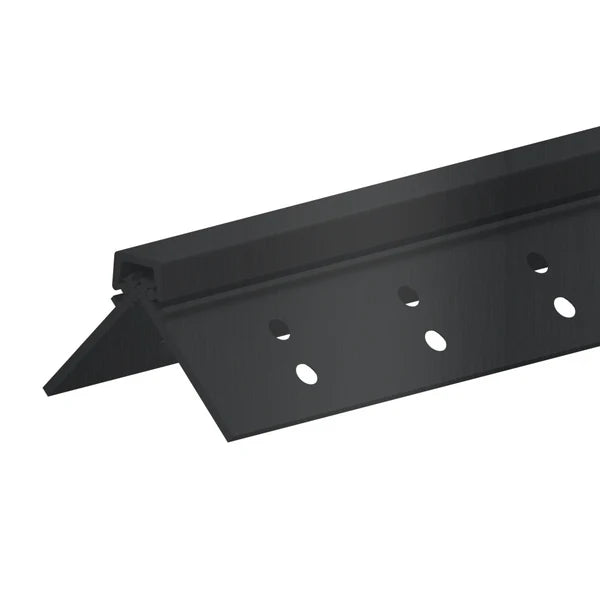

30 Series — Aluminum Gear Hinge

Door Thickness: Designed for 1‑3/4" doors
Load Capacity: Supports doors up to 200 lbs
Full-length design balances and distributes weight evenly
Concealed aesthetic: Mounted to frame rabbet and door edge to hide both leaves
Installation: Includes fasteners for straightforward setup
Max Swing: 80°
Minimum Hinge Clearance: 1/4"
Length: 83" (2108 mm)
Finishes: Satin Anodized, Black Bronze

Technical Documents

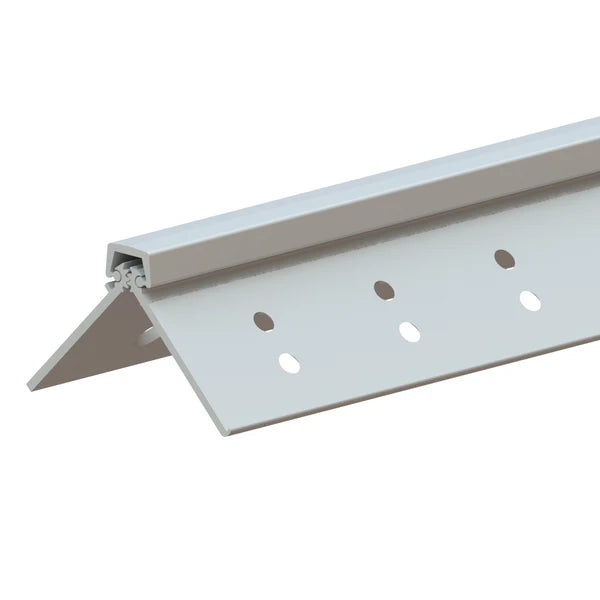

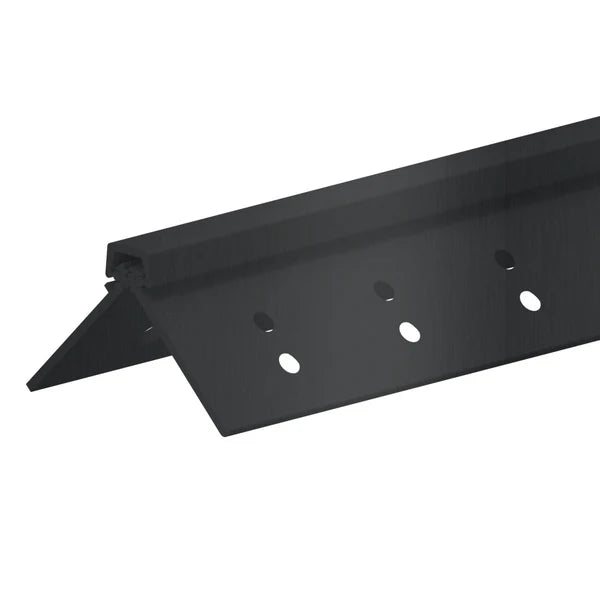

40 Series — Aluminum Gear Hinge with Lip

Door Thickness: Designed for 1‑3/4" doors
Load Capacity: Supports doors up to 200 lbs
Full-length design balances and distributes weight evenly
With lip; mounted to frame rabbet and door edge for a clean, integrated look
Installation: Includes fasteners for quick setup
Max Swing: 80°
Minimum Hinge Clearance: 1/4"
Length: 83" (2108 mm)
Finishes: Satin Anodized, Black Bronze

Technical Documents
