GGS LAG Glass Mounted Sliding Door Kit
Product Overview
The GGS LAG Glass Mount Sliding Door Kit is a robust, precision-engineered system for monolithic tempered glass doors. Its all-stainless construction and sleek hardware provide commercial-grade durability and a modern aesthetic for interior or exterior installations.
Key Features
- Grade 316 Stainless Steel: Superior corrosion resistance and longevity.
- Door Lift Prevention: Concave roller design locks slider in place.
- Adjustable Height & Alignment: Fine-tune for perfect operation.
- Glass Compatibility: Works with 3/8" or 1/2" (10 / 12 mm) glass panels.
- Complete Hardware: Includes all mounting components for a hassle-free install.
- Smooth, Quiet Slide: Precision rollers for whisper-quiet performance.
- Indoor & Outdoor Use: Versatile for commercial or residential spaces.
Specifications
- Rod: 108" long × 3/32" thick
- Weight Capacity: Up to 220 lb (100 kg)
Door Size Compatibility
| Specification | Measurement |
|---|---|
| Minimum Width | 37-13/16" (960 mm) |
| Maximum Width | 53-9/16" (1 360 mm) |
| Maximum Height | 98-7/16" (2 500 mm) |
Kit Includes
- Glass Mount Brackets × 6
- Sliding Tube × 1
- Left & Right Door Stops × 1 each
- Door Rollers × 2
- Thru-Glass Pull × 1
- Floor Guide × 1
Finishes Available
- Brushed Stainless Steel
- Matte Black (Electroplated)
- Polished Stainless Steel
- Satin Brass
Technical Drawing
GGS LAG Glass Mount Kit Drawing (PDF)
Video
GGS LAG Double Door Wall Mounted Sliding Door Kit
Product Overview
The GGS LAG Double Door Wall Mounted Kit delivers the same high-performance sliding hardware for side-by-side tempered glass doors. Perfect for wider openings, it combines precision rollers with stainless steel rails for smooth, synchronized movement.
Key Features
- Grade 316 Stainless Steel construction
- Anti-lift concave rollers for safety
- Independent height adjustment for each door
- Compatible with 3/8" or 1/2" (10 / 12 mm) glass
- All-in-one hardware kit for fast installation
- Quiet, stable sliding action
- Suitable for interior/exterior use
Specifications
- Rod: 104" long × 3/32" thick
- Weight Capacity: 220 lb (100 kg) per door
Door Size Compatibility
| Specification | Measurement |
|---|---|
| Minimum Width | 37-13/16" (960 mm) |
| Maximum Width | 53-9/16" (1 360 mm) |
| Maximum Height | 98-7/16" (2 500 mm) |
Kit Includes
- Wall Mount Brackets × 10
- Sliding Tubes × 2
- Left & Right Door Stops × 2 each
- Door Rollers × 4
- Thru-Glass Pulls × 2
- Floor Guides × 2
- End Caps × 4
- Tube Supports × 2 (wall mount)
Finishes Available
- Brushed Stainless Steel
- Matte Black (Electroplated)
- Polished Stainless Steel
Technical Drawing

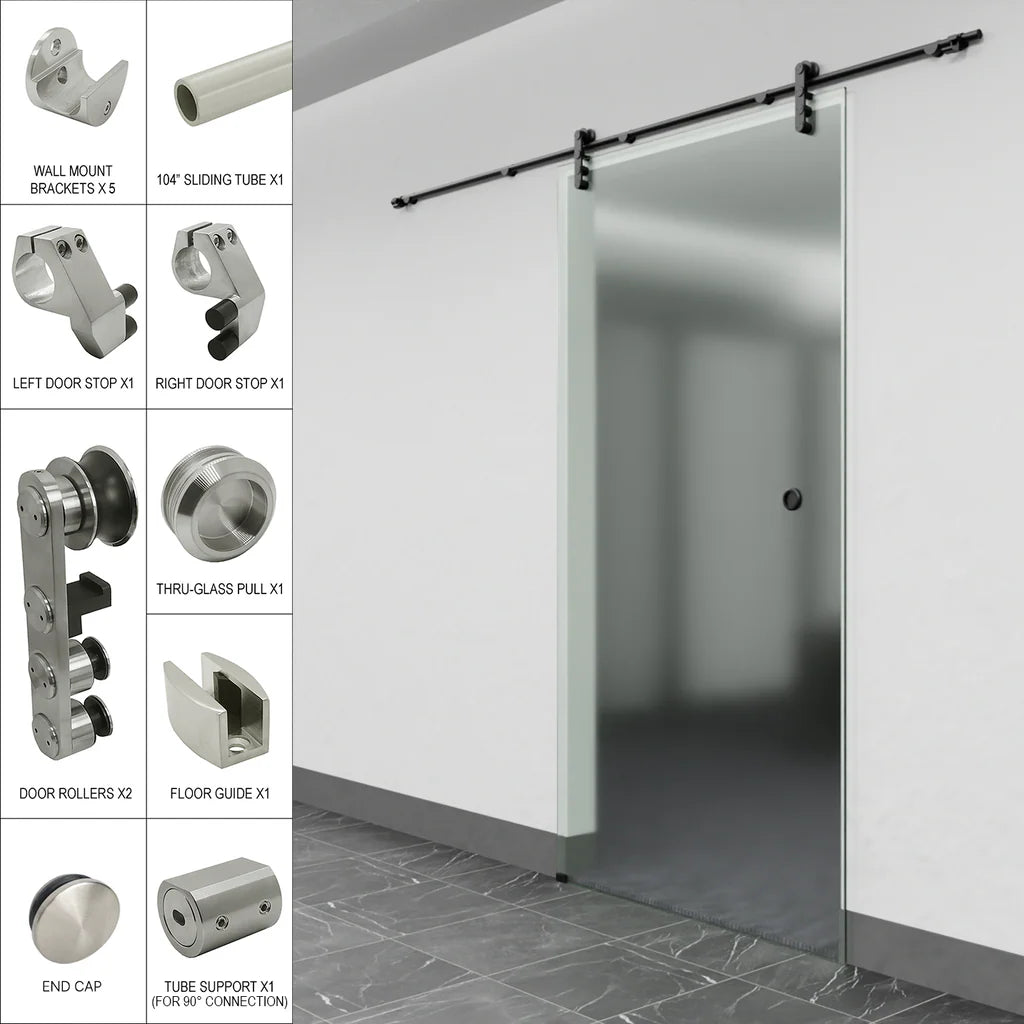

GGS LAG Single Door Wall Mounted Sliding Door Kit
Product Overview
The GGS LAG Single Door Wall Mounted Kit is designed to mount one glass door to the inside of a sturdy wall. Its heavy-duty stainless components and adjustable rollers ensure a reliable, smooth slide for commercial or residential use.
Key Features
- 316 Stainless Steel for lasting performance
- Concave rollers to prevent lift-off
- Precision height and alignment adjustment
- Compatible with 3/8" or 1/2" (10 / 12 mm) glass
- Complete hardware set for quick installation
- Quiet, seamless sliding action
- For interior and exterior settings
Specifications
- Rod: 108" long × 3/32" thick
- Weight Capacity: 220 lb (100 kg)
Door Size Compatibility
| Specification | Measurement |
|---|---|
| Minimum Width | 37-13/16" (960 mm) |
| Maximum Width | 53-9/16" (1 360 mm) |
| Maximum Height | 98-7/16" (2 500 mm) |
Kit Includes
- Glass Mount Brackets × 5
- Sliding Tube × 1
- Left & Right Door Stops × 1 each
- Door Rollers × 2
- Thru-Glass Pull × 1
- Floor Guide × 1
- End Caps × 2
- Tube Support × 1 (wall mount)
Finishes Available
- Brushed Stainless Steel
- Matte Black (Electroplated)
- Polished Stainless Steel
Technical Drawing
