Solidity Series Hydraulic Bottom Patch

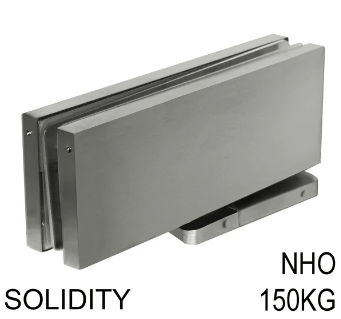

Solidity Series Hydraulic Bottom Patch Fitting

Product Overview

GGH’s Solidity Series Hydraulic Bottom Patch Fitting delivers a robust and refined solution for commercial glass door applications such as office partitions, interior fit-ups, and wine rooms.

Designed to integrate seamlessly with patch fittings, transom systems, and ladder pulls, it supports both 10 mm (3/8") and 12 mm (1/2") tempered glass configurations.

Manufactured with precision tolerances between 0.005 mm and 0.01 mm, this fitting is cycle-tested up to 500,000 operations, ensuring long-term reliability in high-traffic environments.

Product Features

• Heavy-duty capacity: Supports up to 150 kg (330 lbs) or 100 kg (220 lbs)
• Maximum door width: 39" (1000 mm)

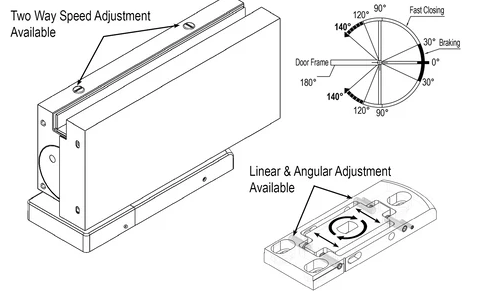

• Adjustable closing speed: Two speed settings for controlled operation
• Self-closing function: Available with or without hold-open feature
• High durability: Tested up to 500,000 cycles
• Precision engineering: Tight manufacturing tolerances for smooth performance

Technical Specifications

• Glass Thickness: 10 mm (3/8") and 12 mm (1/2")
• Maximum Weight: 150 kg / 100 kg (depending on configuration)
• Maximum Door Width: 39" (1000 mm)
• Material: Grade 304 Stainless Steel with Aluminum Cover Plates
• Adjustment: Bottom plate adjustable for easier installation

Available Finishes

• Brushed Stainless
• Matte Black
• Polished Stainless
• Satin Brass
• Satin Anodized

Applications

• Commercial glass doors
• Office partitions
• Interior glass systems
• Wine rooms and specialty installations

Important Notes

• Professional installation recommended
• Ensure compatibility with patch and transom fittings
• Finish appearance may vary depending on display settings
