Piper Series Shower Door Hinges

Product Overview

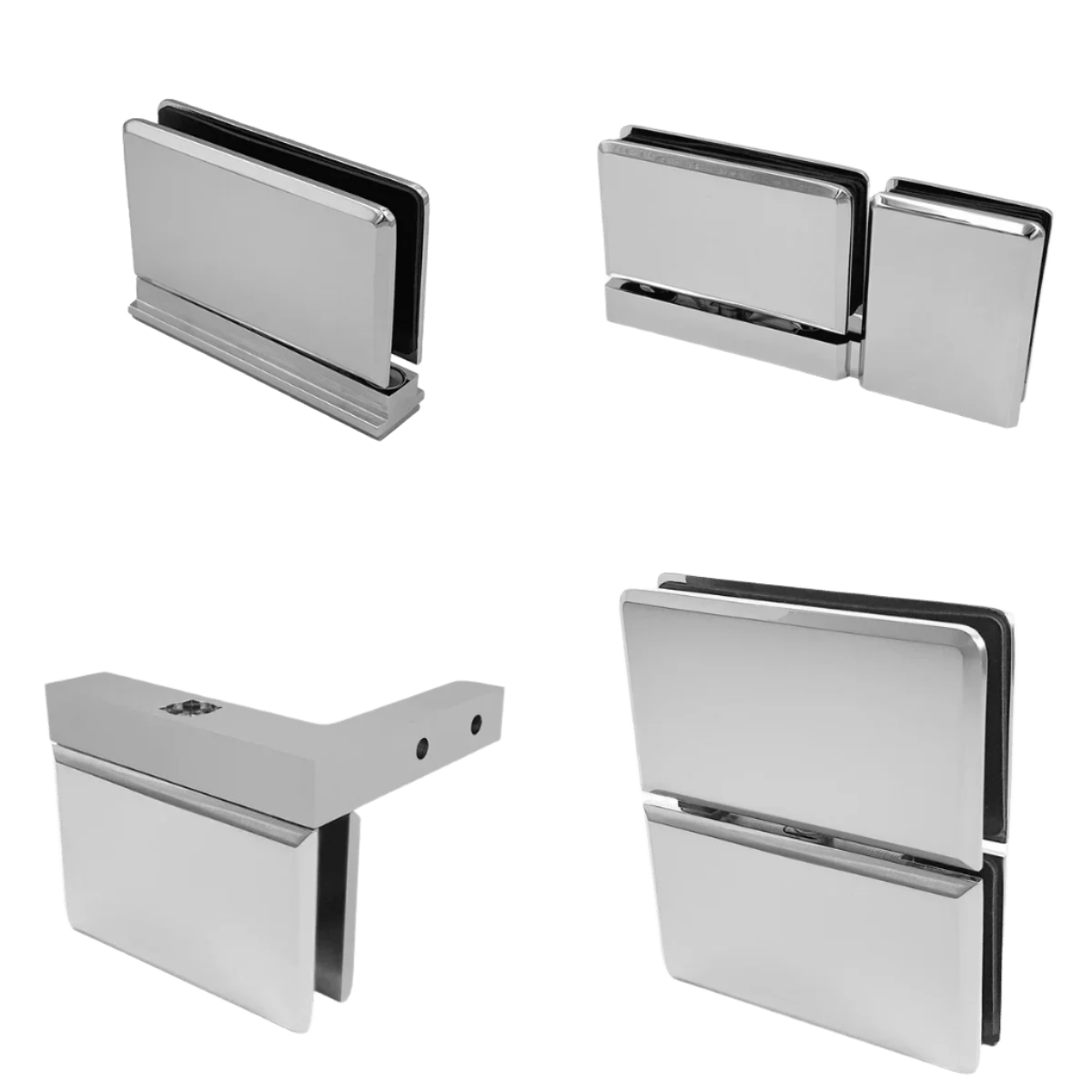

The Piper Series offers a full range of beveled pivot hinges designed for frameless shower door systems. Built from solid brass with stainless steel internal components, these hinges deliver durability, smooth operation, and a refined beveled aesthetic for modern installations. :contentReference[oaicite:0]{index=0}

Product Features

• Solid brass construction with stainless steel pins and springs
• Beveled design for a premium, modern appearance
• Available in regular duty and heavy-duty configurations

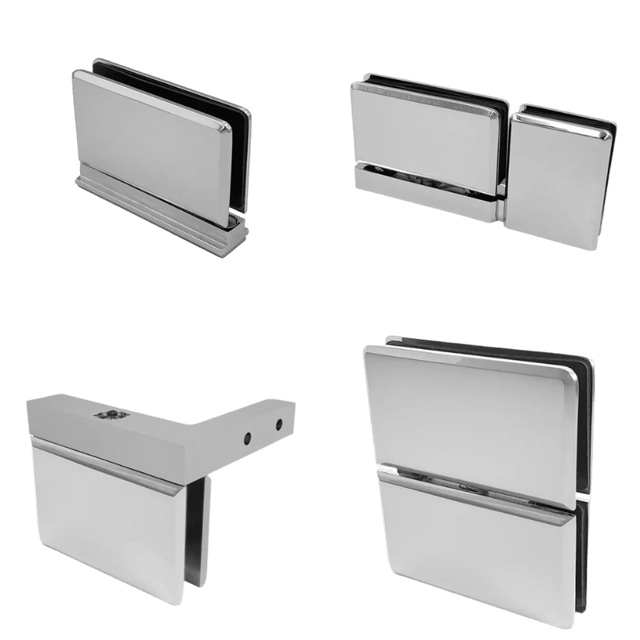

• Multiple mounting options: glass-to-glass and glass-to-wall
• Smooth pivoting action with self-centering options
• Easy installation with standard tools

Technical Specifications

• Glass Thickness: 5/16"–1/2" (8–12 mm depending on model)
• Capacity: Up to 145 lb (66 kg)
• Application: Frameless shower doors
• Warranty: 5 years

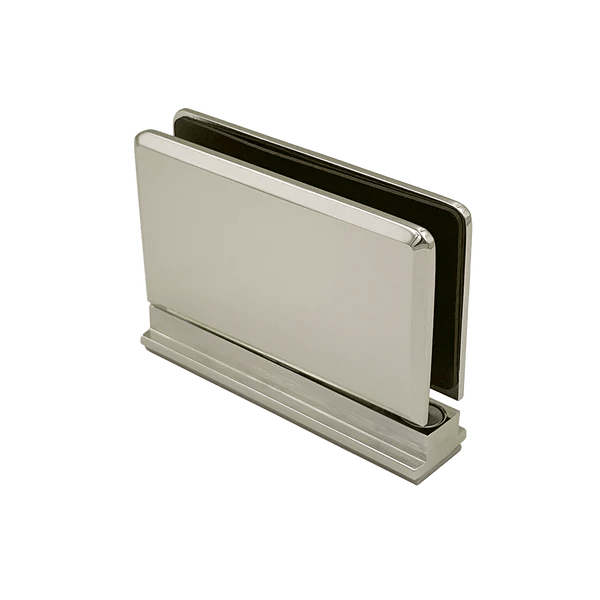

Beveled Regular Duty - Top or Bottom with U-Clamp

Minimalist pivot system maximizing glass visibility and reducing cut-outs.

• Glass: 5/16"–3/8"
• Self-Centering: Within 15°

View Drawing (PDF)

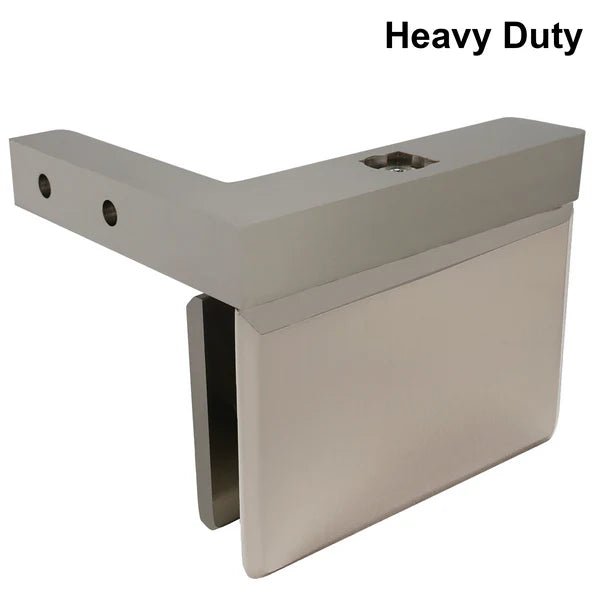

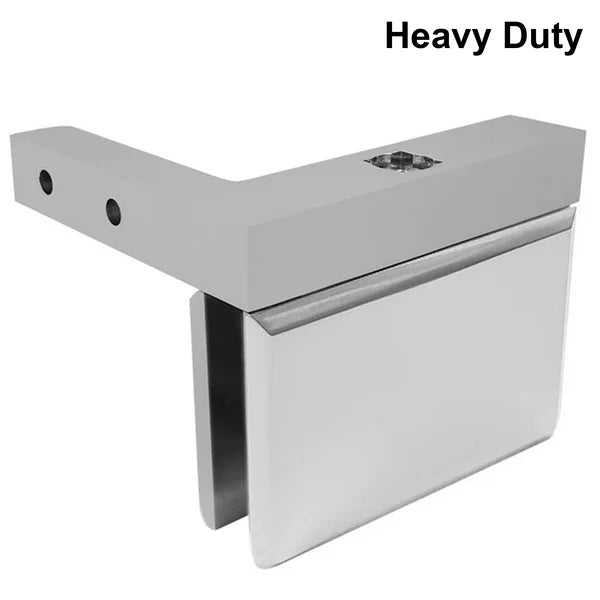

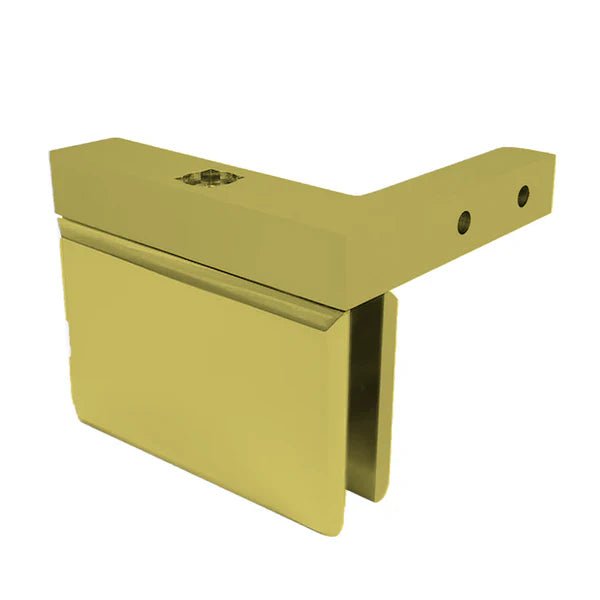

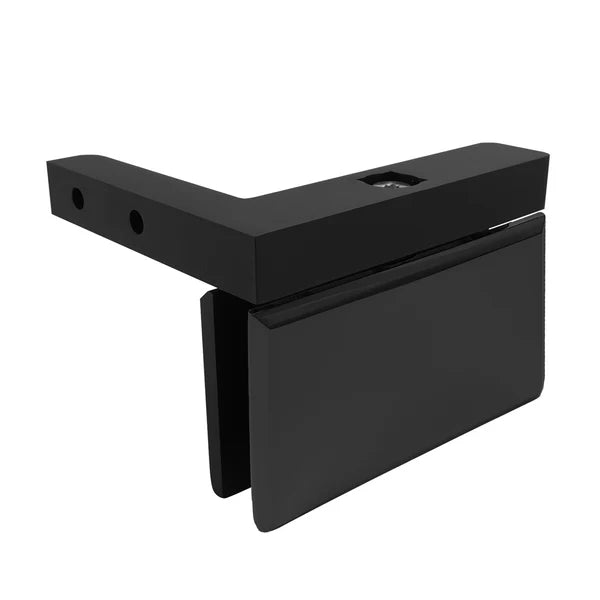

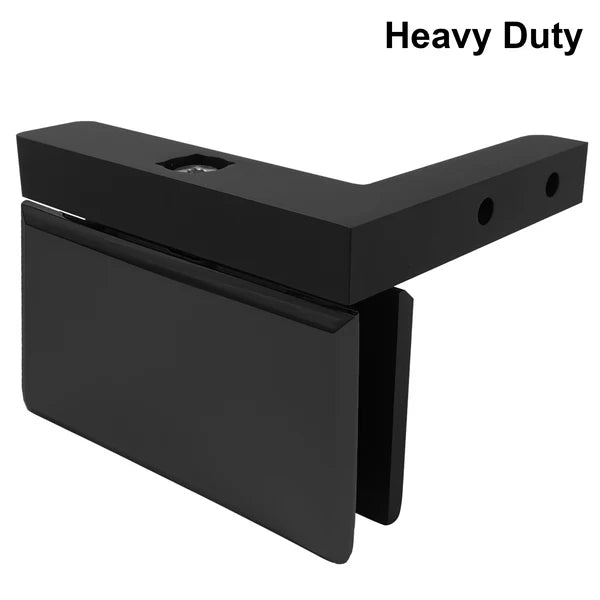

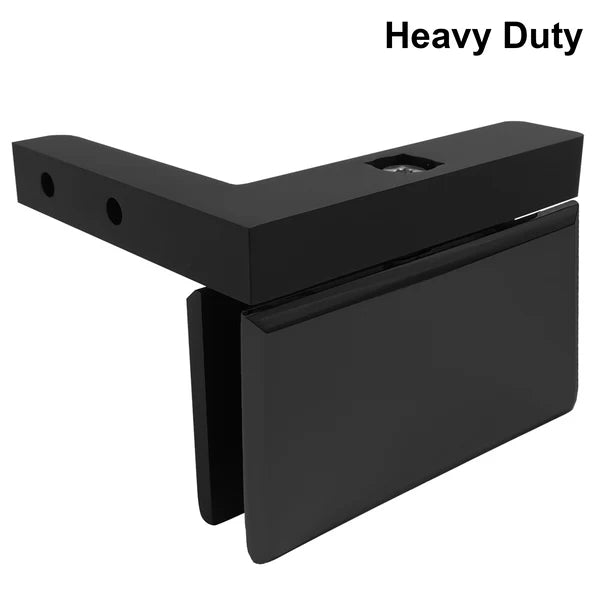

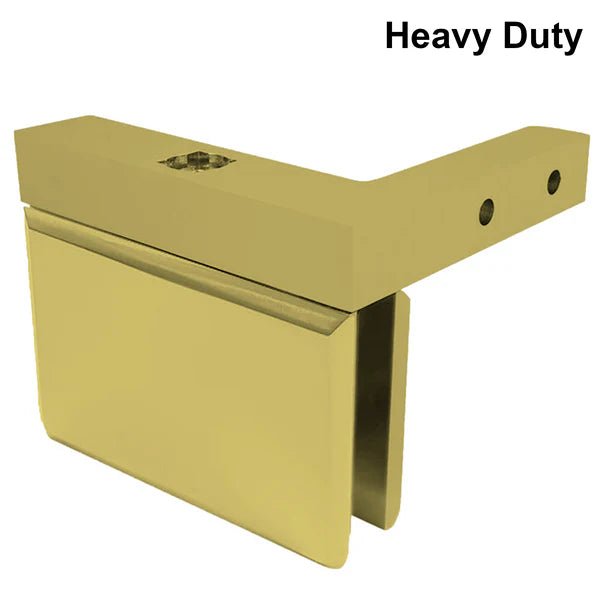

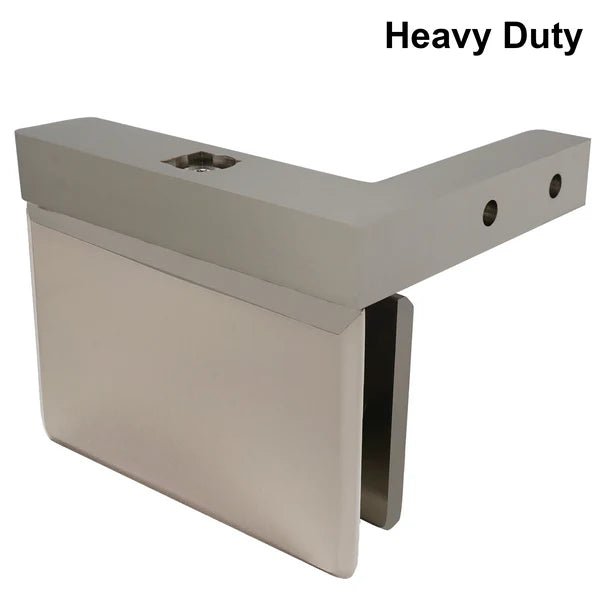

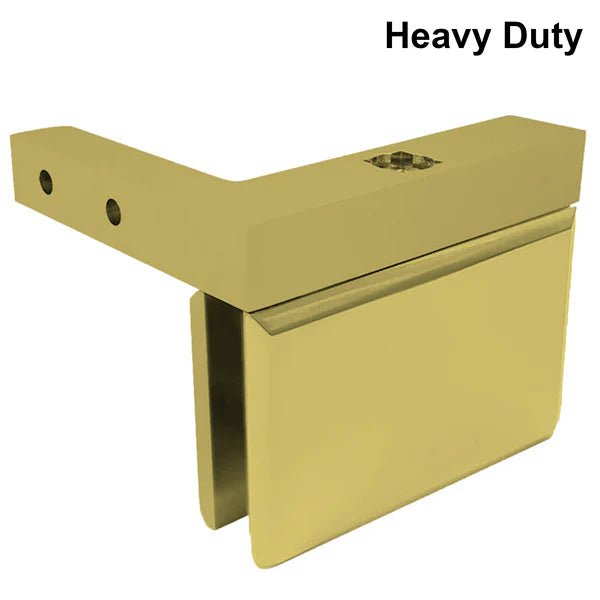

Beveled Heavy Duty - Offset Pivot

Heavy-duty offset hinge designed for large glass panels.

• Glass: 1/2"
• Capacity: Up to 145 lb

View Drawing (PDF)

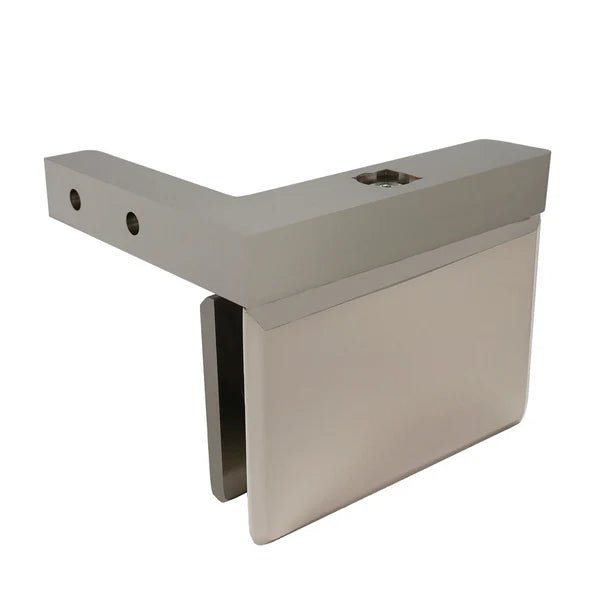

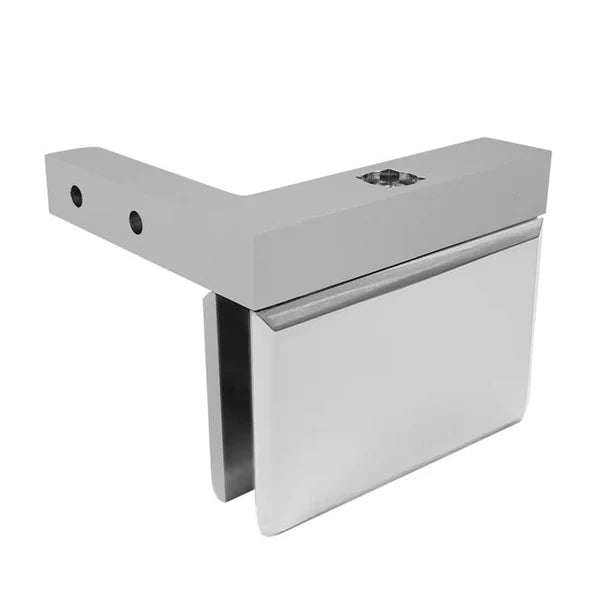

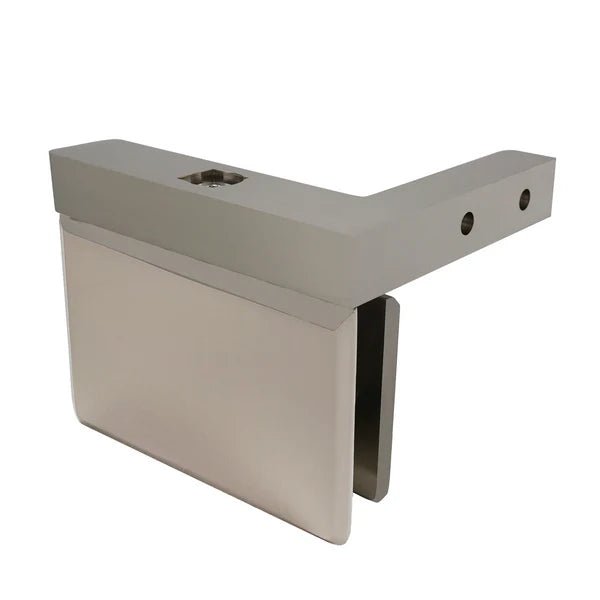

Beveled Regular Duty - Offset Pivot

Standard pivot hinge offering smooth rotation and modern styling.

• Glass: 5/16"–3/8"
• Capacity: Up to 100 lb

View Drawing (PDF)

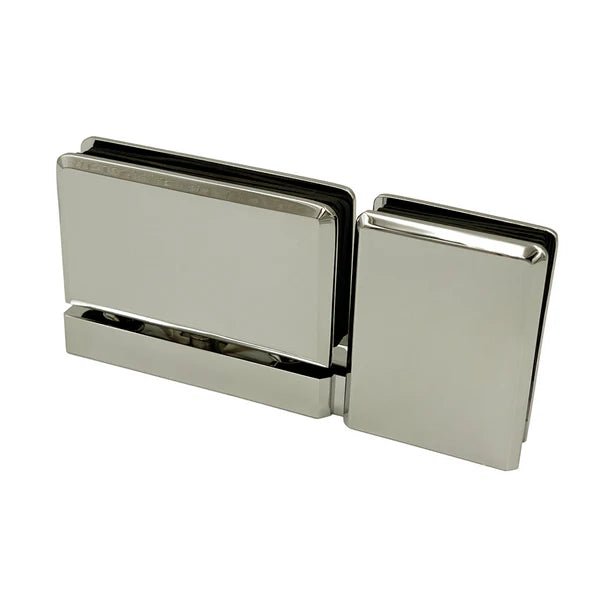

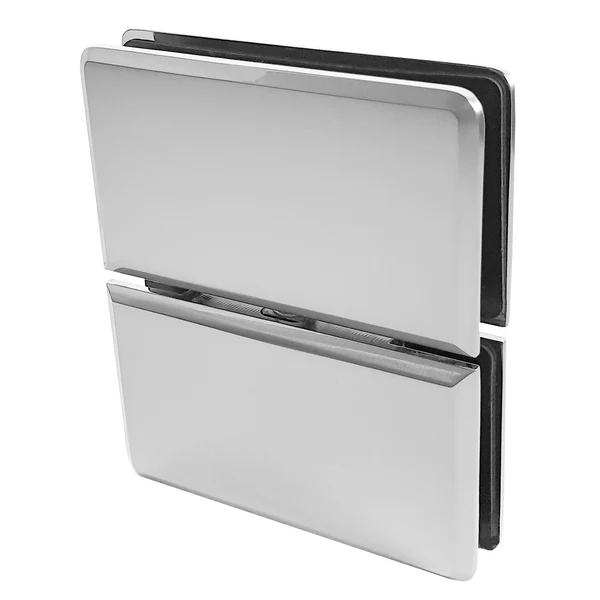

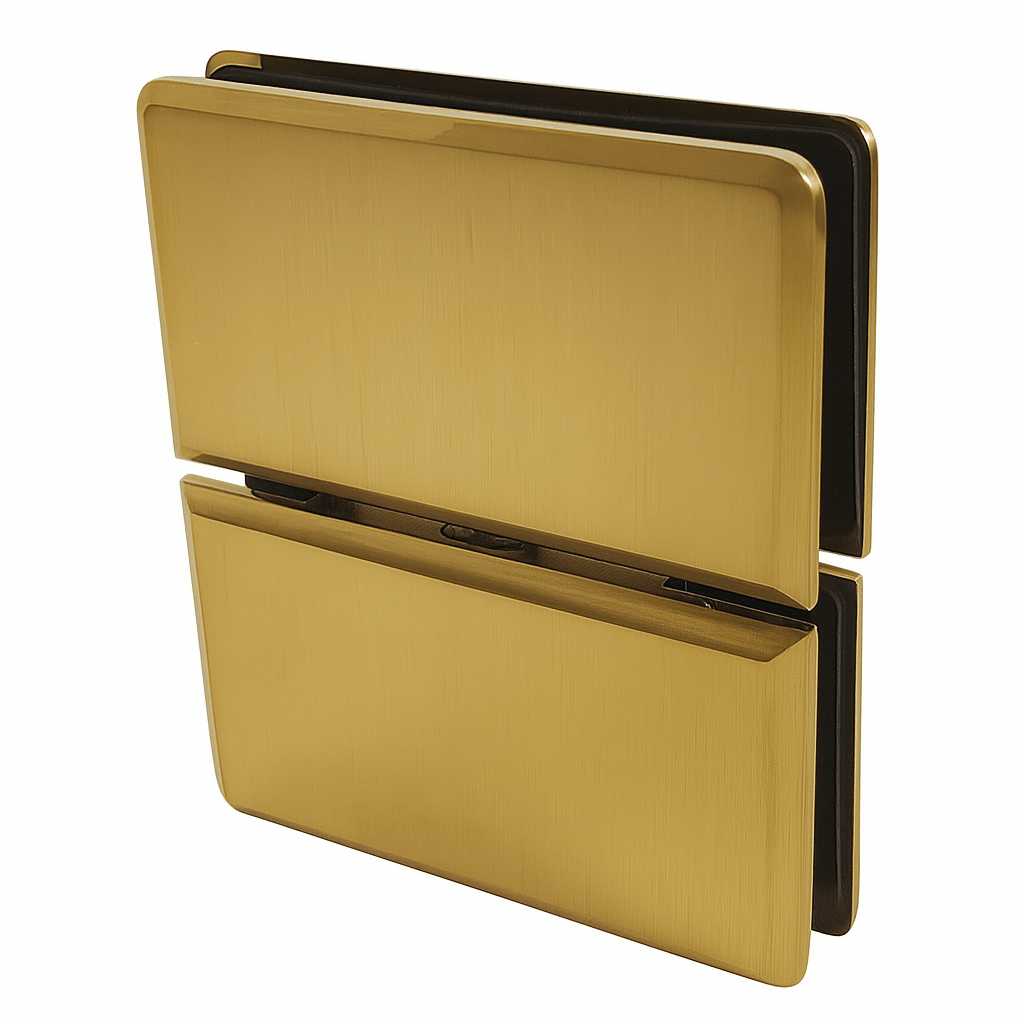

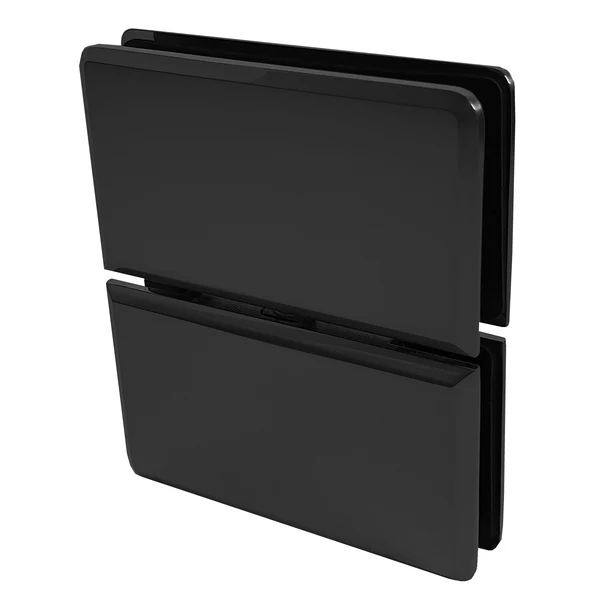

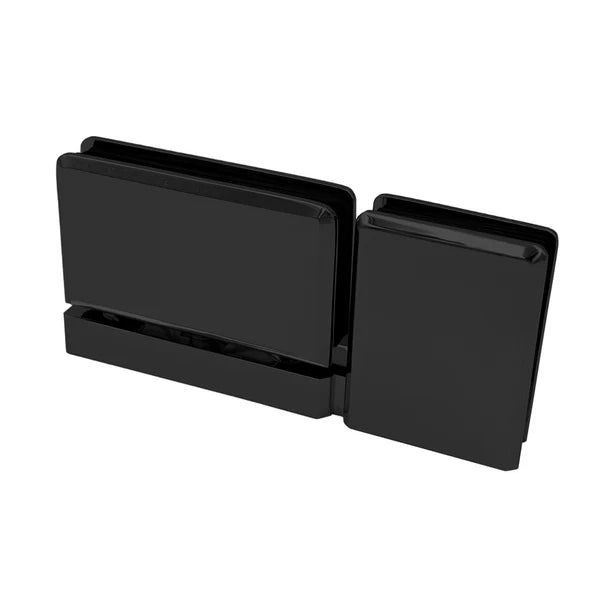

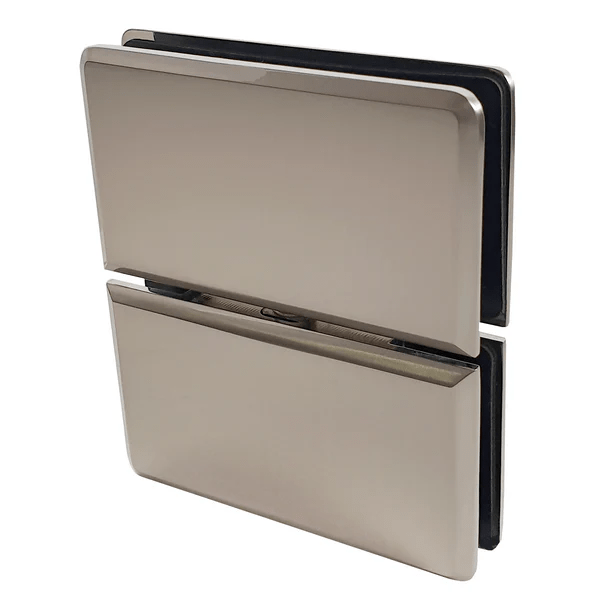

Beveled Regular Duty - Glass to Glass

Glass-to-glass pivot hinge for seamless panel connections.

• Glass: 5/16"–3/8"
• Capacity: Up to 100 lb

View Drawing (PDF)

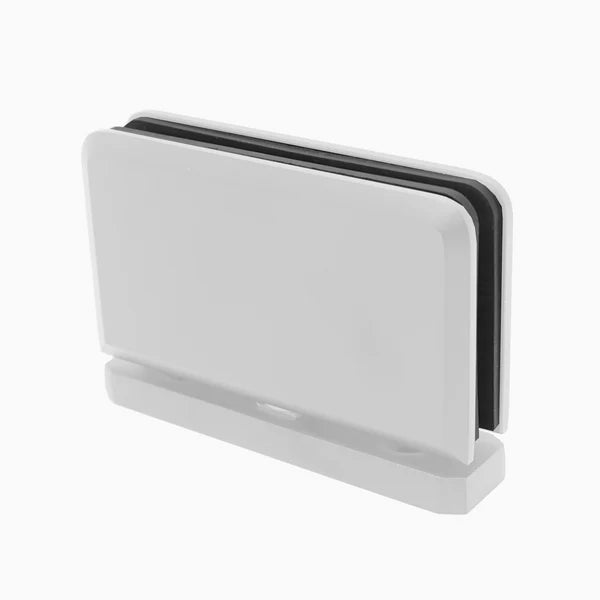

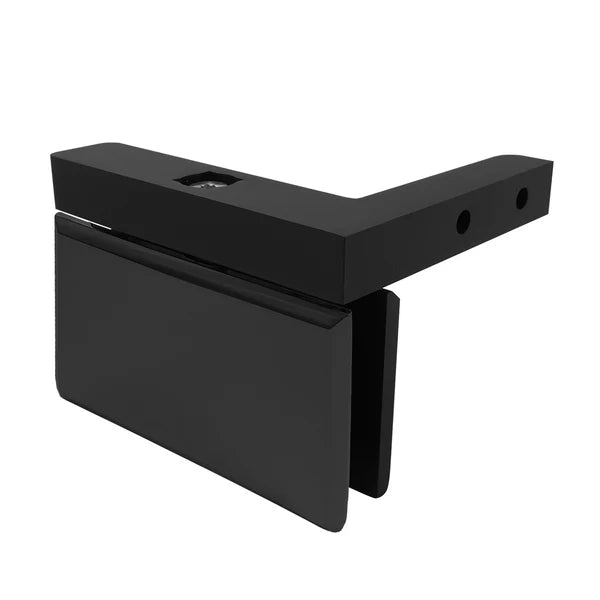

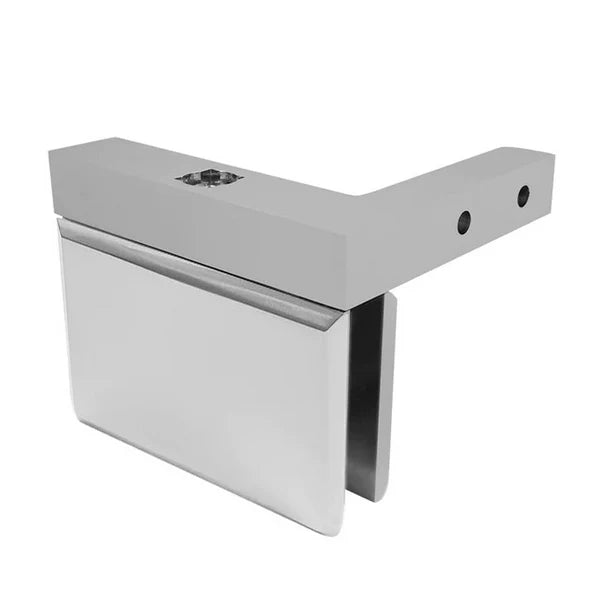

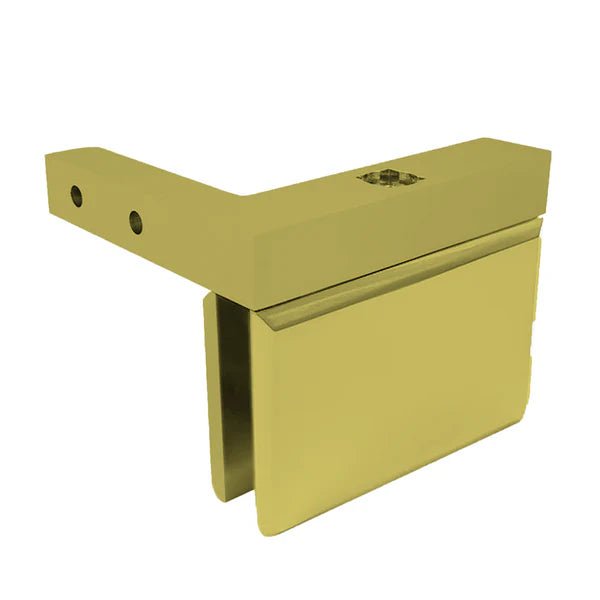

Beveled Regular Duty - Adjustable Top Pivot

Top pivot hinge with self-centering function and flexible installation.

• Glass: 5/16"–3/8"
• Self-Centering: Within 15°

View Drawing (PDF)

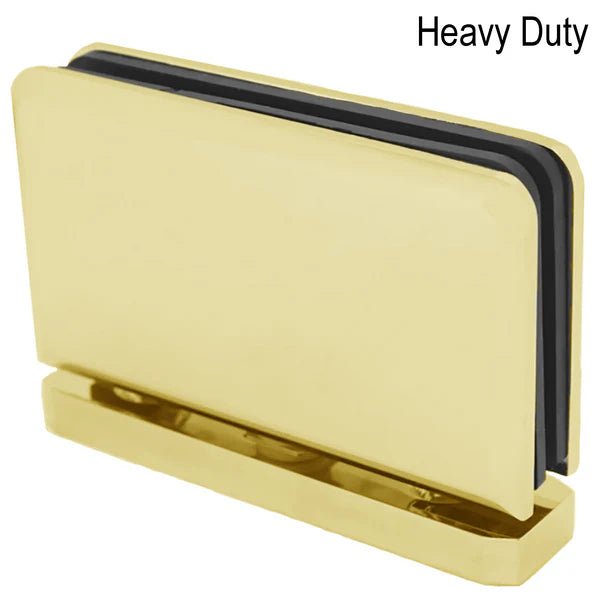

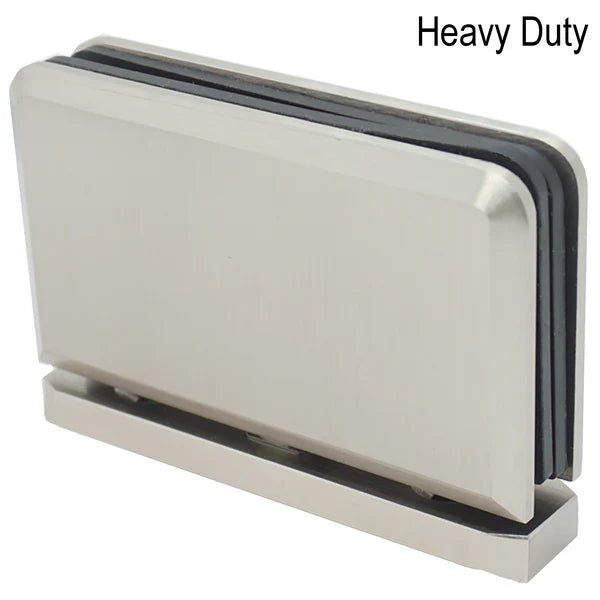

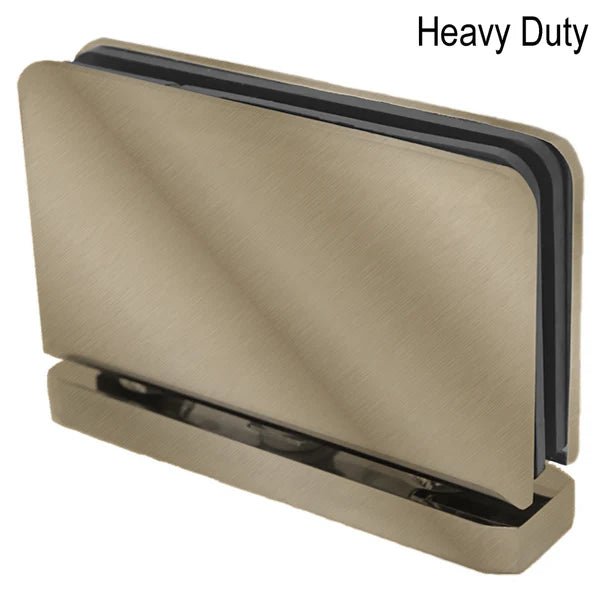

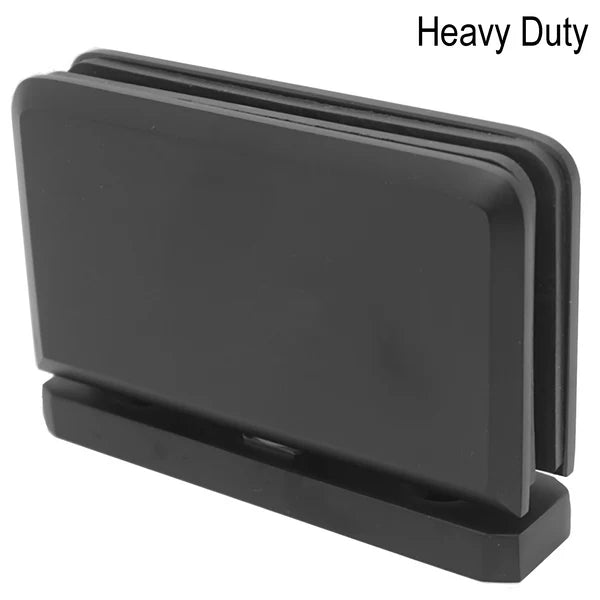

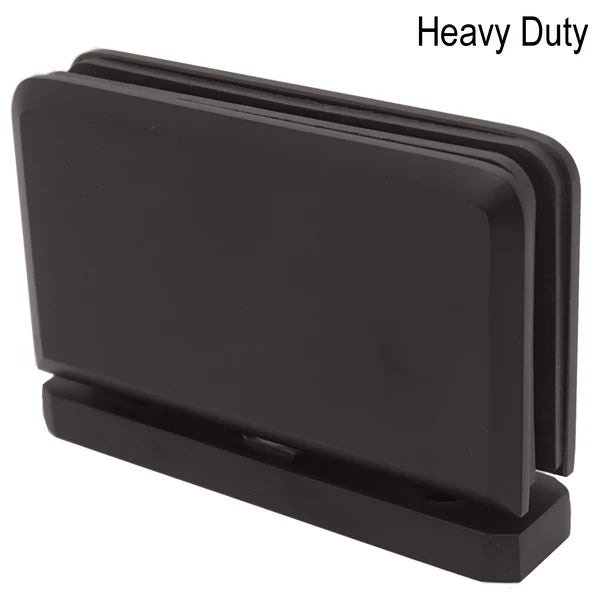

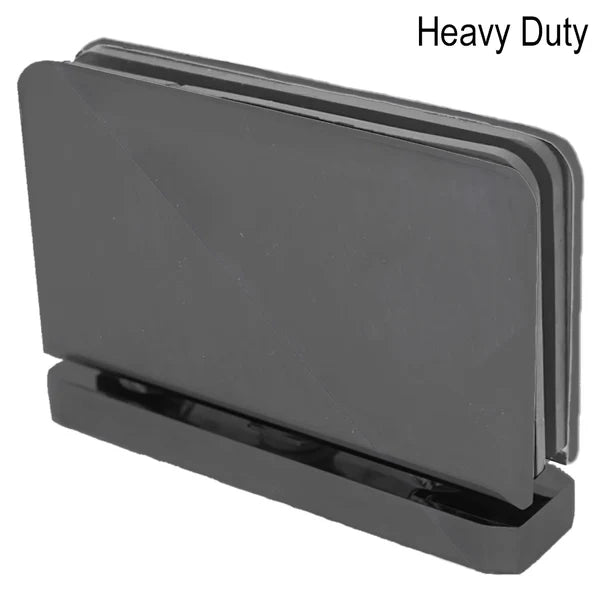

Beveled Heavy Duty - Top or Bottom

Heavy-duty pivot hinge for large frameless shower doors.

• Glass: 1/2"
• Capacity: Up to 145 lb

View Drawing (PDF)

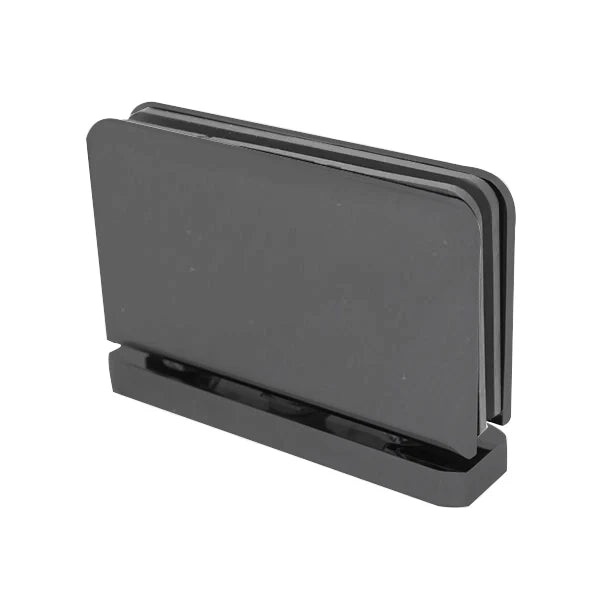

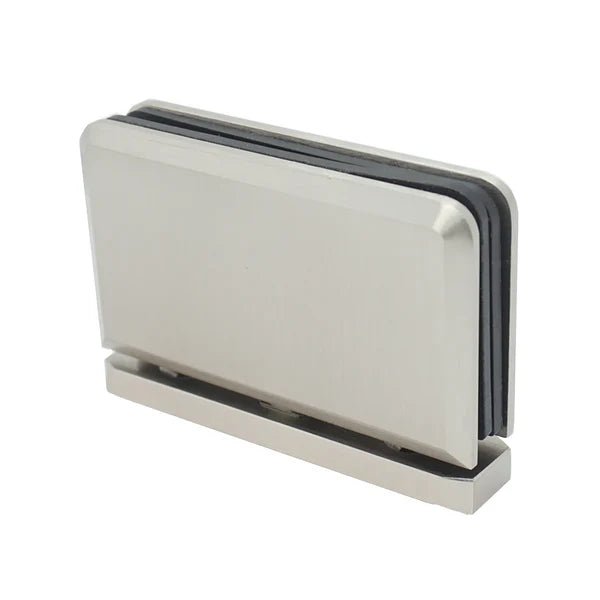

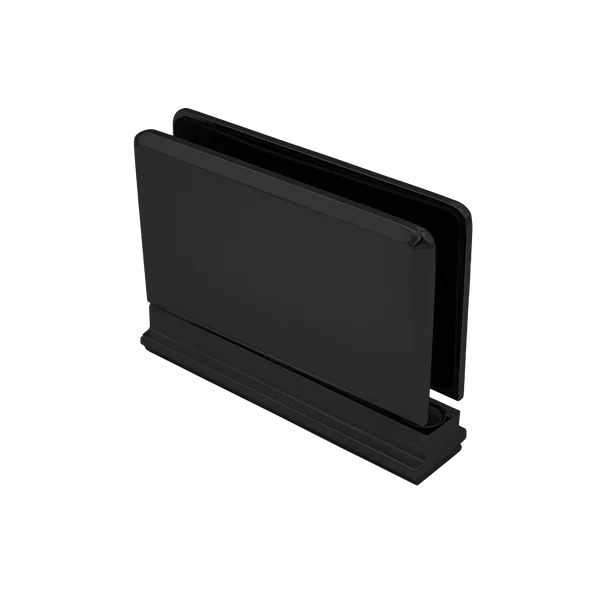

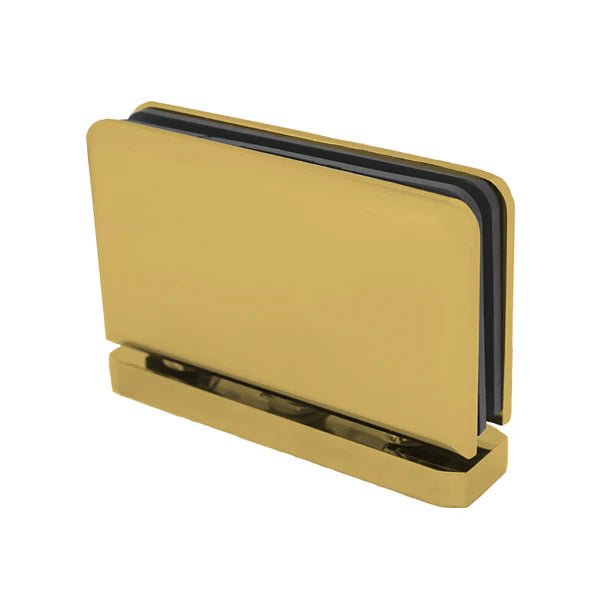

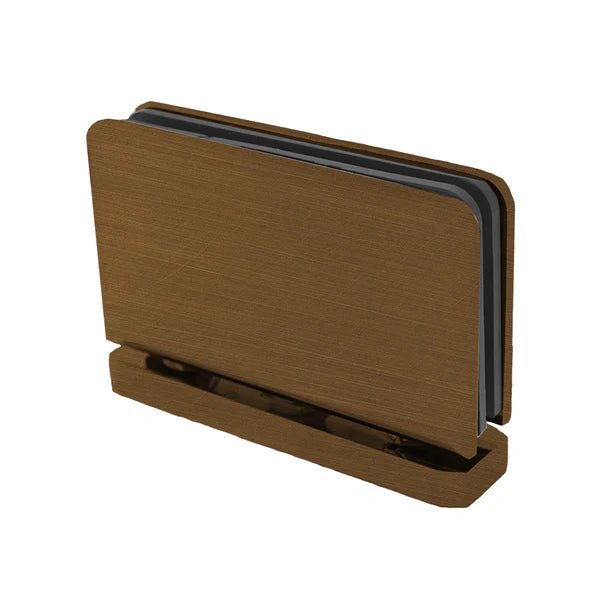

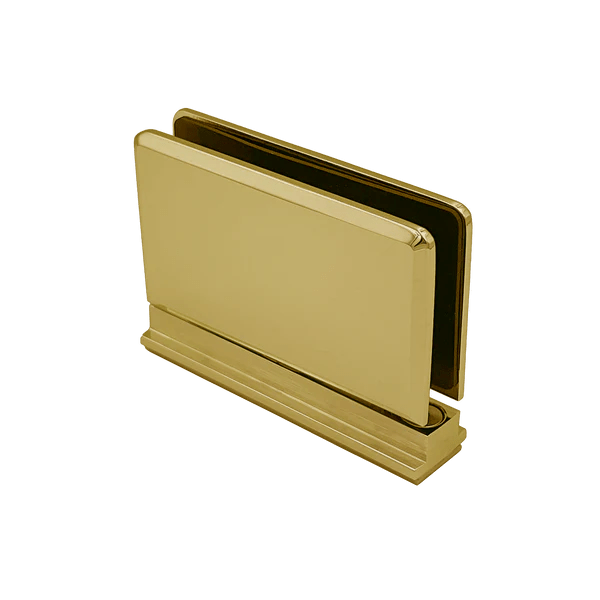

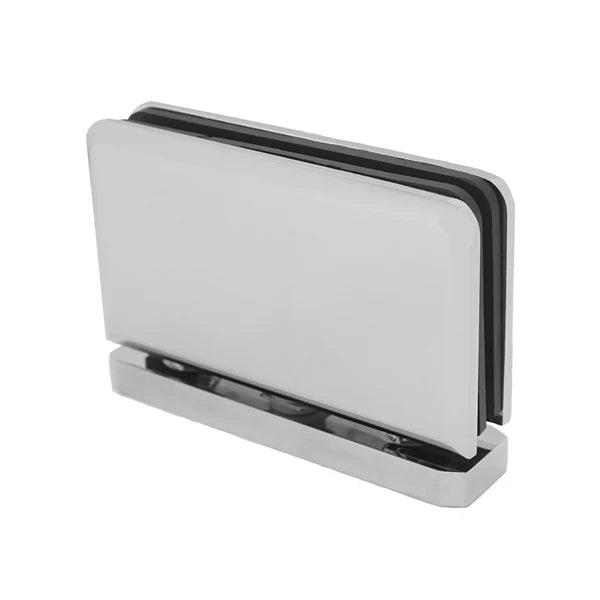

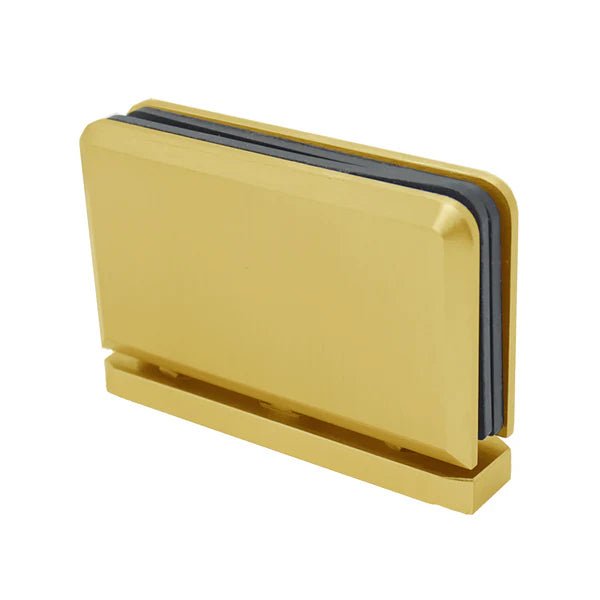

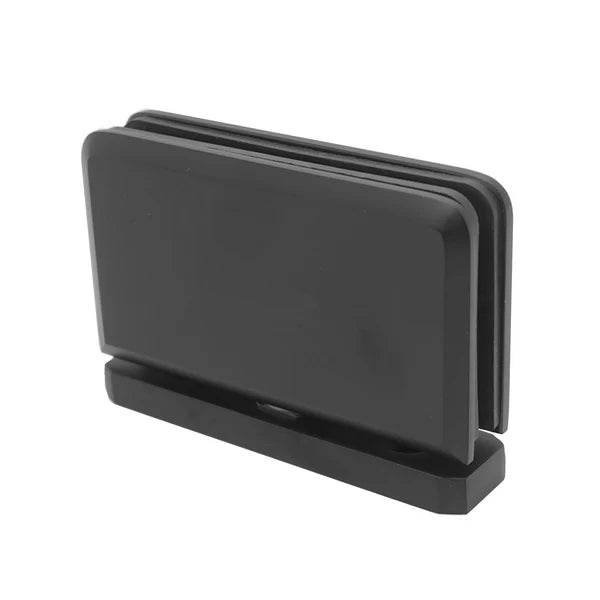

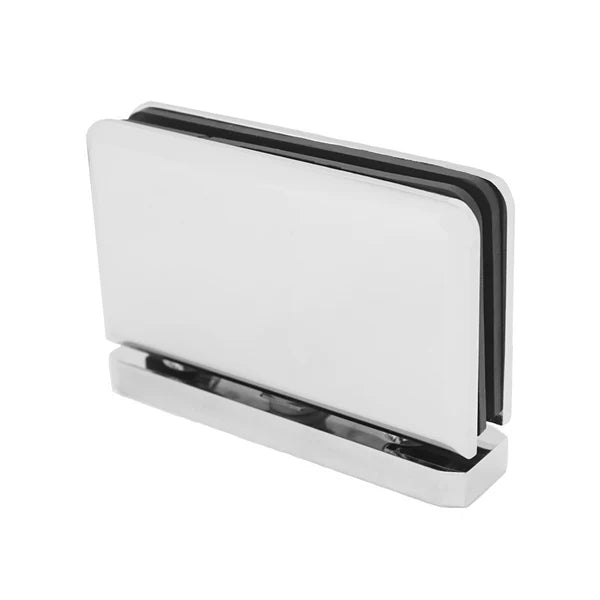

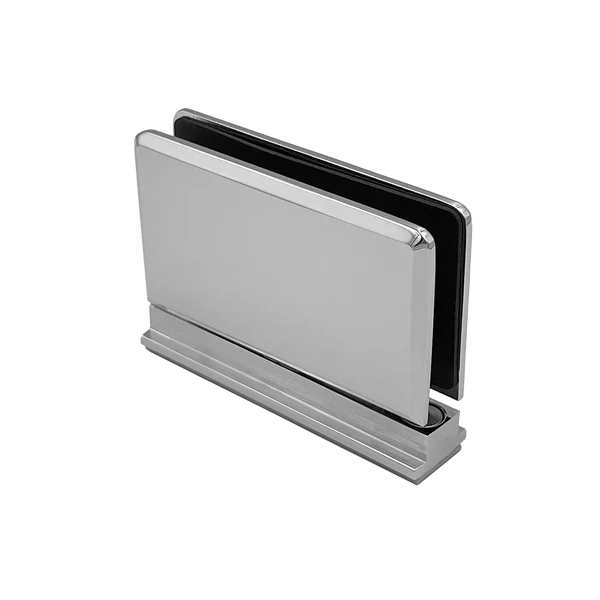

Beveled Regular Duty - Top or Bottom

Standard pivot hinge with smooth operation and minimalist design.

• Glass: 5/16"–3/8"
• Capacity: Up to 100 lb

View Drawing (PDF)
