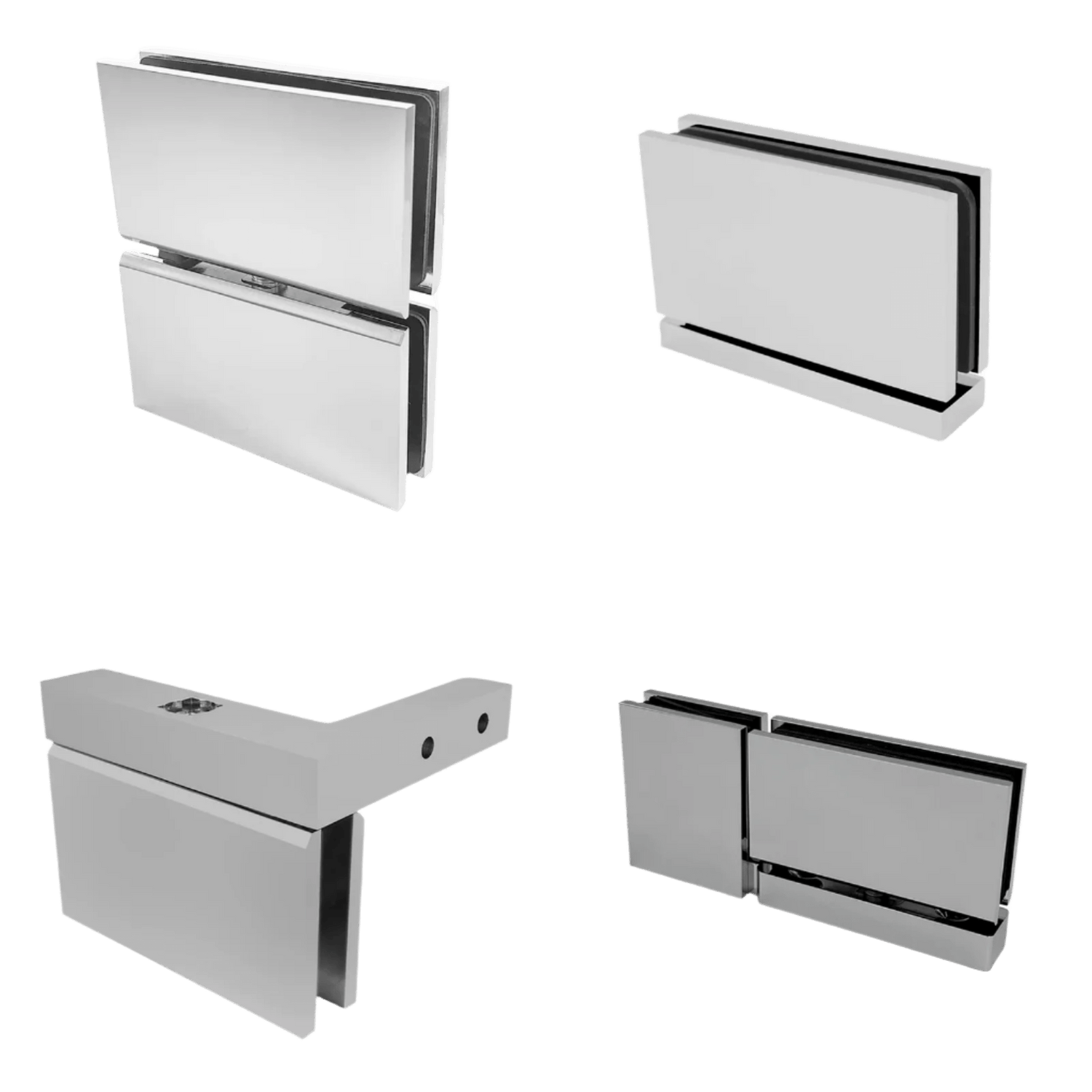

Shower Pivot Hinge - Cara Series

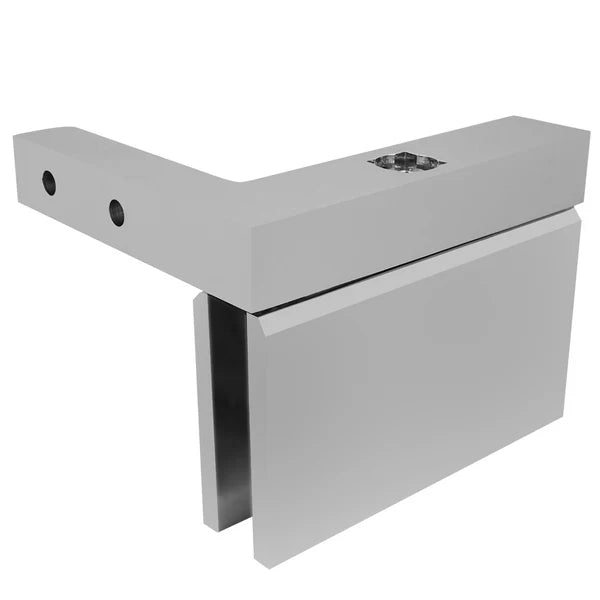

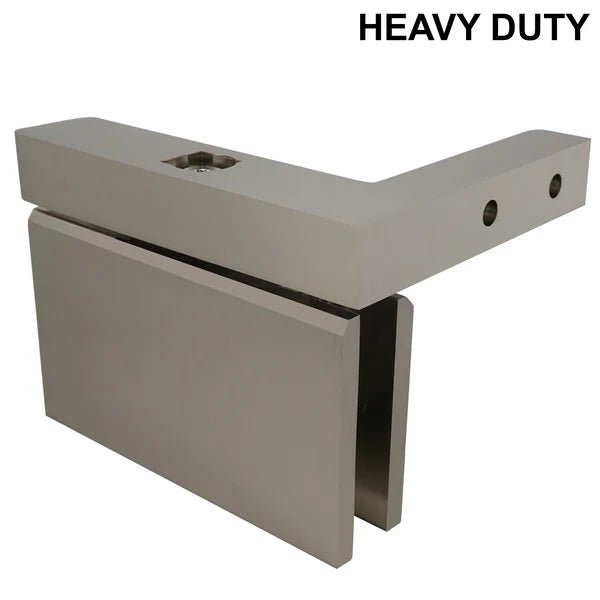

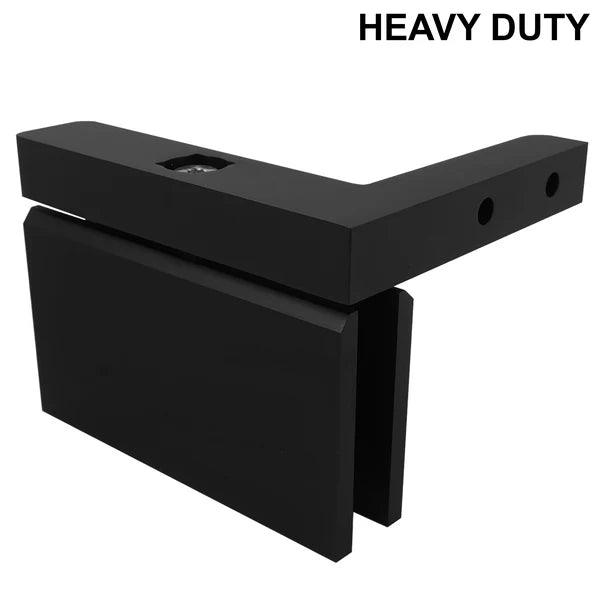

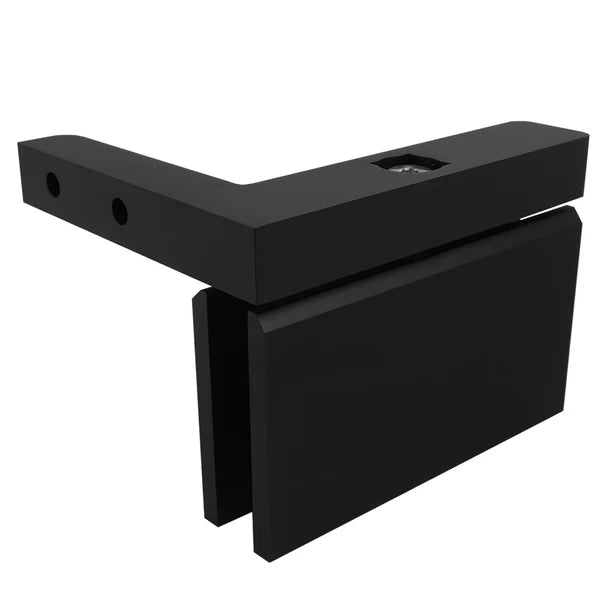

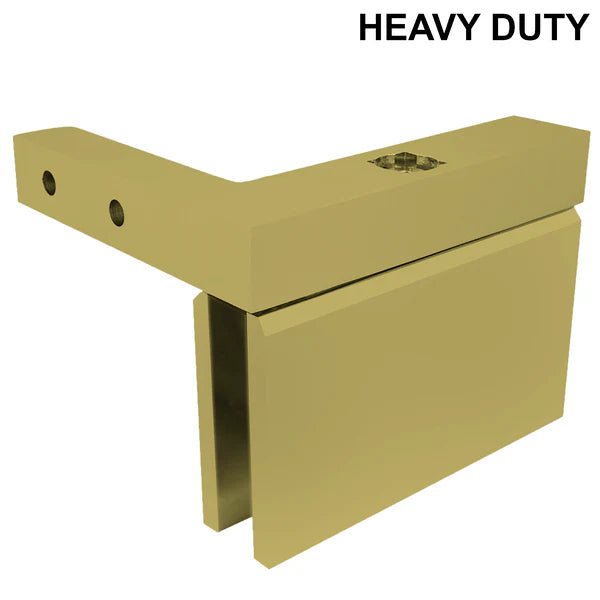

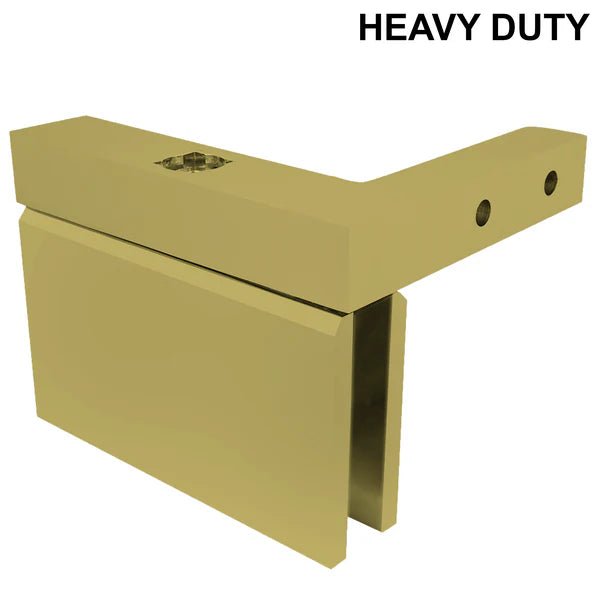

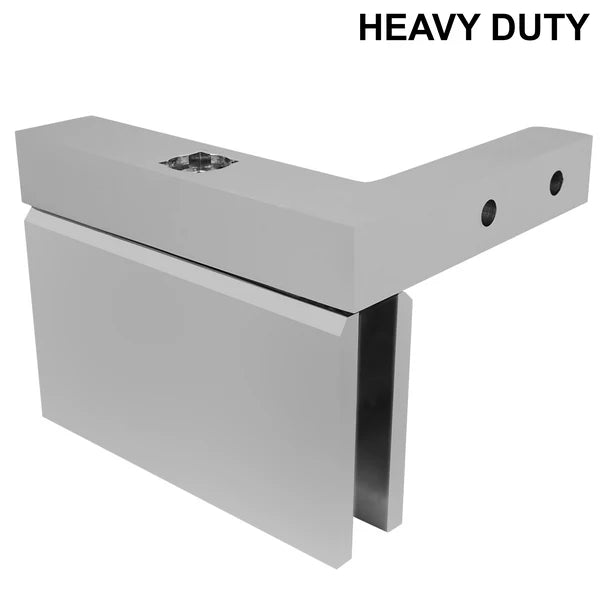

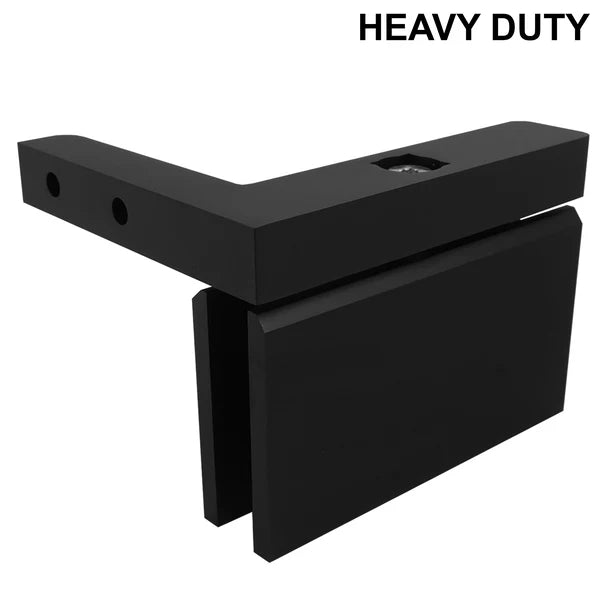

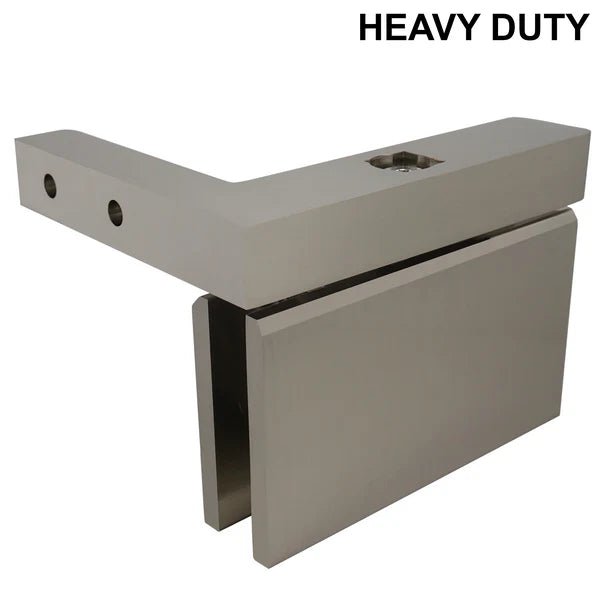

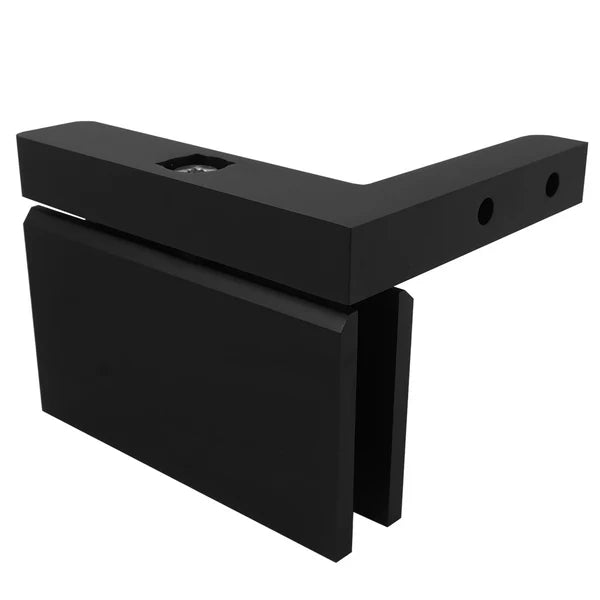

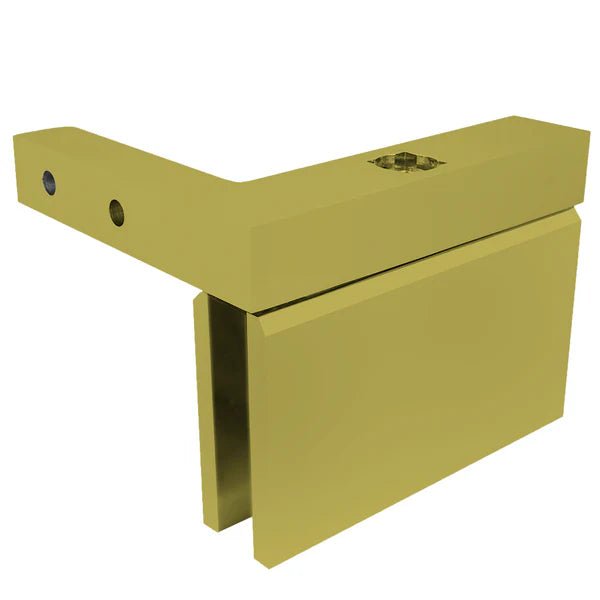

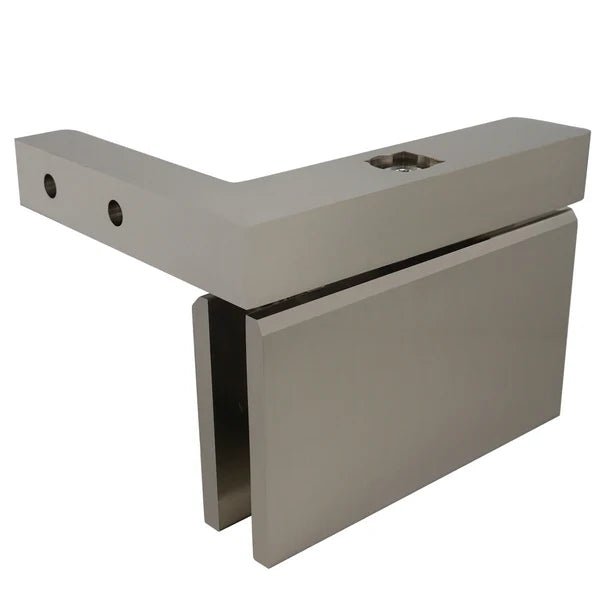

The HDCARA05R hinge from the Cara Series is a heavy-duty offset pivot specifically engineered for frameless shower door installations. Crafted from solid brass with stainless steel pins and spring, it ensures exceptional strength and long-lasting performance.

• Materials: Solid brass with stainless steel pins & spring
• Glass Compatibility: ½″ (12 mm) tempered glass
• Weight Capacity: 145 lbs (66 kg) on 36″ (914 mm) doors
• Rotation Feature: Full rotation
• Installation Requirements: Standard tools
• Warranty: 5 years

Finishes Available: Chrome, Brushed Nickel, Matte Black, Satin Brass

Specifications: Glass Thickness: ½″; Weight Capacity: 145 lbs; Rotation: Full; Installation: Standard tools; Warranty: 5 years.

Additional Information: Warehouse pickup & various delivery options.

View PDF Drawing

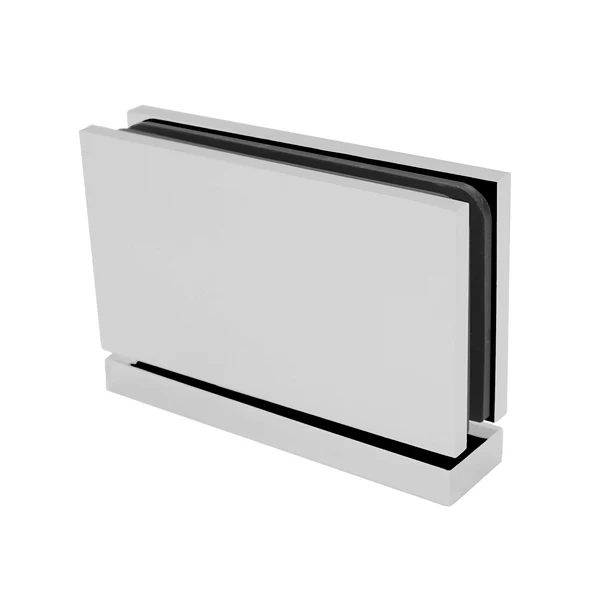

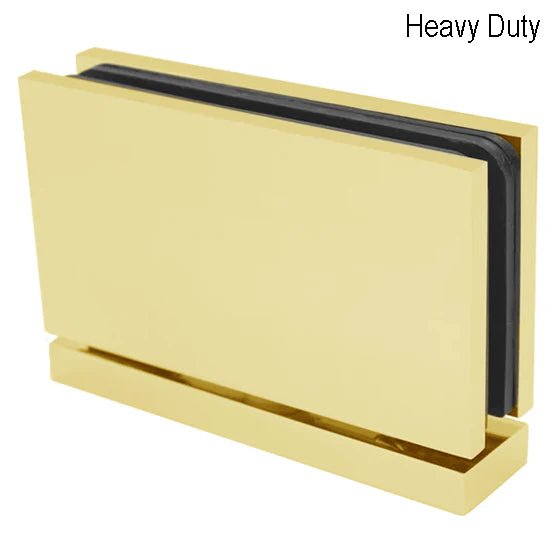

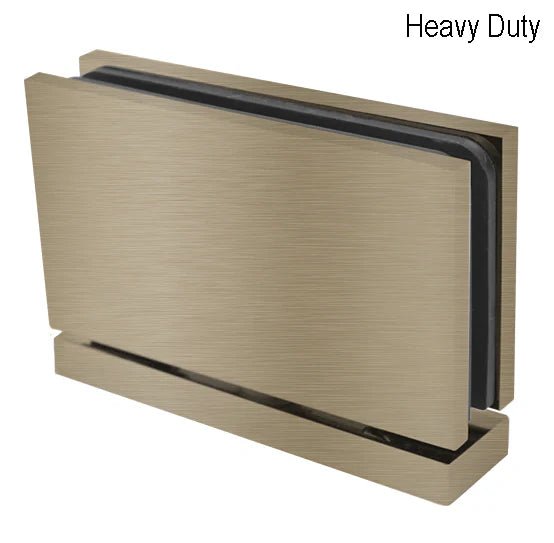

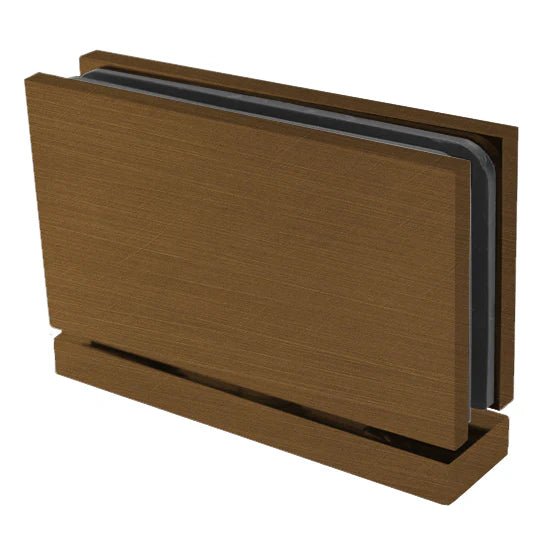

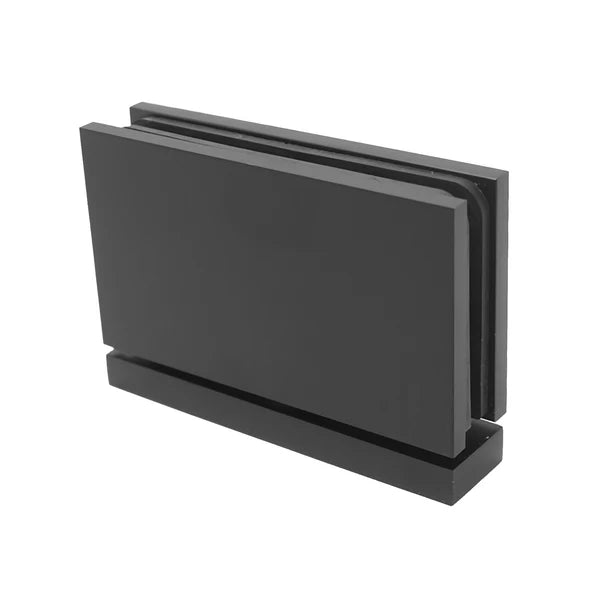

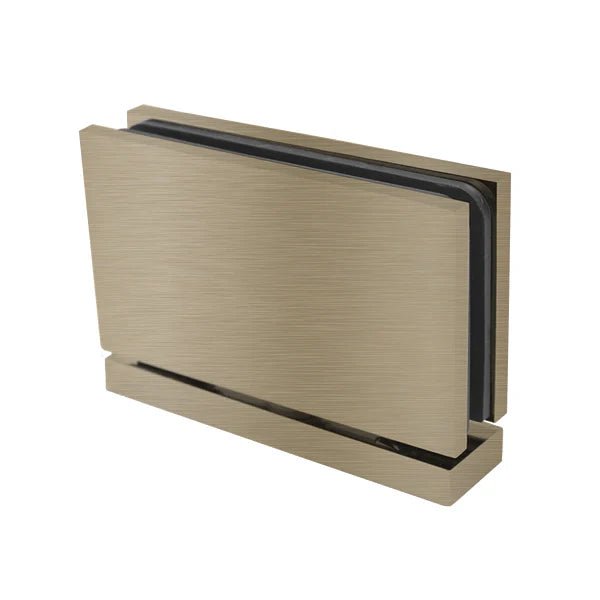

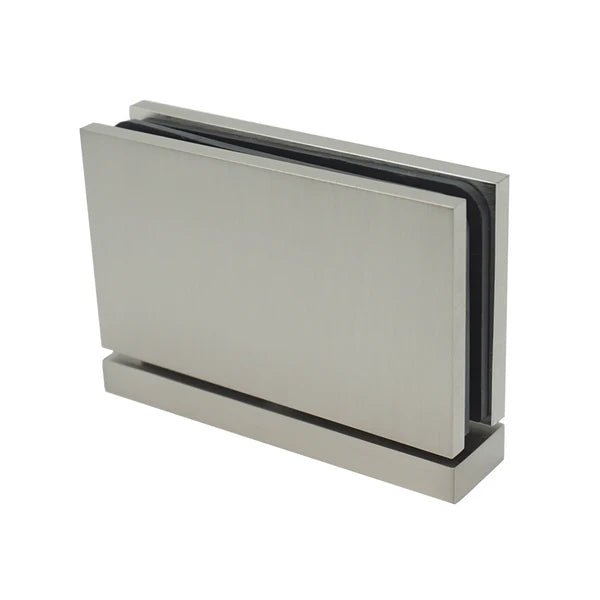

The GGH Cara Series Square Top or Bottom Pivot with Attached U-Clamp Hinge is a premium solution for frameless shower doors. It maximizes glass visibility and reduces cut-outs versus traditional header systems.

• Materials: Solid brass with stainless steel pins & spring
• Glass Compatibility: 5/16″ (8 mm) – 3/8″ (10 mm)
• Design: Top or bottom mount for a minimal look
• Self-Centering: Centers within 15°
• Installation Requirements: Standard tools

Finishes Available: Chrome, Brushed Nickel, Matte Black, Satin Brass

Specifications: Glass Thickness: 5/16″–3/8″; Swing: Full rotation; Warranty: 5 years.

View PDF Drawing

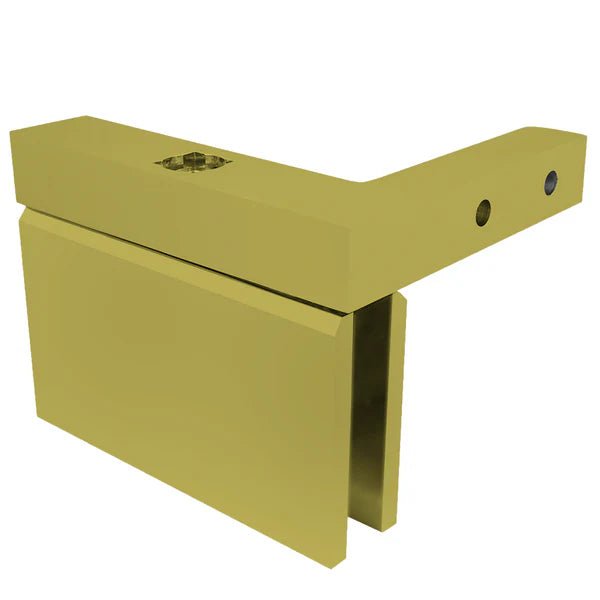

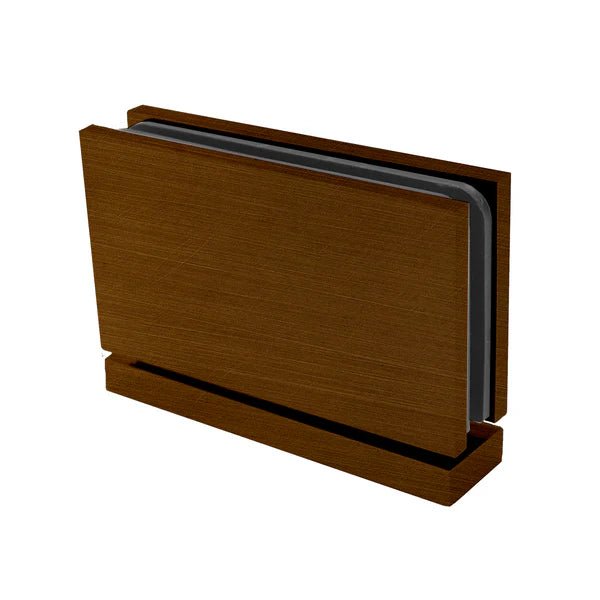

The CARA05L Series Square Pivot Hinge offers a sleek top/bottom pivot for frameless shower doors, blending style and smooth action.

• Materials: Solid brass with stainless steel pins & spring
• Glass Compatibility: 5/16″–3/8″ (8–10 mm)
• Weight Capacity: Two hinges support up to 100 lbs (45 kg) on doors ≤31″ (787 mm)
• Rotation Feature: Full rotation
• Installation Requirements: Standard tools
• Warranty: 5 years

Finishes Available: Chrome, Brushed Nickel, Matte Black, Satin Brass

View PDF Drawing

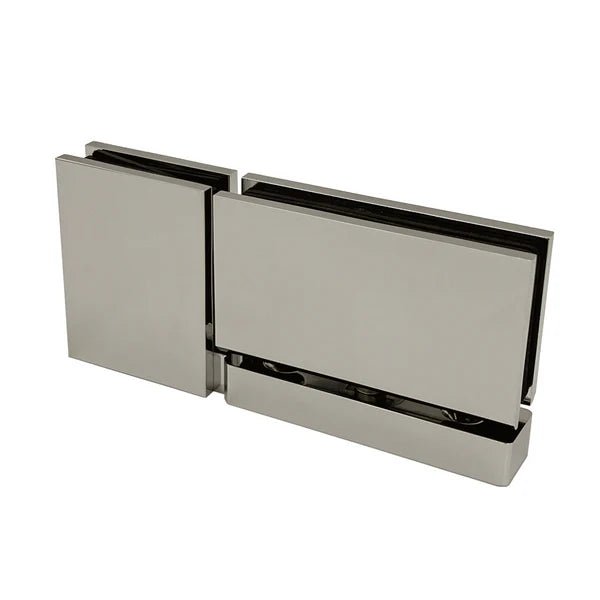

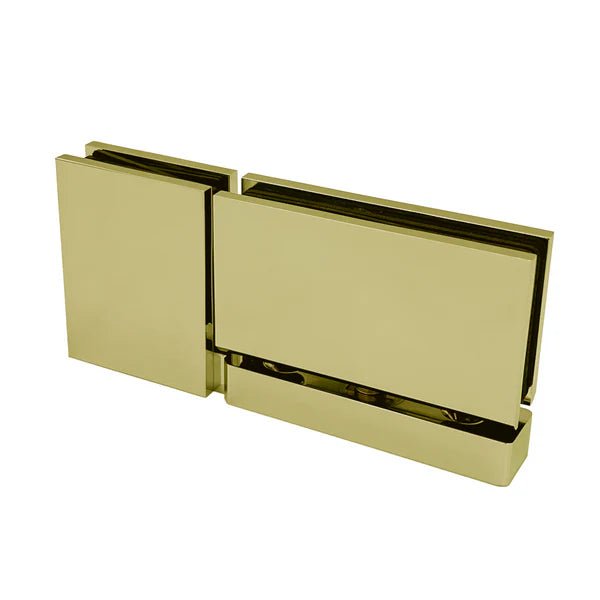

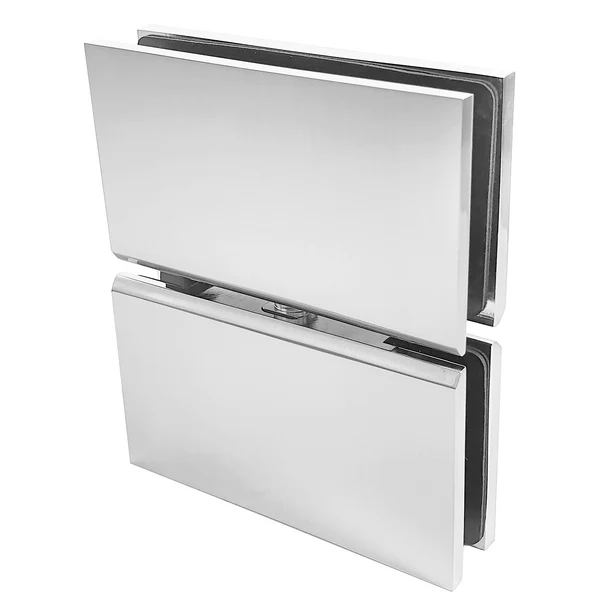

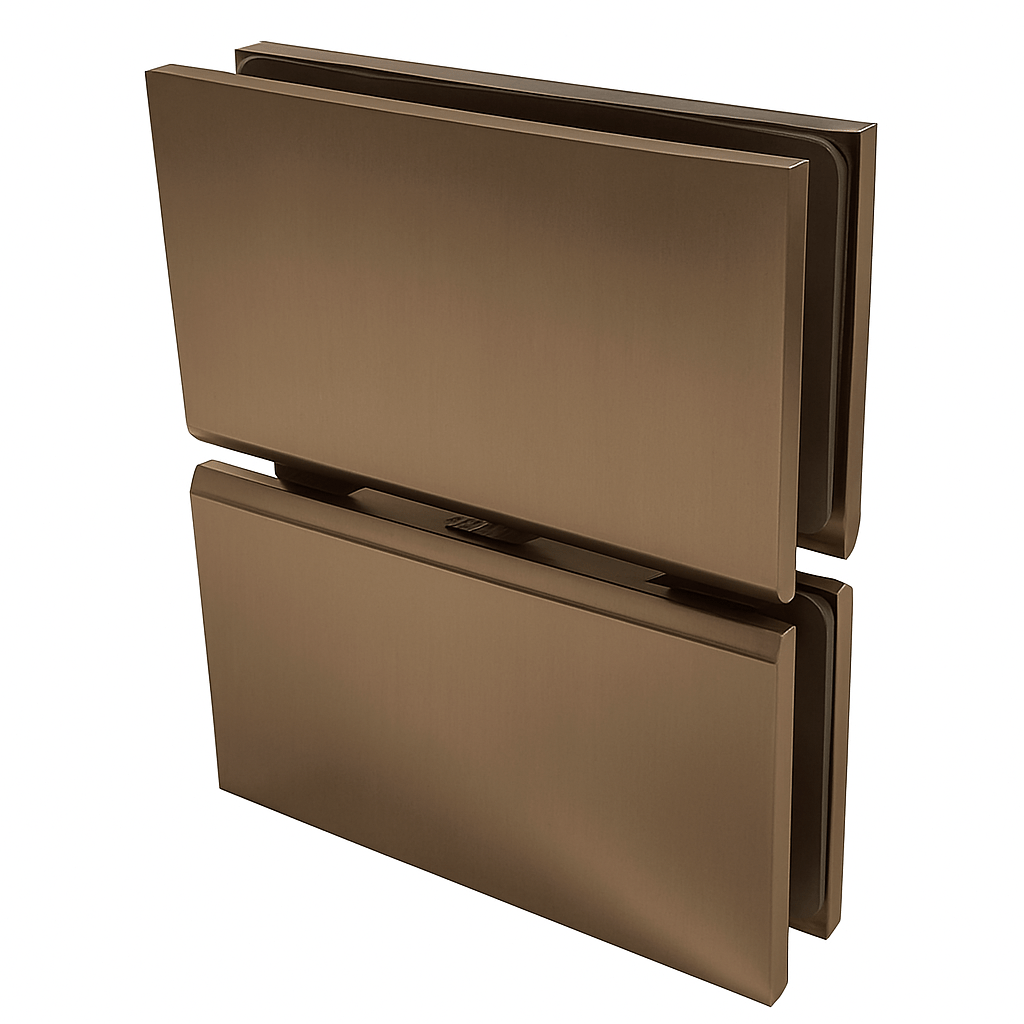

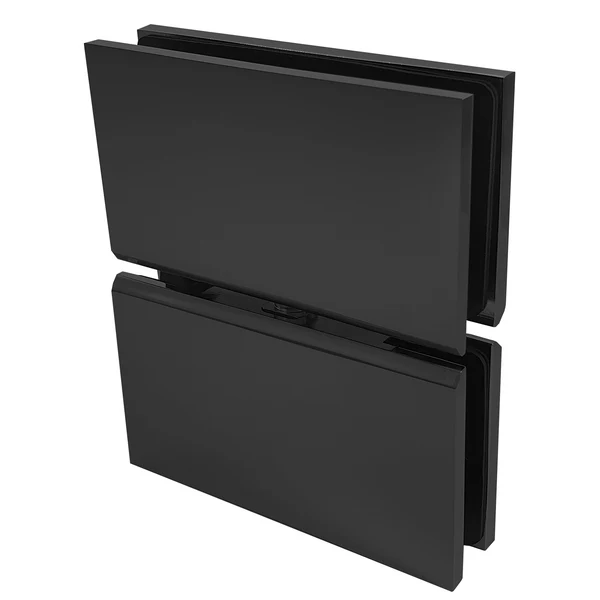

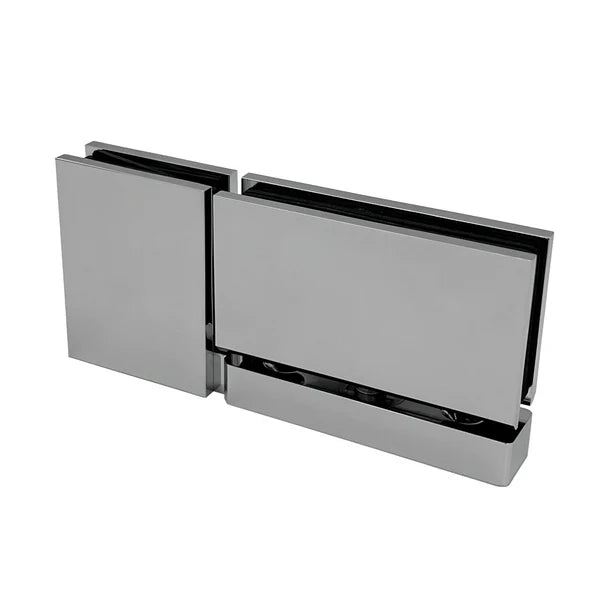

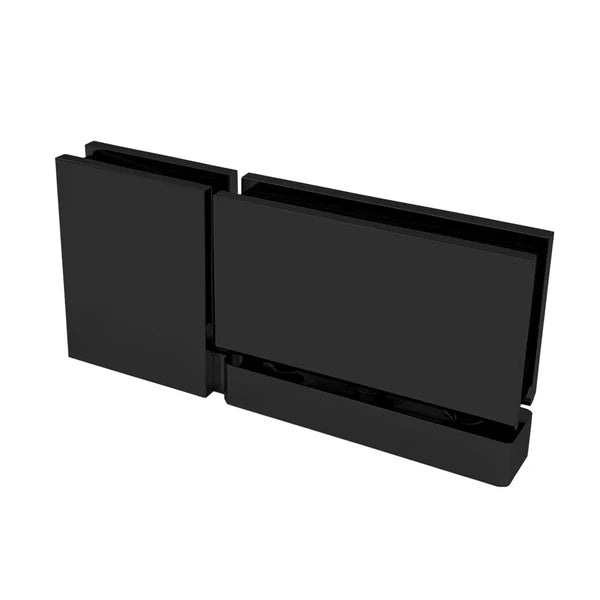

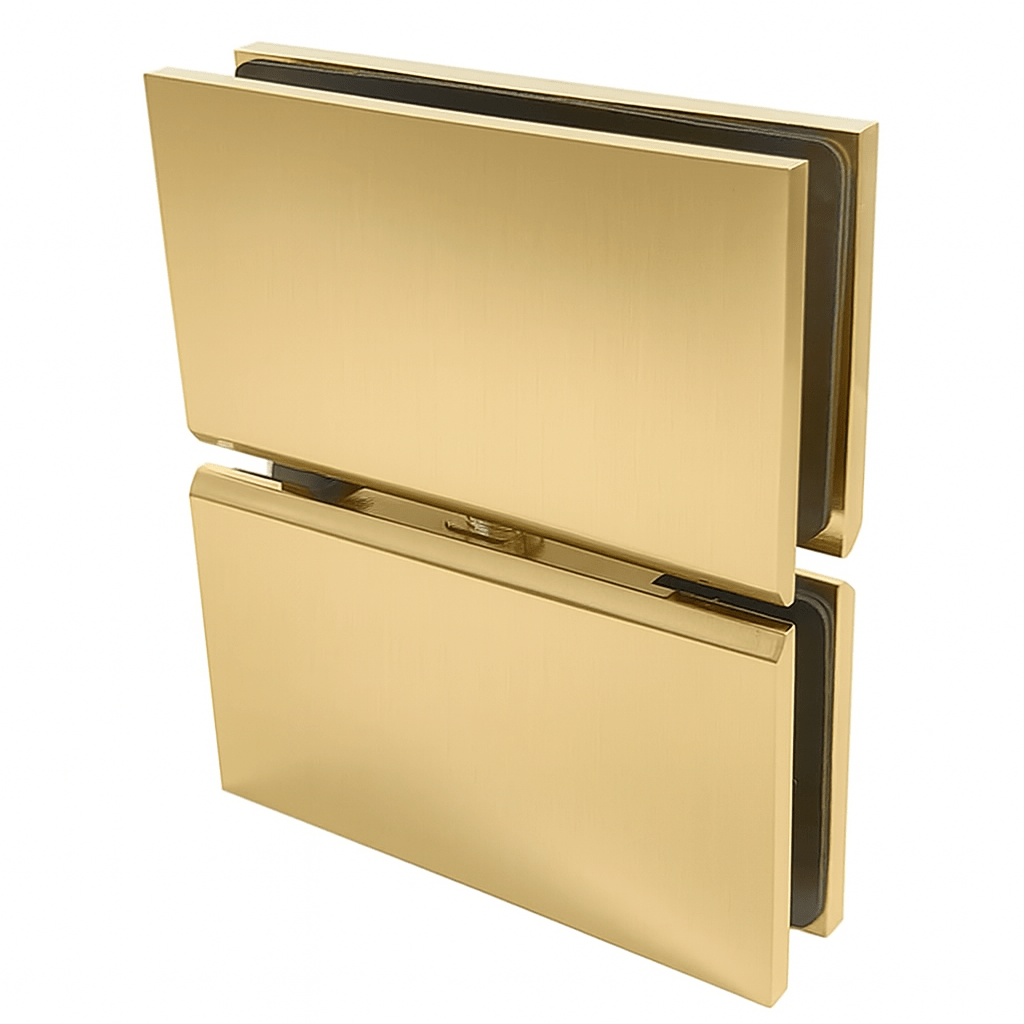

Square Regular Duty - Glass to Glass Pivot Hinge is a glass-to-glass solution offering smooth pivot action and modern styling.

• Materials: Solid brass with stainless steel pins & spring
• Glass Compatibility: 5/16″–3/8″ (8–10 mm)
• Weight Capacity: Two hinges support up to 100 lbs (45 kg) on doors ≤31″ (787 mm)
• Pivot Mechanism: Smooth pivoting action
• Installation Requirements: Standard tools
• Warranty: 5 years

Finishes Available: Chrome, Brushed Nickel, Matte Black, Satin Brass, Polished Nickel, Brushed Bronze, Gun Metal, Oil Rubbed Bronze

View PDF Drawing

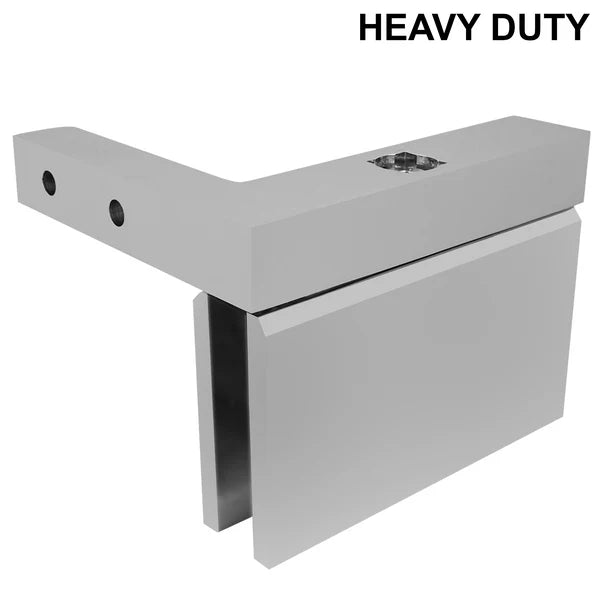

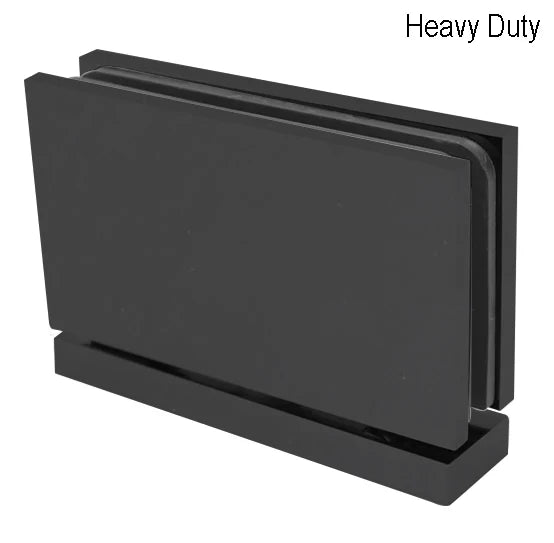

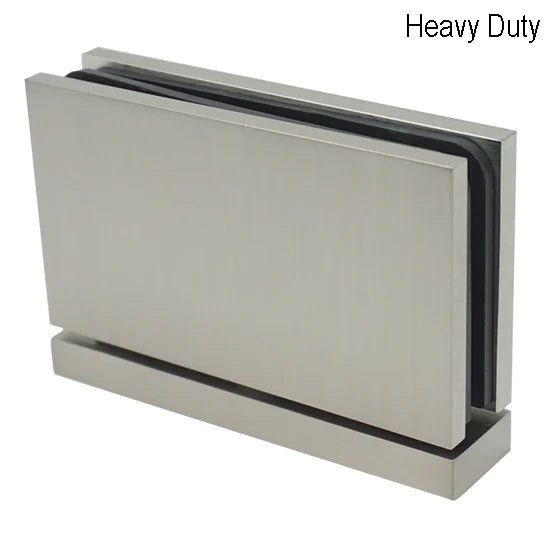

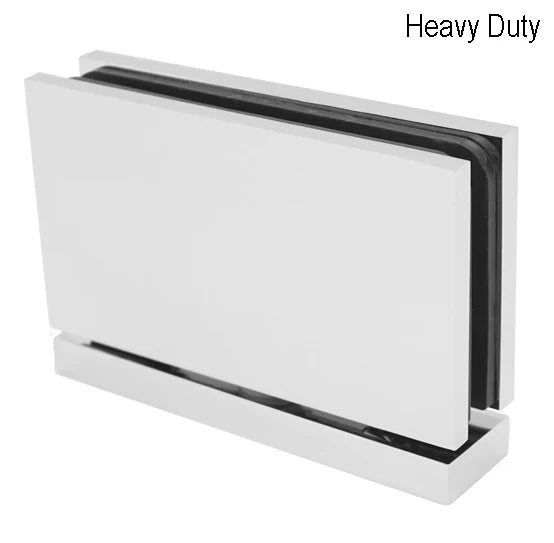

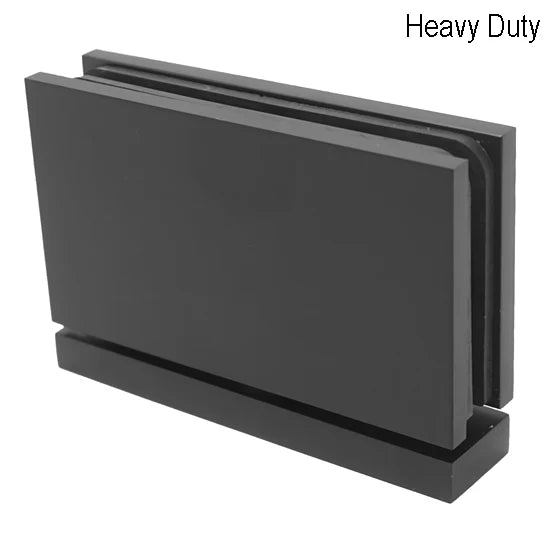

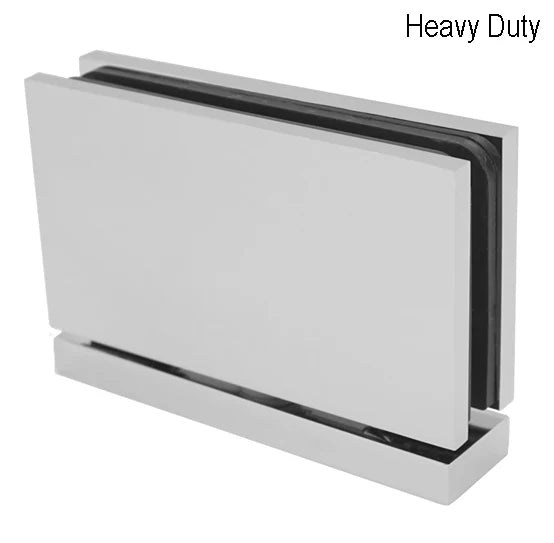

The HDCARA01 Square Heavy-Duty Pivot Hinge supports up to 145 lbs (66 kg) on ½″ (12 mm) glass, delivering durability and sleek design.

• Materials: Solid brass with stainless steel pins & spring
• Glass Compatibility: ½″ (12 mm)
• Weight Capacity: Two hinges support up to 145 lbs (66 kg) on doors ≤36″ (914 mm)
• Pivot Mechanism: Heavy-duty pivot
• Installation Requirements: Standard tools
• Warranty: 5 years

Finishes Available: Chrome, Brushed Nickel, Matte Black, Satin Brass, Polished Nickel, Brushed Bronze, Gun Metal, Oil Rubbed Bronze

View PDF Drawing

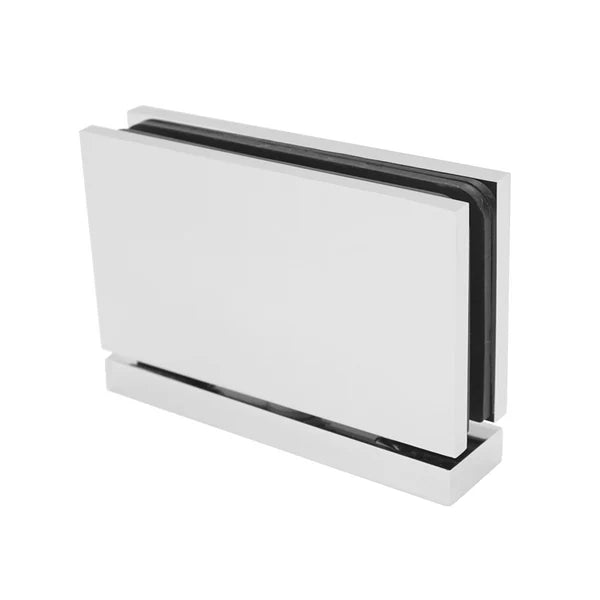

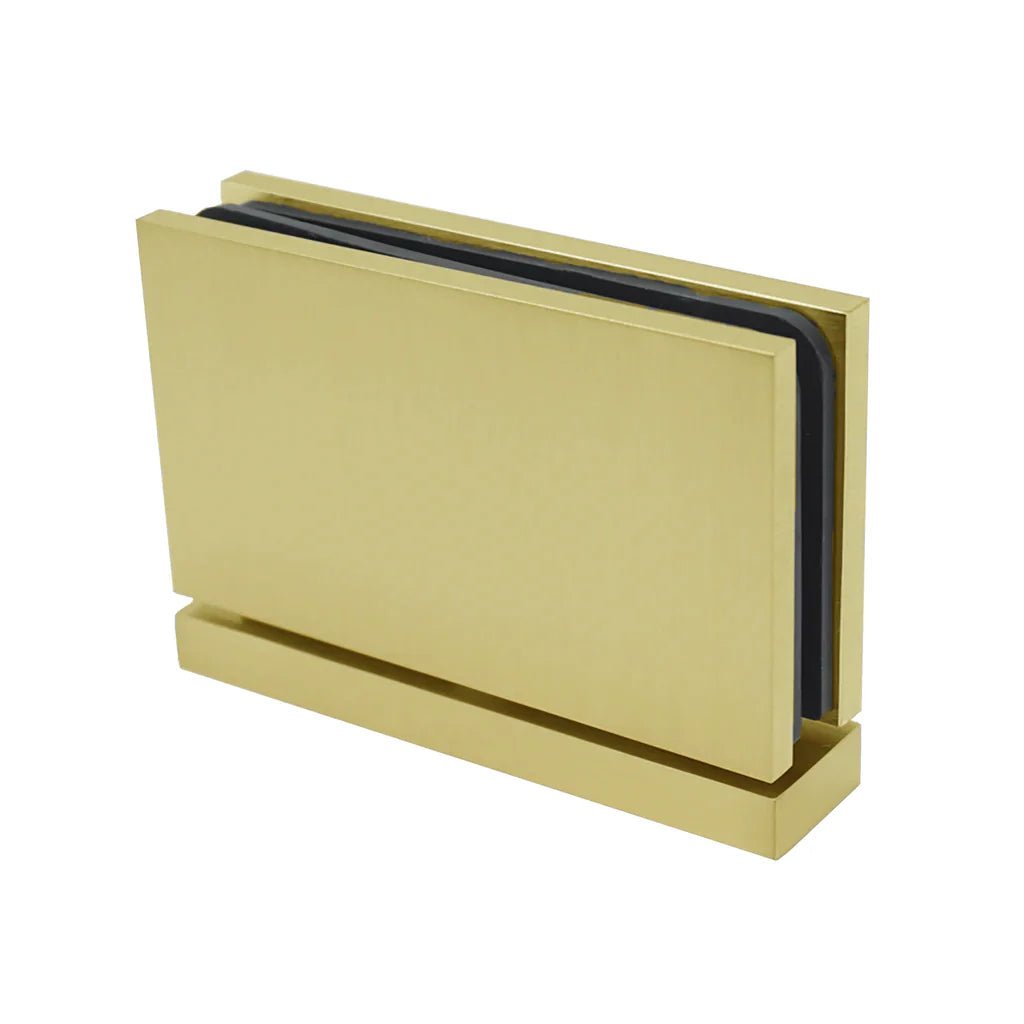

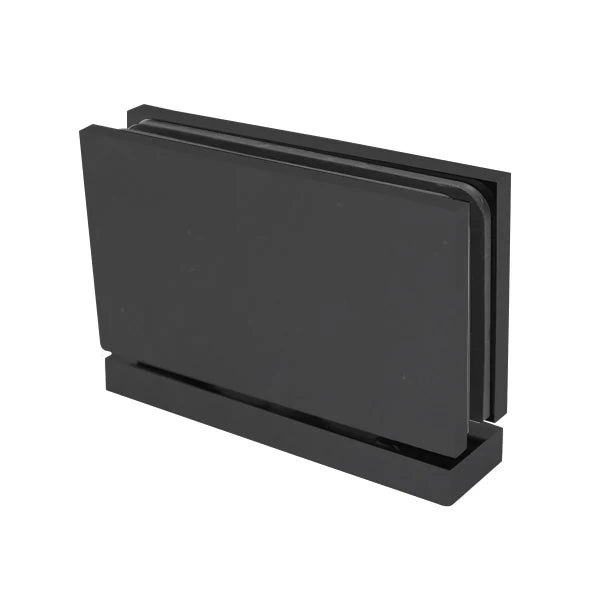

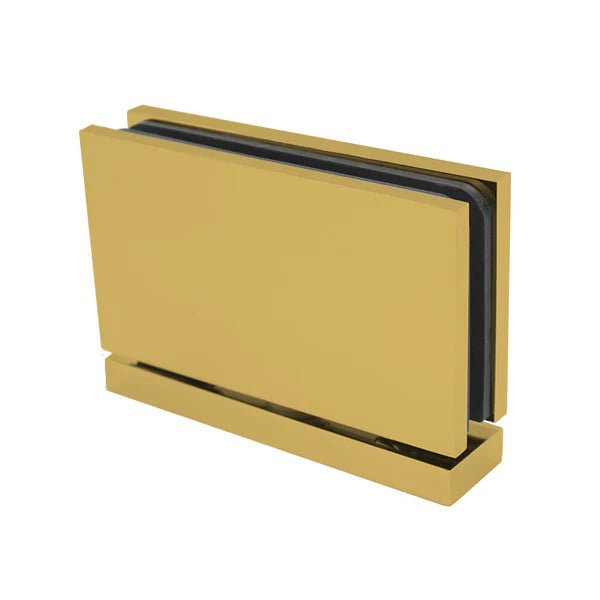

The Cara Series Square Pivot Hinge is a premium hardware piece offering smooth pivot action and modern aesthetics.

• Materials: Solid brass with stainless steel pins & spring
• Glass Compatibility: 5/16″–3/8″ (8–10 mm)
• Weight Capacity: Two hinges support up to 100 lbs (45 kg) on doors ≤31″ (787 mm)
• Pivot Mechanism: Smooth
• Installation Requirements: Standard tools; optional header kit & adaptor blocks
• Warranty: 5 years

View PDF Drawing
