Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair
Description
Description
Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair – Brushed Nickel +–
Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair – Brushed Nickel
Product Overview
This Riveo square hinge connects a tempered glass shower door to an adjacent wall using a full backplate. The self-closing mechanism engages from 15°, and the hinge is sold as a pair.
Product Features
- Square profile with a full backplate
- Self-closing from 15°
- Designed for 8–12 mm tempered glass
- Sold as one pair containing two hinges
Product Specifications
| Product Number | SH3SQ90W195 |
|---|---|
| Finish | Brushed Nickel |
| Brand / Series | Riveo |
| Mounting Method | Wall Mount (Glass-to-Wall) |
| Backplate | Full |
| Angle | 90° |
| Self-Closing | From 15° |
| Glass Thickness | 8–12 mm |
| Glass Type | Tempered |
| Material | Solid brass with stainless steel pin and spring |
| Duty | Regular-Duty |
| Maximum Door Weight — 2 Hinges | 35 kg |
| Maximum Door Weight — 3 Hinges | 54 kg |
| Maximum Door Width — 2 Hinges | 28" |
| Maximum Door Width — 3 Hinges | 32" |
| Sales Unit | Pair (2 hinges) |
Installation Notes
Glass requires mouse-ear preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass.

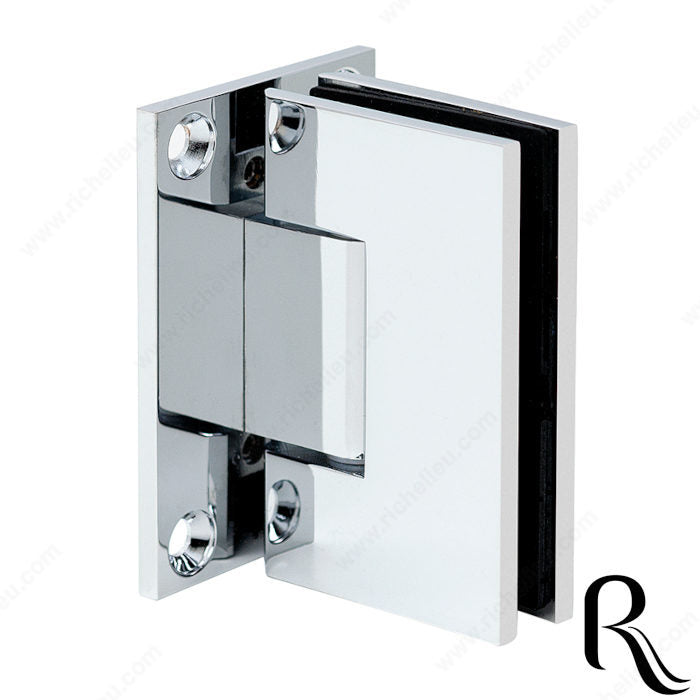

Manufacturer image is representative; finish varies with selection.
Technical Documents
Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair – Chrome +–
Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair – Chrome
Product Overview
This Riveo square hinge connects a tempered glass shower door to an adjacent wall using a full backplate. The self-closing mechanism engages from 15°, and the hinge is sold as a pair.
Product Features
- Square profile with a full backplate
- Self-closing from 15°
- Designed for 8–12 mm tempered glass
- Sold as one pair containing two hinges
Product Specifications
| Product Number | SH3SQ90W140 |
|---|---|
| Finish | Chrome |
| Brand / Series | Riveo |
| Mounting Method | Wall Mount (Glass-to-Wall) |
| Backplate | Full |
| Angle | 90° |
| Self-Closing | From 15° |
| Glass Thickness | 8–12 mm |
| Glass Type | Tempered |
| Material | Solid brass with stainless steel pin and spring |
| Duty | Regular-Duty |
| Maximum Door Weight — 2 Hinges | 35 kg |
| Maximum Door Weight — 3 Hinges | 54 kg |
| Maximum Door Width — 2 Hinges | 28" |
| Maximum Door Width — 3 Hinges | 32" |
| Sales Unit | Pair (2 hinges) |
Installation Notes
Glass requires mouse-ear preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass.
Manufacturer image is representative; finish varies with selection.
Technical Documents
Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair – Matte Black +–
Richelieu Riveo Square Wall Mount Hinge with Full Backplate – Pair – Matte Black
Product Overview
This Riveo square hinge connects a tempered glass shower door to an adjacent wall using a full backplate. The self-closing mechanism engages from 15°, and the hinge is sold as a pair.
Product Features
- Square profile with a full backplate
- Self-closing from 15°
- Designed for 8–12 mm tempered glass
- Sold as one pair containing two hinges
Product Specifications
| Product Number | SH3SQ90W900 |
|---|---|
| Finish | Matte Black |
| Brand / Series | Riveo |
| Mounting Method | Wall Mount (Glass-to-Wall) |
| Backplate | Full |
| Angle | 90° |
| Self-Closing | From 15° |
| Glass Thickness | 8–12 mm |
| Glass Type | Tempered |
| Material | Solid brass with stainless steel pin and spring |
| Duty | Regular-Duty |
| Maximum Door Weight — 2 Hinges | 35 kg |
| Maximum Door Weight — 3 Hinges | 54 kg |
| Maximum Door Width — 2 Hinges | 28" |
| Maximum Door Width — 3 Hinges | 32" |
| Sales Unit | Pair (2 hinges) |
Installation Notes
Glass requires mouse-ear preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass.
Manufacturer image is representative; finish varies with selection.
Technical Documents
