[HULK90NHO-304] Hydraulic Hinge - 90° Wall to Glass - NHO - Box of 2 - SS304

Product Overview

Hulk Series Hydraulic Hinge

[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]

GGH’s Hulk Series Hydraulic Hinge provides advanced automatic soft-close functionality directly within the hinge, removing the need for floor-mounted or top-mounted door closers. Designed for 90° wall-to-glass installations, this non-hold open (NHO) model is ideal for applications where doors must close securely without staying open, maintaining floor finish integrity by eliminating cover plates.

Known for its durability and corrosion resistance, this hinge is built for reliable indoor use. Each box includes a pair of Hulk Series hydraulic hinges, offering a seamless, high-performance solution for glass door installations.

Finishes Available:

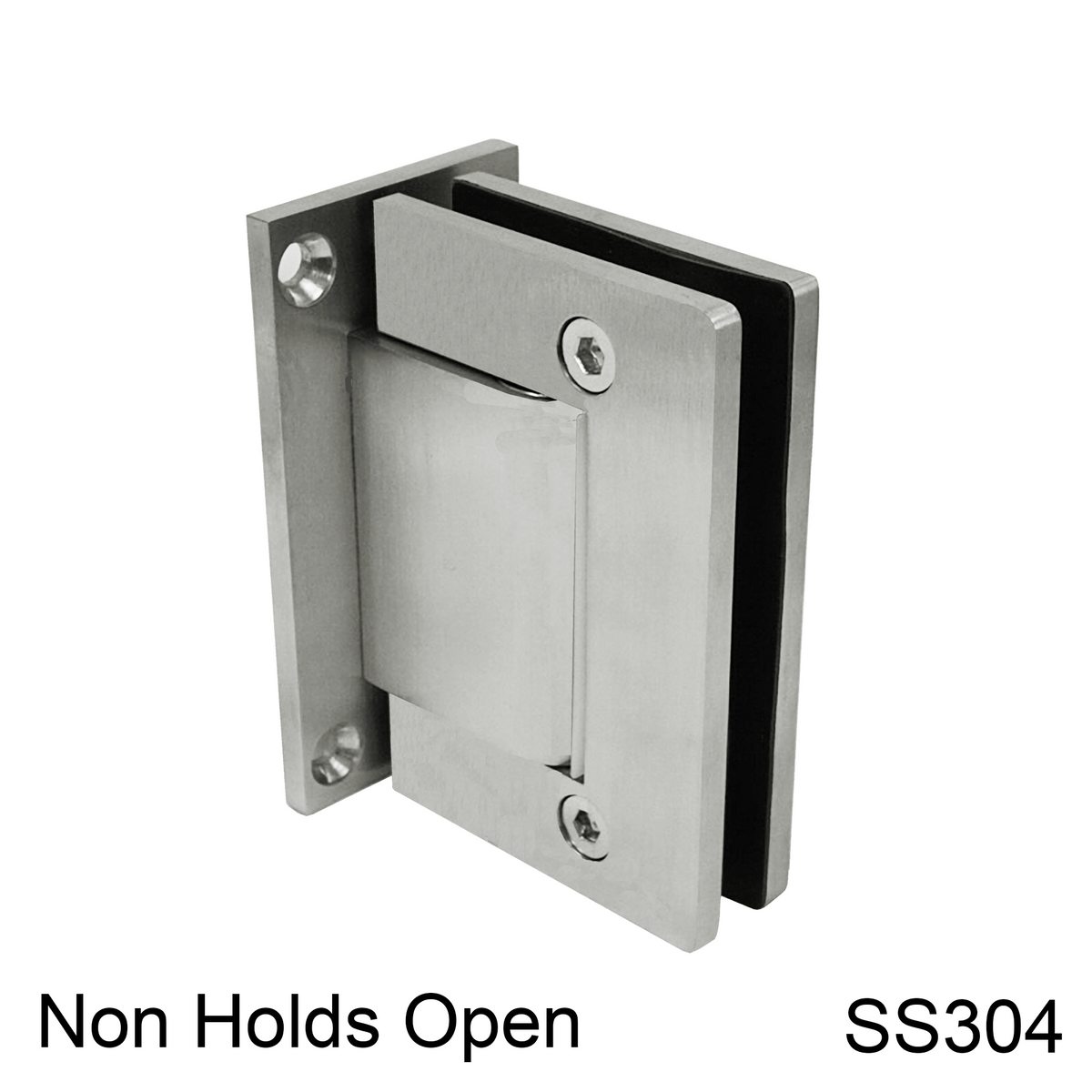

Brushed Stainless

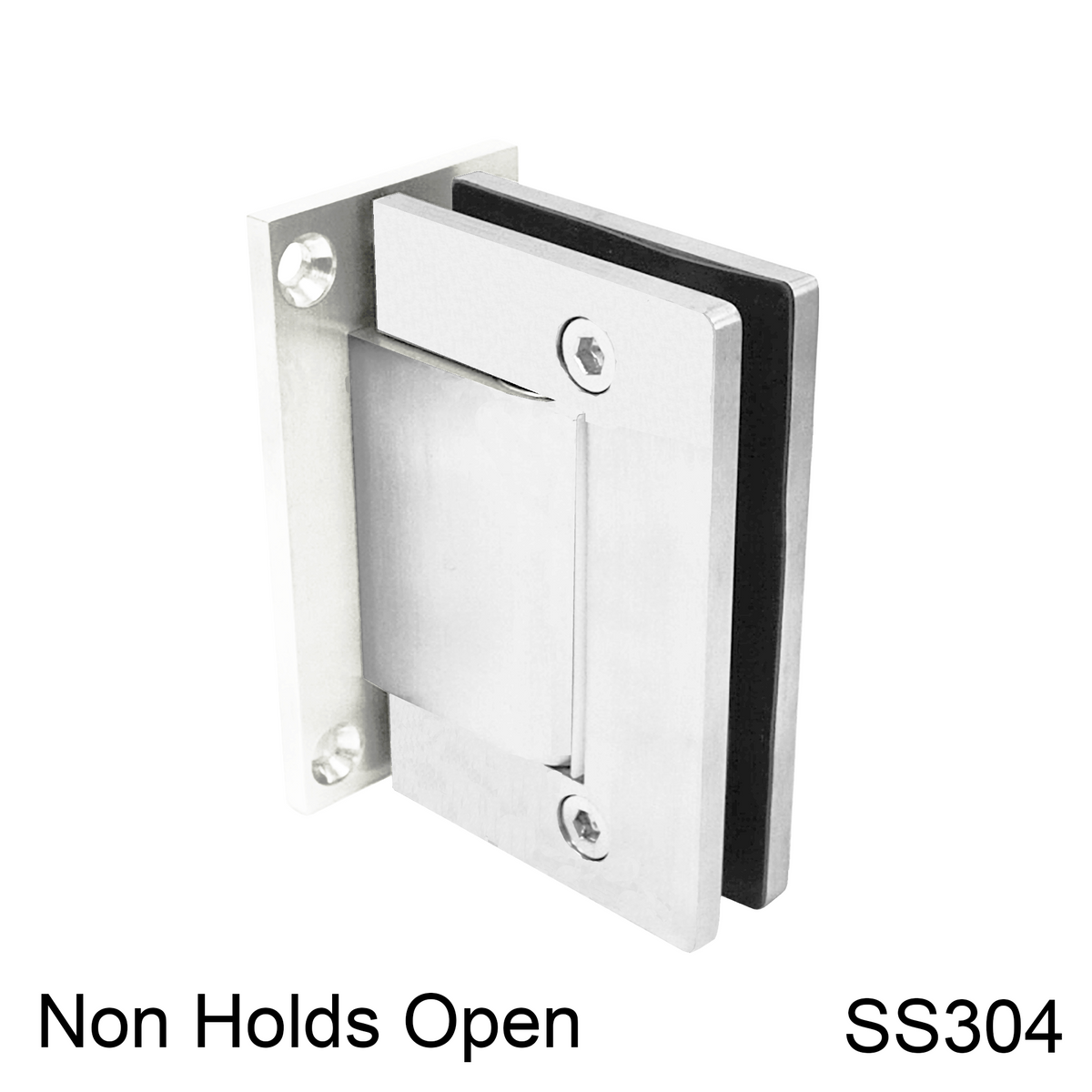

Polished Stainless

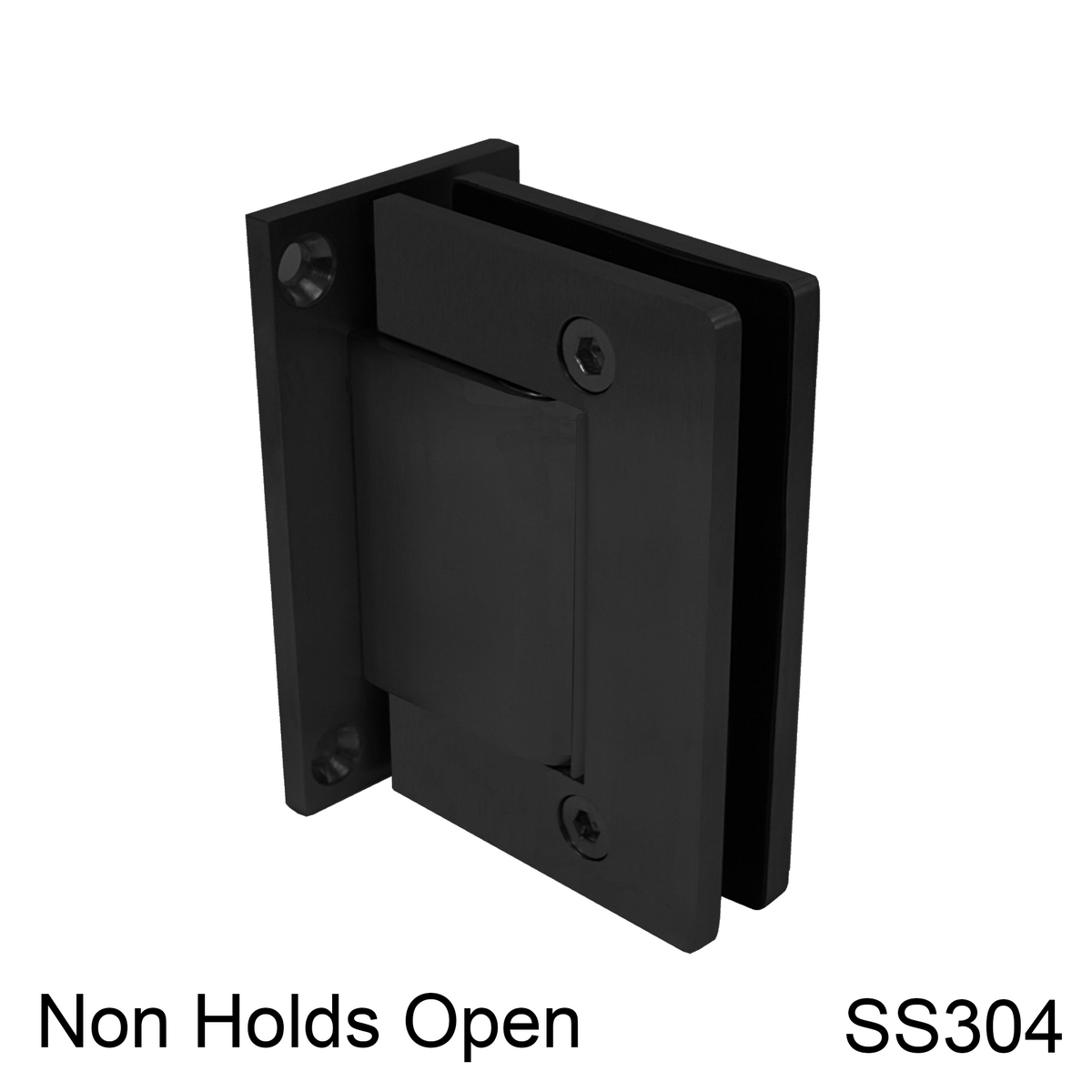

Black

Product Features

• Maximum Weight: 60KG (132Lbs)
• Maximum Height: 86" (2200mm)
• Maximum Width: 39" (1000mm)
• Glass Thickness: 5/16" to 9/16" (8 to 14 mm)
• Material: SS304
• Hinge Swings: 95º Inwards and Outwards
• Special Feature: Non Holds Open at 90º(optional); Closing and latching speed adjustable.
• Glass width deduction = 3/8" + Handle side deduction
• Cut-out required. View CAD/PDF product drawings for more details.

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)

Product Options
