[HULK90HO-304] Hydraulic Hinge - 90° Wall to Glass - HO - Box of 2 - SS304

Product Overview

Hulk Series Hydraulic Hinge

[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]

GGH's Hulk Series Hydraulic Hinges provide an integrated automatic soft-close function, seamlessly eliminating the need for additional floor- or top-mounted door closer devices. This design not only streamlines installation but also preserves the integrity of the floor finish by removing the need for a cover plate.

Engineered with durability in mind, the Hulk Series features high corrosion resistance, making it ideal for indoor applications. Sold in pairs, these hinges deliver both convenience and performance, combining quality construction with functionality to meet the demands of modern glass door installations.

Finishes Available:

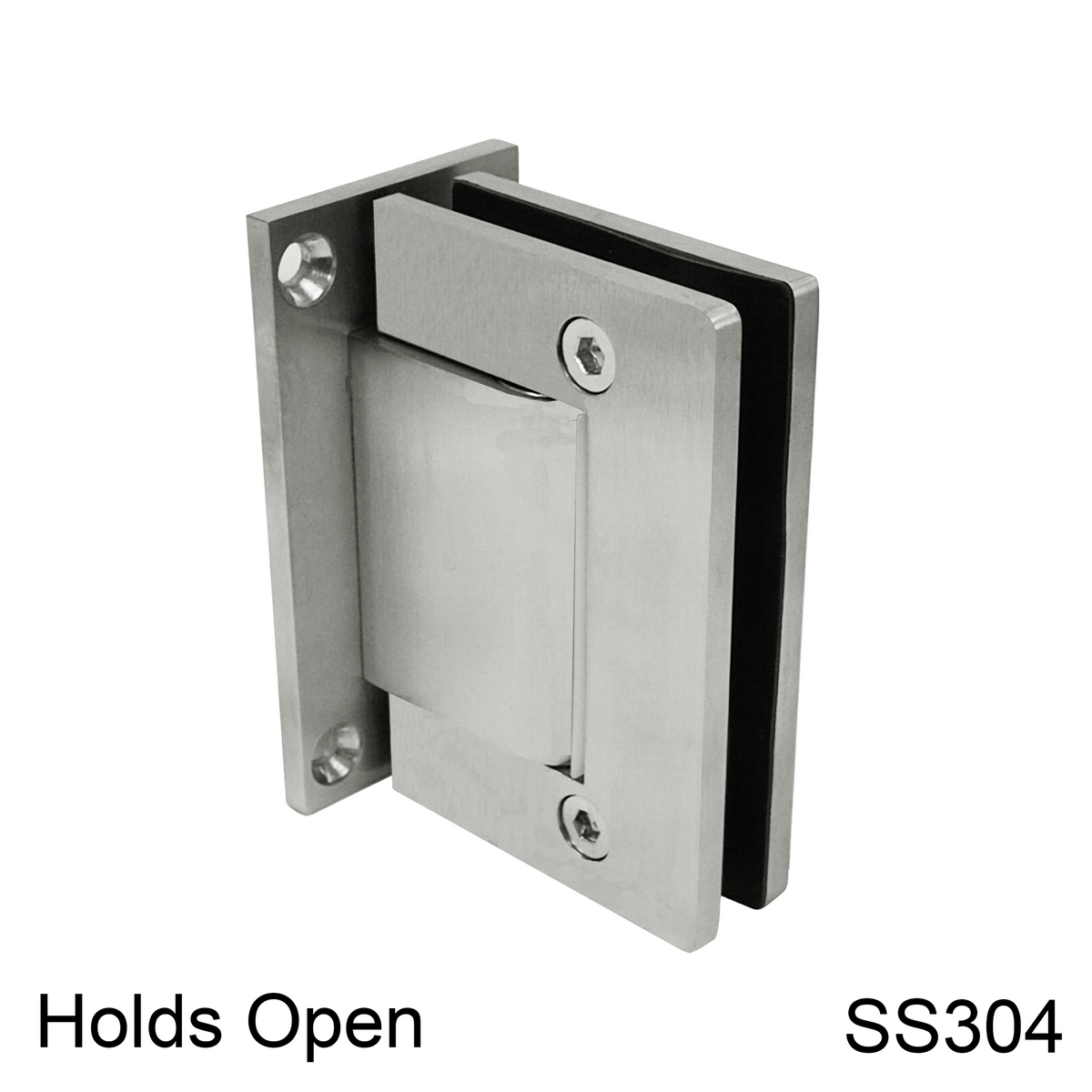

Brushed Stainless

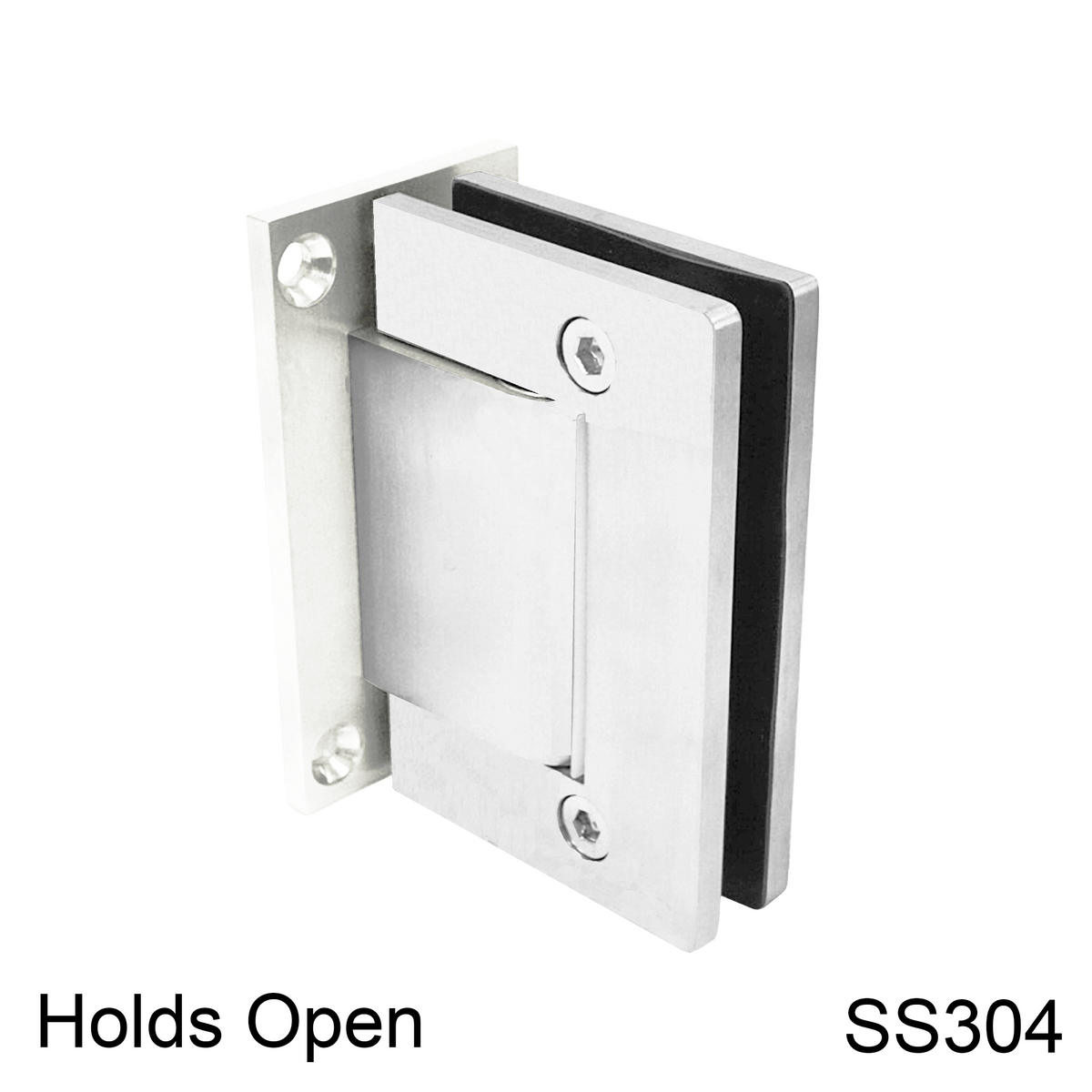

Polished Stainless

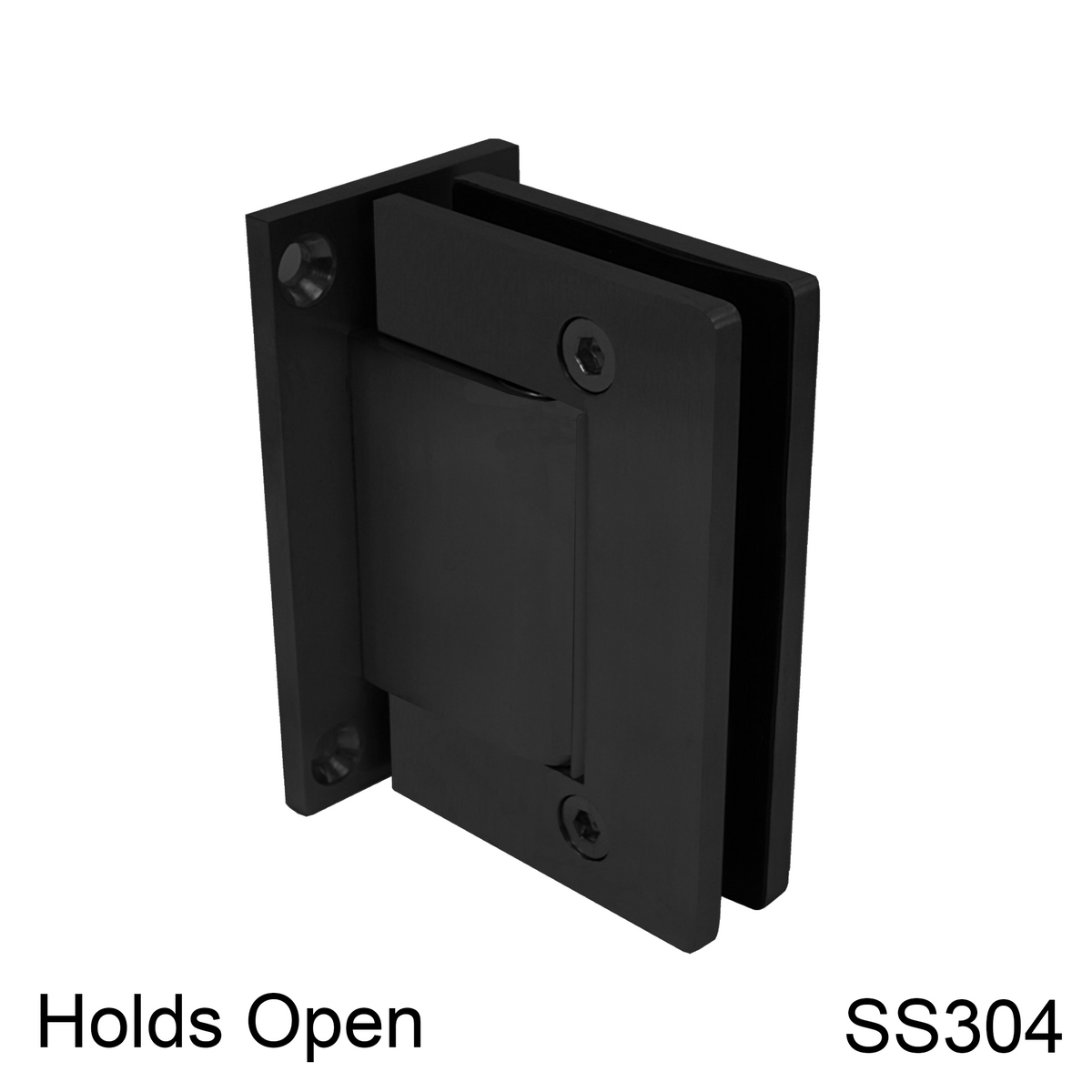

Black

Product Features

• Maximum Weight: 60KG (132Lbs)
• Maximum Height: 86" (2200mm)
• Maximum Width: 39" (1000mm)
• Glass Thickness: 5/16" to 9/16" (8 to 14 mm)
• Material: SS304
• Hinge Swings: 95º Inwards and Outwards
• Closing Function: Automatic closing from 85º to 0º
• Special Feature: Holds Open at 90º(optional); Closing and latching speed adjustable.
• Glass Width Deduction = 3/8" + Handle side deduction
• Cut-out required. View CAD/PDF product drawings for more details.

Technical Documents

• VIEW PDF DRAWING (PDF)
• VEW CAD DRAWING (DWG)

Product Options
