[HULK180NHO-304] Hydraulic Hinge - 180° Glass to Glass - NHO - Box of 2 - SS304

Product Overview

Hulk Series Hydraulic Hinge

[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]

GGH’s Hulk Series Hydraulic Hinge seamlessly integrates automatic soft-close functionality directly into the glass-to-glass 180° hinge, eliminating the need for floor or top-mounted door closers. This non-hold open (NHO) model ensures that doors automatically close without a hold-open function, ideal for spaces requiring automatic door closure.

Designed to maintain floor integrity with no cover plate requirements, this hinge is crafted for lasting durability and corrosion resistance, making it perfect for secure indoor glass door installations. Each box includes a pair of hydraulic hinges to support high-traffic areas effectively.

Finishes Available:

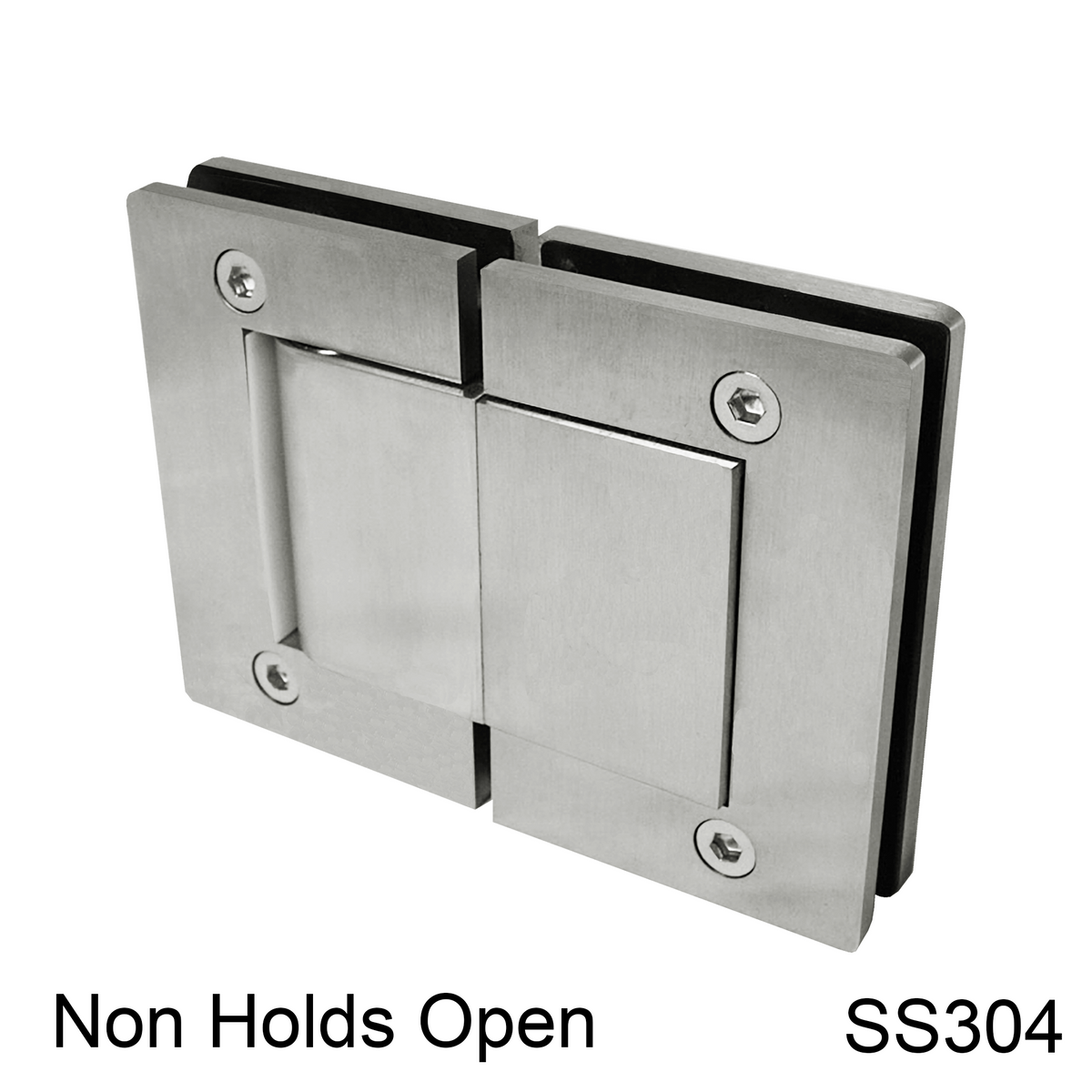

Brushed Stainless

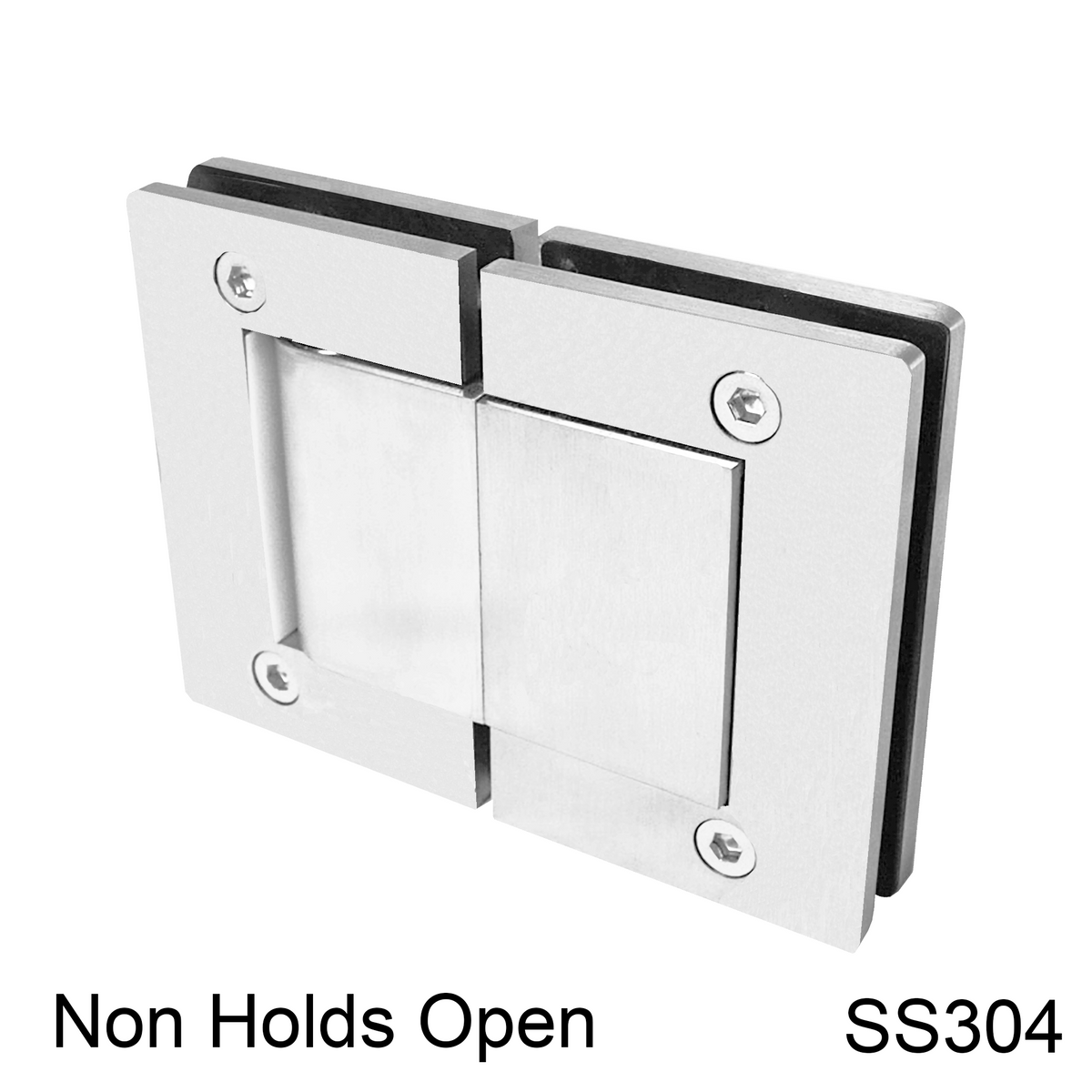

Polished Stainless

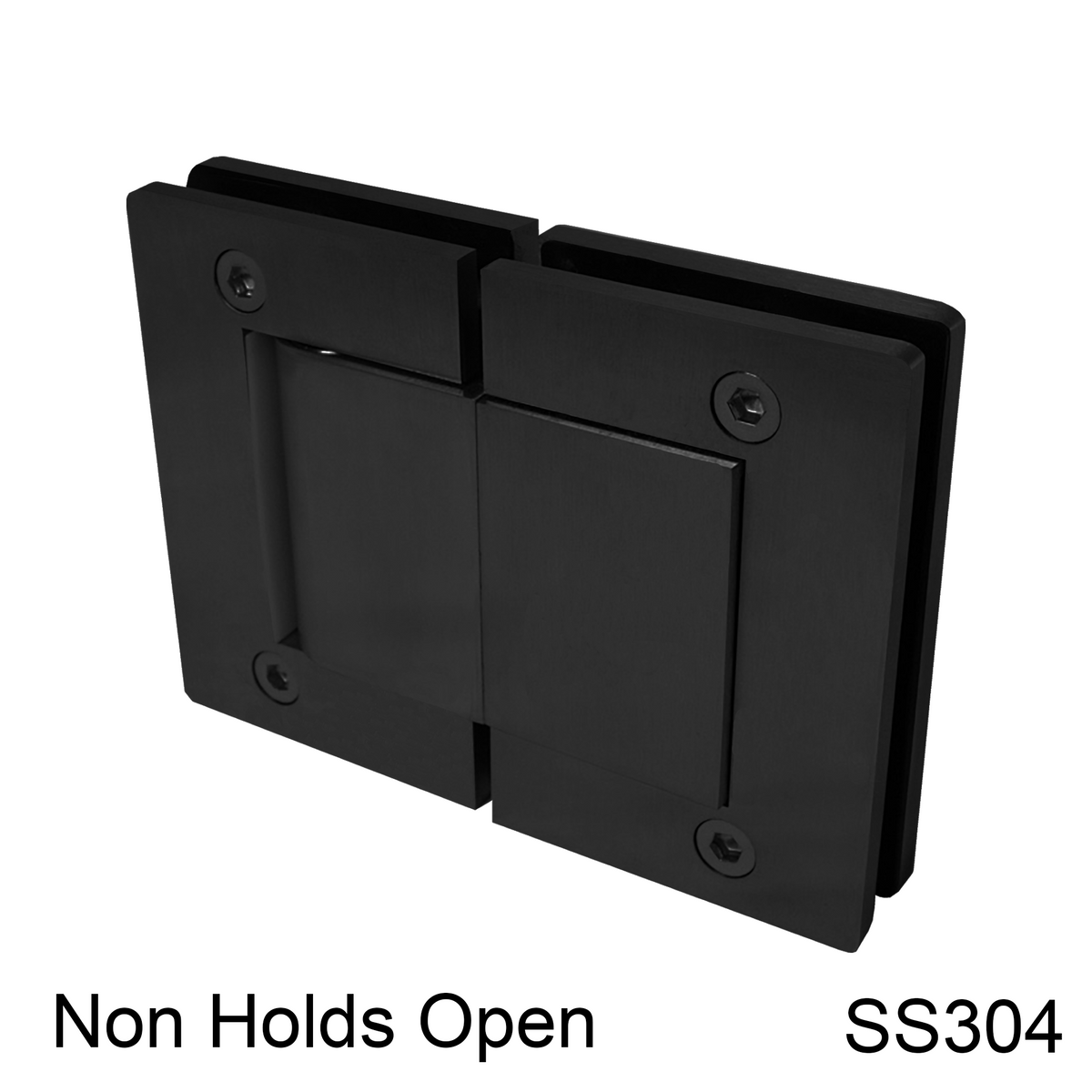

Black

Product Features

• Maximum Weight: 60KG (132Lbs)
• Maximum Height: 86" (2200mm)
• Maximum Width: 39" (1000mm)
• Glass Thickness: 5/16" to 9/16" (8 to 14 mm)
• Material: SS304
• Hinge Swings: 95º Inwards and Outwards
• Special Feature: Non Holds Open at 90º(optional); Closing and latching speed adjustable.
• Cut-out required. View CAD/PDF product drawings for more details.

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)
