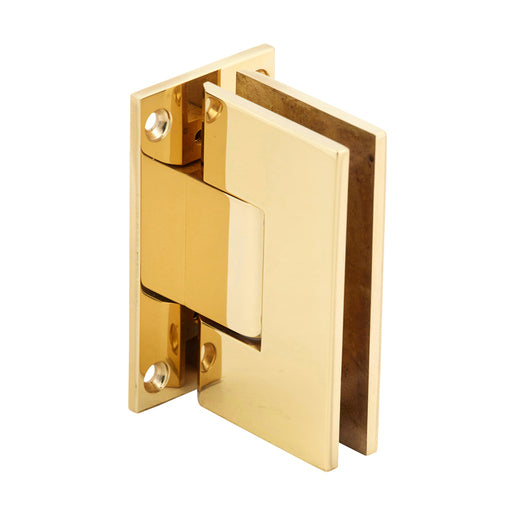

V1E037BR — Polished Brass

Product Details

• SKU: V1E037BR
• Finish: Polished Brass

V1E037BR: Finish/Color: Polished Brass

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Self-Centering with Reversible 5 Degree Pivot Pin Available in Several Beautiful Finishes Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position) Use Monolithic Tempered Glass Apply medium-strength threadlocker on cover plate screws CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs. Each Vienna Hinge contains a Reversible Pivot Pin. One side is marked at 90 degree. The opposite side is marked 85 degree. Standard hinges come with the 90 degree side activated. Pre-Set models come with the pin preset for 85 degree (5 degree tighter closure into shower interior). The pin can be rotated (not flipped upside down) to activate the other side. Custom Pivot Pins are available for off-angle installations. Example: wall does not meet door at 90 degrees. If the standard 5 degree pin does not assist, specify needed angle up to 45 degrees. Using two hinges with 3/8 to 1/2 inch glass, holds up to 110 lbs (50 kg), maximum door width 36 in (914 mm). Using three hinges with 3/8 to 1/2 inch glass, holds up to 140 lbs (63 kg), maximum door width 36 in (914 mm). Glass Thickness 3/8 (10 mm) to 1/2 (12 mm) Tempered Safety Glass; Construction Solid Brass; Hinge Swings 90 degree In and 90 degree Out; Closing Type Self-Centering when within 15 degree of closed position; Cut-Out Required except V1E092; Includes Gaskets, Screws, and Glass Fabrication Dimensions; Maximum Clamping Screw Torque 60 lbf.in (677.9 cN.m); custom finishes on request from CRL Technical Sales. Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

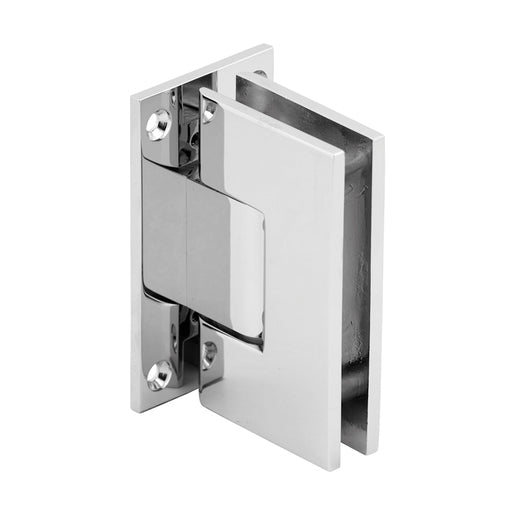

V1E037CH — Polished Chrome

Product Details

• SKU: V1E037CH
• Finish: Polished Chrome

V1E037CH: Finish/Color: Polished Chrome

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Self-Centering with Reversible 5 Degree Pivot Pin Available in Several Beautiful Finishes Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position) Use Monolithic Tempered Glass Apply medium-strength threadlocker on cover plate screws CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs. Each Vienna Hinge contains a Reversible Pivot Pin. One side is marked at 90 degree. The opposite side is marked 85 degree. Standard hinges come with the 90 degree side activated. Pre-Set models come with the pin preset for 85 degree (5 degree tighter closure into shower interior). The pin can be rotated (not flipped upside down) to activate the other side. Custom Pivot Pins are available for off-angle installations. Example: wall does not meet door at 90 degrees. If the standard 5 degree pin does not assist, specify needed angle up to 45 degrees. Using two hinges with 3/8 to 1/2 inch glass, holds up to 110 lbs (50 kg), maximum door width 36 in (914 mm). Using three hinges with 3/8 to 1/2 inch glass, holds up to 140 lbs (63 kg), maximum door width 36 in (914 mm). Glass Thickness 3/8 (10 mm) to 1/2 (12 mm) Tempered Safety Glass; Construction Solid Brass; Hinge Swings 90 degree In and 90 degree Out; Closing Type Self-Centering when within 15 degree of closed position; Cut-Out Required except V1E092; Includes Gaskets, Screws, and Glass Fabrication Dimensions; Maximum Clamping Screw Torque 60 lbf.in (677.9 cN.m); custom finishes on request from CRL Technical Sales.

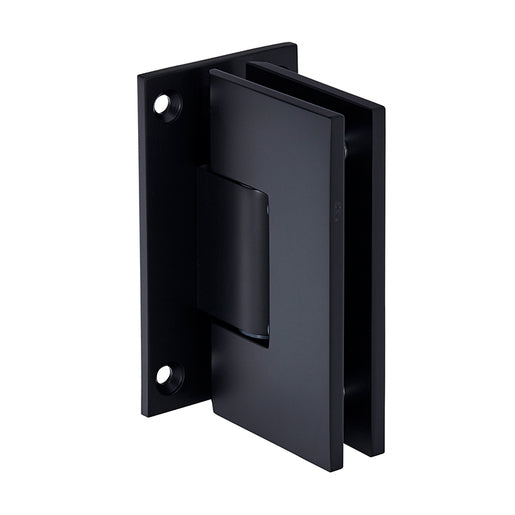

V1E037MBL — Matte Black

Product Details

• SKU: V1E037MBL
• Finish: Matte Black
