CRL Trento 092 Series 90 Degree Glass-to-Glass Hinge
Product Overview
The CRL Trento 092 Series 90 Degree Glass-to-Glass Hinge is designed for frameless shower doors using 10 mm (3/8") or 12 mm (1/2") monolithic tempered glass. Its rectangular profile and concealed mounting screws provide a clean appearance.
Key Features
- Mounting configuration: 90° glass-to-glass.
- Glass compatibility: 10 mm (3/8") and 12 mm (1/2") monolithic tempered glass.
- Gaskets: Non-asbestos fibre (NAF) gaskets accommodate both glass thicknesses.
- Closing action: Self-centering.
- Reversible pivot pin allows a 5° change to the self-centering position; rotate the pin as directed by CRL.
- Unit of sale: One hinge.
Applications
Frameless glass shower enclosures with the specified mounting configuration.
Available Finishes & References

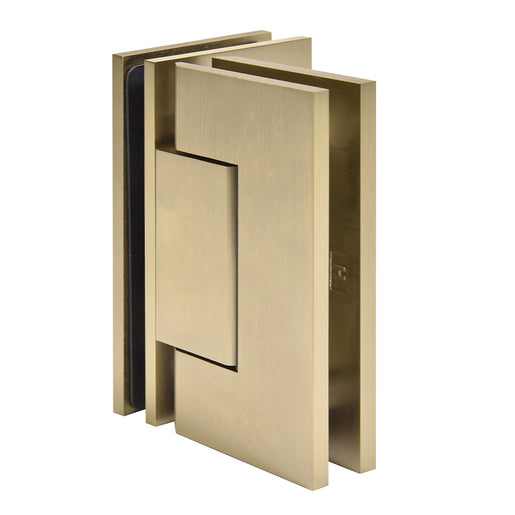

- TNT092BBRZ: Brushed Bronze

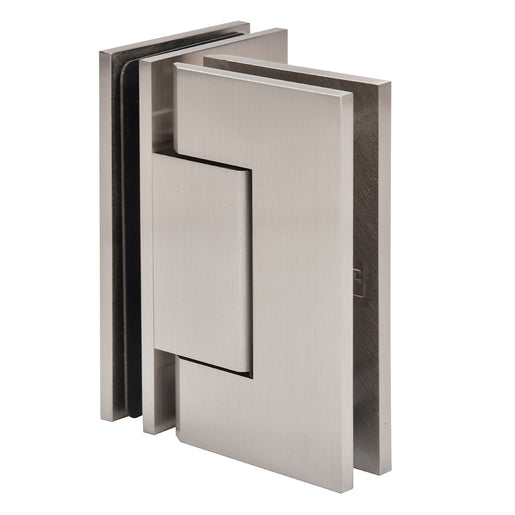

- TNT092BN: Brushed Nickel

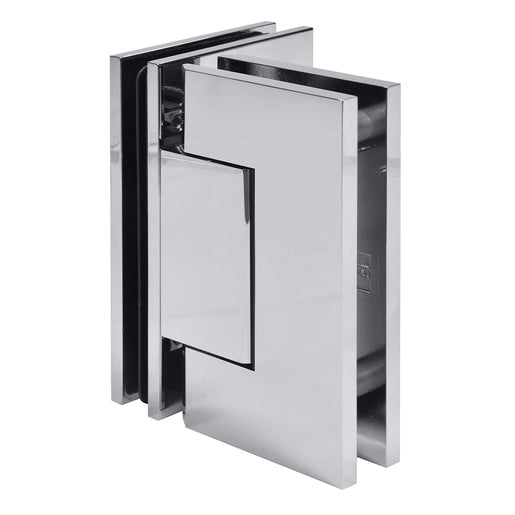

- TNT092CH: Polished Chrome

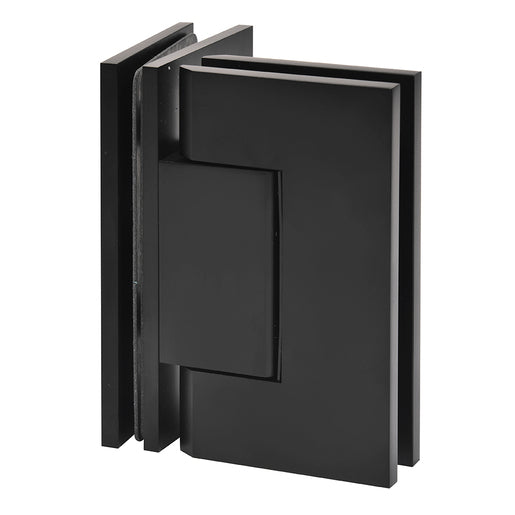

- TNT092MBL: Matte Black

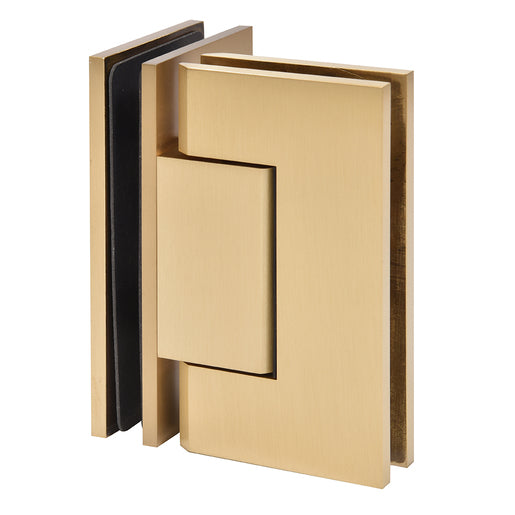

- TNT092SB: Satin Brass
Technical Documents
Trento Product Information
TNT092 Manufacturer Template
Installation Information
- Use the CRL template supplied with the exact hinge when preparing the glass.
- Confirm door dimensions, weight, number of hinges and mounting support against the current CRL specifications before installation.
- Follow the manufacturer's gasket, fastener and tightening instructions.
