CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges
Regular price
$179.71 CAD
Unit price
Shipping calculated at checkout.
CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges - Oil Rubbed Bronze is backordered and will ship as soon as it is back in stock.
Pickup available at Warehouse
Usually ready in 2-4 days
Pick up and Shipping
Pick up and Shipping
For custom-made glass orders, please note that shipping generally takes1–2 weeksfrom our supplier before we receive the panels and can proceed with fulfillment.
For Wine Cellar racks we have a 30 days production delay.
Pick up at 1250 rue Tellier, Laval, Québec, H7C 2H2.
CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges
Regular priceFrom
$139.77 CAD
Unit price
C. R. Laurence | SKU:
P1N0920RB
Regular price
$179.71 CAD
Unit price
Shipping calculated at checkout.
CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges - Oil Rubbed Bronze is backordered and will ship as soon as it is back in stock.
Description
Description
CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges +–
CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges
Product Overview

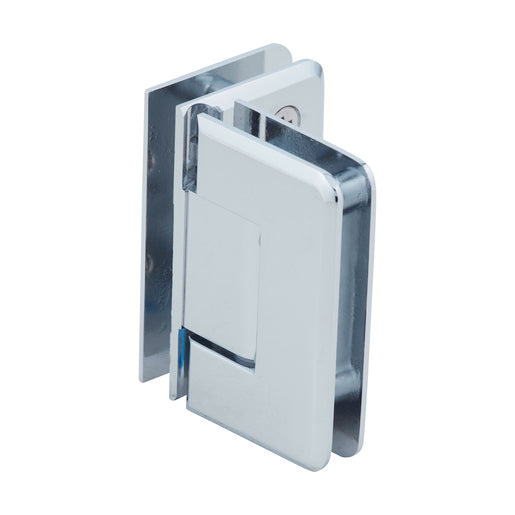

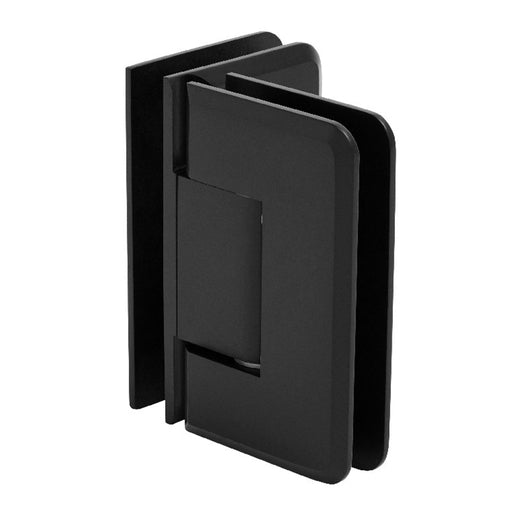

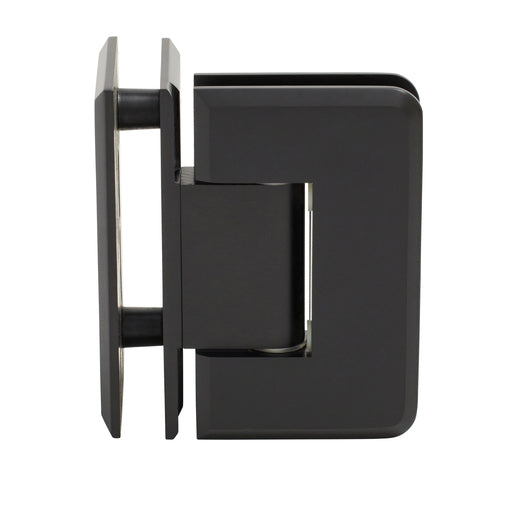

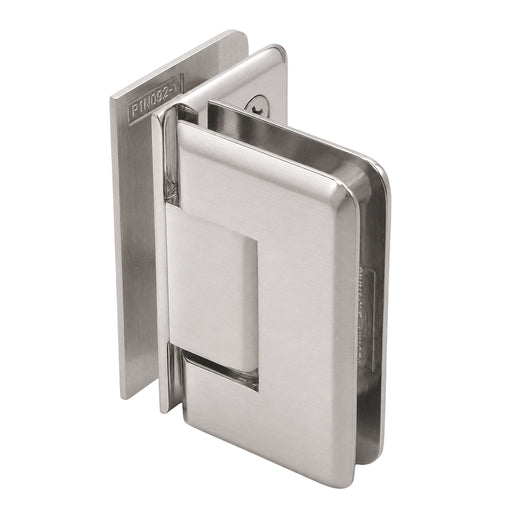

CRL Pinnacle 092 Series 90 Degree Glass-to-Glass Hinges. Select the required size and finish from the available variants.
Product Specifications
| The linked P1N092 template specifies 3/8 to 1/2 in. glass with the supplied gaskets. CRL's current product page permits 5/16 in. (8 mm) tempered glass only with separately purchased P1N13 gaskets. Follow the exact template included with the hinge; this catalogue listing is not a fabrication approval. | |
| Edge Profile | Beveled |
|---|---|
| Glass To Glass Angle | 90 |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height | 3-1/2 in. (89 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 80 lbs. (36.3 kg) |
| Maximum Door Weight - 3 Hinges | 120 lbs. (54.4 kg) |
| Maximum Door Width - 2 Hinges | 28 |
| Maximum Door Width - 3 Hinges | 32 |
| Mounting Type | Glass To Glass |
| Self-Centering | Yes |
| Series | Pinnacle |
| Width | 2-3/16 in. (56 mm) |
| P1N0920RB | Finish/Color: Oil Rubbed Bronze |
| Self-Centering with Reversible 5 Degree Pivot Pin Available in Several Beautiful Finishes 90 Degree Glass-to-Glass Use Monolithic Tempered Glass Apply medium-strength threadlocker on cover plate screws The CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change | Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations. STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree). Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior. Construction: Solid Brass Hinge Swings: 90 degree in and 90 degree out Closing Type: Self-Centering when within 15 degree of closed position Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Replacement Hardware : P102** - Wall plate replacement screws P615** - Cover plate replacement screws Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands. |
| P1N092BN | Finish/Color: Brushed Nickel |
| P1N092CH | Finish/Color: Polished Chrome |
| P1N092MBL | Finish/Color: Matte Black |
Technical Documents
- Frameless Shower Door Hardware Catalog (PDF)
- Hardware Finish Cross-Reference Guide (PDF)
- Frameless Shower Door Quote Request Form (PDF)
- P1N092 Template (PDF)
- Pinnacle Hinges Template Book (PDF)
- P1N092 Detailed CAD Drawings.dwg (DWG)
- Frameless Shower Door Glass and Hardware Cleaning Instructions (PDF)
Product Options
| SKU | Size and Finish |
|---|---|
| P1N0920RB | Oil Rubbed Bronze |
| P1N092BN | Brushed Nickel |
| P1N092CH | Polished Chrome |
| P1N092MBL | Matte Black |
