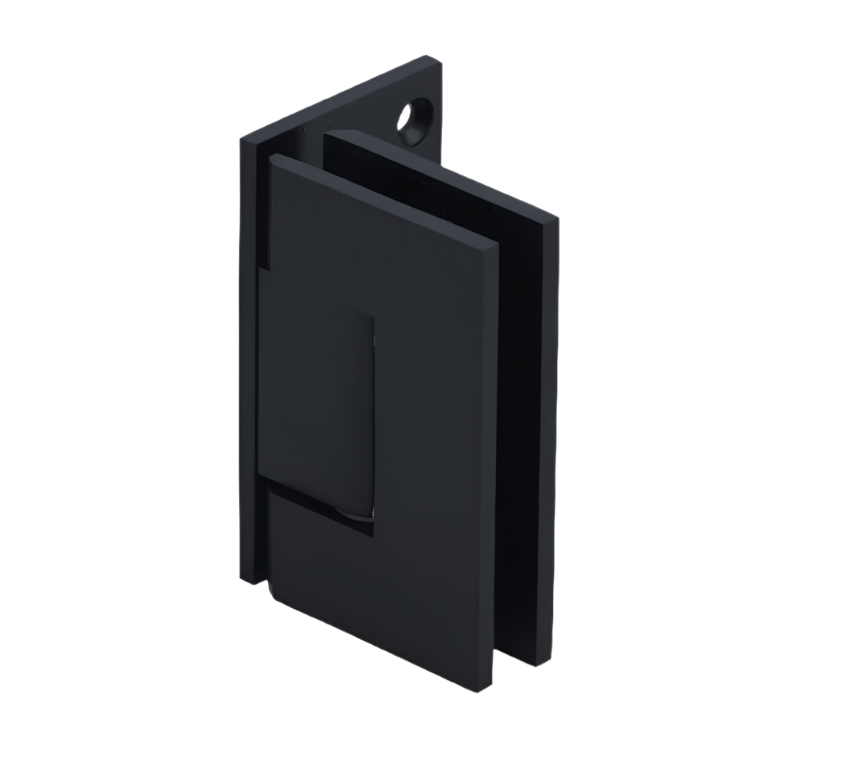

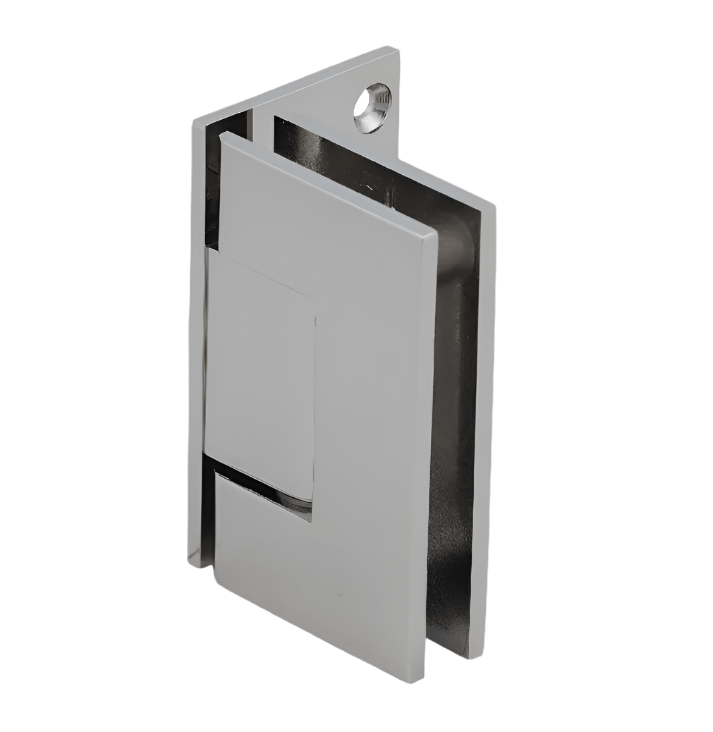

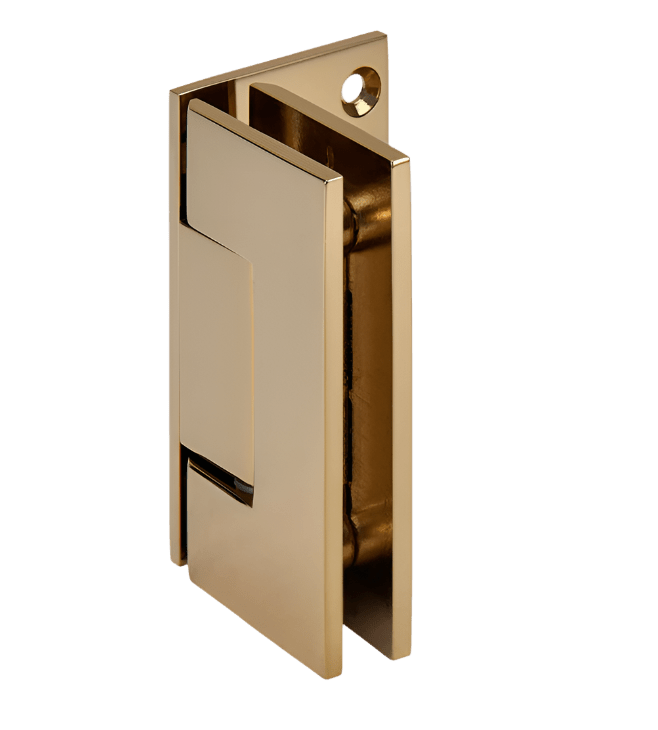

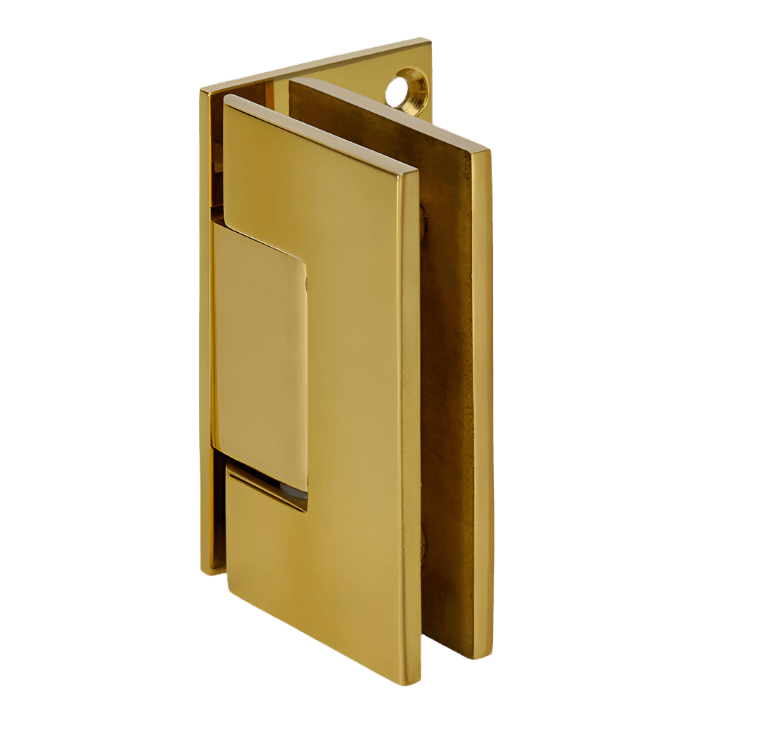

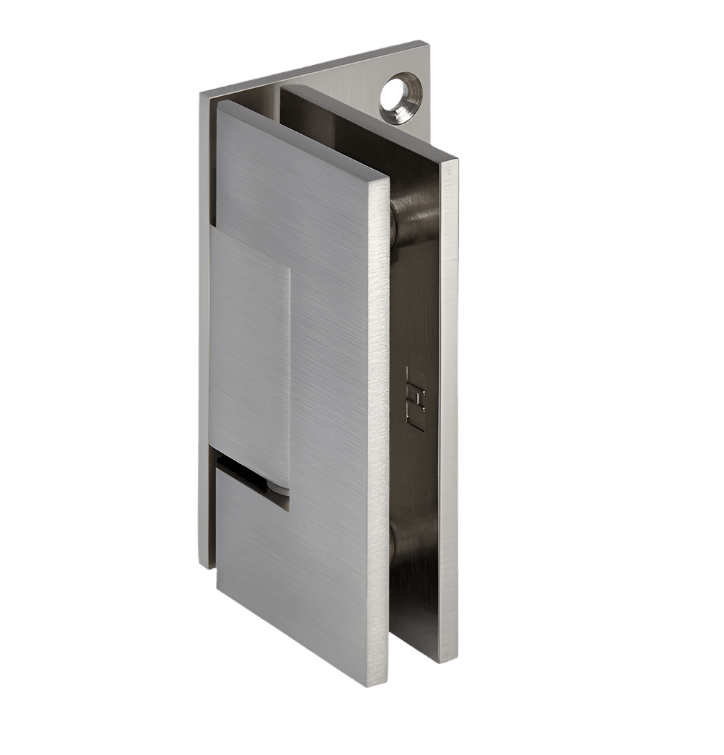

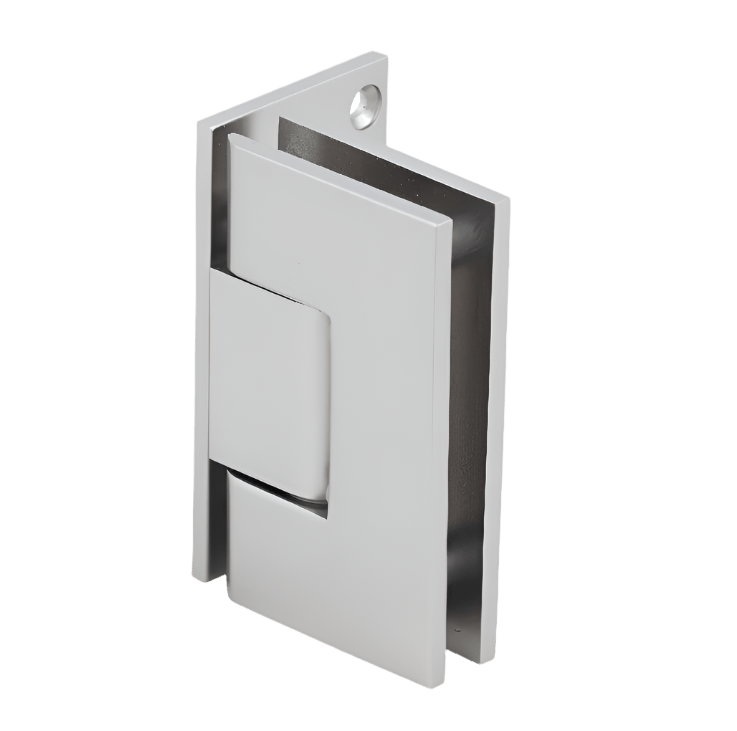

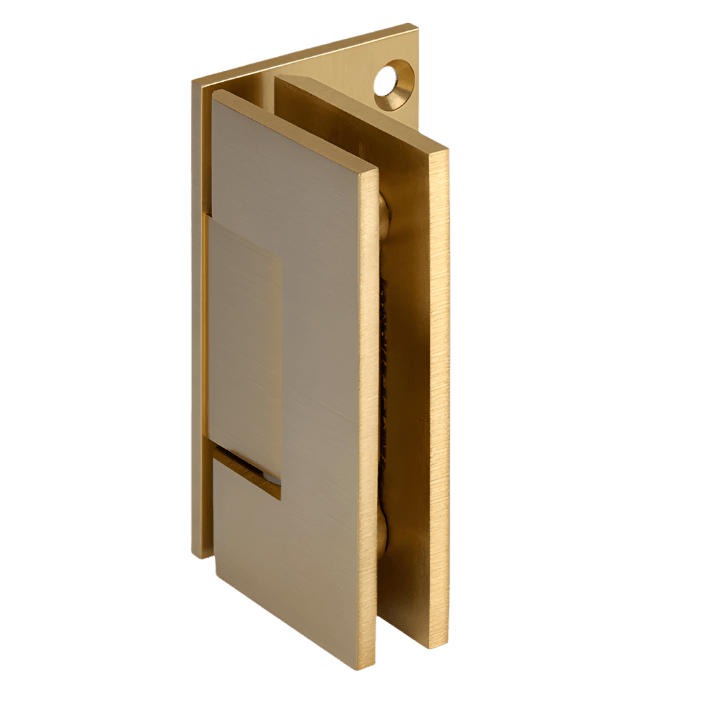

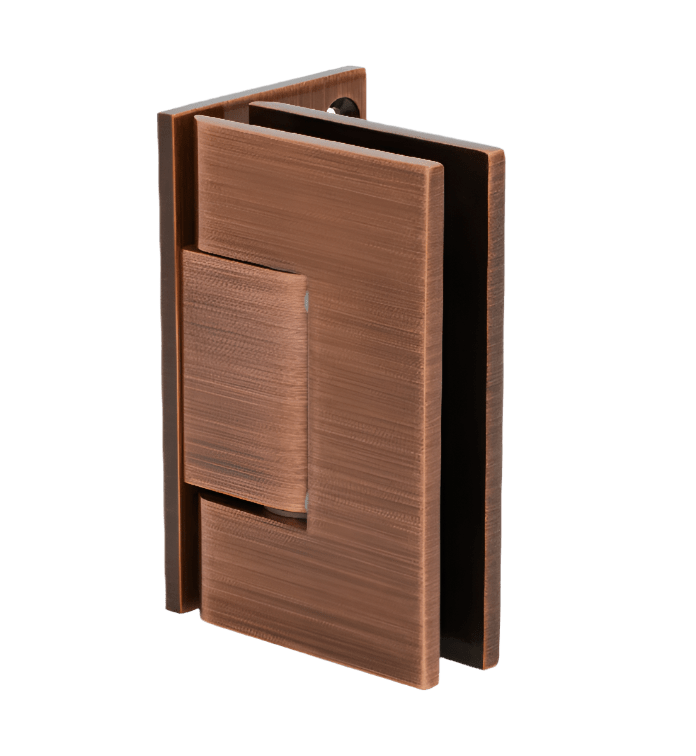

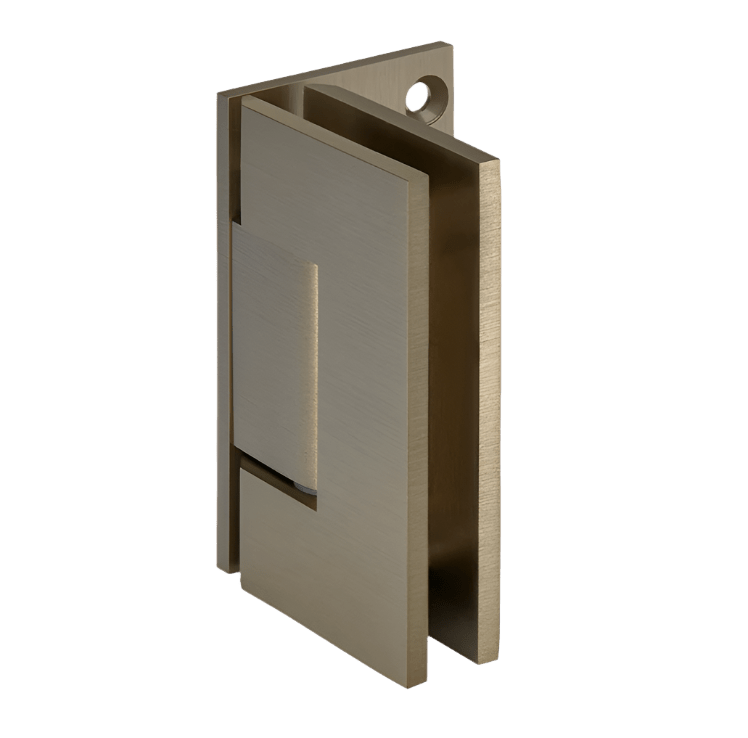

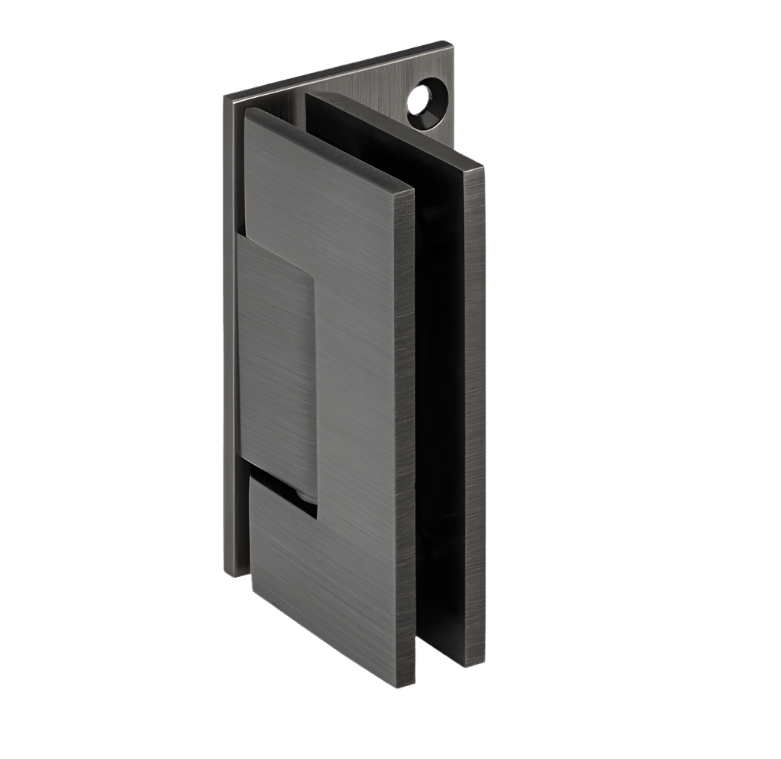

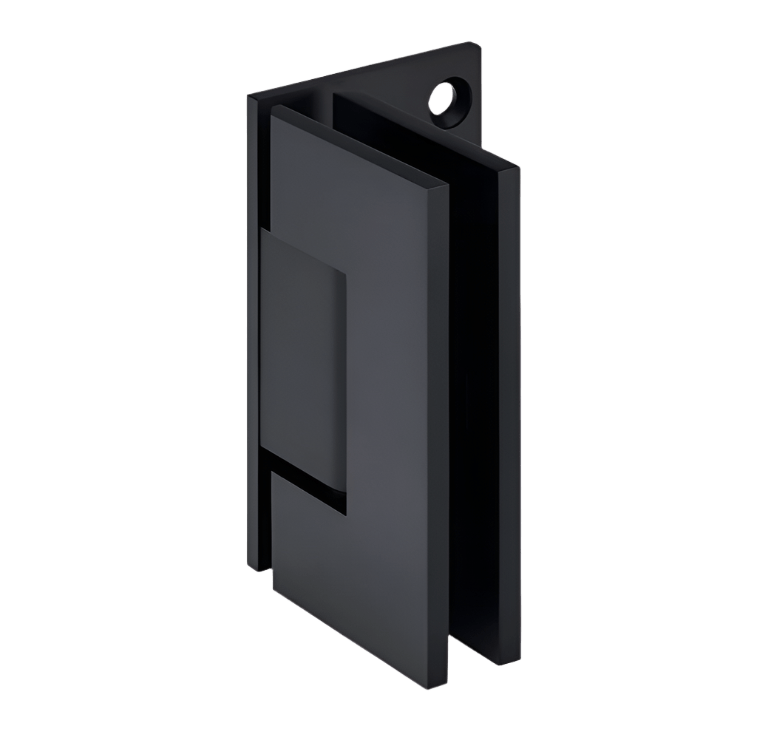

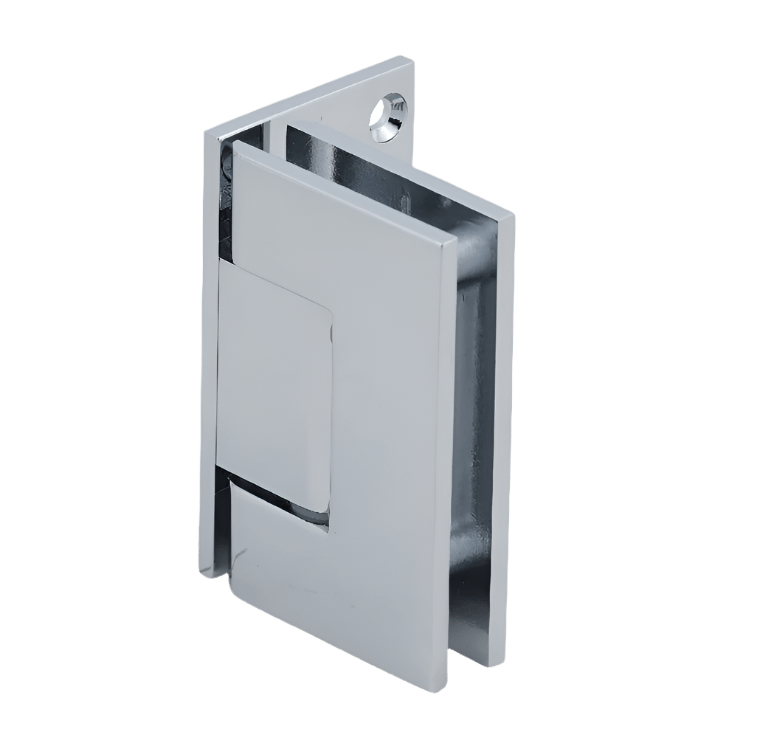

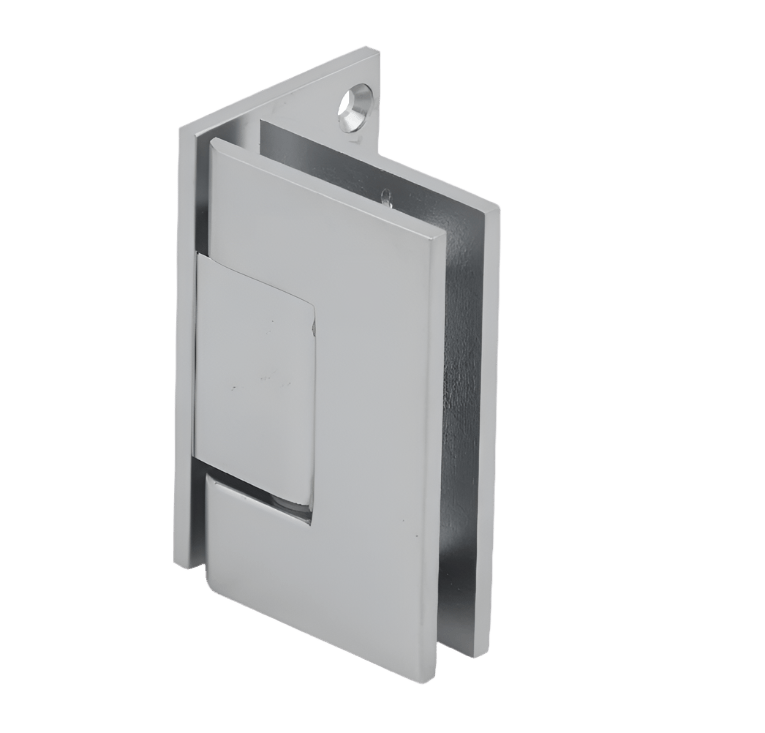

CRL Geneva Series Wall Mount Offset Back Plate Hinge

Geneva Series Offset Back Plate Wall Mount Hinge

Product Overview

The CRL Geneva Series Wall Mount Hinge with Offset Back Plate is engineered for 5/16" to 1/2" (8–12 mm) tempered safety glass. The hinge is self-centering and includes a reversible pivot pin allowing selection of a 90° or 85° closing position for a tighter seal. Built from solid brass with stainless steel internal components, it pairs durability with refined aesthetics for modern shower enclosures. It swings 90° in and 90° out, and self-centers within 15° of the closed position.

Product Features

• 5 Degree Pre-Set: No (Reversible Pivot Pin included)
• Adjustable: No
• Back Plate: Offset
• Glazing Thickness: 5/16" to 1/2" (8–12 mm)

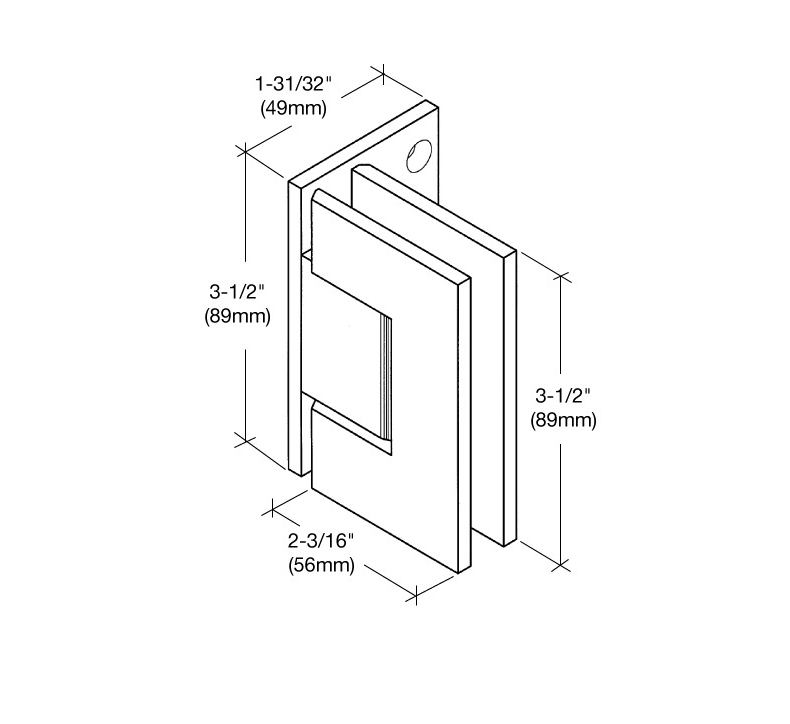

• Height: 3-1/2" (89 mm)
• Material: Brass
• Maximum Door Weight (2 Hinges): 80 lbs (36.3 kg)
• Maximum Door Weight (3 Hinges): 120 lbs (54.4 kg)
• Maximum Door Width (2 Hinges): 28" (711 mm)
• Maximum Door Width (3 Hinges): 32" (813 mm)
• Mounting Type: Wall Mount
• Self-Centering: Yes
• Series: Geneva
• Width: 2-3/16" (56 mm)

Specifications

• Glass Thickness: 5/16" to 1/2" (8–12 mm) Tempered Safety Glass
• Construction: Solid Brass (stainless steel internals)
• Hinge Swing: 90° in and 90° out
• Closing Type: Self-centering within 15° of closed position
• Cut-Out Required: Yes
• Included: Gaskets, screws, and glass fabrication dimensions
• Note: GEN13 Gasket Pack must be purchased separately for 5/16" (8 mm) glass

Important Information

• Use Only Included Template: CRL cut-out dimensions may differ from other brands.
• Application: Designed for residential or hotel shower enclosures.
• Pre-Approval Required: Contact Technical Sales for non-standard applications.
• Custom Pivot Pins available upon request for off-angle installations.

Technical Drawings & Templates

• GEN044 — Template (PDF)
• GEN044 — Detailed CAD Drawings (PDF)
• GEN044 — Detailed CAD Drawings (Alt) (PDF)
• Frameless Shower Door Glass & Hardware — Cleaning Instructions (PDF)
