CRL Cologne 780 Series 180 Degree Glass-to-Glass Positive Close Hinges
CRL Cologne 780 Series 180 Degree Glass-to-Glass Positive Close Hinges - Oil Rubbed Bronze is backordered and will ship as soon as it is back in stock.
Description
Description
Product Details+−
CRL Cologne 780 Series 180 Degree Glass-to-Glass Positive Close Hinges
Product Overview
CRL Cologne 780 Series 180 Degree Glass-to-Glass Positive Close Hinges. Select the required size and finish from the available variants.
Product Specifications
| CRL's overview lists a maximum clamping screw torque of 60 lbf.in; its specification table lists 60-70 lbf.in. Confirm the installation torque with CRL before installation. | |
| Adjustable | No |
|---|---|
| Design Style | Beveled |
| Edge Profile | Beveled |
| Enclosure Type | Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight - 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Glass To Glass |
| Opening Style | Swing(side) |
| Positive Close | Yes |
| Self-Centering | Yes |
| Series | Cologne |
| Width - Door Portion | 2-1/4 in. (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
| C0L7800RB | Finish/Color: Oil Rubbed Bronze |
| Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action Stocked in Wall Mount and 180º Glass-to-Glass Hinges Stocked in our Four Most Popular Finishes Other Finished Available Upon Special Order Apply medium-strength threadlocker on cover plate screws The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order. Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm). SPECIFICATIONS | Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degrees Inwards and Outwards Closing Type: Positive Closing to Zero Degrees Cut-Out Required Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m) Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands. |
| C0L780BN | Finish/Color: Brushed Nickel |
| C0L780CH | Finish/Color: Polished Chrome |
Technical Documents
- Frameless Shower Door Hardware Catalog (PDF)
- Hardware Finish Cross-Reference Guide (PDF)
- Vienna and Cologne Hinge Overview Product Information (PDF)
- Frameless Shower Door Quote Request Form (PDF)
- C0L780 Template (PDF)
- Frameless Shower Door Glass and Hardware Cleaning Instructions (PDF)
Product Options
| SKU | Size and Finish |
|---|---|

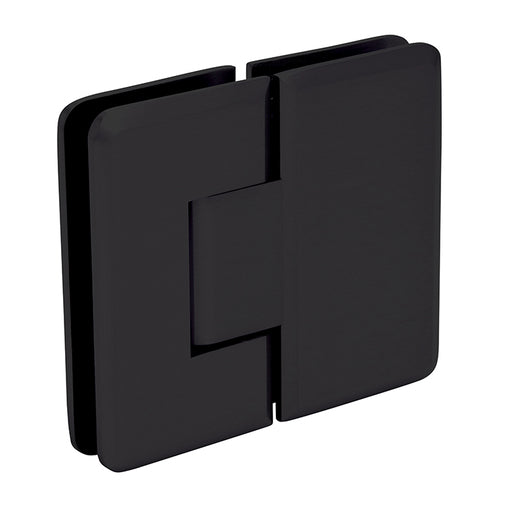

| C0L7800RB | Oil Rubbed Bronze |

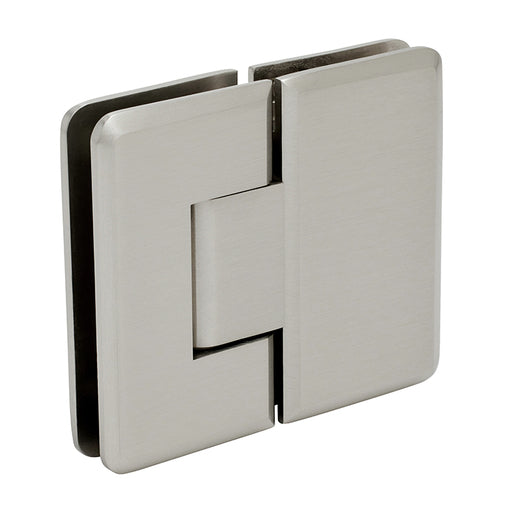

| C0L780BN | Brushed Nickel |

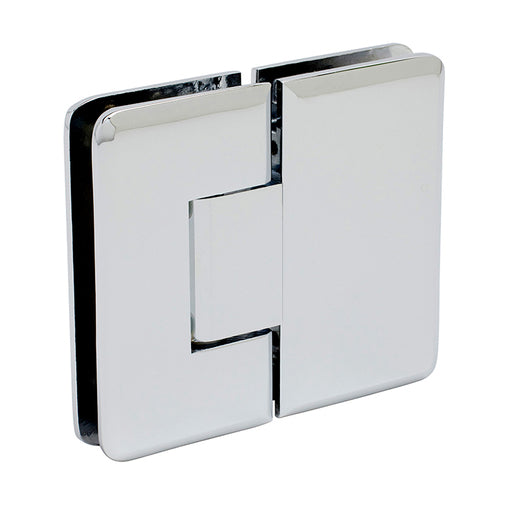

| C0L780CH | Polished Chrome |
C0L7800RB — Oil Rubbed Bronze
Product Details
- SKU: C0L7800RB
- Size and Finish: Oil Rubbed Bronze
C0L780BN — Brushed Nickel
Product Details
- SKU: C0L780BN
- Size and Finish: Brushed Nickel
C0L780CH — Polished Chrome
Product Details
- SKU: C0L780CH
- Size and Finish: Polished Chrome
