C. R. Laurence | SKU: C0L5370RB

CRL Cologne 537 Series 5 Degree Pre-Set Wall Mount H Back Plate Hinges

$147.75 CAD

Shipping calculated at checkout.

Size and Finish

Pickup available at Warehouse

Usually ready in 2-4 days

Pick up and Shipping

For custom-made glass orders, please note that shipping generally takes1–2 weeksfrom our supplier before we receive the panels and can proceed with fulfillment.

For Wine Cellar racks we have a 30 days production delay.

Pick up at 1250 rue Tellier, Laval, Québec, H7C 2H2.

Description

CRL Cologne 537 Series 5 Degree Pre-Set Wall Mount H Back Plate Hinges +–

CRL Cologne 537 Series 5 Degree Pre-Set Wall Mount H Back Plate Hinges

Product Overview

CRL Cologne 537 Series 5 Degree Pre-Set Wall Mount H Back Plate Hinges. Select the required size and finish from the available variants.

Product Specifications

CRL's overview lists a maximum clamping screw torque of 60 lbf.in; its specification table lists 60-70 lbf.in. Confirm the installation torque with CRL before installation.
5 Degree Pre-Set	Yes
Adjustable	No
Back Plate	'H'
Design Style	Beveled
Edge Profile	Beveled
Enclosure Type	Corner, Niche, Bathtub, Tailor Made Solutions
Glazing Thickness	3/8 in. To 1/2 in. (10 mm To 12 mm)
Height	3-15/16 in. (100 mm)
Material	Brass
Maximum Clamping Screw Torque	60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges	110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges	140 lbs. (63.5 kg)
Maximum Door Width	36 in. (914 mm)
Mounting Type	Wall Mount
Opening Style	Swing(side)
Positive Close	No
Self-Centering	Yes
Series	Cologne
Width	2-1/4 in. (57 mm)
C0L5370RB	Finish/Color: Oil Rubbed Bronze
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Self-Centering with Reversible 5 Degree Pivot Pin Available in Several Beautiful Finishes 5º Pre-Set Model (Factory Set for 5º Tighter Closure Into Shower Interior) Use Monolithic Tempered Glass Apply medium-strength threadlocker on cover plate screws CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change	They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs. STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º). Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm). SPECIFICATIONS: Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90º In and 90º Out Closing Type: Self-Centering when within 15º of closed position. Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel Includes: Gaskets, Screws, and Glass Fabrication Dimensions Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m) Custom finishes are available on request by contacting CRL Technical Sales Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

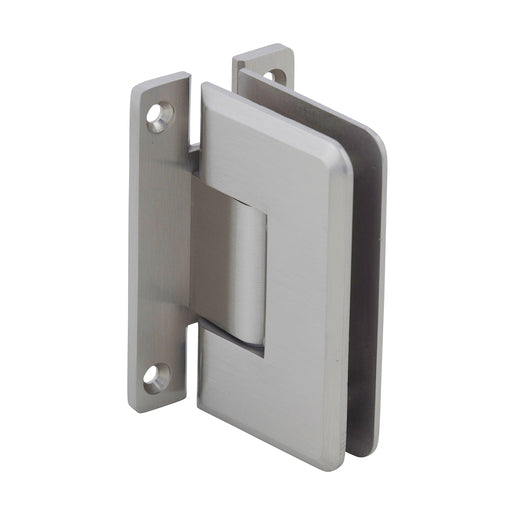

C0L537BN	Finish/Color: Brushed Nickel

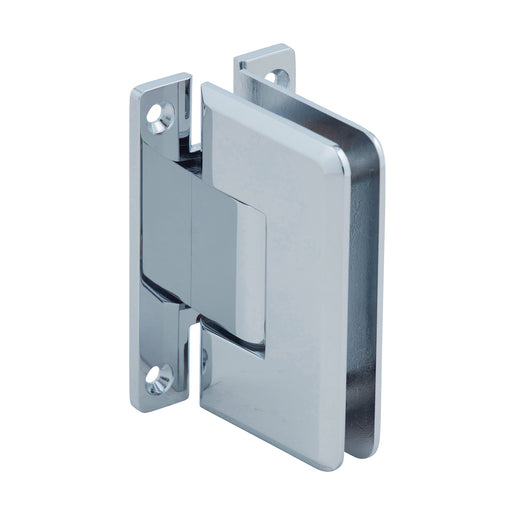

C0L537CH	Finish/Color: Polished Chrome

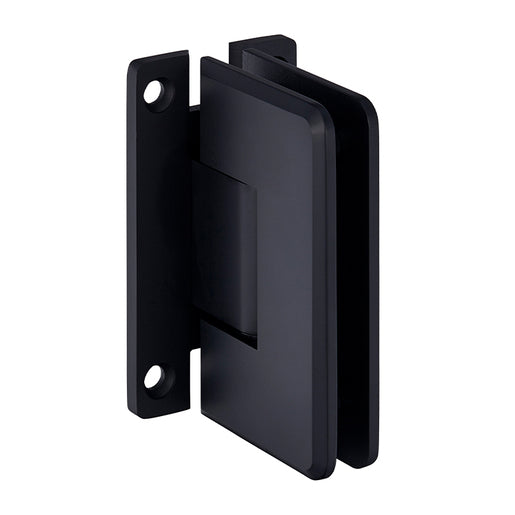

C0L537MBL	Finish/Color: Matte Black

Technical Documents

Product Options

SKU	Size and Finish
C0L5370RB	Oil Rubbed Bronze
C0L537BN	Brushed Nickel
C0L537CH	Polished Chrome
C0L537MBL	Matte Black
