CRL Cologne Series Wall Mount 'H' Back Plate Positive Close Hinges

$137.11 CAD

Shipping calculated at checkout.

Size and Finish

Pickup available at Warehouse

Usually ready in 2-4 days

Pick up and Shipping

For custom-made glass orders, please note that shipping generally takes1–2 weeksfrom our supplier before we receive the panels and can proceed with fulfillment.

For Wine Cellar racks we have a 30 days production delay.

Pick up at 1250 rue Tellier, Laval, Québec, H7C 2H2.

Description

CRL Cologne Series Wall Mount 'H' Back Plate Positive Close Hinges +–

CRL Cologne Series Wall Mount 'H' Back Plate Positive Close Hinges

Product Overview

CRL Cologne Series Wall Mount 'H' Back Plate Positive Close Hinges. Select the required size and finish from the available variants.

Product Specifications

CRL's overview lists a maximum clamping screw torque of 60 lbf.in; its specification table lists 60-70 lbf.in. Confirm the installation torque with CRL before installation.
5 Degree Pre-Set	No
Adjustable	No
Back Plate	'H'
Design Style	Beveled
Edge Profile	Beveled
Enclosure Type	Corner, Niche, Bathtub, Tailor Made Solutions
Glazing Thickness	3/8 in. To 1/2 in. (10 mm To 12 mm)
Height	3-15/16 in. (100 mm)
Material	Brass
Maximum Clamping Screw Torque	60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges	110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges	140 lbs. (63.5 kg)
Maximum Door Width	36 in. (914 mm)
Mounting Type	Wall Mount
Opening Style	Swing(side)
Positive Close	Yes
Self-Centering	Yes
Series	Cologne
Width	2-1/4 in. (57 mm)

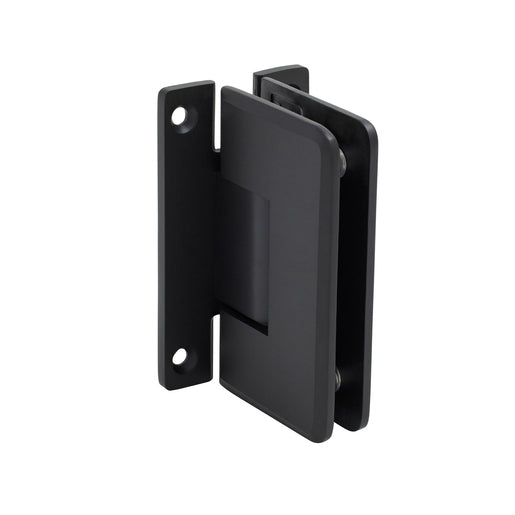

C0L0670RB	Finish/Color: Oil Rubbed Bronze
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges Stocked in Four Most Popular Finishes Other Finished Available Upon Special Order Apply medium-strength threadlocker on cover plate screws The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order. Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm). SPECIFICATIONS	Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 Degrees Inwards and Outwards Closing Type: Positive Closing to Zero Degrees Cut-Out Required Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m) Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

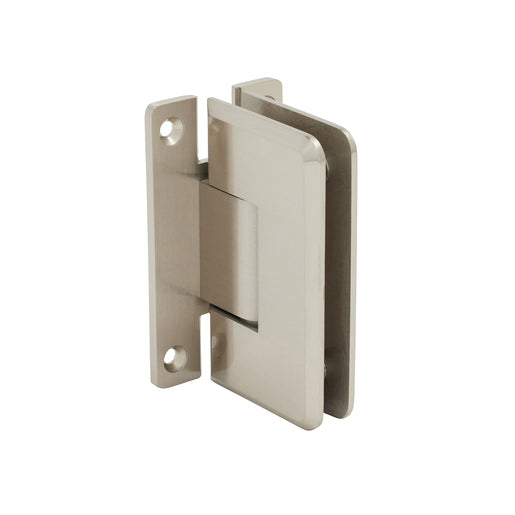

C0L067BN	Finish/Color: Brushed Nickel

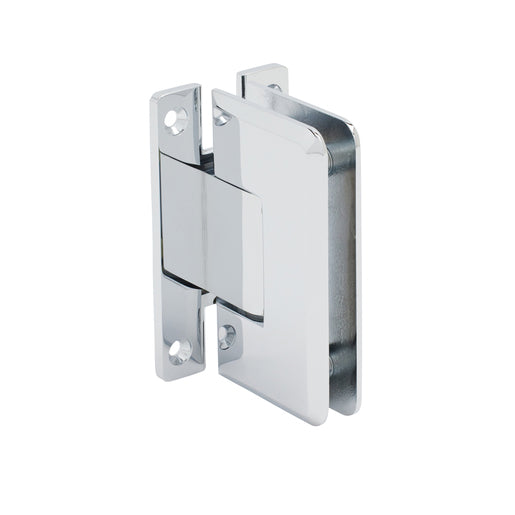

C0L067CH	Finish/Color: Polished Chrome

Technical Documents

Product Options

SKU	Size and Finish
C0L0670RB	Oil Rubbed Bronze
C0L067BN	Brushed Nickel
C0L067CH	Polished Chrome
