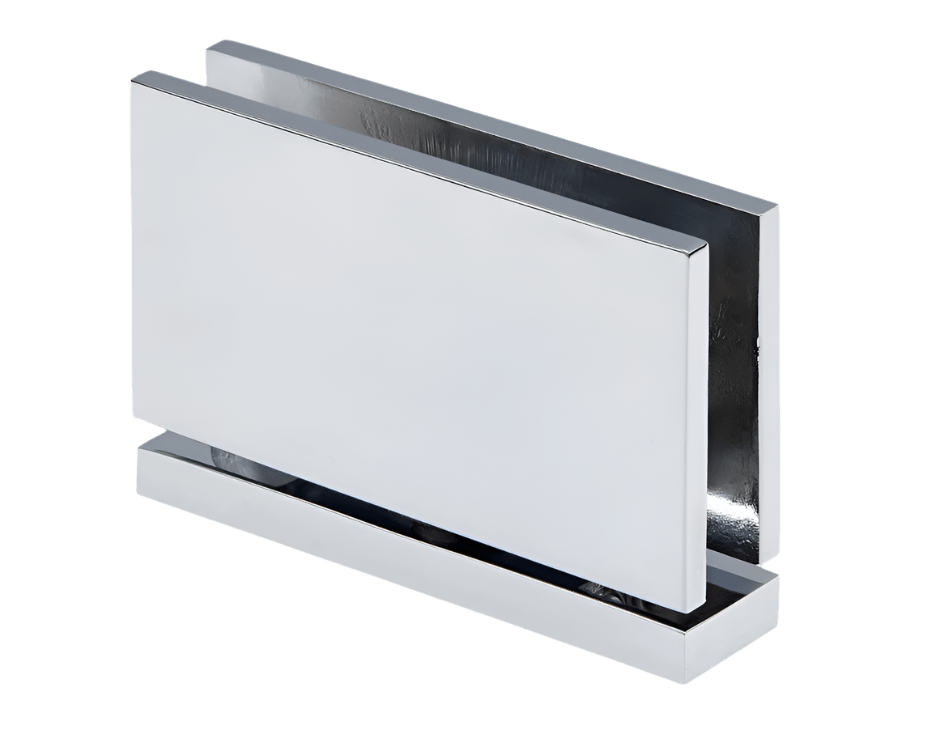

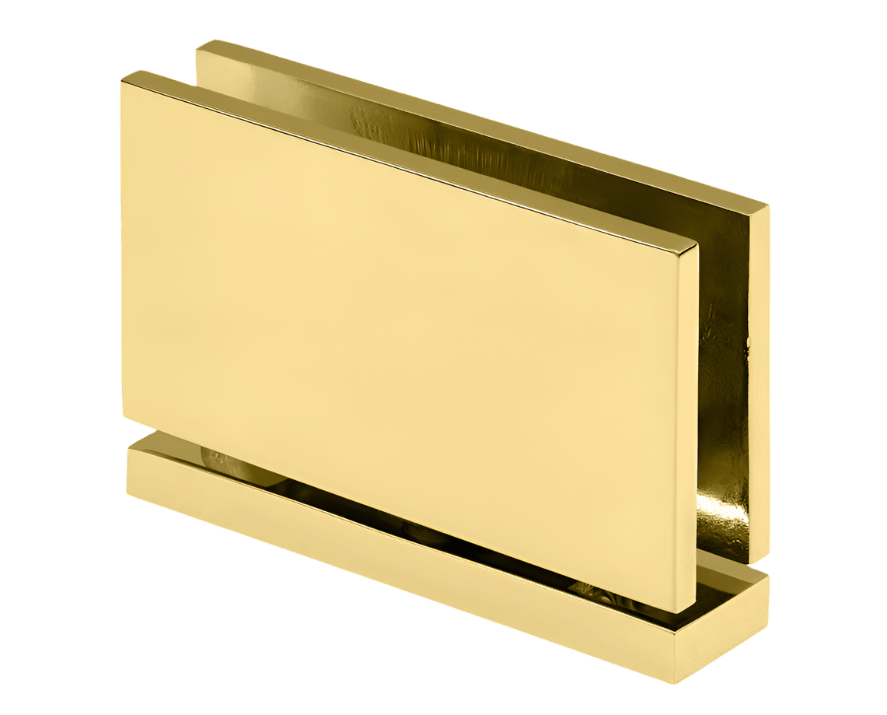

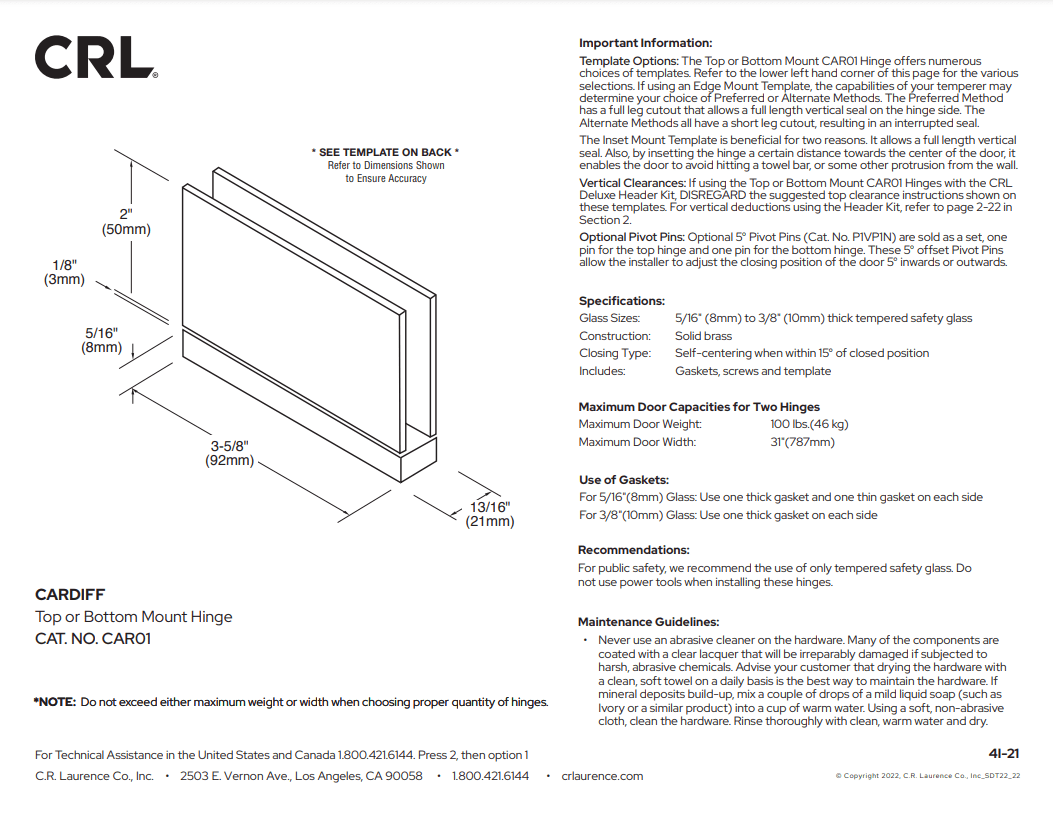

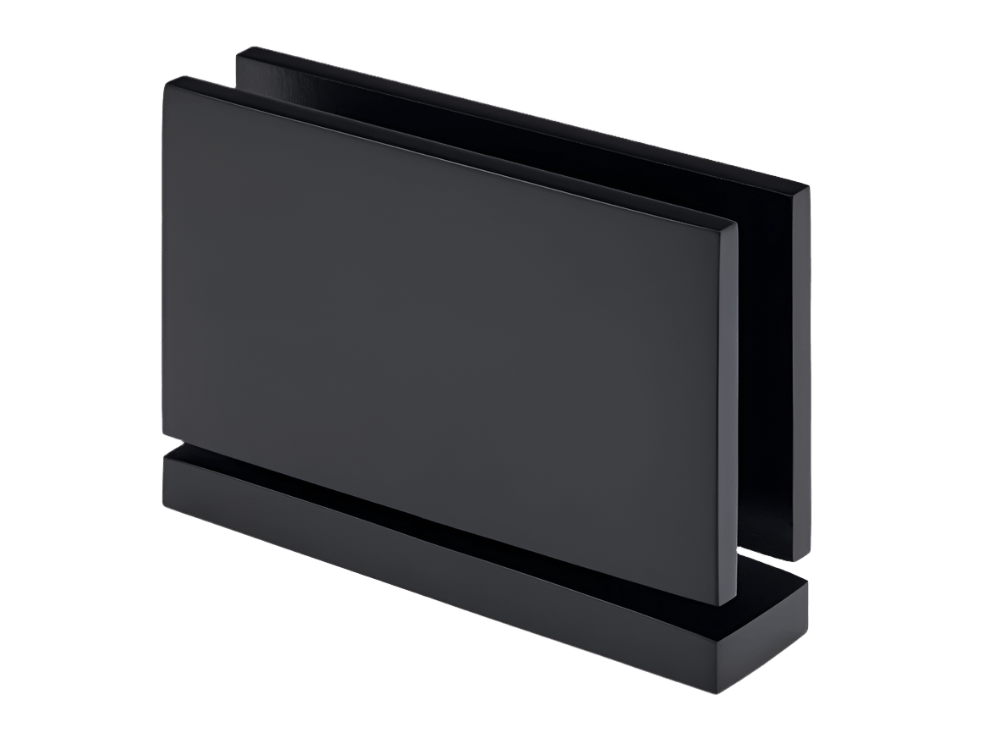

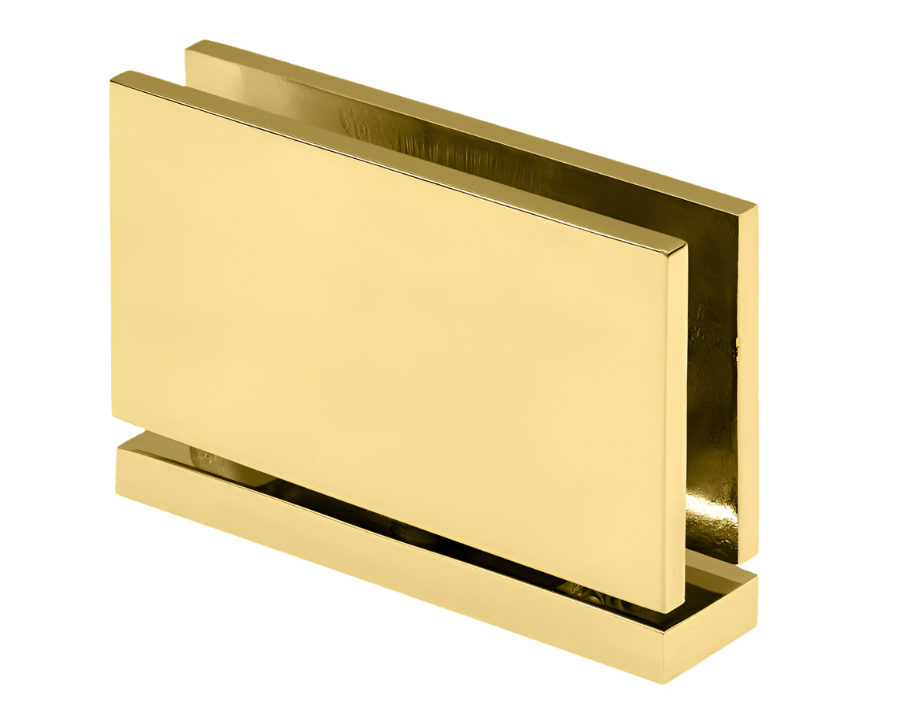

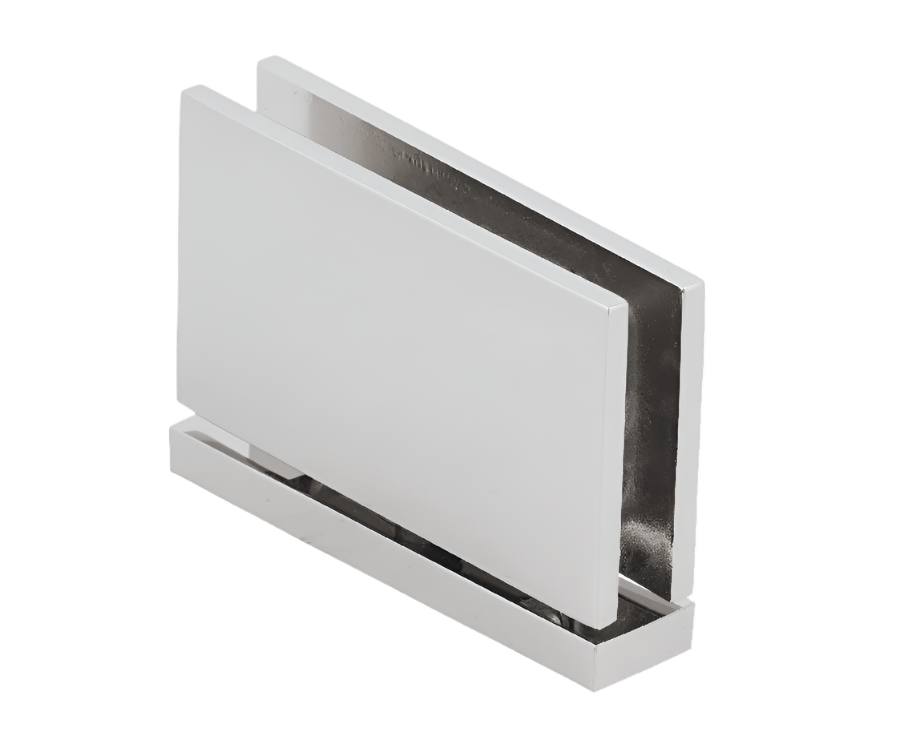

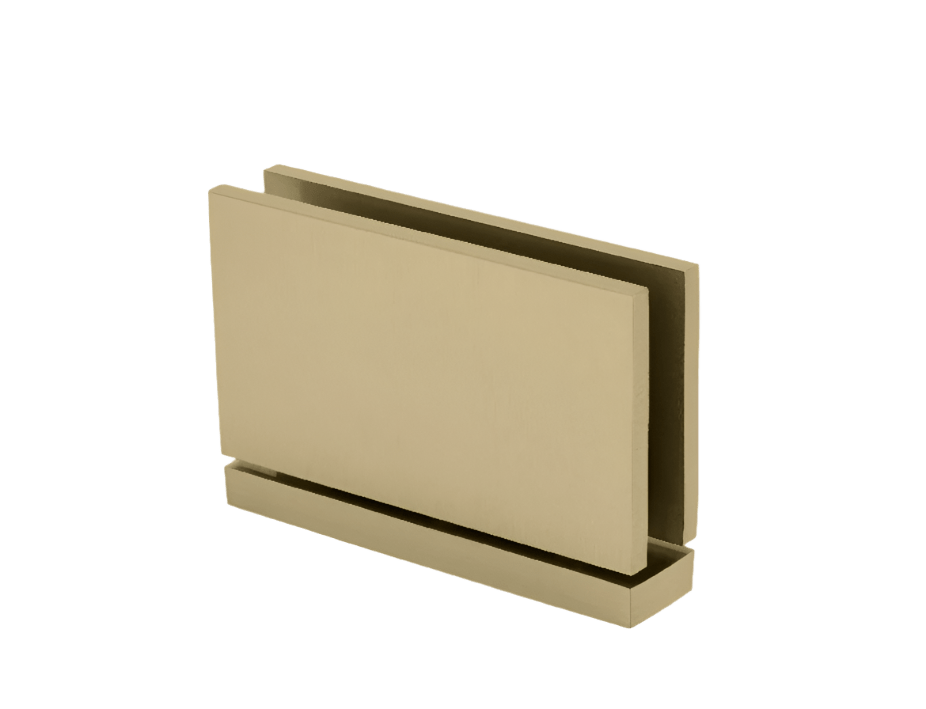

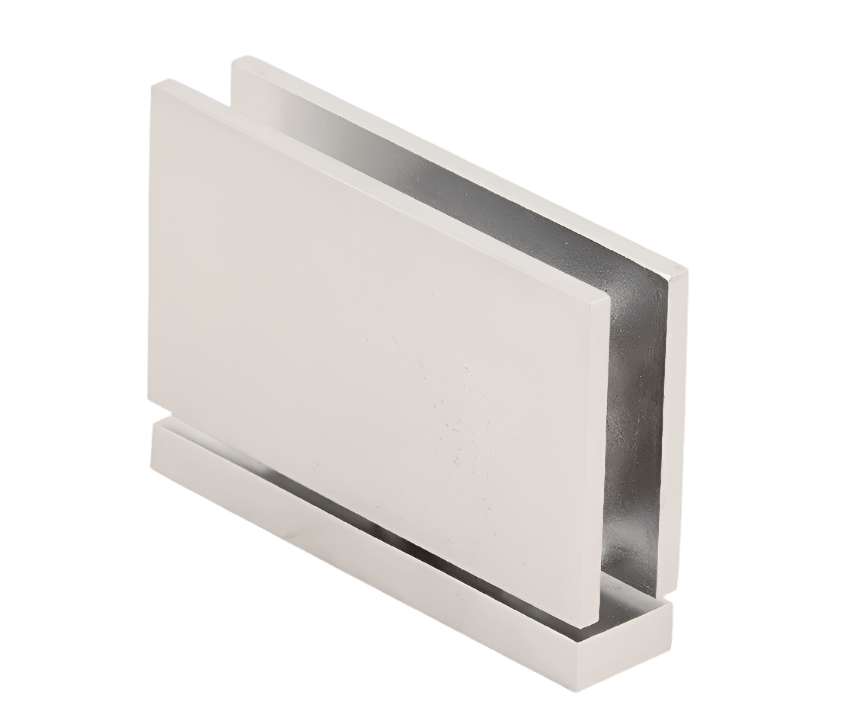

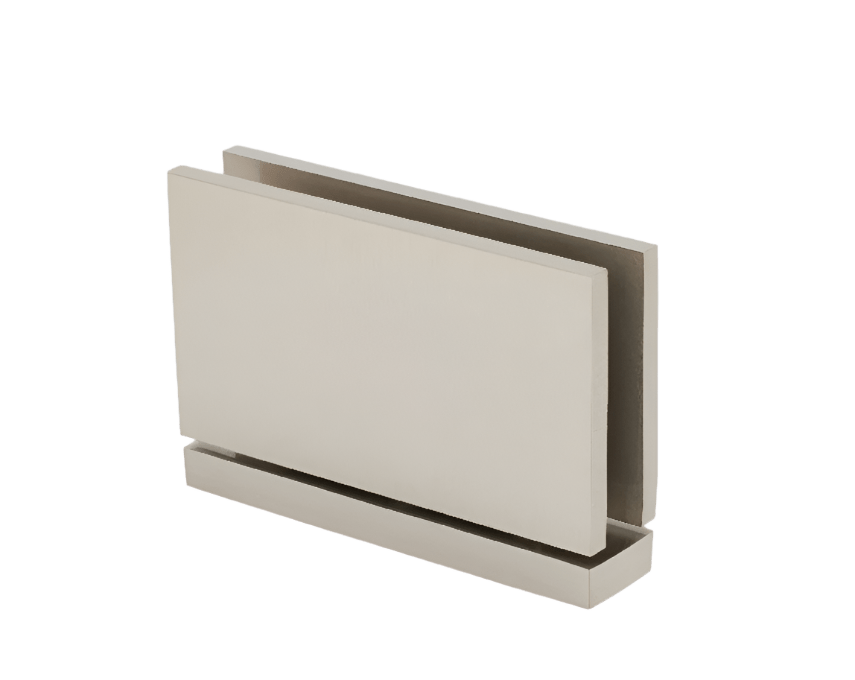

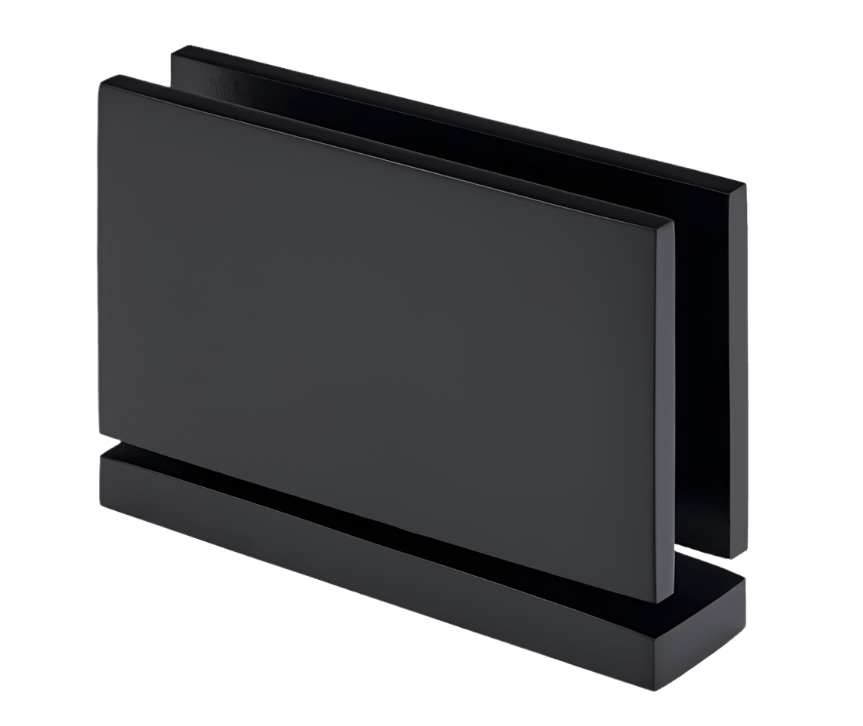

CRL Cardiff Series Pivot Hinge

Product Features

• Design Style: Squared
• Edge Profile: Square
• Enclosure Type: Corner, Niche, Tailor Made Solutions
• Glazing Thickness: 5/16" to 3/8" (8 mm to 10 mm)
• Height: 2" (51 mm)
• Width: 3-5/8" (92 mm)
• Material: Brass
• Maximum Door Weight: 100 lbs. (45.4 kg)
• Maximum Door Width: 31" (787 mm)
• Mounting Type: Head & Sill Mount
• Opening Style: Pivot (floor)
• Self-Centering: Yes
• Series: Cardiff

Product Overview

CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. These hinges carry the door's weight at the bottom and can be inset from the wall to allow clearance for towel bars and other fixtures. The self-centering mechanism includes four springs for strong door retention.

The Cardiff Series can be used with CRL’s Deluxe Header System for enclosures that don’t reach the ceiling. Optional 5º Pre-Set Pivot Pin Sets are available separately to adjust the closing position. The system is compatible with various glass installations and is backed by a 3-year warranty.

Optional Accessories

• 5º Pivot Pin Set: Optional, alters door closing angle (sold separately)
• Installation Timing: Can be installed before or after hinge installation
• Adaptor Block: Required for Deluxe Header compatibility (sold separately as HAB01)

Specifications

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
• Construction: Solid Brass
• Hinge Swings: Full Rotation
• Closing Type: Self-Centering within 15º of closed position
• Special Features: Top and Bottom Mount design reduces cut-out requirements and increases glass visibility
• Mounting Options: Can be installed floor-to-ceiling or floor-to-header
• Cut-Outs: Required for installation
• Includes: Gaskets, screws, and glass fabrication dimensions
• Patent: U.S. Patent No. 5,297,313
