Grey Goat Hardware  |  SKU: BOLT-M10X84

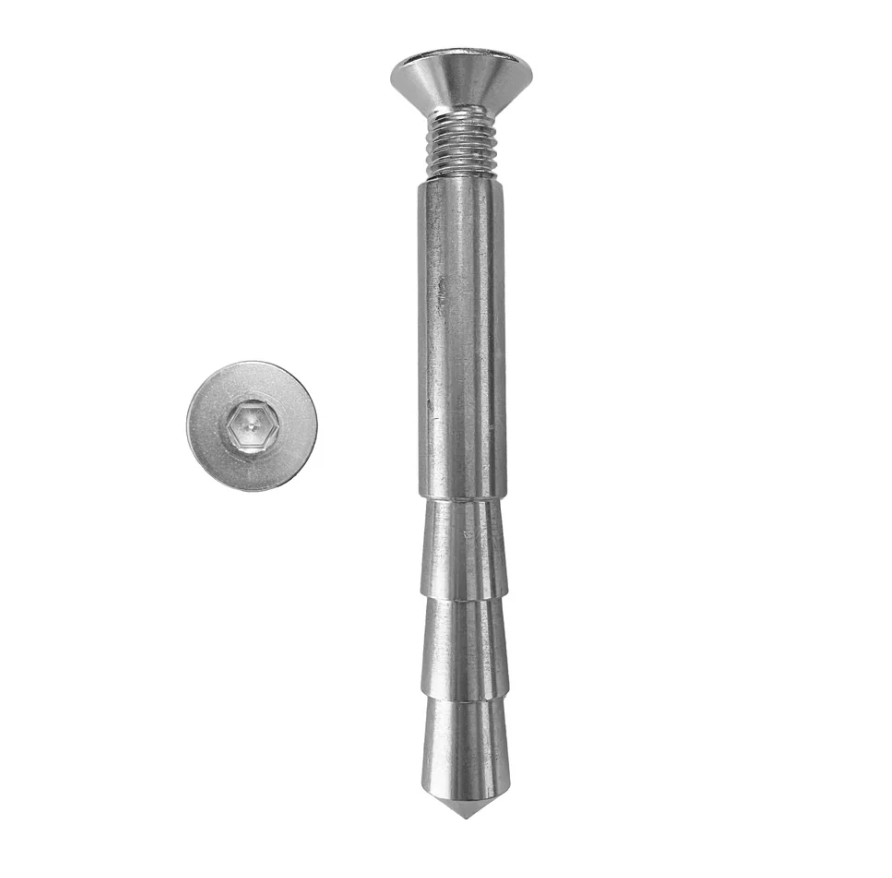

Countersunk Anchor Bolts M10ؗX84mm For Arc Series Adjustable Standoff

$4.27 CAD
Shipping calculated at checkout.

Pickup available at Warehouse

Usually ready in 2-4 days

Pick up and Shipping

For custom-made glass orders, please note that shipping generally takes1–2 weeksfrom our supplier before we receive the panels and can proceed with fulfillment.

For Wine Cellar racks we have a 30 days production delay.

Pick up at 1250 rue Tellier, Laval, Québec, H7C 2H2.

Description
M10 × 84 mm Concrete Anchor Bolt + –

M10 × 84 mm Concrete Anchor Bolt

Product Overview

The M10 × 84 mm concrete anchor bolt is designed for secure and reliable anchorage in concrete substrates.

When used with high-strength epoxy adhesives, it provides a durable fastening solution for structural and glazing applications.

Product Features

  • Anchor Type: Concrete epoxy anchor
  • Thread Size: M10 × 84 mm
  • Recommended Hole Diameter: 14 mm
  • Adhesive Requirement: Epoxy required (not included)
  • Application: Structural supports, glass railings, curtain walls, and concrete fixtures

Technical Specifications

  • Type: Anchor Bolt
  • Installation Method: Epoxy-set anchoring
  • Substrate: Concrete

Important Notes

  • Drill a 14 mm hole to the required depth
  • Clean hole thoroughly before epoxy injection
  • Insert anchor fully and allow proper curing time
  • Do not apply load until epoxy is fully cured
