[EZY1SDP] Commercial Sliding Door Kit - EZY1 - Single Door + Panel Track (118")

Product Overview

GGH EZY1 Single Door Sliding Kit

The GGH EZY1 Single Sliding Door Kit with Fixed Panel is designed for regular-duty use, supporting up to 80 kg of weight. It is compatible with 3/8" to 1/2" (10 mm to 12 mm) monolithic tempered glass, making it perfect for applications that require both a sliding door and a fixed glass panel. This kit is easy to install with no need for glass drilling, ensuring a quick and hassle-free setup. It is highly versatile, ideal for applications such as office partitions, wine rack enclosures, wardrobe doors, shower enclosures, pantry dividers, or modern space partitions.

Product Features

• Regular Duty Rating: Supports up to 80 kg of weight for reliable performance.
• Glass Compatibility: Suitable for 3/8" to 1/2" (10 mm to 12 mm) monolithic tempered glass.
• Header Track Length: 118"
• Effortless Installation: No need to drill holes in the glass, simplifying installation.
• Optional feature: Additional Slot available to add removable pin inside roller. (Glass Fabrication Required)
• Smooth Operation: Features high-quality rollers for a smooth and quiet sliding motion.
• Versatile Application: Ideal for residential and commercial settings.

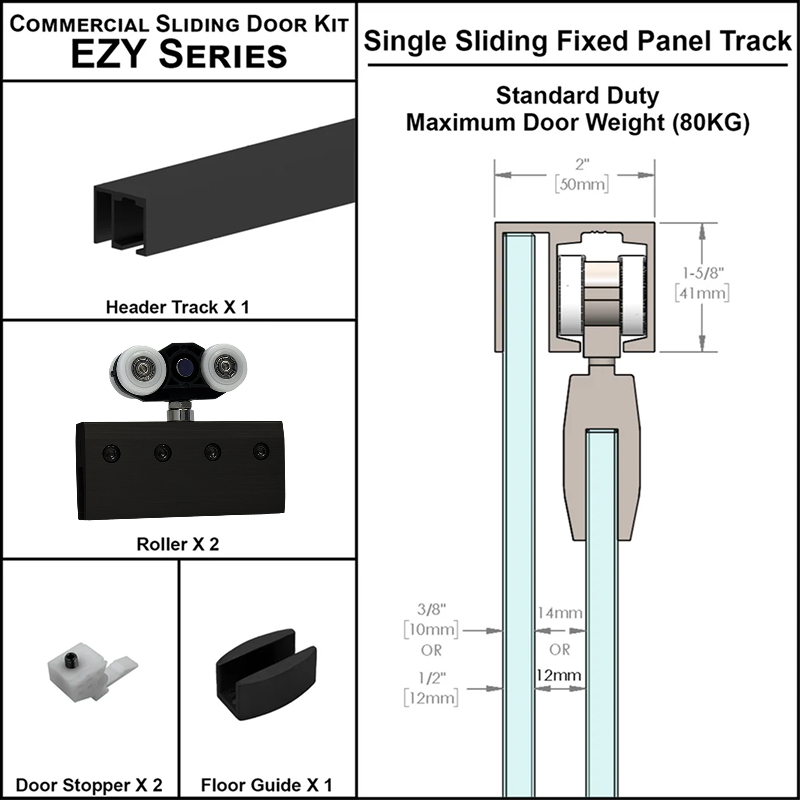

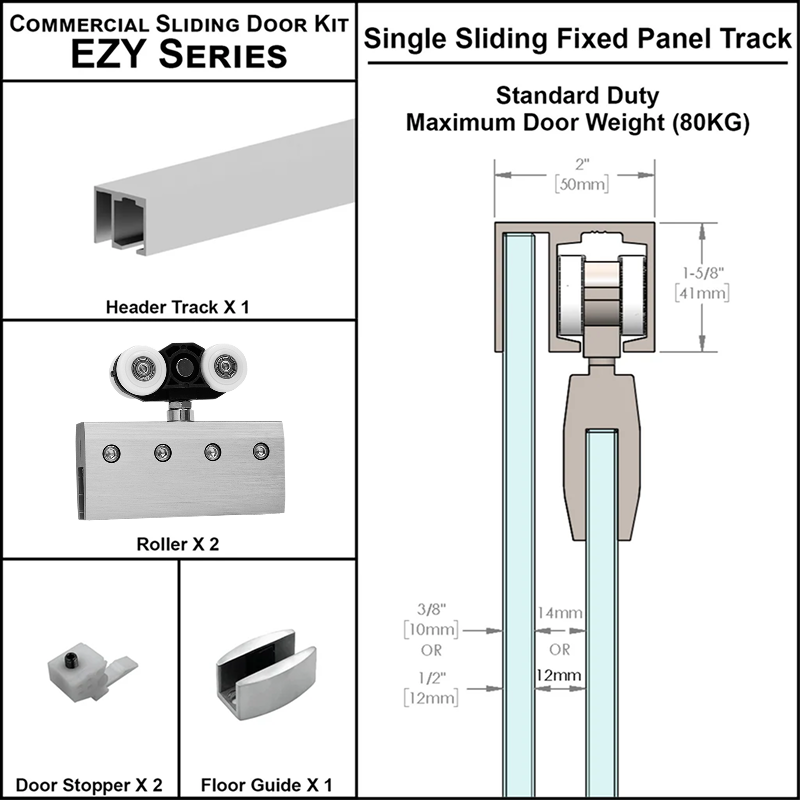

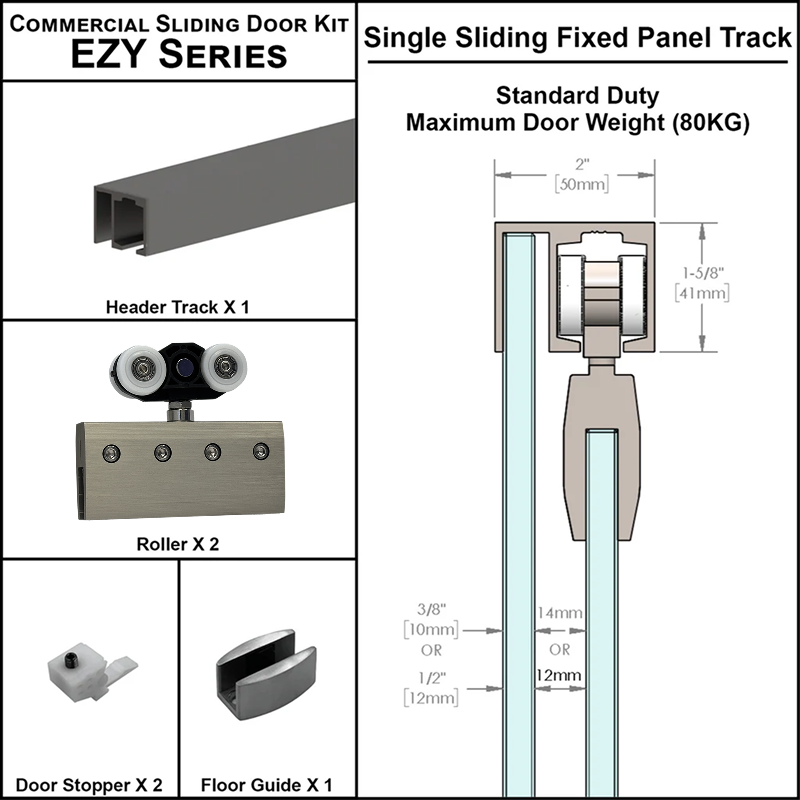

Included Components

• Header Track X 1
• Rollers X 2
• Door Stopper X 2
• Floor Guide X 1
• Available Finishes:
• Brushed Stainless
• Satin Anodized
• Matte Black
• Wall & Glass Mount Bracket And End Cap (Sold Separately)
• Wall Mount Bracket For EYZ Series
• Glass Mount Bracket For EZY Series
• End Cap For EZY Series
• Component Often Paired With:
• Handles & Ladder Pulls
• Commercial Ladder Pulls
• (please attach relevant drawings with the email for more accurate quotations).

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)
