[GDLCCOUTR] Commercial Center Lock - Classroom Version - Outswing, Right Hand - RHR

Product Overview

Classroom Lock for Glass Doors

The GGH Secure Series Classroom Lock offers a versatile and secure access solution for monolithic tempered glass doors. Ideal for use with electric strikes, this door locks are designed for educational and office spaces where controlled entry is essential, allowing for secure access from the outside while maintaining easy exit functionality on the inside.

This lock operates by allowing the latchbolt to be controlled from either side using a lever, with the option to lock the outside lever with a key. The key not only operates the latch but also unlocks the exterior lever as needed, while the inside lever remains functional at all times for convenient exit. The door opens outside with right hand side lever to open the door, designed for use with 1/2" (12mm) monolithic tempered glass.

Constructed from Aluminum with a custom Grade 304 Stainless Steel cover plate.

Product Features

• Dual Access Control: Inside lever is always operable; exterior lever can be locked or unlocked with a key.
• Cylinders are all keyed different
• Right Hand, Outswing Door Open (RHR)
• For 1/2" (12mm) Monolithic Tempered Glass
• Dimensions: 6" x 10"
• Designed for use with Left Handed Electric Strikes
• Simple, Mess-Free Installation: Compatible with glass cut-outs, with no need for cement or silicone

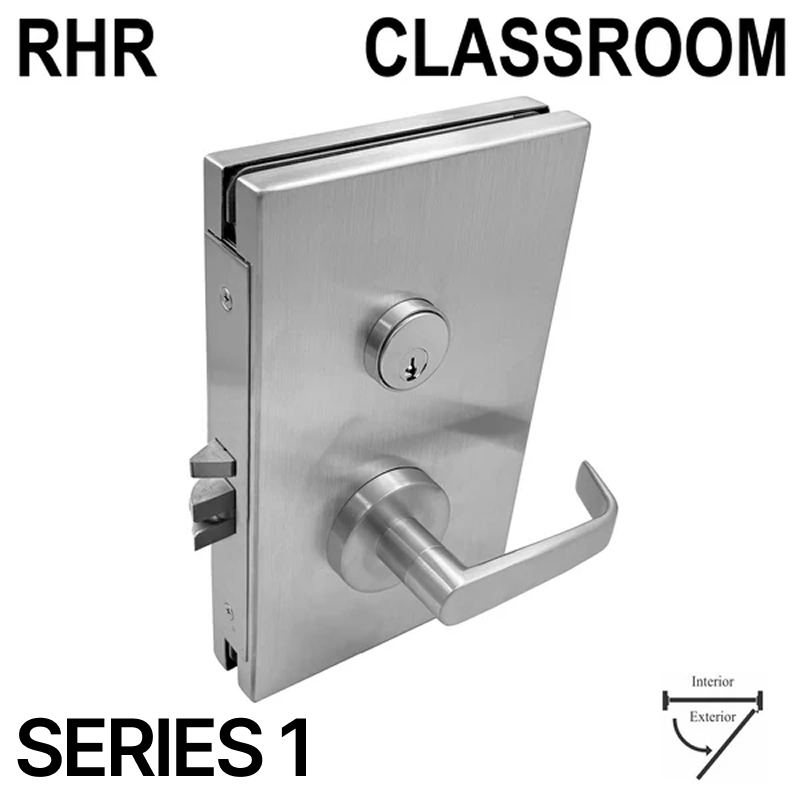

• Finishes Available:
• Brushed Stainless

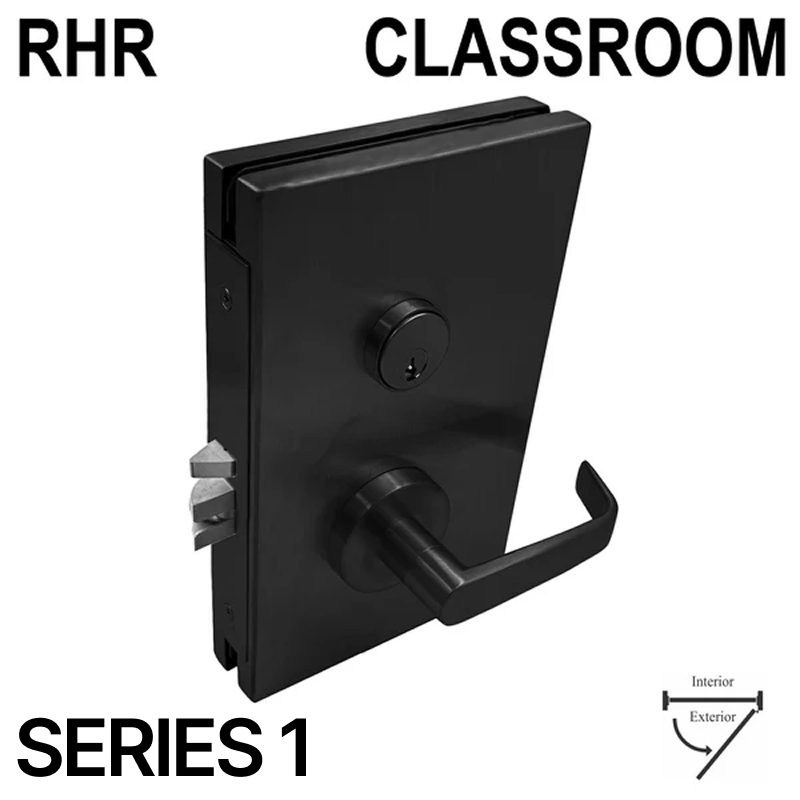

• Matte Black

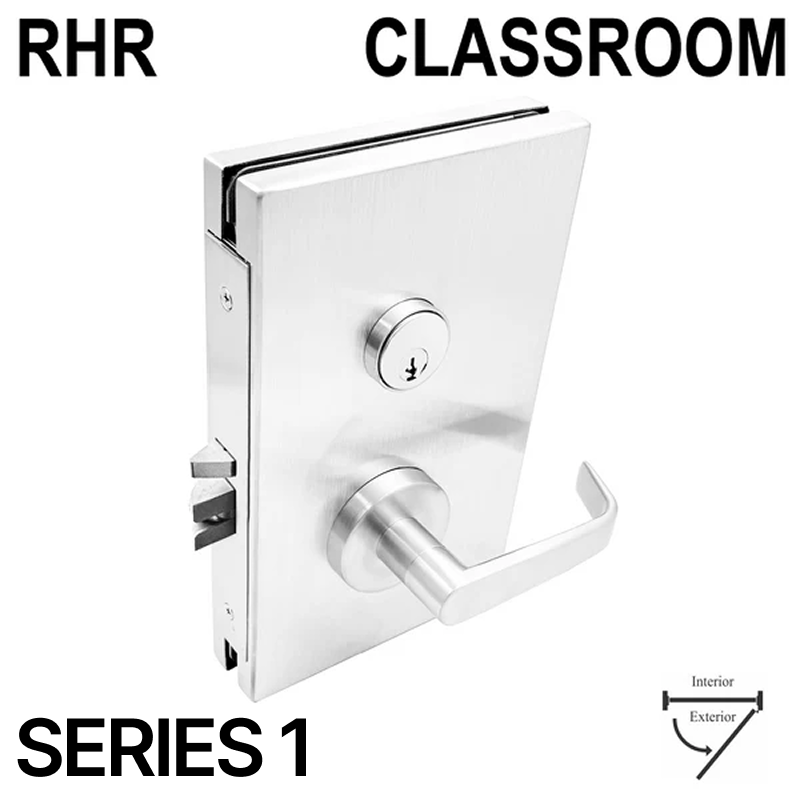

• Polished Stainless
• Glass fabrication is required for installation. For detailed specifications, view the CAD/PDF product drawings.

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)
