Grey Goat Hardware  |  SKU: ARCH6910TBAA

Arch-Loc Base Shoe - 69 Series

$899.99 CAD
Shipping calculated at checkout.
Color: Brushed Anodized Aluminium

Pickup available at Warehouse

Usually ready in 2-4 days

Pick up and Shipping

For custom-made glass orders, please note that shipping generally takes1–2 weeksfrom our supplier before we receive the panels and can proceed with fulfillment.

For Wine Cellar racks we have a 30 days production delay.

Pick up at 1250 rue Tellier, Laval, Québec, H7C 2H2.

Description

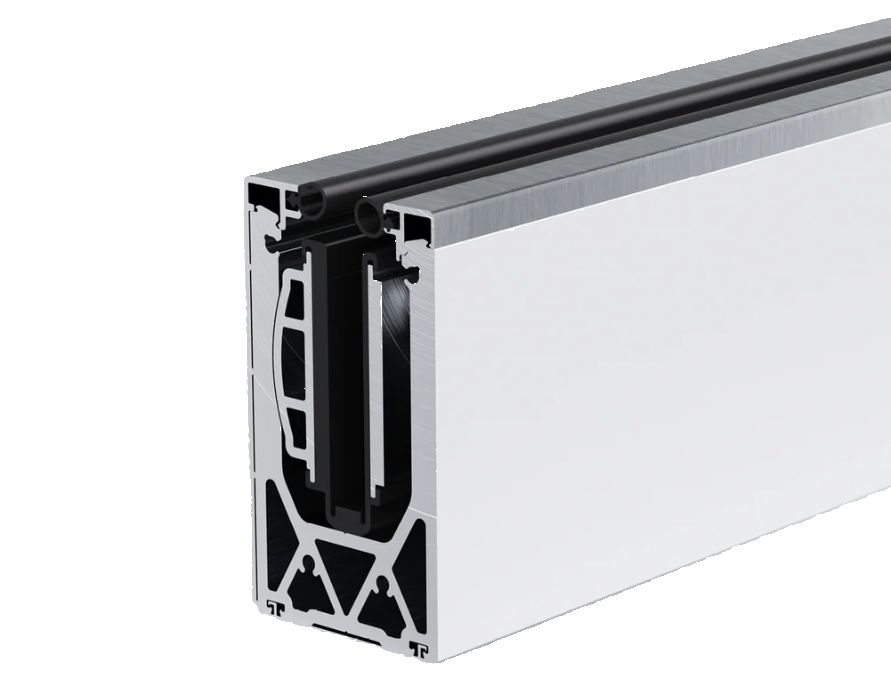

ARCH-LOC™ Base Shoe – Top Mount (20 ft) +–

ARCH-LOC™ Base Shoe – Top Mount (20 ft)

Product Overview

The ARCH-LOC™ Base Shoe system provides a secure and modern solution for mounting tempered glass panels. Designed for precision alignment and long-term durability, it is ideal for railing and partition systems in both residential and commercial projects.

Product Features

  • Integrated alignment system for precise installation
  • High-strength aluminum construction
  • Modern architectural finish
  • Engineered to meet Canadian building codes

Product Specifications

Mount Type Top Mount
Length 20 ft
Glass Thickness 1/2" (12 mm)
Material High-strength aluminum
Compliance National & Ontario Building Codes

Kit Includes

  • 20 ft base shoe
  • Claddings and gaskets (2 pcs)
  • Tilt Lock Clamp Pack (20 pcs)
  • Joining pins (4 pcs)
  • End caps (2 pcs)
  • Gap cover (1 pc)
  • Stabilizer washers (20 pcs)
  • Flat washers (20 pcs)

Technical Documents

Engineering Drawing (PDF)

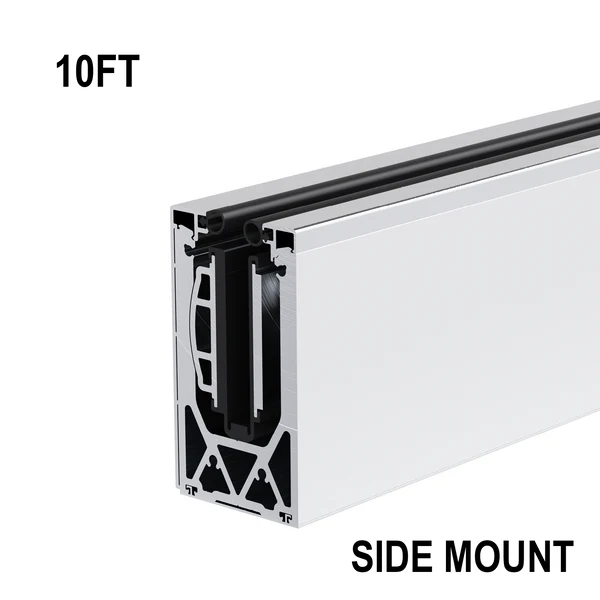

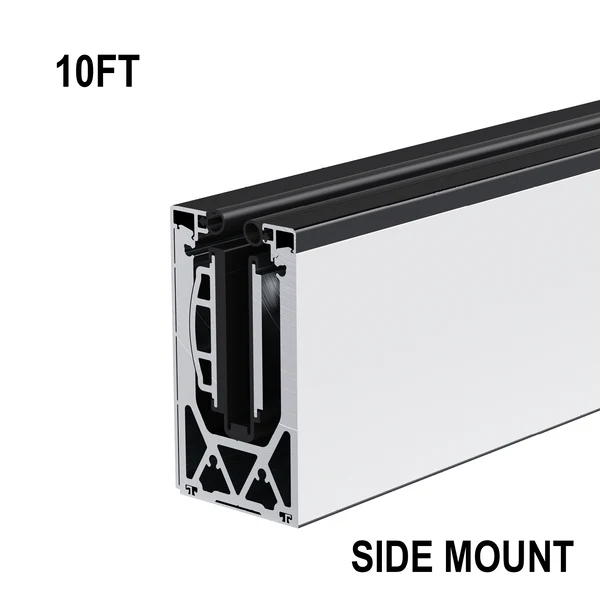

ARCH-LOC™ Base Shoe – Side Mount (10 ft) +–

ARCH-LOC™ Base Shoe – Side Mount (10 ft)

Product Overview

Side mount base shoe designed for vertical installations where top mounting is not possible, offering strong structural support and a clean finish.

Product Features

  • Side mounting configuration
  • Durable aluminum construction
  • Clean architectural design
  • Code-compliant engineering

Product Specifications

Mount Type Side Mount
Length 10 ft
Glass Thickness 1/2" (12 mm)
Material High-strength aluminum

Kit Includes

  • 10 ft base shoe
  • Claddings and gaskets (2 pcs)
  • Clamp pack (10 pcs)
  • Joining pins (4 pcs)
  • End caps (2 pcs)
  • Gap cover (1 pc)
  • Stabilizer washers (10 pcs)
  • Flat washers (10 pcs)

Technical Documents

Engineering Drawing (PDF)

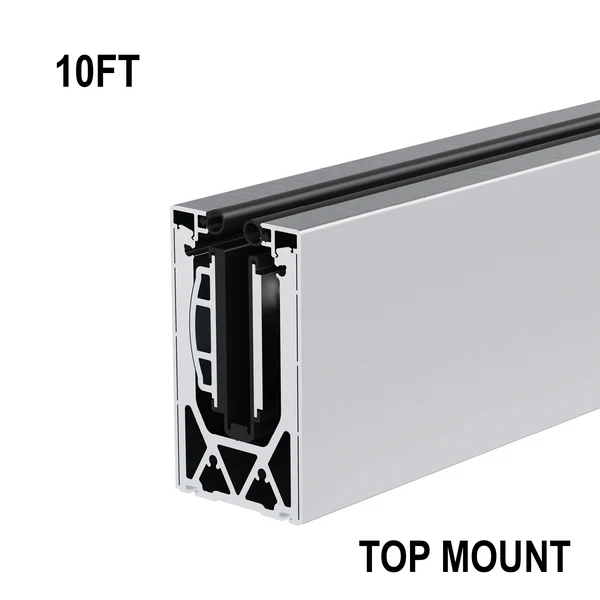

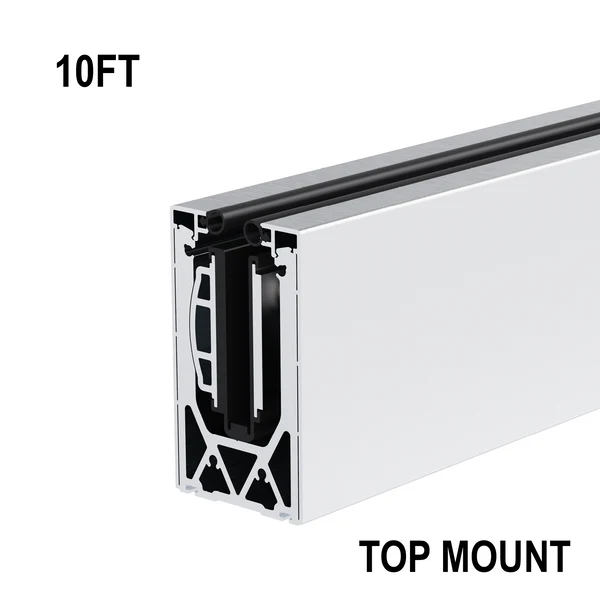

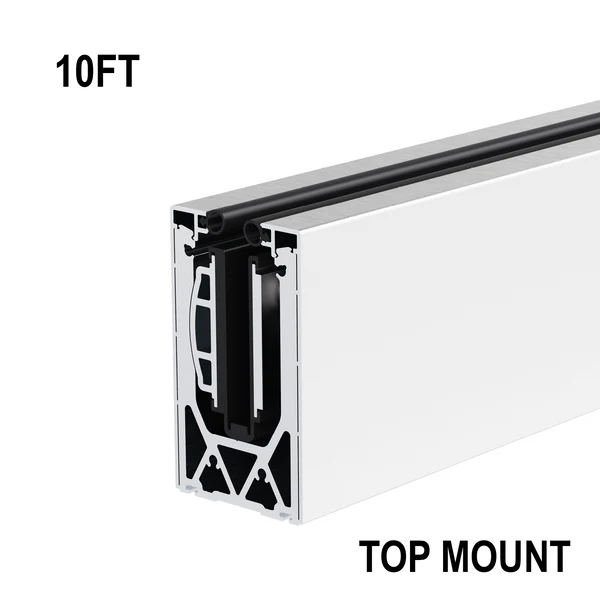

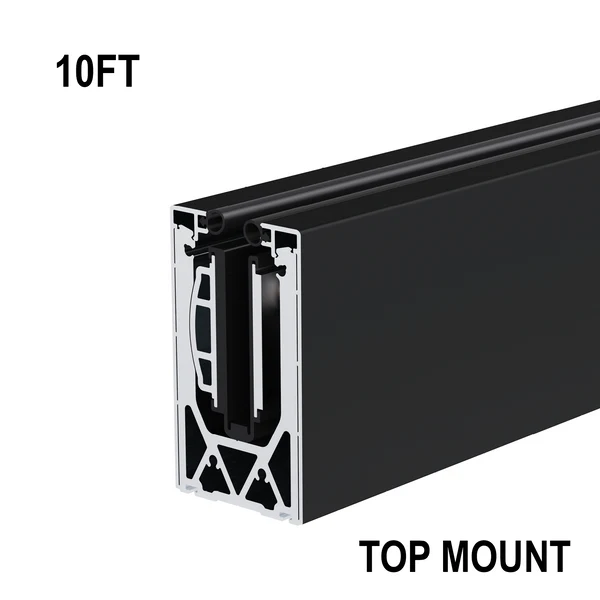

ARCH-LOC™ Base Shoe – Top Mount (10 ft) +–

ARCH-LOC™ Base Shoe – Top Mount (10 ft)

Product Overview

Compact top mount base shoe offering the same strength and precision alignment system for smaller installations.

Product Features

  • Top mount installation
  • Durable aluminum construction
  • Precision alignment system
  • Modern architectural finish

Product Specifications

Mount Type Top Mount
Length 10 ft
Glass Thickness 1/2" (12 mm)
Material High-strength aluminum

Technical Documents

Engineering Drawing (PDF)
