[ML800WP(SO)] Single Door Magnetic Lock w/ Waterproof & Signal Output – 800lbs (350kg)

Product Overview

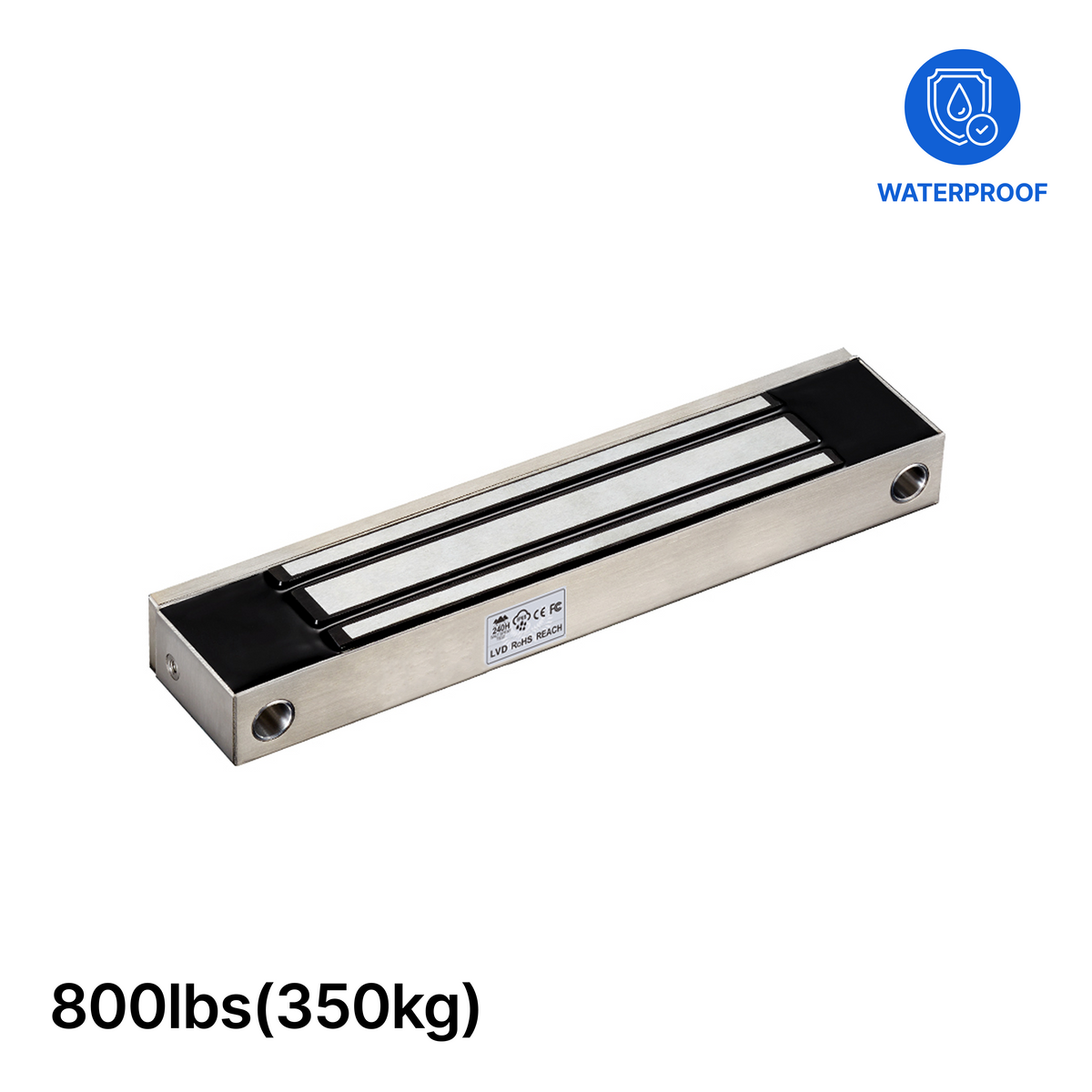

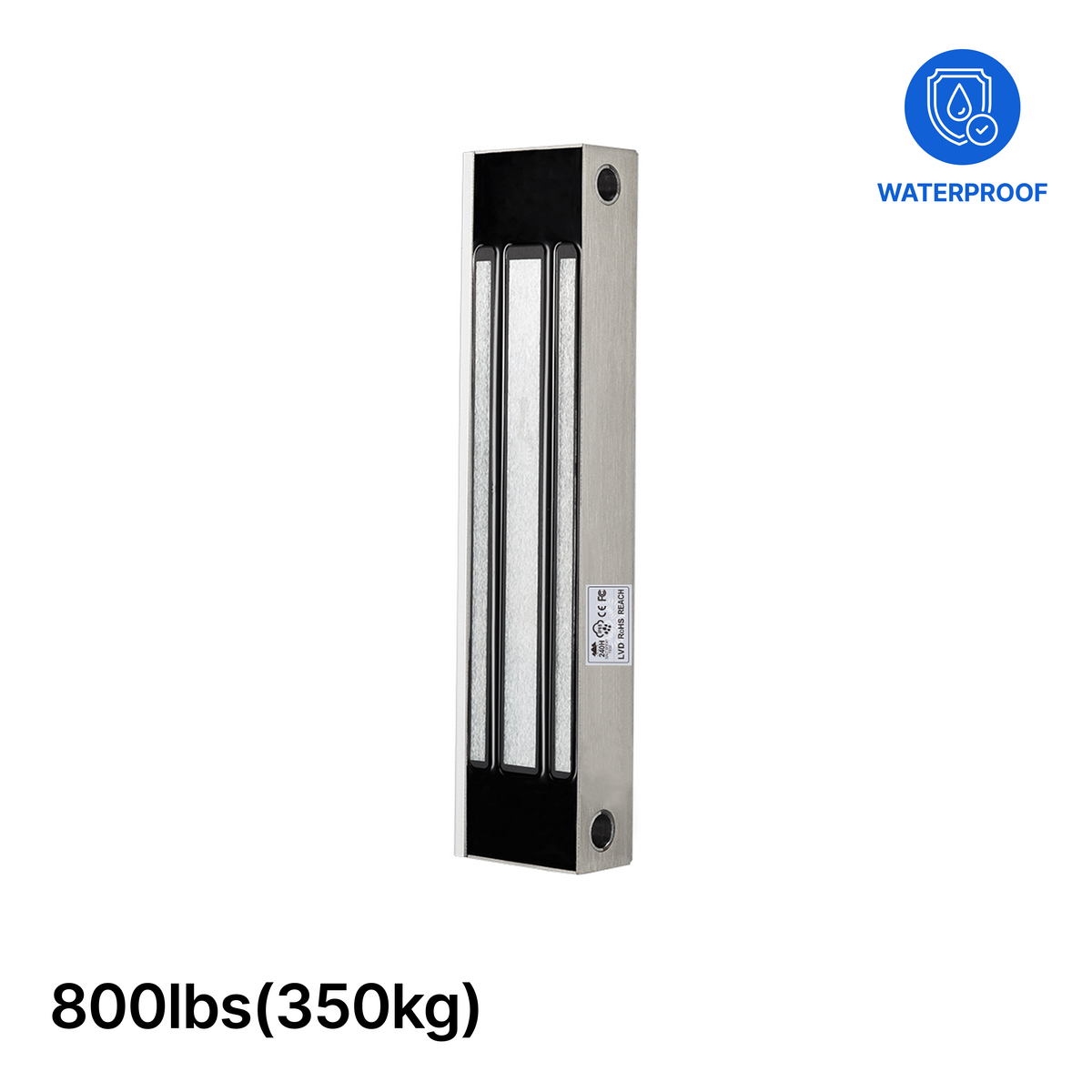

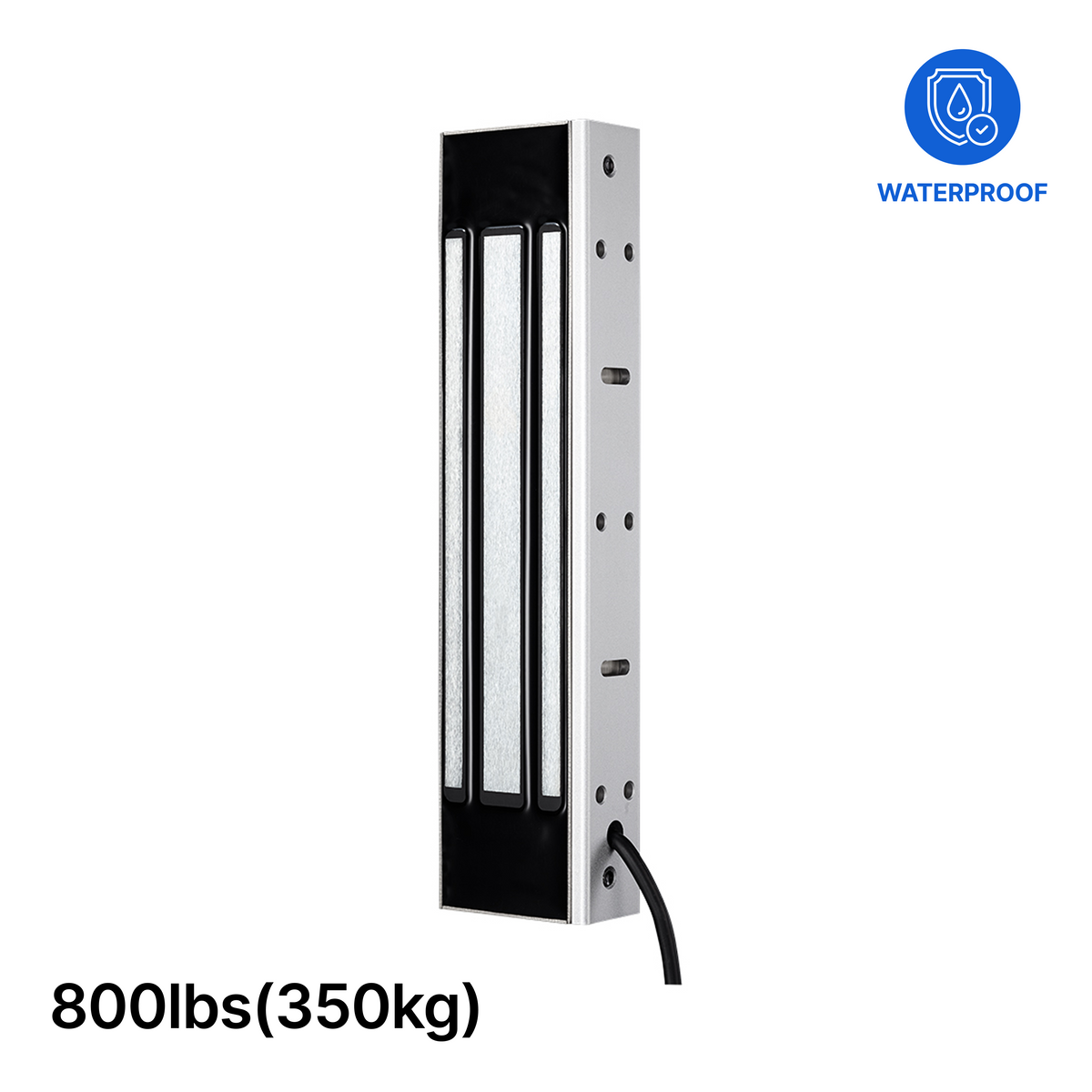

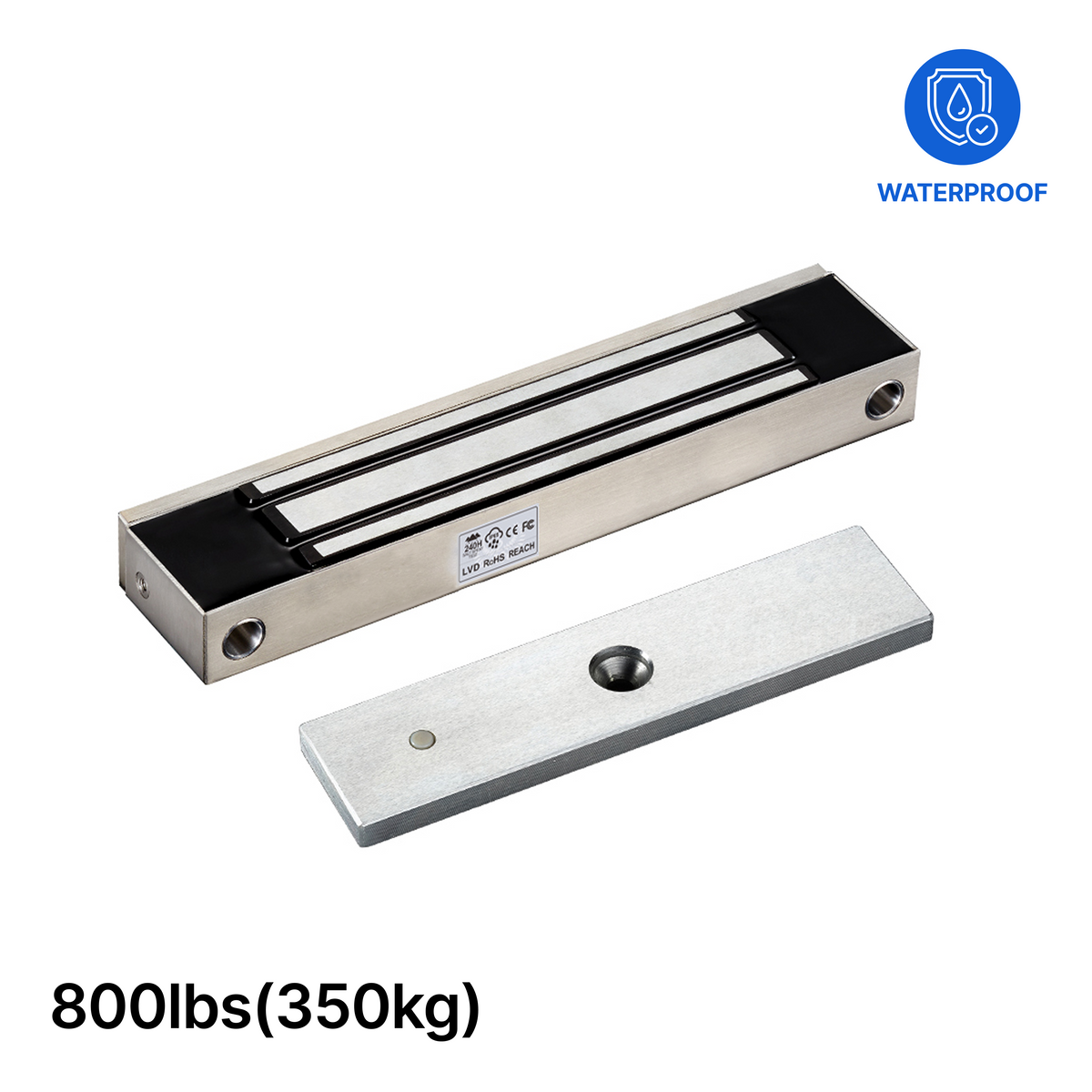

GGH Single Door Magnetic Lock with Waterproof & Signal Output - 800lbs (350kg)

The Single Door Magnetic Lock with Waterproof & Signal Output is designed to provide secure electromagnetic locking for commercial single-door access control systems in indoor and outdoor environments. Built with an IP68-rated housing and flame-retardant lock body, it provides reliable locking performance for wood, glass, metal, and fire-rated door applications.

This waterproof magnetic lock includes integrated lock status signal output for access control monitoring. Its anti-residual magnetism design allows fast release after power is removed, helping support smooth and dependable operation.

Product Features

• Application: Designed for waterproof electromagnetic locking in single-door access control applications.
• Holding Force: 800 lbs. (350 kg).
• Lock Type: Single-door waterproof electromagnetic lock with signal output.
• Input Voltage: 12V DC default.
• Operating Current: 500 mA ±10% at 12V DC.
• Signal Output: Lock status NO/COM.
• Waterproof Rating: IP68.
• Lock Body: Flame-retardant resin encapsulation, V-0 grade.
• Housing Finish: Anodized hard plating.
• Residual Magnetism: Unlocks within 0.5 seconds after power removal.
• Operating Temperature: -22°F to 151°F (-30°C to +66°C).
• Operating Humidity: 0–95% relative humidity, non-condensing.
• Salt Spray Test: 240-hour exposure.
• Testing: Tested for 1,000,000 operating cycles.
• Dynamic Impact Test: 45 J hammer impact, 5 continuous impacts.
• Door Compatibility: Suitable for wood doors, glass doors, metal doors, and fire-rated doors.
• Mounting Type: Header or door frame mount.
• Compatibility: Suitable for armature plates, access control systems, power supplies, exit buttons, and compatible mounting brackets.
• Use: Suitable for indoor and outdoor applications.
• Certification: CE-EMC, CE-LVD, FCC, RoHS, REACH, WEEE

Technical Documents

• VIEW PDF DRAWING (PDF)
