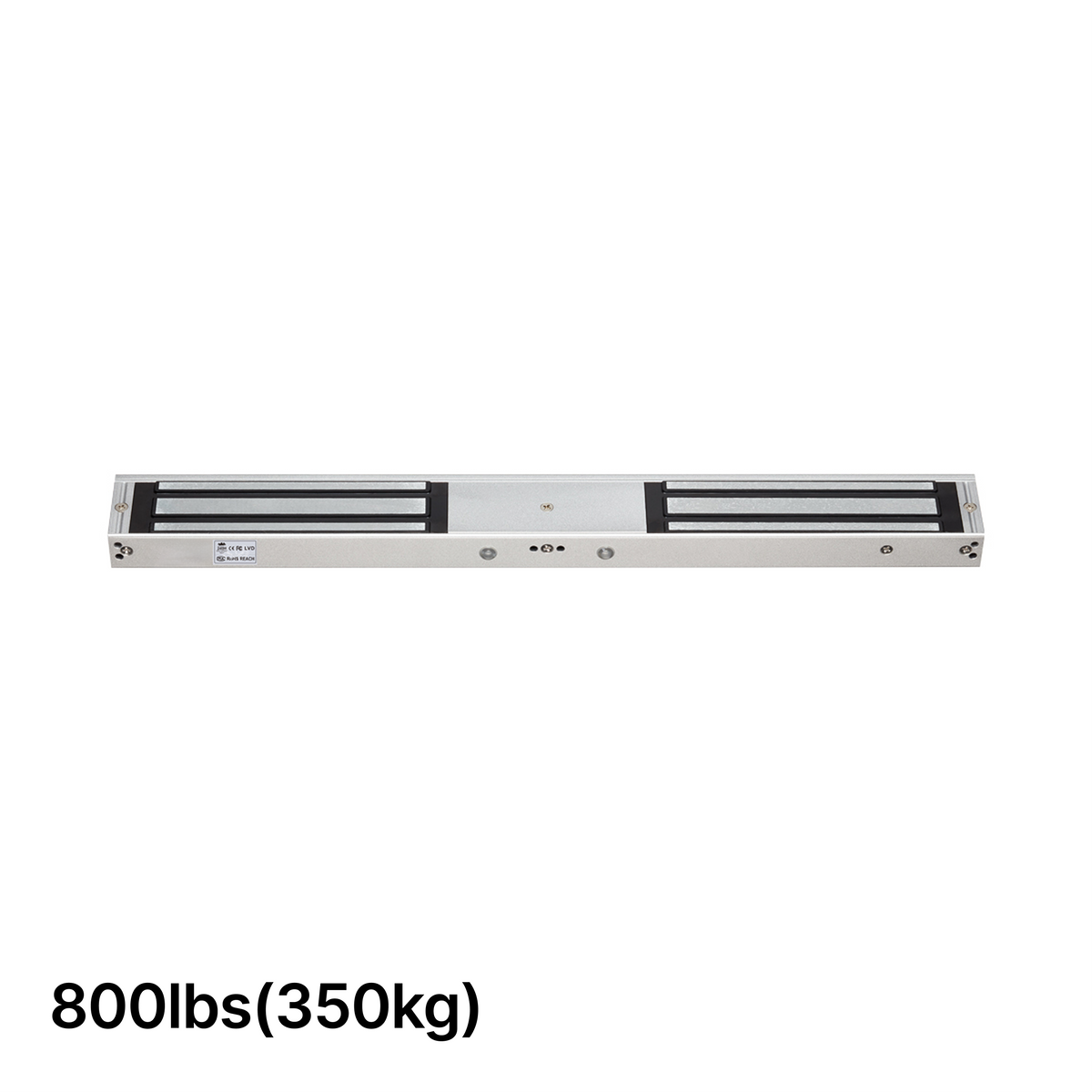

[ML800D(LED)] Double Door Magnetic Lock with LED – 800lbs (350kg) x 2

Product Overview

GGH Double Door Magnetic Lock with LED - 800lbs (350kg) x 2

The Double Door Magnetic Lock with LED is designed to provide secure electromagnetic locking for commercial double-door access control systems. Built with an anodized housing and flame-retardant lock body, it delivers reliable holding force for wood, glass, metal, and fire-rated double door applications.

This double-door magnetic lock includes an integrated LED indicator and lock status signal output for convenient monitoring when connected to compatible access control systems. Its anti-residual magnetism design allows fast release after power is removed, helping support smooth and dependable operation.

Product Features

• Application: Designed for electromagnetic locking with LED lock status indication in double-door access control applications.
• Holding Force: 800 lbs. (350 kg) x 2.
• Lock Type: Double-door electromagnetic lock with LED and signal output.
• Input Voltage: 12V DC default.
• Operating Current: 500 mA ±10% x 2 at 12V DC.

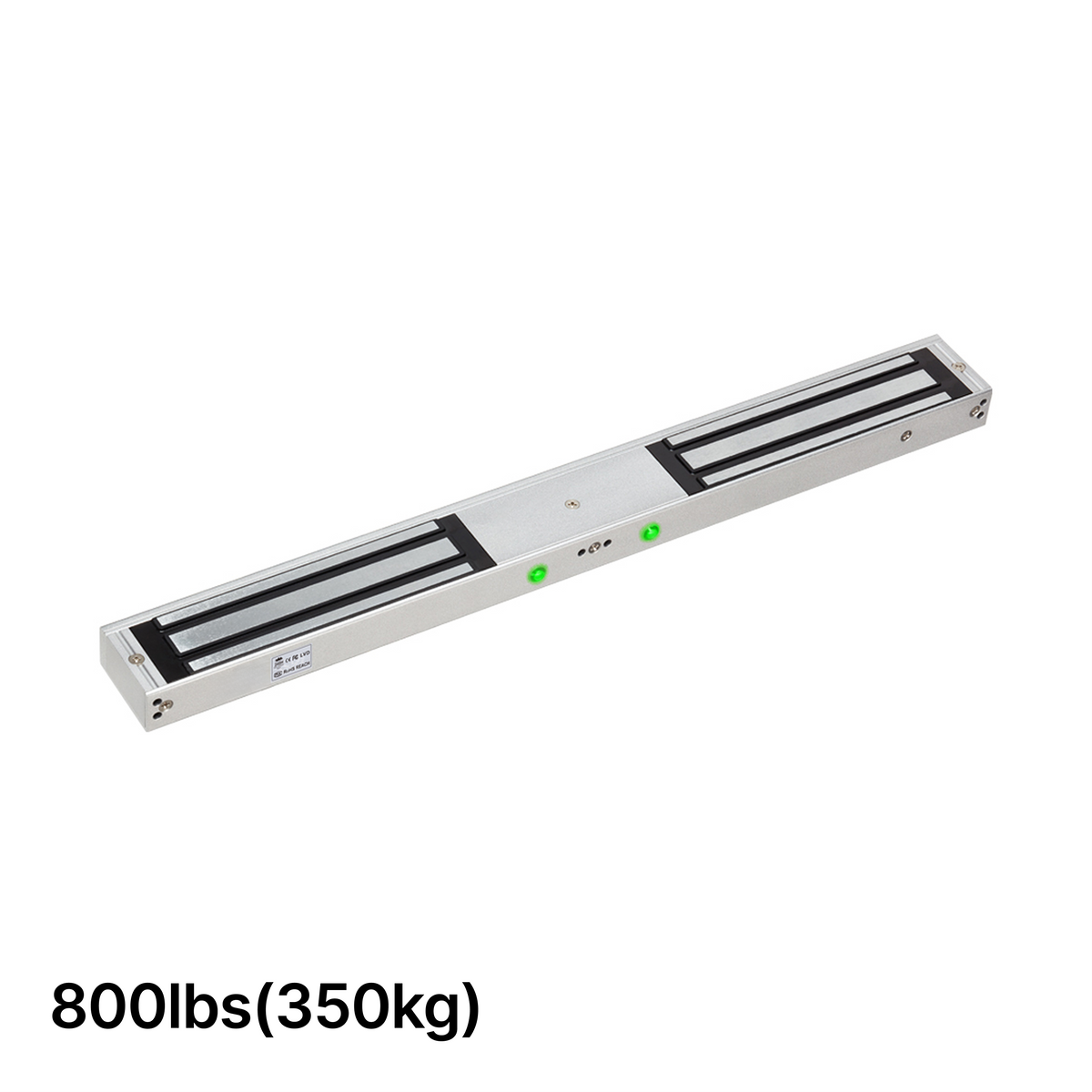

• LED Indicator: Red indicates locked; Green indicates unlocked.
• Signal Output: Lock status NO/NC/COM.
• Glass Compatibility: Suitable for 3/8" (10mm) to 11/16" (17mm) glass.
• Door Compatibility: Suitable for wood doors, glass doors, metal doors, and fire-rated doors.
• Mounting Type: Header or door frame mount.
• Housing Finish: Anodized hard plating.
• Lock Body: Flame-retardant resin encapsulation, V-0 grade.
• Residual Magnetism: Unlocks within 0.5 seconds after power removal.
• Operating Temperature: -22°F to 151°F (-30°C to +66°C).
• Operating Humidity: 0–95% relative humidity, non-condensing.
• Salt Spray Test: 240-hour exposure.
• Testing: Tested for 1,000,000 operating cycles.
• Dynamic Impact Test: 45 J hammer impact, 5 continuous impacts.

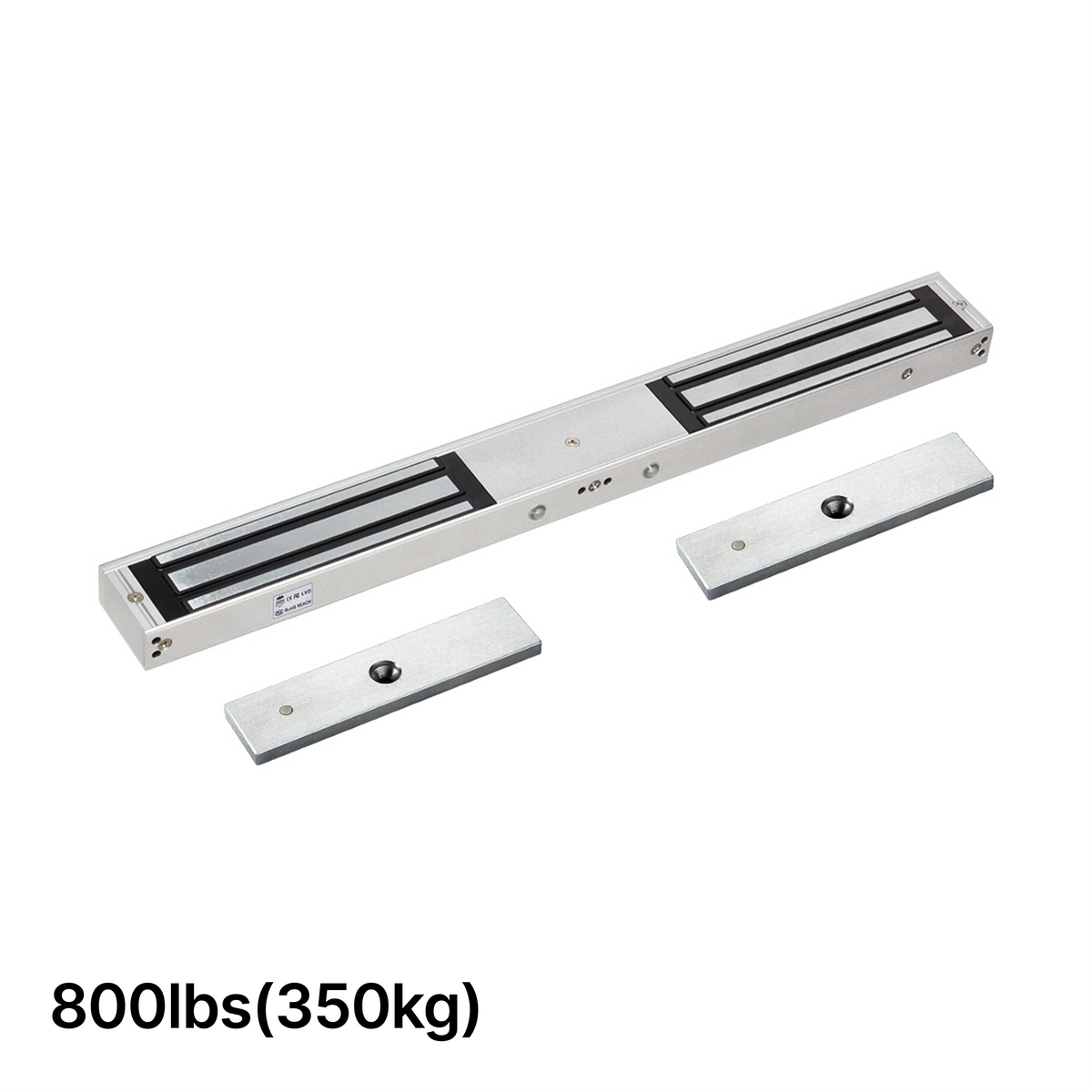

• Compatibility: Suitable for armature plates, access control systems, power supplies, exit buttons, and compatible mounting brackets.
• Use: Indoor use only.
• Certification: MA, CE-EMC, CE-LVD, FCC, RoHS, REACH, WEEE
• Glass Fabrication Notes:
• Hollow metal doors require an 8mm inside hole and 16mm outside hole.
• Wood doors require an 8mm inside hole and 12.7mm outside hole.
• Metal surface doors require an 8mm inside hole and a 6.8mm hole tapped for an M8 x 1.25 thread.

Technical Documents

• VIEW PDF DRAWING (PDF)
