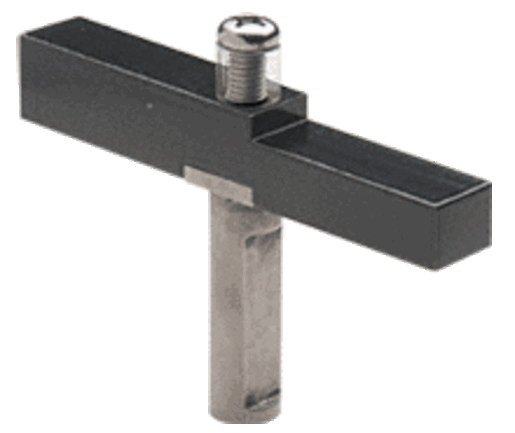

CRL Adaptor Block Used with Senior Prima Hinges
CRL Adaptor Block Used with Senior Prima Hinges - Matte Black est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Service de retrait disponible à Warehouse
Habituellement prête en 2 à 4 jours
Ramassage et livraison
Ramassage et livraison
Pour les commandes de verre sur mesure, veuillez noter que la livraison depuis notre fournisseur prend généralement 1–2 semaines avant que nous recevions les panneaux et puissions procéder à l'exécution de la commande.
Pour les étagères de cave à vin, nous avons un délai de production de 30 jours.
Retrait sur place au 1250 rue Tellier, Laval, Québec, H7C 2H2.
CRL Adaptor Block Used with Senior Prima Hinges
CRL Adaptor Block Used with Senior Prima Hinges - Matte Black est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Description
Description
Product Details + −

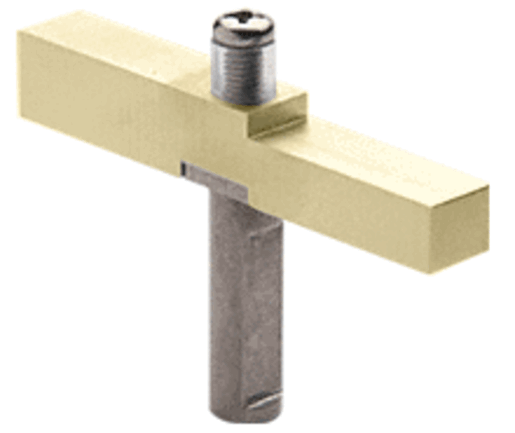

CRL Senior Adapter Block – Satin Brass – SRHAB01SB
Product Overview
The CRL Senior Adapter Block is specifically designed to connect Senior Prima and Senior Cardiff Series Pivot Hinges to CRL Deluxe Shower Header Assemblies.
Manufactured from brass with an elegant Satin Brass finish, this adapter allows compatible pivot hinges to be securely mounted directly into the shower header system.
The adapter block can be adjusted sideways within the header to achieve the required hinge position. Its integrated clearance notch allows installation beneath the wall bracket when the hinge is positioned close to a wall.
Product Details
- Product Code: SRHAB01SB
- Finish / Color: Satin Brass
- Material: Brass
- Glazing Thickness: 1/2" (12 mm)
- Mounting Type: Shower Header Adapter
- Compatible Header: CRL Deluxe Header Assembly
- Compatible Hinges: Senior Prima and Senior Cardiff Series
- Glass Type: Monolithic Tempered Glass
Key Features
- Senior Series Compatibility: Designed specifically for CRL Senior Prima and Senior Cardiff Pivot Hinges.
- Deluxe Header Integration: Allows compatible pivot hinges to be mounted directly into CRL Deluxe Shower Header Kits.
- Adjustable Positioning: The adapter block can slide sideways within the header to accommodate the required hinge location.
- Clearance Notch: Specially designed notch allows the adapter to fit beneath the wall bracket when mounted close to a wall.
- Brass Construction: Provides durability and reliable performance in frameless shower installations.
- Satin Brass Finish: Coordinates with matching CRL shower hardware for a clean architectural appearance.
Installation Requirements
- Header Drilling: A 1/4" (6 mm) diameter hole must be drilled in the shower header.
- Hinge Preparation: The hinge base plate must be removed before mounting the hinge to the header.
- Mounting Screw: M6 × 1 Pan Head Screw, 1-1/8" long.
- Included Hardware: Each adapter block is individually packaged with its mounting screw.
- Position Adjustment: The adapter can be positioned sideways within the Deluxe Header Assembly.
This adapter block is designed specifically for Senior Prima and Senior Cardiff Hinges.
It is NOT compatible with Junior or Regular Prima and Cardiff hinge series. Verify the hinge series before ordering.
Ideal Applications
- Frameless shower enclosures with Deluxe Header Systems
- Senior Prima pivot hinge installations
- Senior Cardiff pivot hinge installations
- Glass shower doors requiring header-mounted pivot hinges
- Residential and commercial shower enclosure projects
Brass Finish Advisory
Although brass is durable, it is naturally susceptible to oxidation, which may cause tarnishing or changes in appearance over time.
This may occur regardless of how the hardware is packaged or stored. Refer to the Brass Finish Disclaimer below for additional information.
Product Advisory
- Shipping weights are approximate and may not have been individually verified.
- If exact shipping weight is required, contact GlassParts Customer Service before placing your order.
- Product images are actual products or close representations. Appearance may vary depending on lighting and display settings.
