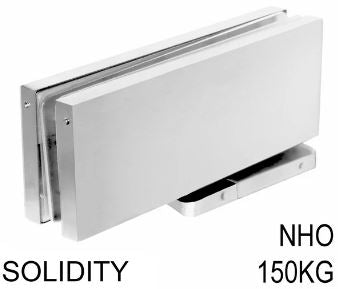

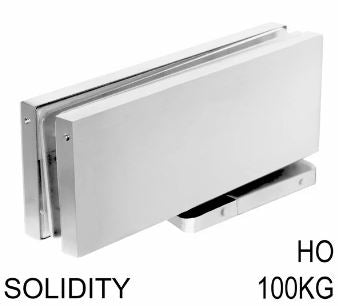

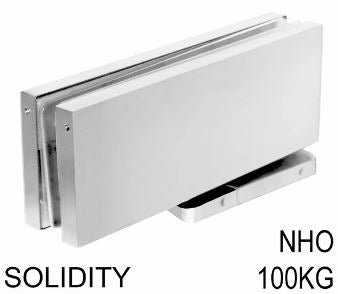

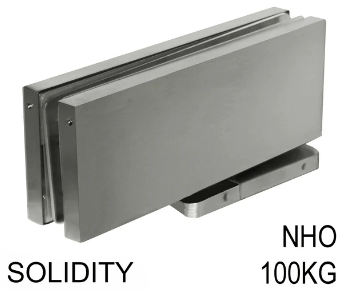

Solidity Series Hydraulic Bottom Patch Fitting

Product Overview

GGH’s Solidity Series Hydraulic Bottom Patch Fitting delivers a robust and refined solution for commercial glass door applications such as office partitions, interior fit-ups, and wine rooms.

Designed to integrate seamlessly with patch fittings, transom systems, and ladder pulls, it supports both 10 mm (3/8") and 12 mm (1/2") tempered glass configurations.

Manufactured with precision tolerances between 0.005 mm and 0.01 mm, this fitting is cycle-tested up to 500,000 operations, ensuring long-term reliability in high-traffic environments.

Product Features

Heavy-duty capacity: Supports up to 150 kg (330 lbs) or 100 kg (220 lbs)
Maximum door width: 39" (1000 mm)

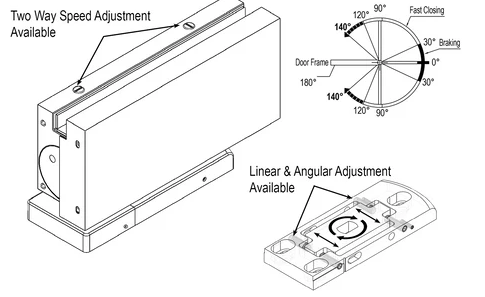

Adjustable closing speed: Two speed settings for controlled operation

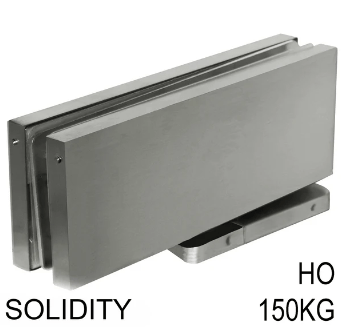

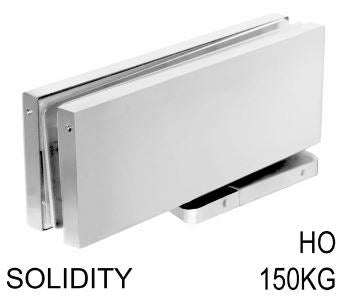

Self-closing function: Available with or without hold-open feature
High durability: Tested up to 500,000 cycles
Precision engineering: Tight manufacturing tolerances for smooth performance

Technical Specifications

Glass Thickness: 10 mm (3/8") and 12 mm (1/2")
Maximum Weight: 150 kg / 100 kg (depending on configuration)
Maximum Door Width: 39" (1000 mm)
Material: Grade 304 Stainless Steel with Aluminum Cover Plates
Adjustment: Bottom plate adjustable for easier installation

Available Finishes

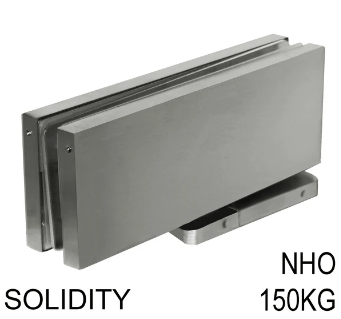

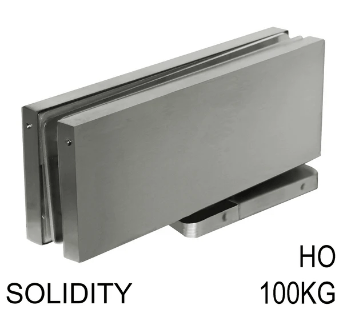

Brushed Stainless

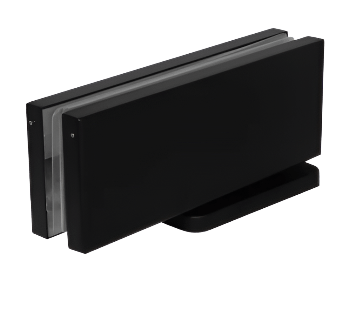

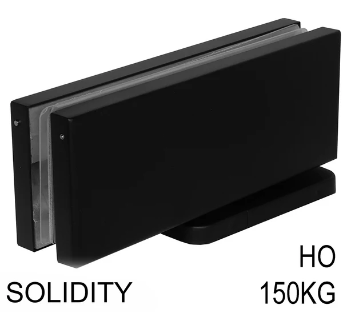

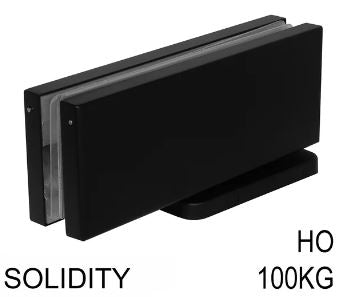

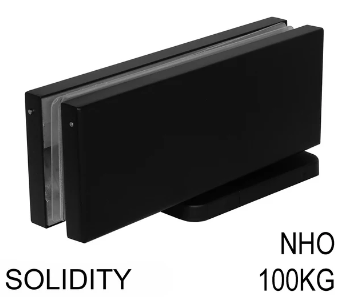

Matte Black
Polished Stainless

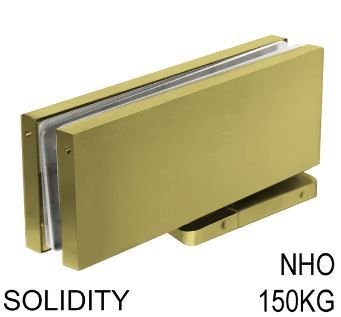

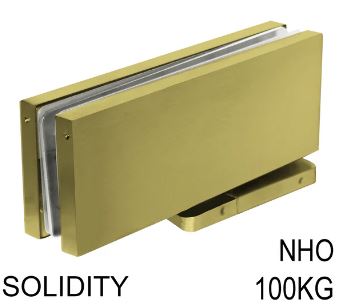

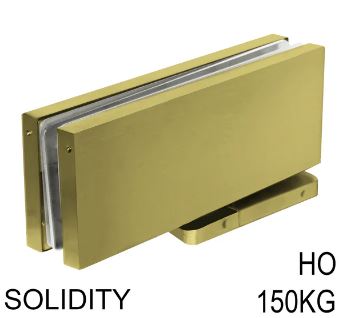

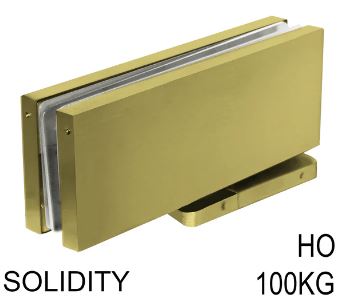

Satin Brass
Satin Anodized

Applications

Commercial glass doors
Office partitions
Interior glass systems
Wine rooms and specialty installations

Important Notes

Professional installation recommended
Ensure compatibility with patch and transom fittings
Finish appearance may vary depending on display settings
