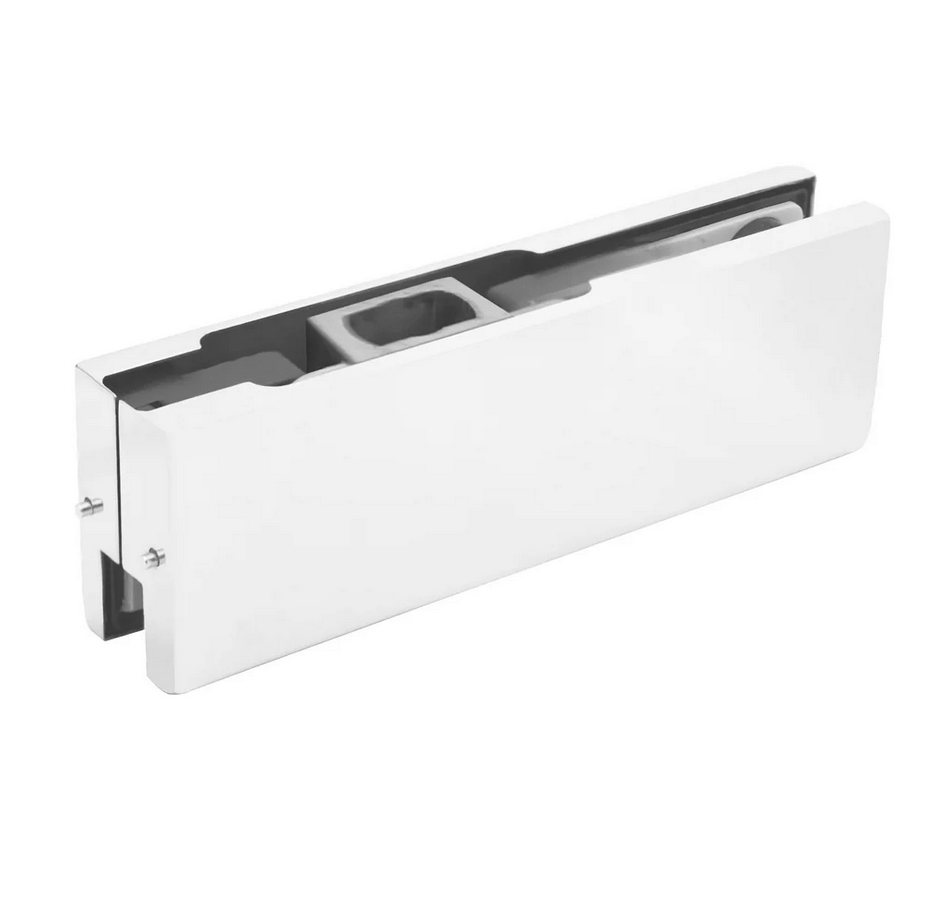

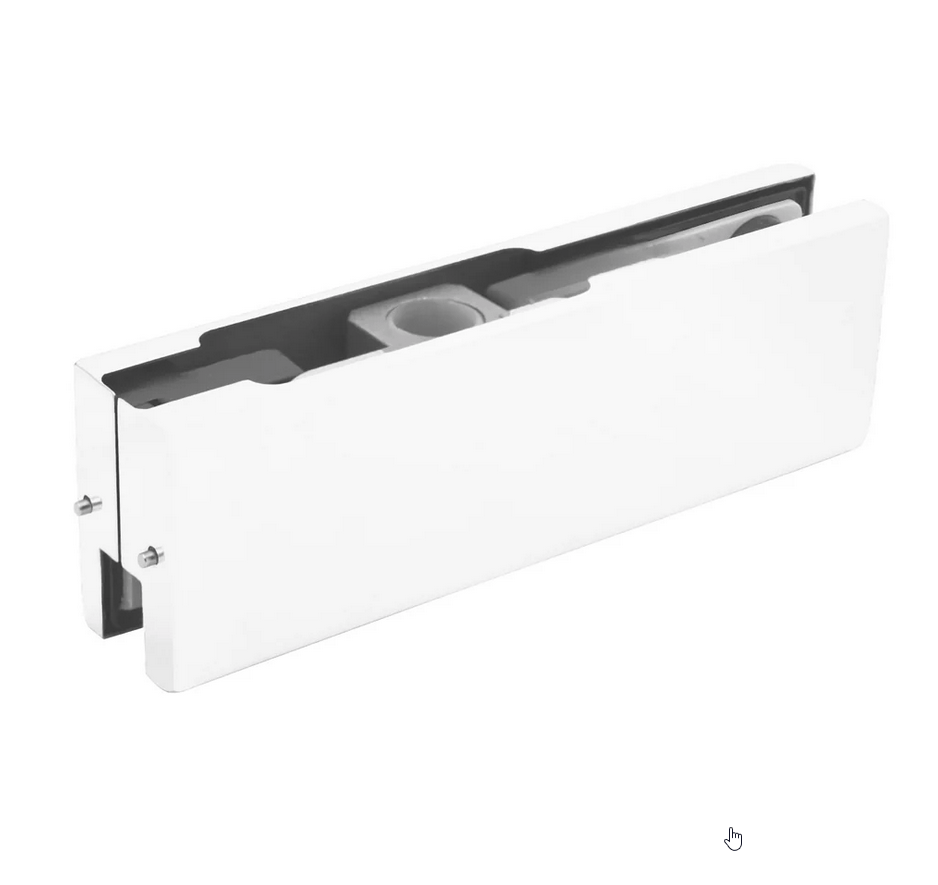

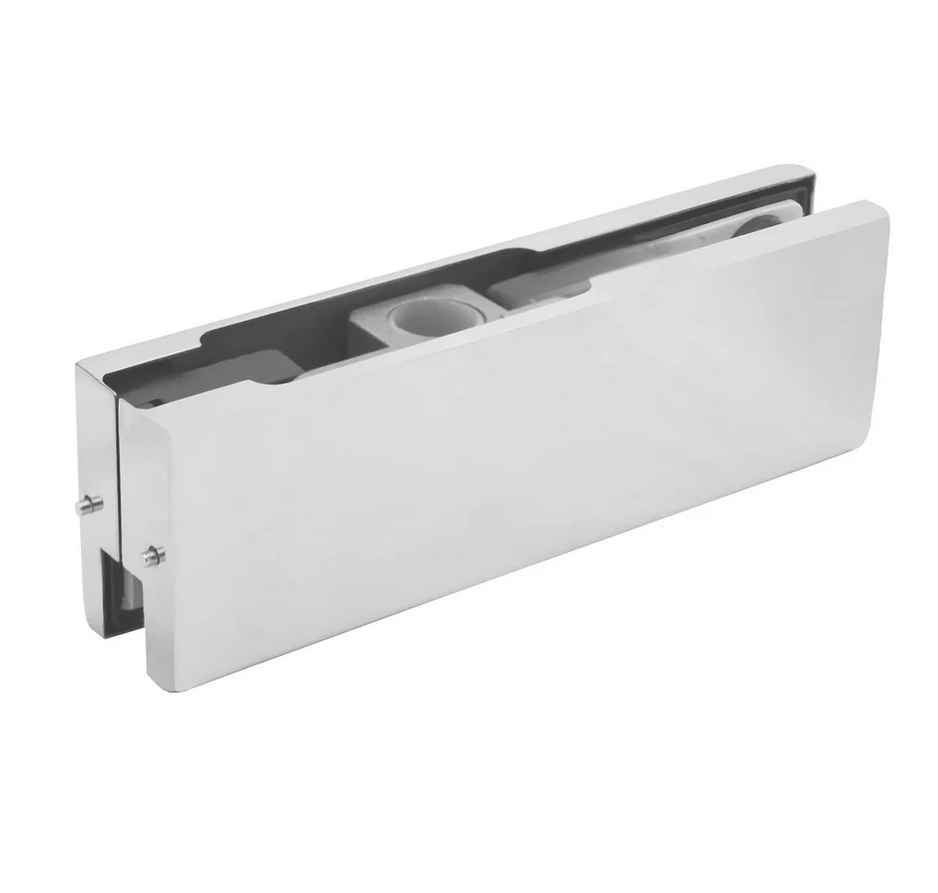

Patch Fitting (PFIT Series)
Patch Fitting (PFIT Series) - Bottom Patch with Pivot Insert / Brushed Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description

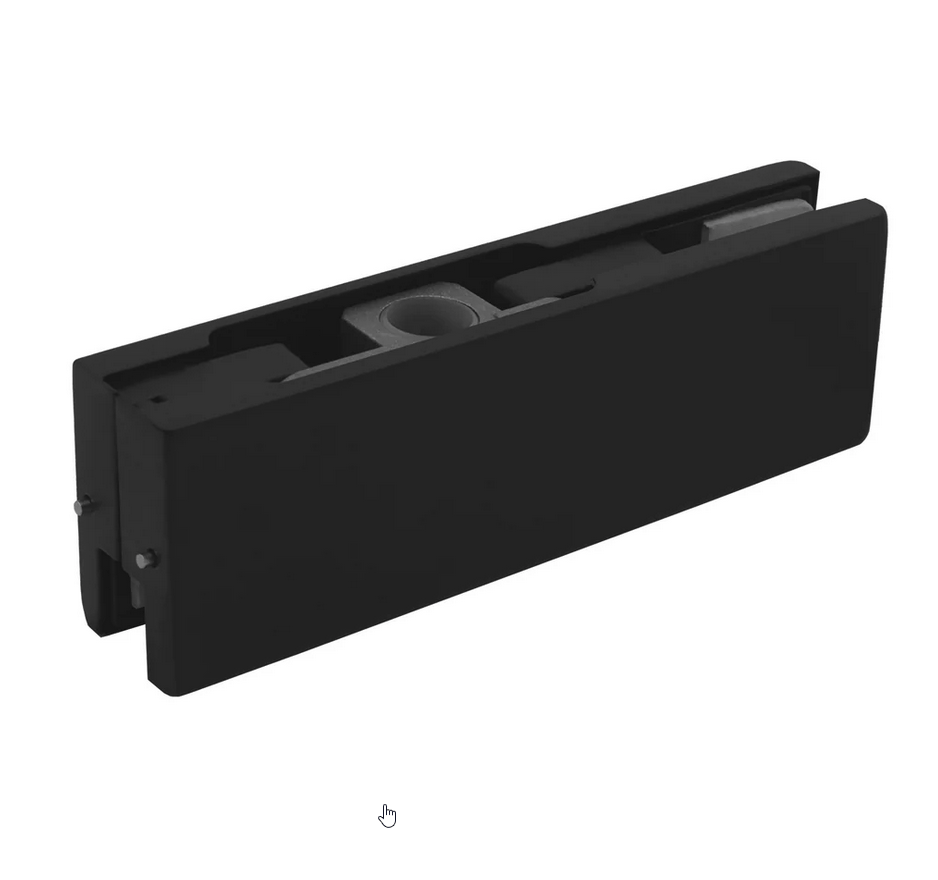

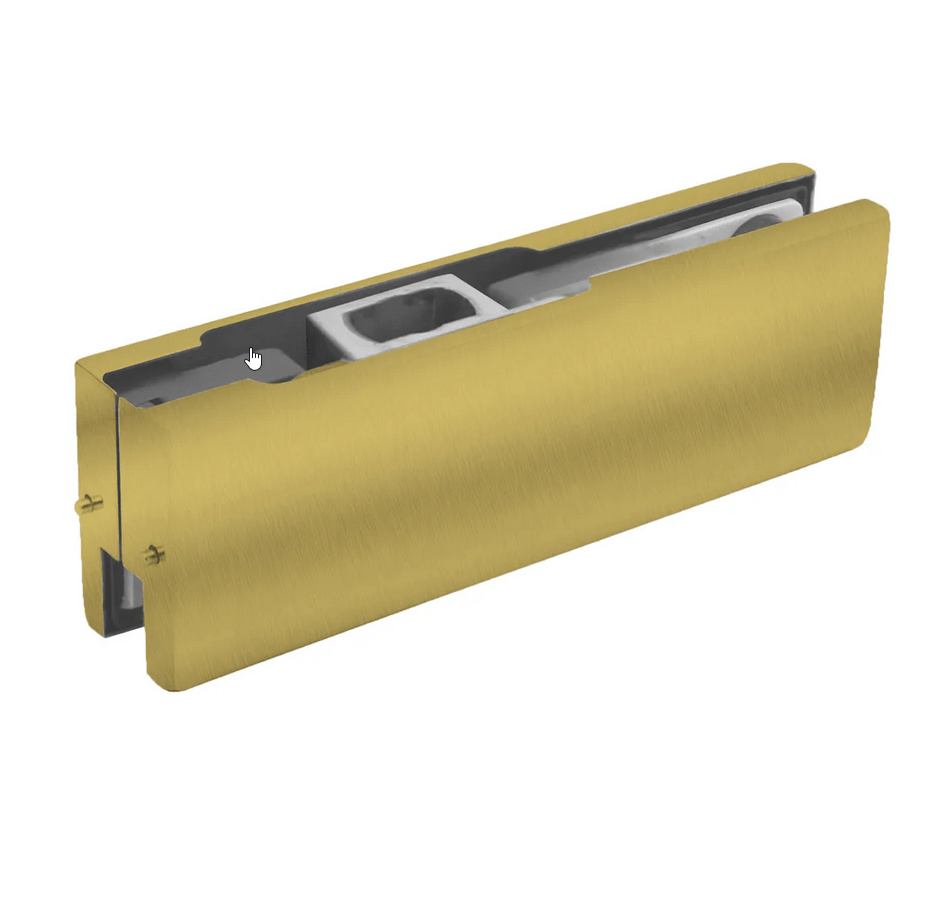

Grey Goat Top Patch Fitting + –
Grey Goat Top Patch Fitting
Product Overview
The Grey Goat Top Door Patch Fitting integrates seamlessly with overhead concealed closers. Designed with PFINTOP insert compatibility (PPIV401 patch pin sold separately), it includes neoprene gaskets for 3/8" or 1/2" (10 / 12 mm) glass thickness, ensuring a secure and rattle-free installation.
Product Features
- Max Weight: 88 kg (194 lb)
- Max Door Width: 42" (1000 mm)
- Max Door Height: 102" (2590 mm)
- Cycle Tested: 500,000 operations
- Backset: European 2-9/16"
- Material: Aluminum body with Grade 304 stainless steel cover plate
- Glass Compatibility: 3/8" or 1/2" (10 / 12 mm)
- Application: Interior and exterior glass door systems
Technical Specifications
- Type: Top Patch Fitting
- Insert: PFINTOP
- Pin Compatibility: PPIV401 (sold separately)
Available Finishes

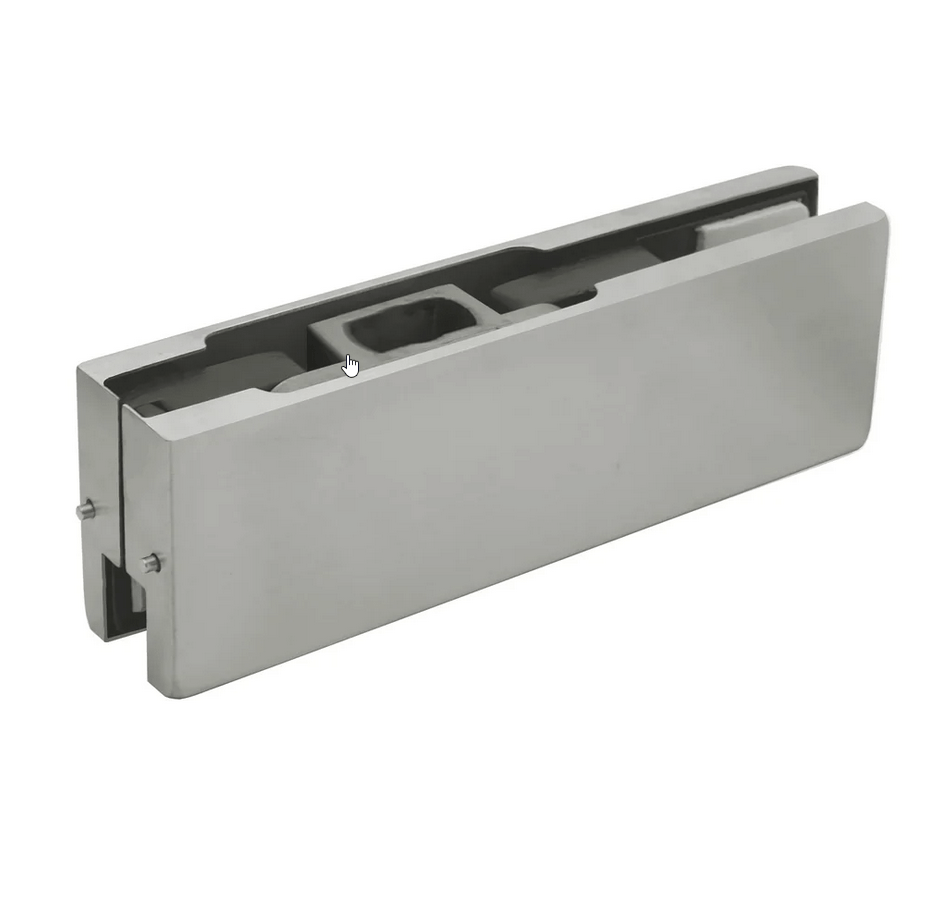

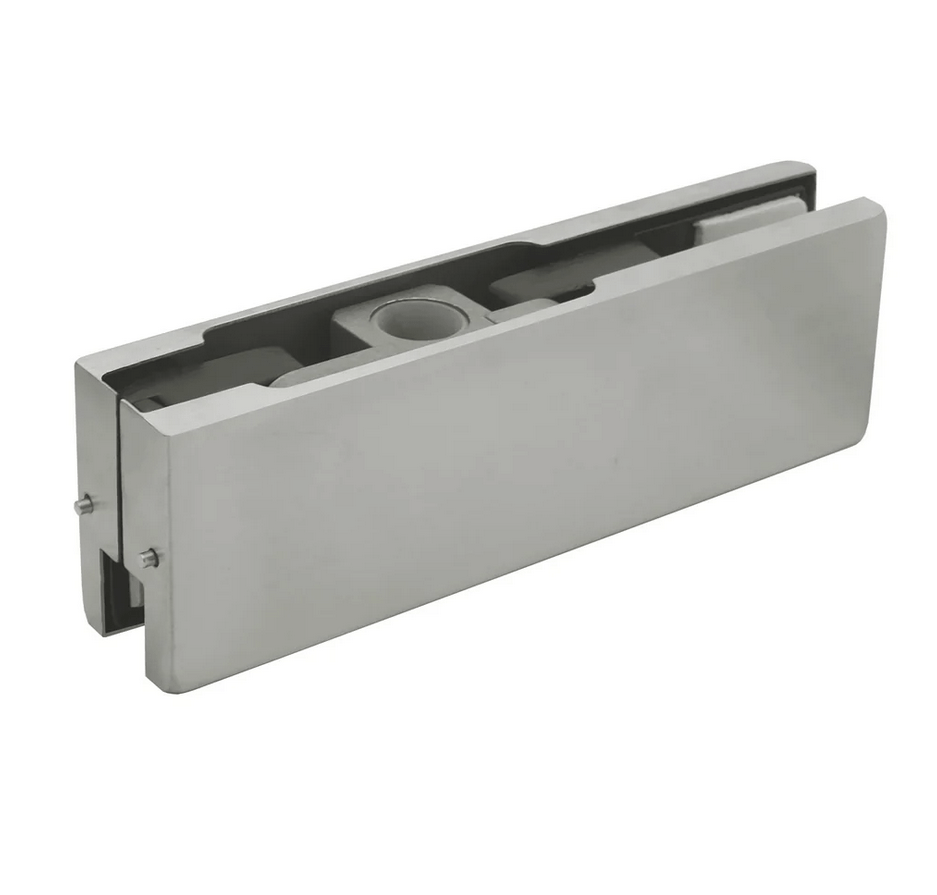

- Brushed Stainless

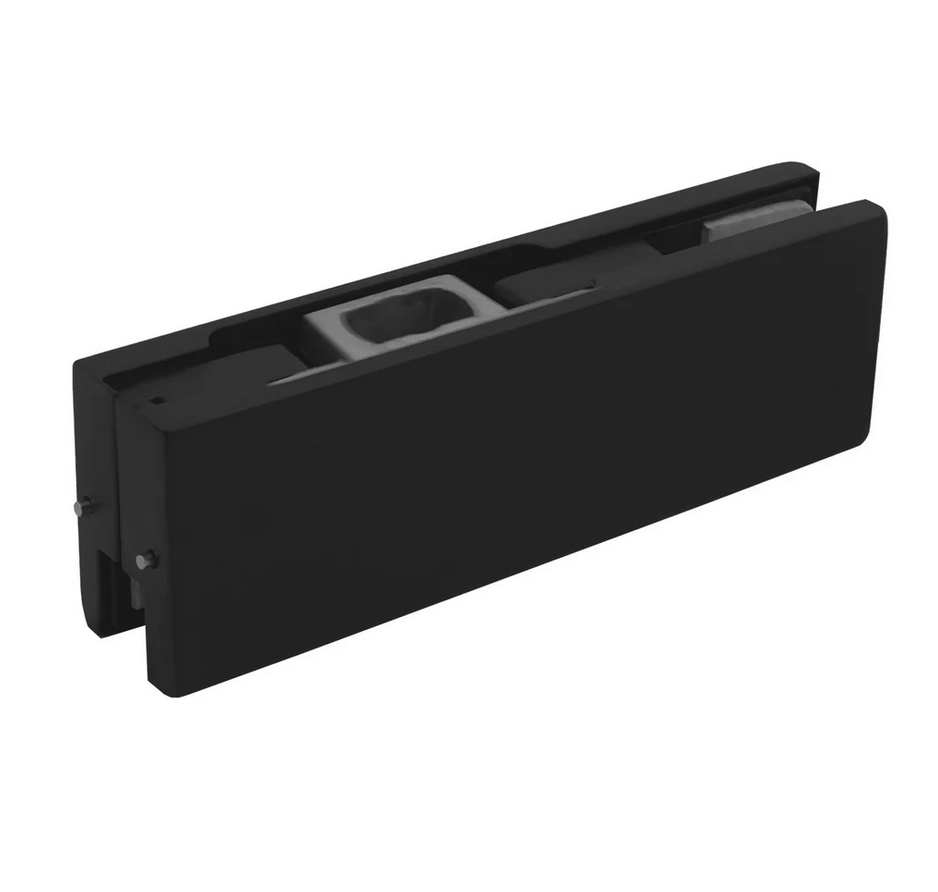

- Matte Black

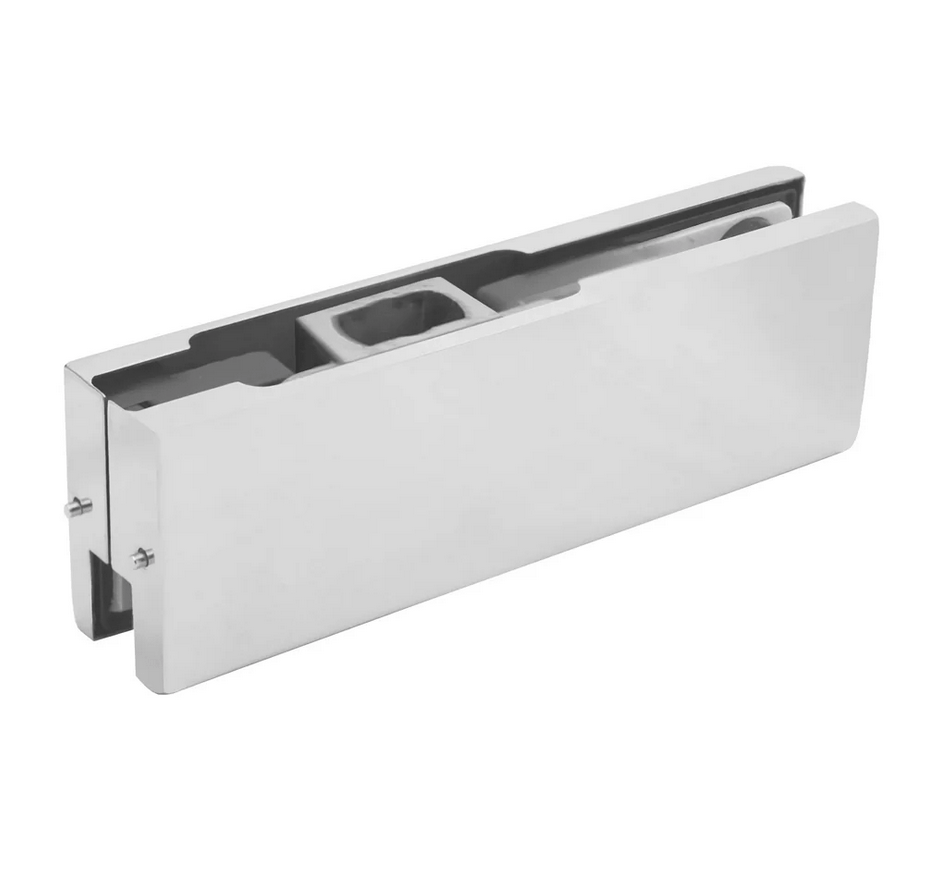

- Polished Stainless

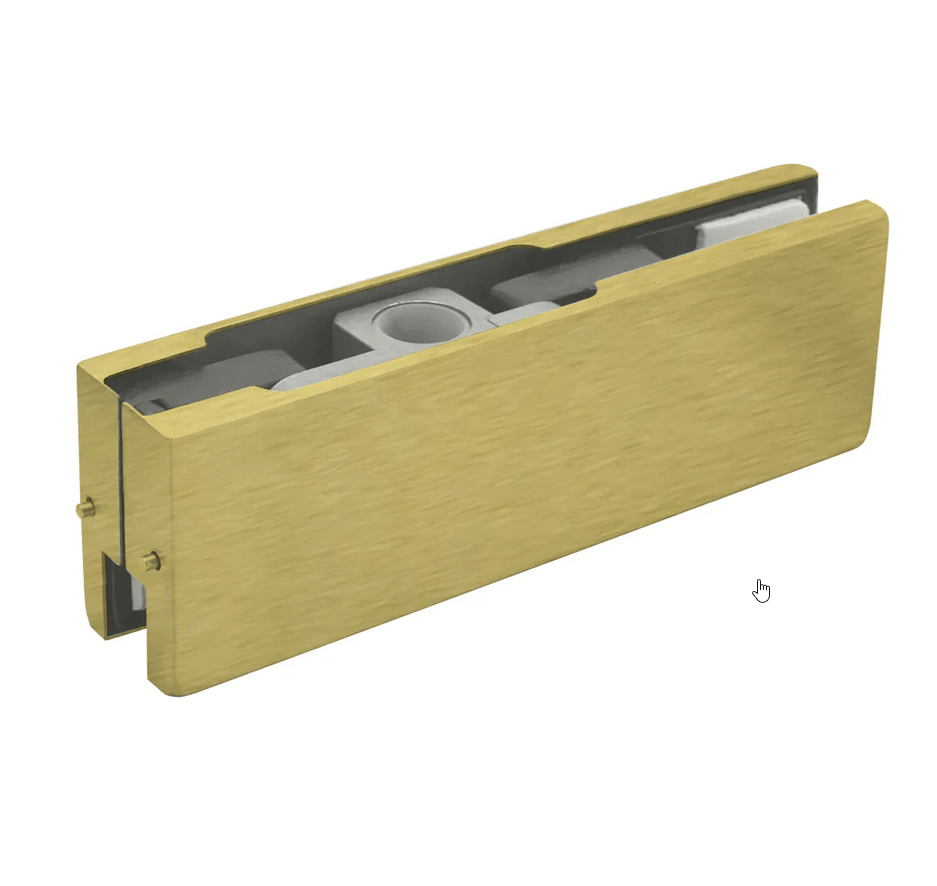

- Satin Brass
- Satin Anodized
- Custom Finishes (contact us)
Technical Drawings
Important Notes
- Patch pin sold separately
- Ensure proper glass preparation before installation
- Compatible with concealed door closer systems
Grey Goat Bottom Patch Fitting + –
Grey Goat Bottom Patch Fitting
Product Overview
The Grey Goat Bottom Door Patch Fitting secures the glass panel at floor level and works in conjunction with the PFINTBOT insert and PPIV402 (sold separately). It includes neoprene gaskets for 3/8" or 1/2" (10 / 12 mm) glass, providing a stable and durable installation.
Product Features
- Max Weight: 88 kg (194 lb)
- Max Door Width: 42" (1000 mm)
- Max Door Height: 102" (2590 mm)
- Cycle Tested: 500,000 operations
- Material: Aluminum body with Grade 304 stainless steel cover plate
- Glass Compatibility: 3/8" or 1/2" (10 / 12 mm)
- Application: Interior and exterior glass door systems
Technical Specifications
- Type: Bottom Patch Fitting
- Insert: PFINTBOT
- Pin Compatibility: PPIV402 (sold separately)
Available Finishes
- Brushed Stainless
- Matte Black
- Polished Stainless
- Satin Brass
- Satin Anodized
- Custom Finishes (contact us)
Technical Drawings
Important Notes
- Patch pin sold separately
- Ensure proper glass preparation before installation
- Compatible with floor pivots and door closer systems
