C. R. Laurence

Fixed Panel Shower Door Deep U-Channel

$32.50 CAD

Sale Sold out

Shipping calculated at checkout.

Product Details — CRL Deep U-Channel +–

CRL Deep U-Channel — Fixed Glass Panels

Product Overview

Deep U-Channel for securing fixed tempered glass panels to walls, ceilings, or floors. The 3/4" (19 mm) high profile offers excellent engagement for top or bottom placements and can be paired with a regular-depth U-Channel. Install with clear neutral silicone (wet glaze). End caps are available to conceal channel ends.

For 3/8" and 1/2" (10 & 12 mm) glass
Deep pocket secures fixed panels; can be used alone or with regular U-Channel
Individually wrapped to protect finish; multiple stock finishes available
Use monolithic tempered glass

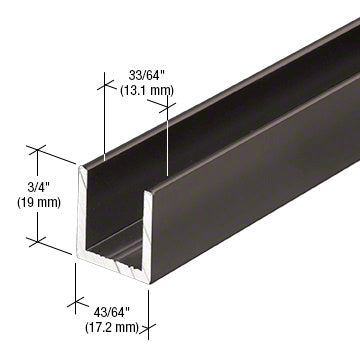

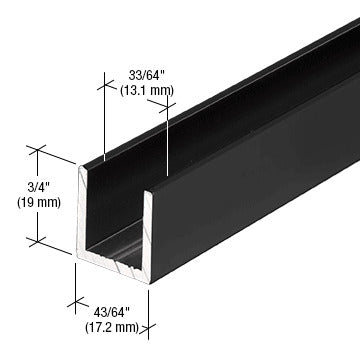

Variant — Deep U-Channel for 1/2" (12 mm) Glass — Matte Black

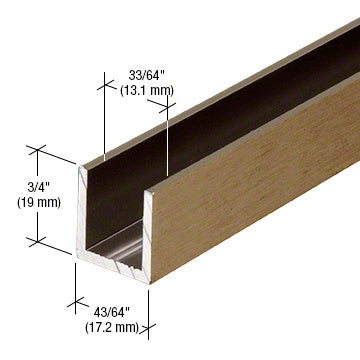

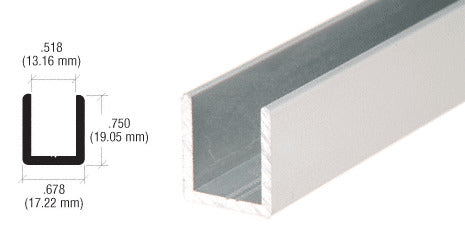

Specifications


Glazing Pocket Width	0.518"
Compatible Glass	1/2" (12 mm)
Height	3/4" (19 mm)
Length	95" (2413 mm)
Material	Aluminum
Profile	Deep
Width	11/16" (17.1 mm)

Key Points

Wet glazed with clear silicone to secure glass
May be used with a regular-depth U-Channel at the opposite edge
Also available in economical 144" (3.66 m) stock lengths (finish availability may vary)
End caps offered to finish exposed channel ends

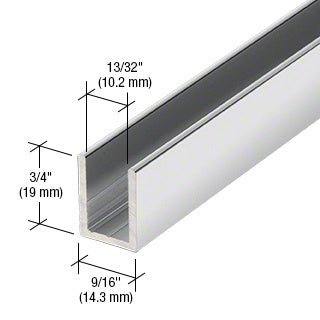

Variant — Deep U-Channel for 3/8" (10 mm) Glass

Specifications

Glazing Pocket Width	13/32" (10.32 mm)
Compatible Glass	3/8" (10 mm)
Height	3/4" (19 mm)
Available Lengths	95" (2413 mm), 144" (3657 mm)
Material	Aluminum
Profile	Deep
Width	9/16" (14 mm)

Recommended Use

Ideal for frameless shower enclosures and other fixed installations. The deep profile provides a stronger grip, especially for top-track applications where glass is inserted from above. Seal with clear silicone for a secure, clean finish.

Notes & Advisory

Typical Uses: Most commonly used to secure fixed panels of monolithic tempered glass to wall, ceiling, or floor.
Shipping weights are approximate. If exact weight is needed to calculate freight, contact Customer Service before ordering.
Product images/colours may vary with monitor/video card settings.
