Richelieu Riveo Square Pivot Hinge – Header Mount
Richelieu Riveo Square Pivot Hinge – Header Mount - Brushed Nickel est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Description
Description
Richelieu Riveo Square Pivot Hinge – Header Mount – Brushed Nickel +–
Richelieu Riveo Square Pivot Hinge – Header Mount – Brushed Nickel
Product Overview
This Riveo square pivot hinge mounts a tempered glass shower door to a header and provides 360° rotation. The pivot position can be inset from the wall to improve clearance for towel racks and other accessories.
Product Features
- Header mounting configuration
- 360° rotation
- Solid brass construction with stainless steel pin and spring
- Sold individually
Product Specifications
| Product Number | SH3SQ360H195 |
|---|---|
| Finish | Brushed Nickel |
| Series | Riveo |
| Mounting Method | Header Mount |
| Style | Square |
| Glass Thickness | 8–10 mm |
| Glass Type | Tempered |
| Duty | Regular-Duty |
| Maximum Door Width — 2 Hinges | 787 mm |
| Maximum Door Weight — 2 Hinges | 45.4 kg |
| Sales Unit | 1 hinge |
Installation Notes
Glass requires square preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass. A compatible Deluxe D Shape or H Shape Profile Shower Header Kit is required and sold separately. Select the appropriate header and finish for the installation.

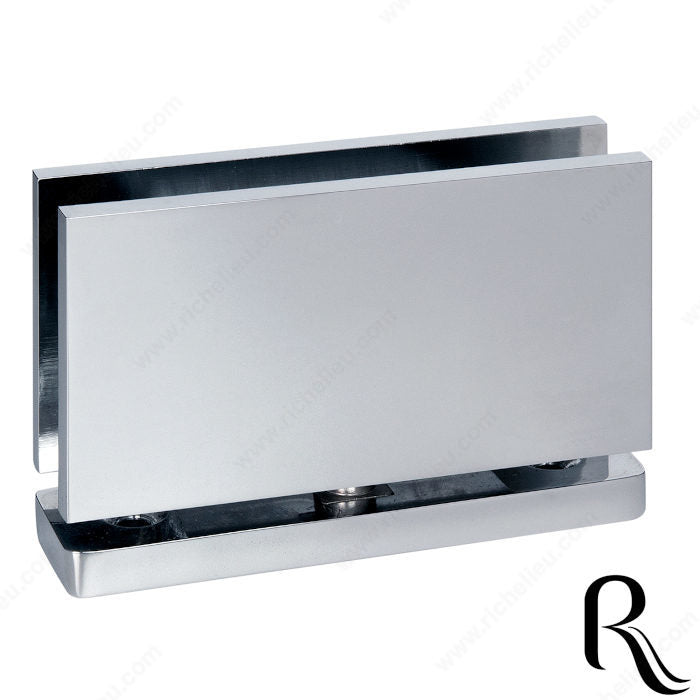

Manufacturer image is representative; finish varies with selection.
Technical Documents
Richelieu Riveo Square Pivot Hinge – Header Mount – Chrome +–
Richelieu Riveo Square Pivot Hinge – Header Mount – Chrome
Product Overview
This Riveo square pivot hinge mounts a tempered glass shower door to a header and provides 360° rotation. The pivot position can be inset from the wall to improve clearance for towel racks and other accessories.
Product Features
- Header mounting configuration
- 360° rotation
- Solid brass construction with stainless steel pin and spring
- Sold individually
Product Specifications
| Product Number | SH3SQ360H140 |
|---|---|
| Finish | Chrome |
| Series | Riveo |
| Mounting Method | Header Mount |
| Style | Square |
| Glass Thickness | 8–10 mm |
| Glass Type | Tempered |
| Duty | Regular-Duty |
| Maximum Door Width — 2 Hinges | 787 mm |
| Maximum Door Weight — 2 Hinges | 45.4 kg |
| Sales Unit | 1 hinge |
Installation Notes
Glass requires square preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass. A compatible Deluxe D Shape or H Shape Profile Shower Header Kit is required and sold separately. Select the appropriate header and finish for the installation.
Manufacturer image is representative; finish varies with selection.
Technical Documents
Richelieu Riveo Square Pivot Hinge – Header Mount – Matte Black +–
Richelieu Riveo Square Pivot Hinge – Header Mount – Matte Black
Product Overview
This Riveo square pivot hinge mounts a tempered glass shower door to a header and provides 360° rotation. The pivot position can be inset from the wall to improve clearance for towel racks and other accessories.
Product Features
- Header mounting configuration
- 360° rotation
- Solid brass construction with stainless steel pin and spring
- Sold individually
Product Specifications
| Product Number | SH3SQ360H900 |
|---|---|
| Finish | Matte Black |
| Series | Riveo |
| Mounting Method | Header Mount |
| Style | Square |
| Glass Thickness | 8–10 mm |
| Glass Type | Tempered |
| Duty | Regular-Duty |
| Maximum Door Width — 2 Hinges | 787 mm |
| Maximum Door Weight — 2 Hinges | 45.4 kg |
| Sales Unit | 1 hinge |
Installation Notes
Glass requires square preparation. Confirm the manufacturer's drawing and installation requirements before fabricating the glass. A compatible Deluxe D Shape or H Shape Profile Shower Header Kit is required and sold separately. Select the appropriate header and finish for the installation.
Manufacturer image is representative; finish varies with selection.
Technical Documents
