Product Details — Round CLAM Series Railing Clamp + −

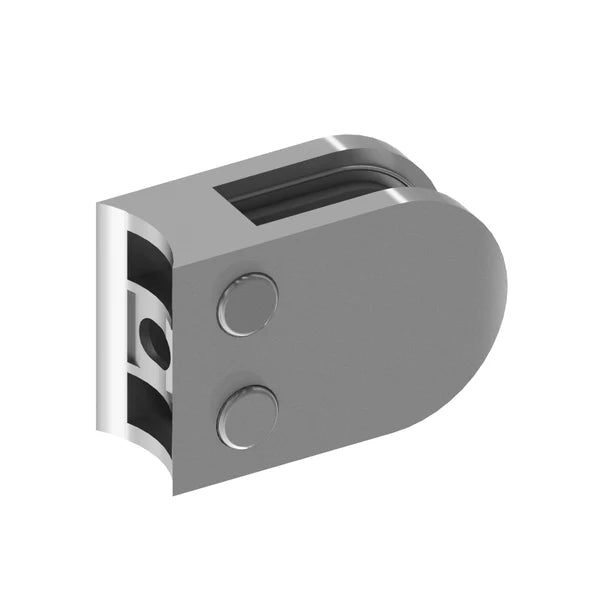

Round CLAM Series Railing Clamp
Product Overview
The Round CLAM Series Railing Clamp provides a secure, durable and professional solution for mounting monolithic tempered glass in railing and architectural glass applications.
Manufactured from high-grade SS316 stainless steel, these clamps provide excellent strength and corrosion resistance for both indoor and outdoor installations. They are designed to accommodate 10 mm (3/8") and 12 mm (1/2") monolithic tempered glass.
Key Features
- Glass Compatibility: 10 mm (3/8") and 12 mm (1/2") monolithic tempered glass.
- Material: High-grade SS316 stainless steel.
- Indoor & Outdoor Use: Excellent corrosion resistance for a wide range of environments.
- Installation Options: Available with Flat Back or Round Back mounting configurations.
- Professional Application: Suitable for residential and commercial railing systems.
Applications
- Glass Railings
- Mezzanines
- Partitions
- Windbreaks
- Architectural Glass Installations

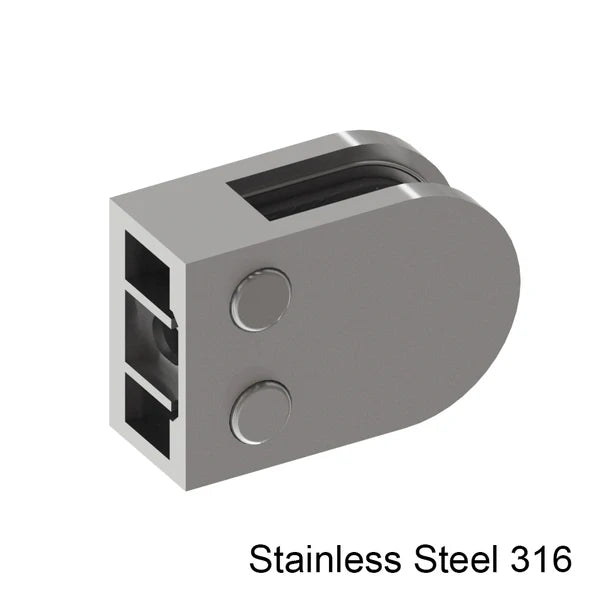

63 × 45 mm — Flat Back
The Flat Back Round CLAM Series Clamp features a flat mounting surface for installation onto compatible flat posts and structural surfaces. Its compact 63 × 45 mm design provides reliable glass support while maintaining a clean and modern appearance.
Specifications
- Size: 63 × 45 mm
- Back Type: Flat Back
- Material: SS316 Stainless Steel
- Glass Thickness: 10 mm (3/8") & 12 mm (1/2")
- Glass Type: Monolithic Tempered Glass
Included Components
- Rubber Gaskets for 10 mm & 12 mm Glass
- Optional Safety Pin
Available Finishes
- Brushed Stainless Steel
- Matte Black
Technical Drawings
67 × 45 mm — Round Back
The Round Back Round CLAM Series Clamp is specifically designed for installation onto compatible round posts. Its contoured mounting surface provides a clean fit while maintaining secure glass support and a refined architectural appearance.
Specifications
- Size: 67 × 45 mm
- Back Type: Round Back
- Material: SS316 Stainless Steel
- Glass Thickness: 10 mm (3/8") & 12 mm (1/2")
- Glass Type: Monolithic Tempered Glass
Included Components
- Rubber Gaskets for 10 mm & 12 mm Glass
- Optional Safety Pin
- Screw Caps
Available Finishes
- Brushed Stainless Steel
- Matte Black
Technical Drawings
Important Information
- Verify glass thickness and mounting configuration before installation.
- Select the appropriate Flat Back or Round Back model according to the mounting surface or post configuration.
- Use the appropriate rubber gasket for the selected glass thickness.
- Installation should be completed according to applicable building requirements and project specifications.
