[PFIT40] Patch Fittings - Transom - Glass Mount

Product Overview

Grey Goat Sidelite Mounted Transom Patch

The Grey Goat Sidelite Mounted Transom Patch is designed to support a transom from a sidelite glass panel. It includes a PFINTOPPIV insert, which facilitates door mounting with the Grey Goat PFIT20A or PFIT20ADJ Top Door Patch Fitting. The insert can be adjusted on the non-hinged side for double swing door applications. For creating a one-way door, the PFINDS Transom Patch Door Stop Insert can be used.

For transoms exceeding 100 lbs. (45.4 kg), ceiling support is necessary to prevent the patches from slipping under excessive weight. Options include the PFIT94 Patch Fittings. For 3/8" or 1/2" (10 or 12 mm) glass. For further assistance, please contact our Technical Sales Department.

Constructed from Aluminum with a custom Grade 304 Stainless Steel cover plate, the Transom Patch is suitable for both interior and exterior applications.

Finishes Available:

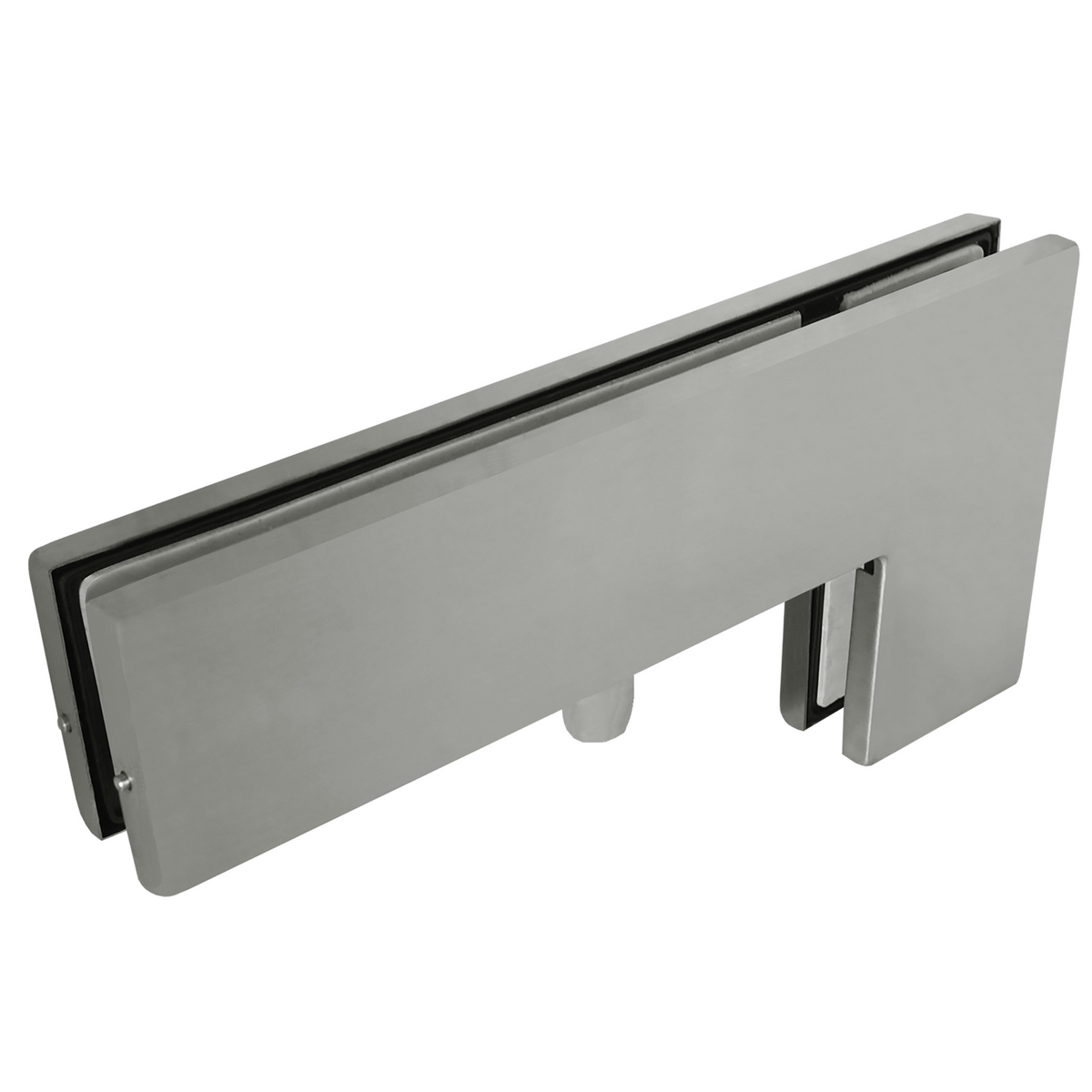

Brushed Stainless

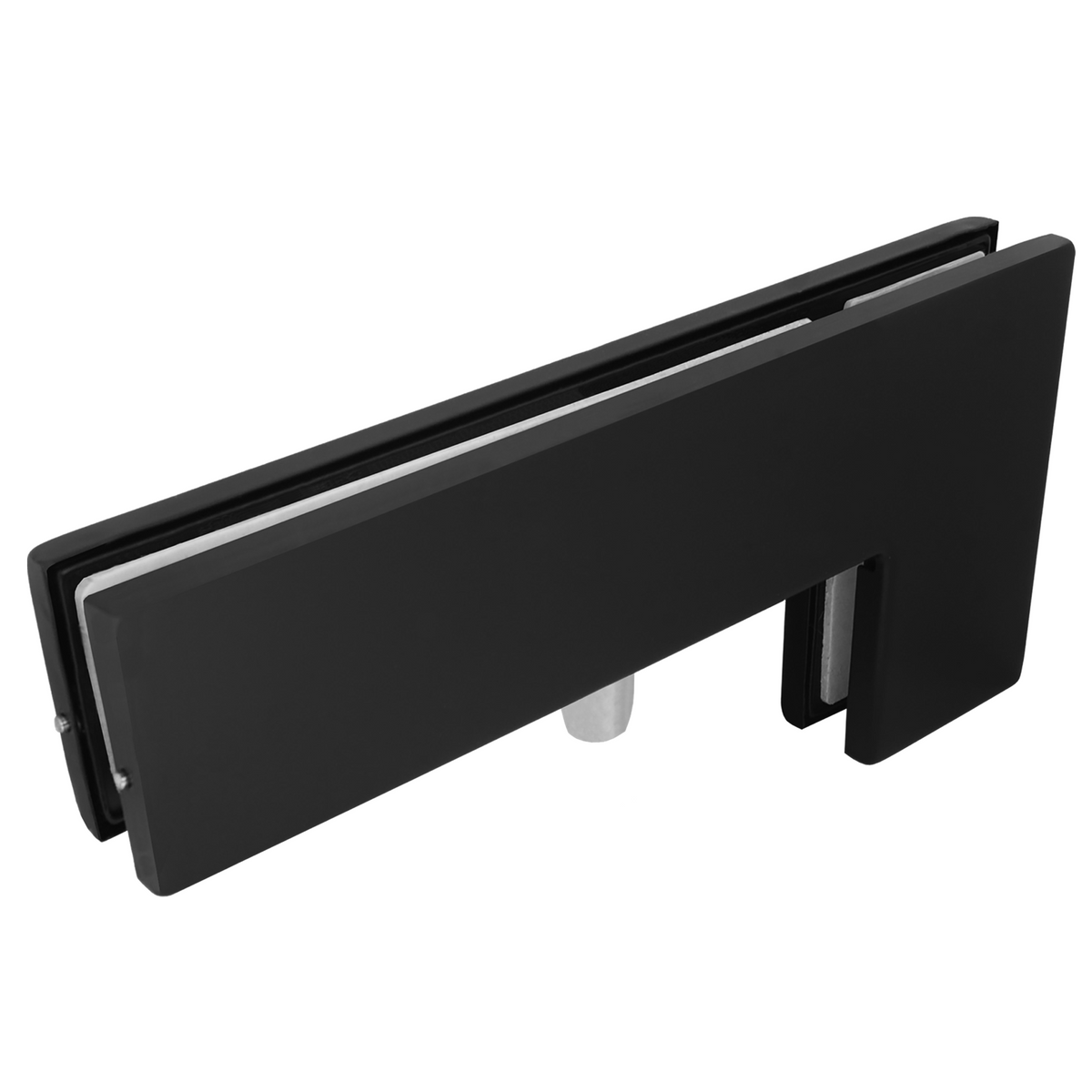

Matte Black

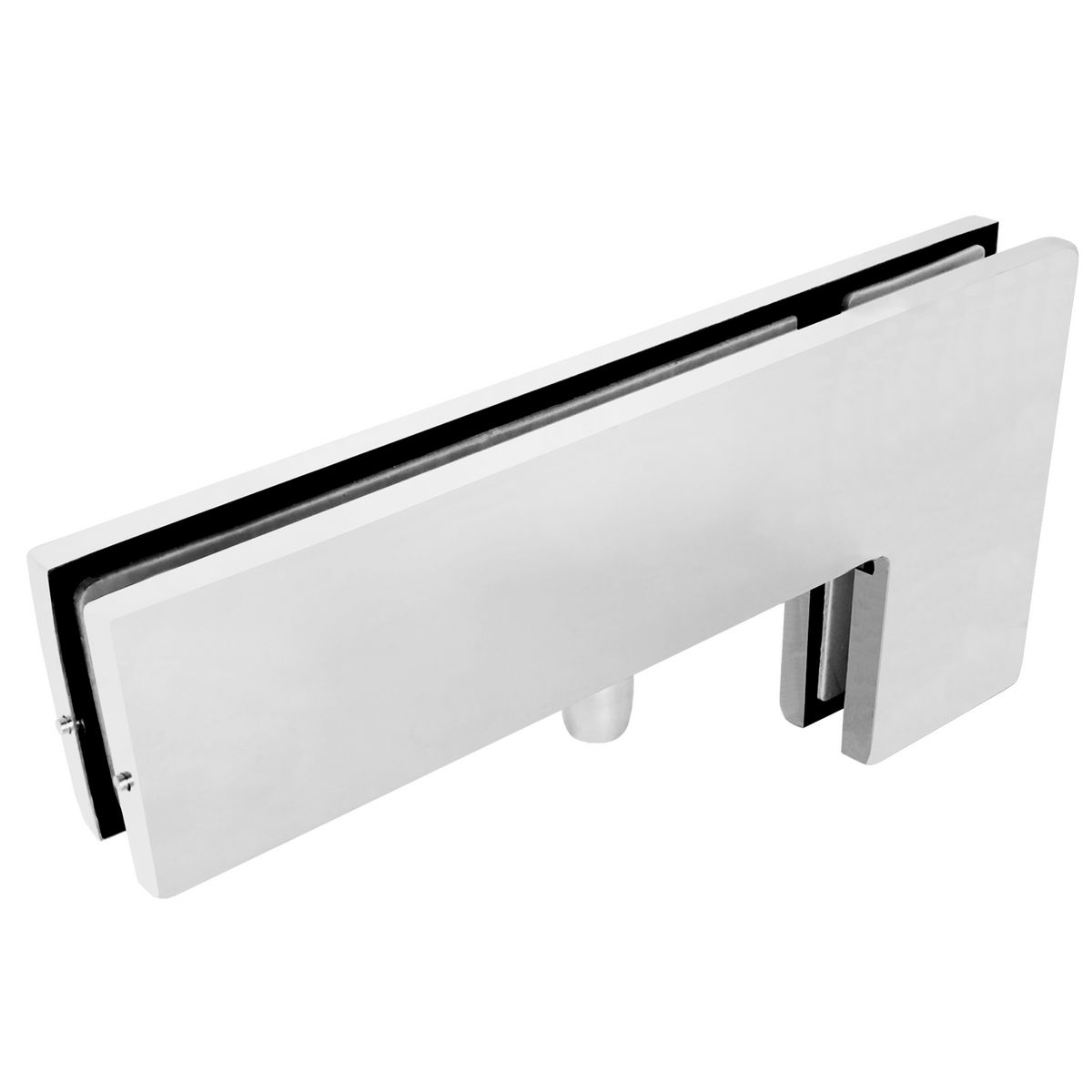

Polished Stainless

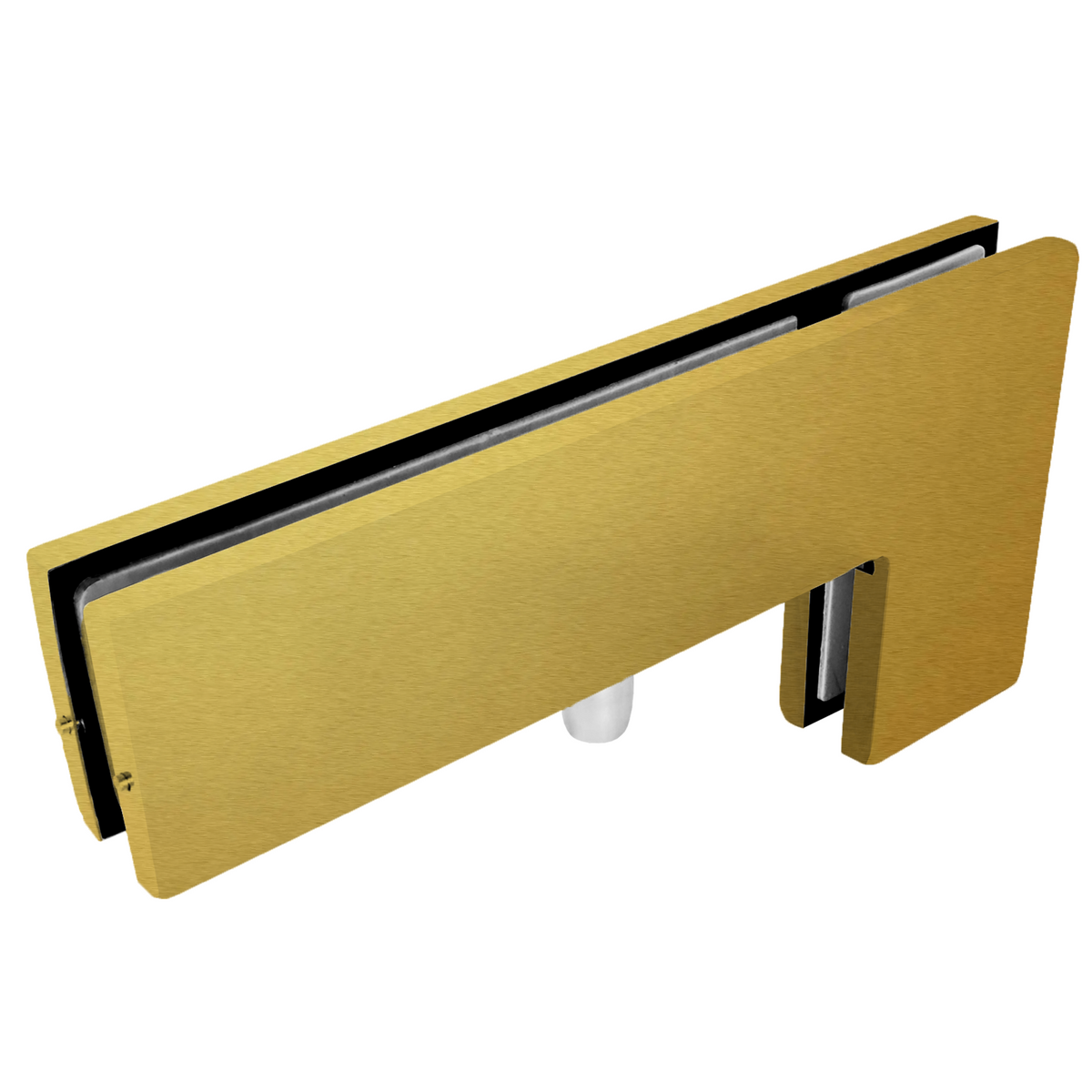

Satin Brass

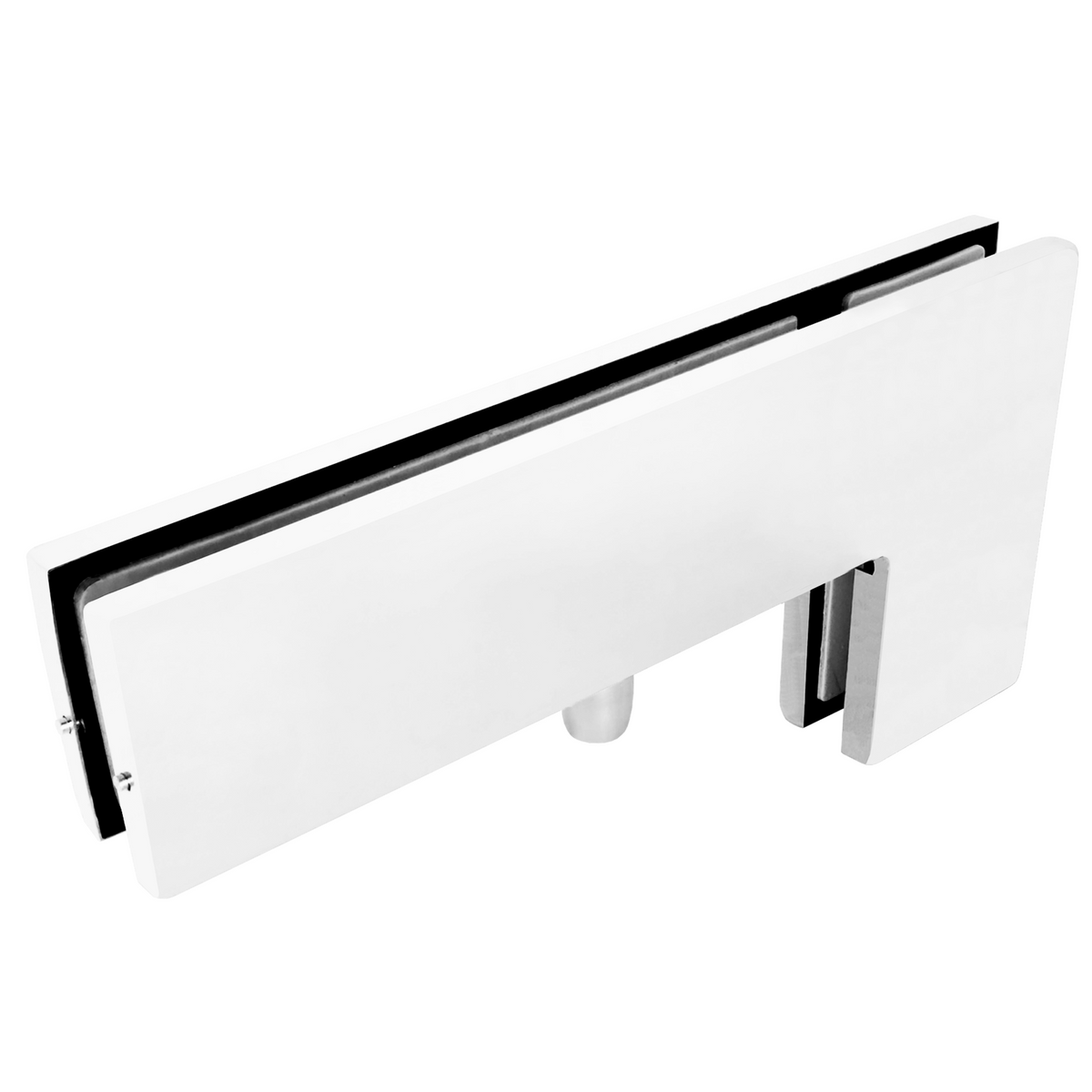

Satin Anodized

Product Features

• Maximum Weight: 100KGs (220.462LBS)
• Maximum Door Width: 39" (1000mm)
• Maximum Height : 102" (2590mm)
• Cycle Tested for 500,000 Operation
• 2-Year Warranty
• Glass fabrication required. View CAD/PDF product drawings for more details.

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)
