[MLBTNIR] Infrared Sensor Exit Button with LED (Stainless Steel) 35mm X 90mm

Product Overview

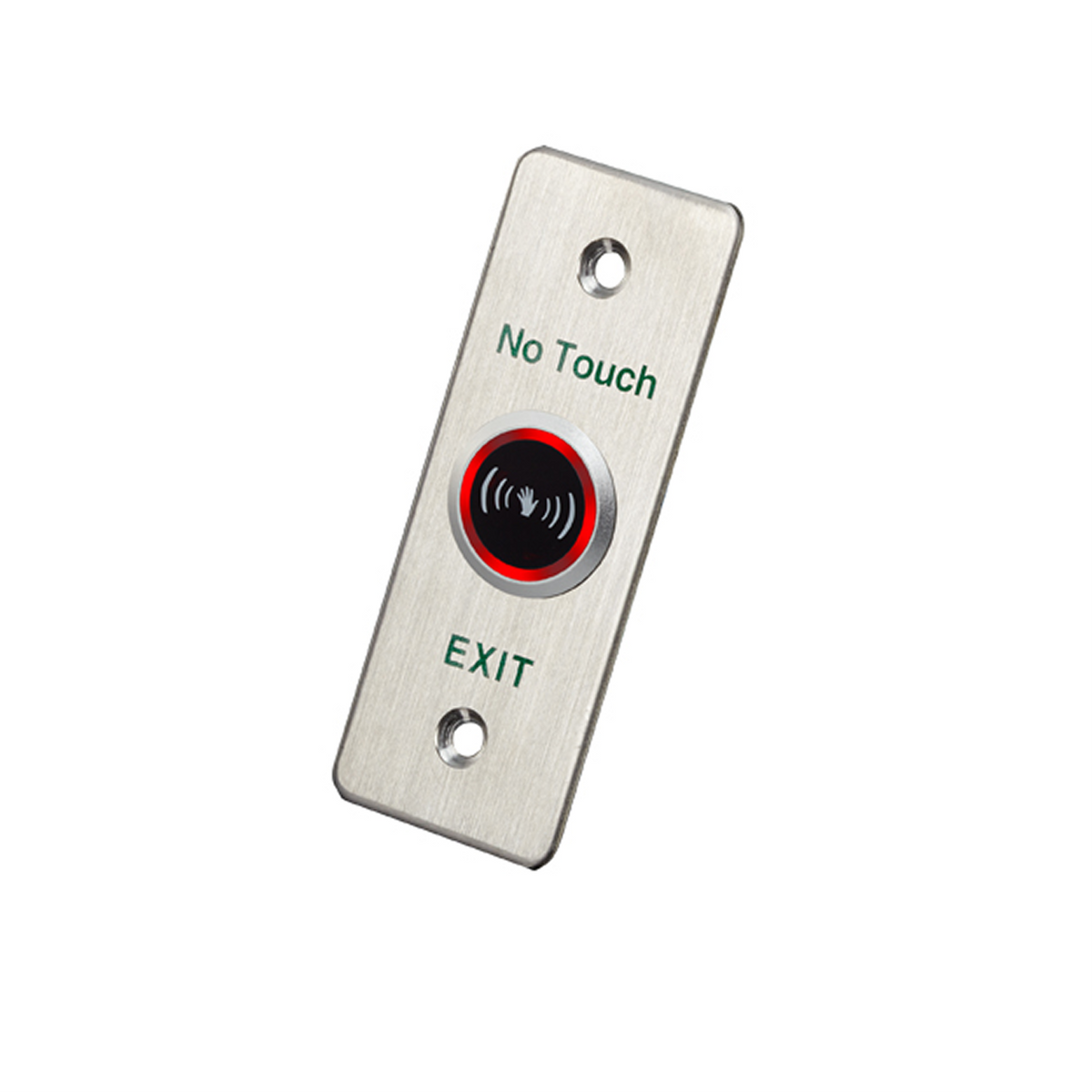

GGH Infrared Sensor Exit Button with LED - Stainless Steel

The Infrared Sensor Exit Button with LED is designed to provide hygienic, no-touch exit control for commercial access control systems. Made with a 304 stainless steel faceplate and wire-drawing finish, it offers durability and a clean architectural appearance for frequent-use installations.

The infrared sensing design helps reduce physical contact, while the adjustable sensing distance and time delay allow flexible operation for compatible electric locks and door release systems.

Product Features

• Application: Designed for access control systems, electric locks, door release systems, and no-touch push-to-exit applications.
• Button Type: Infrared sensor exit button with LED status indicator.
• Material: 304 stainless steel panel with wire-drawing finish.

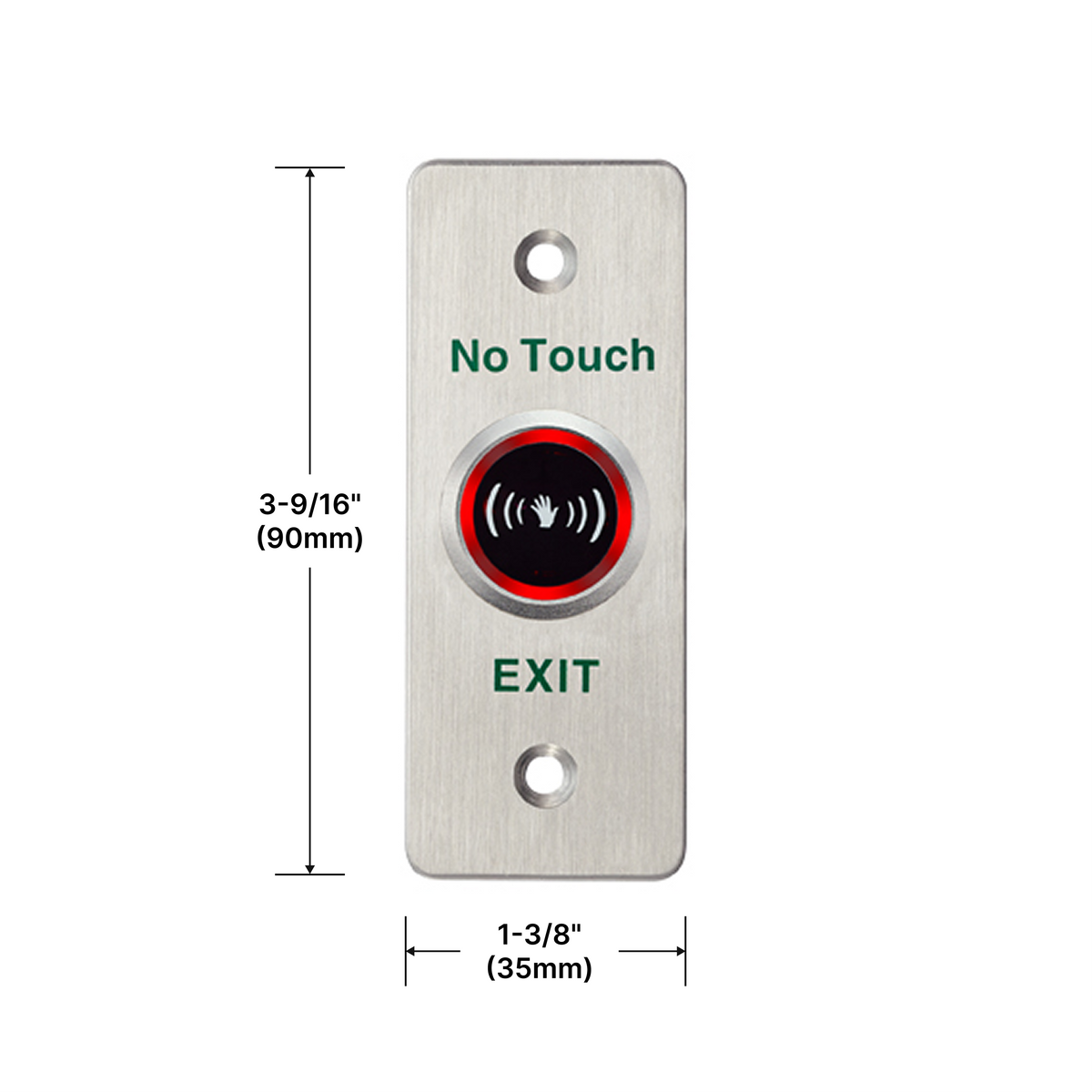

• Faceplate Size: 1-3/8" (35mm) x 3-9/16" (90mm).
• Input Voltage: 12V DC.
• Current Draw: 40 mA standby; 70 mA operating.
• Output Contact: NO/NC/COM.
• Contact Rating: 1A @ 30V DC.
• Detection Range: Adjustable from 1-9/16" (4cm) to 4-3/4" (12cm).
• Time Delay: Adjustable from 1 to 25 seconds.
• LED Indicator: Red indicates power on/standby; green indicates sensor activation.
• Mounting Type: Wall mount or surface mount.
• Installation Surface: Wall near door opening.
• Compatibility: Suitable for compatible access control systems, electric locks, and door release systems.
• Operating Temperature: 14°F to 131°F (-20°C to +50°C).
• Operating Humidity: 0–95% relative humidity.
• Testing: Tested for 1,000,000 operating cycles.
• Use: Indoor use only.
• Patent Number: ZL2014205318942.
• Certification: CE-EMC, CE-LVD, FCC-VOC

Technical Documents

• VIEW PDF DRAWING (PDF)
