[ML2400] Electromagnetic Shear Lock – 2000lbs (1000kg)

Product Overview

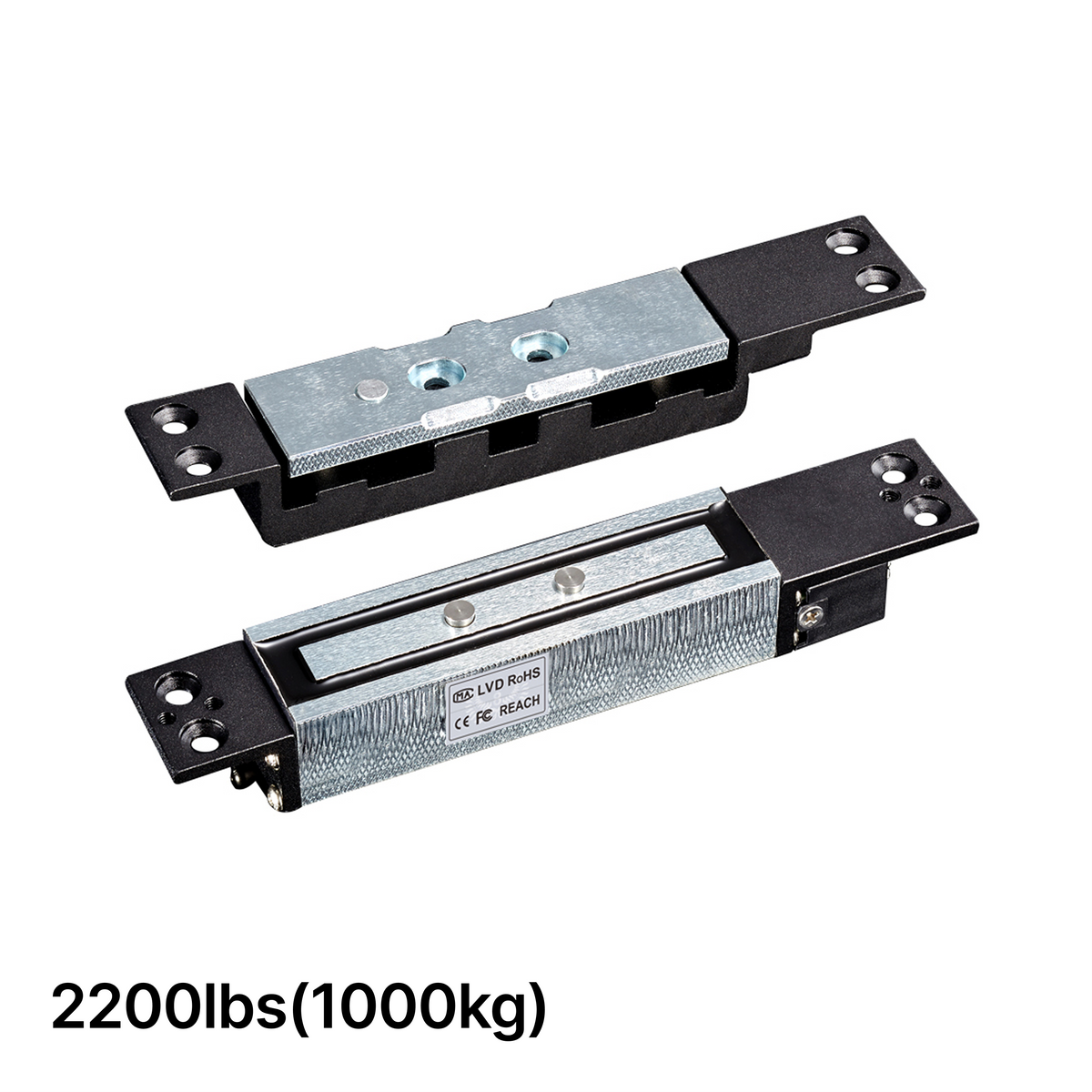

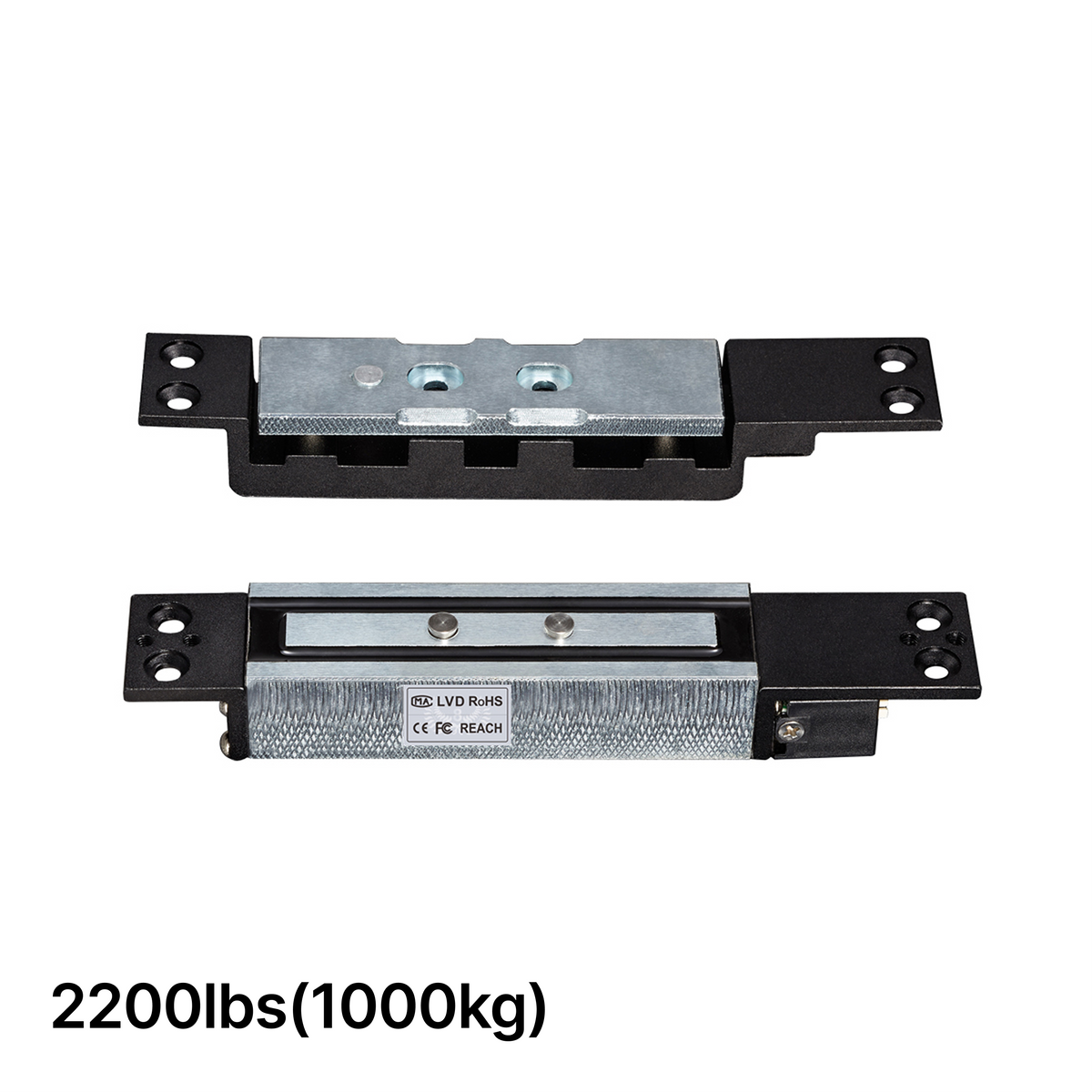

GGH Electromagnetic Shear Lock - 2000 lbs (1000kg)

The Electromagnetic Shear Lock is designed to provide secure electronic locking for commercial access control systems and double swing door applications. Featuring a compact one-piece all-metal lock body, it combines electromagnetic holding force with a mechanical shear locking mechanism for reliable door security.

This shear lock includes programmable automatic relocking with selectable delay settings and integrated door position and lock status monitoring outputs for use with compatible access control systems. It is suitable for 90° and 180° double swing door applications.

Product Features

• Application: Designed for commercial access control and secure double swing door locking systems.
• Holding Force: Up to 2000 lbs. (1000 kg).
• Lock Type: Electromagnetic shear lock with mechanical shear locking function.
• Construction: All-metal lock body with compact one-piece design.
• Power Supply: 12V DC.
• Operating Current: 850 mA.
• Holding Current: 400 mA at 12V DC.
• Automatic Relocking: Selectable delay of 0, 5, 10, or 15 seconds.
• Maximum Operating Gap: 3mm.
• Monitoring: Integrated door position and lock status monitoring outputs.
• LED Indicator: Red indicates locked; green indicates unlocked.
• Door Status Sensor: Integrated door position monitoring with NO/COM dry-contact output.
• Lock Status Sensor: Integrated lock status monitoring with NC/NO/COM dry-contact output.
• Mounting Type: Door frame and door panel.
• Compatibility: Suitable for 90° or 180° double swing doors.
• Use: Indoor use only.
• Testing: Tested for over 500,000 operations.
• Certifications: MA, CE-EMC, CE-LVD, FCC, RoHS, REACH, WEEE

Technical Documents

• VIEW PDF DRAWING (PDF)
