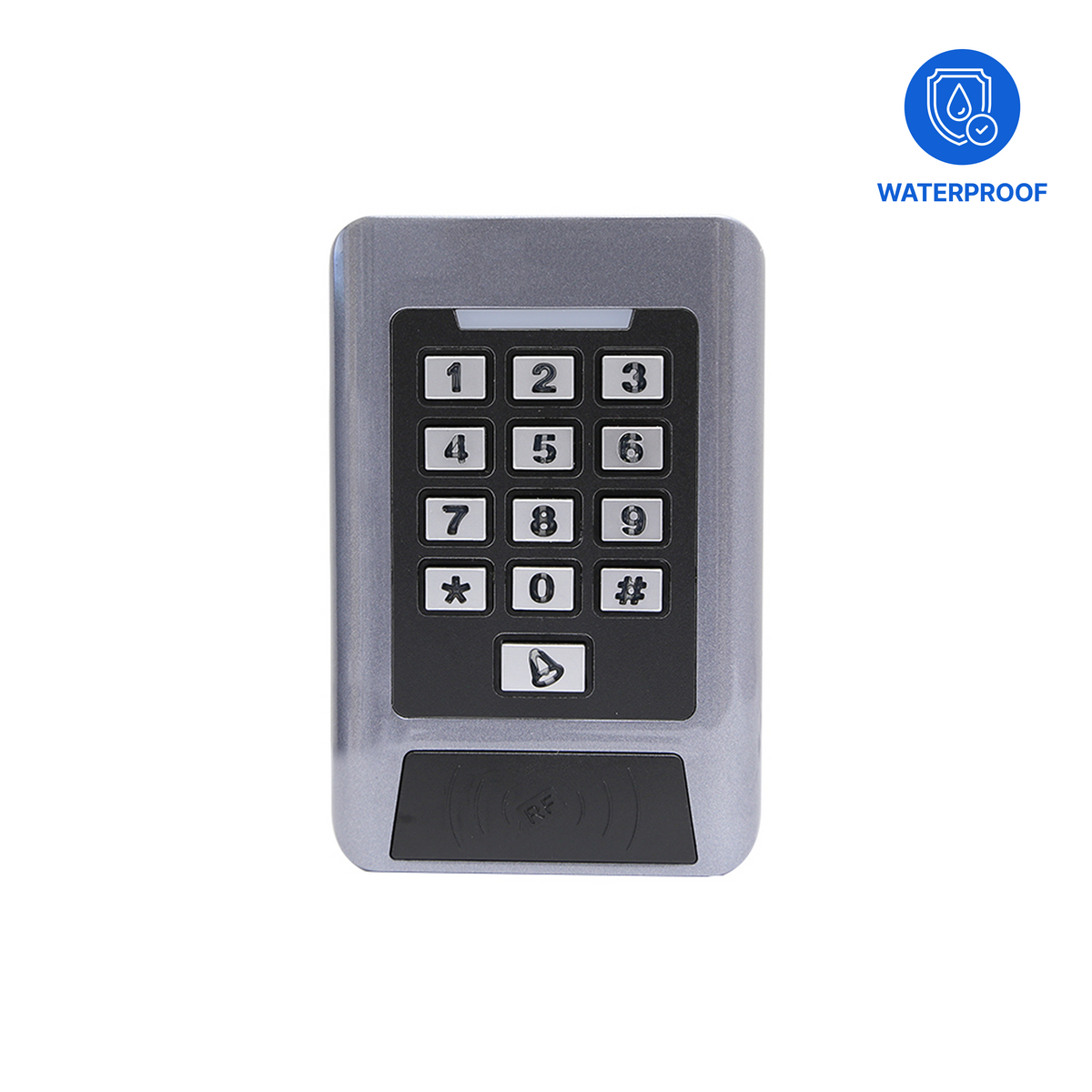

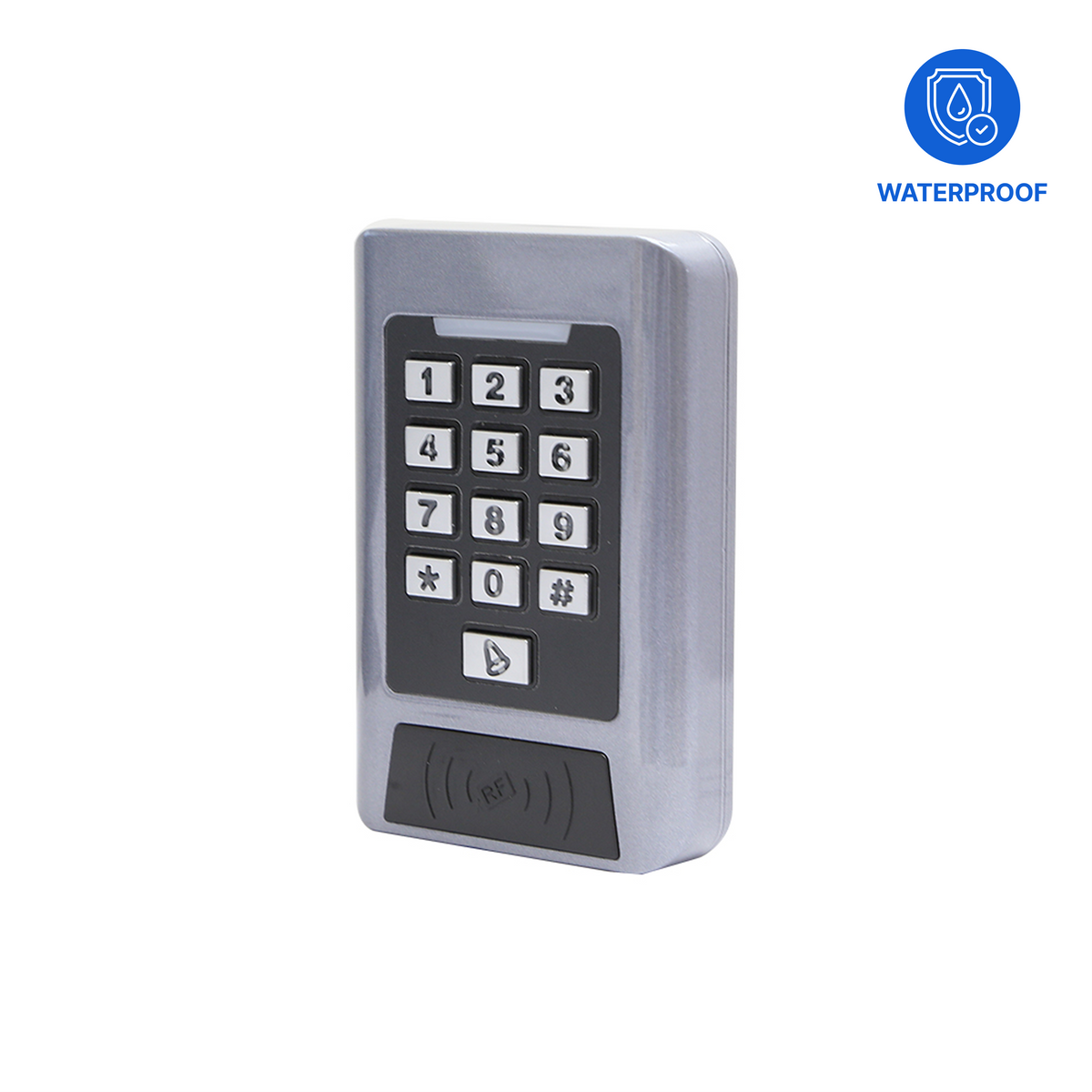

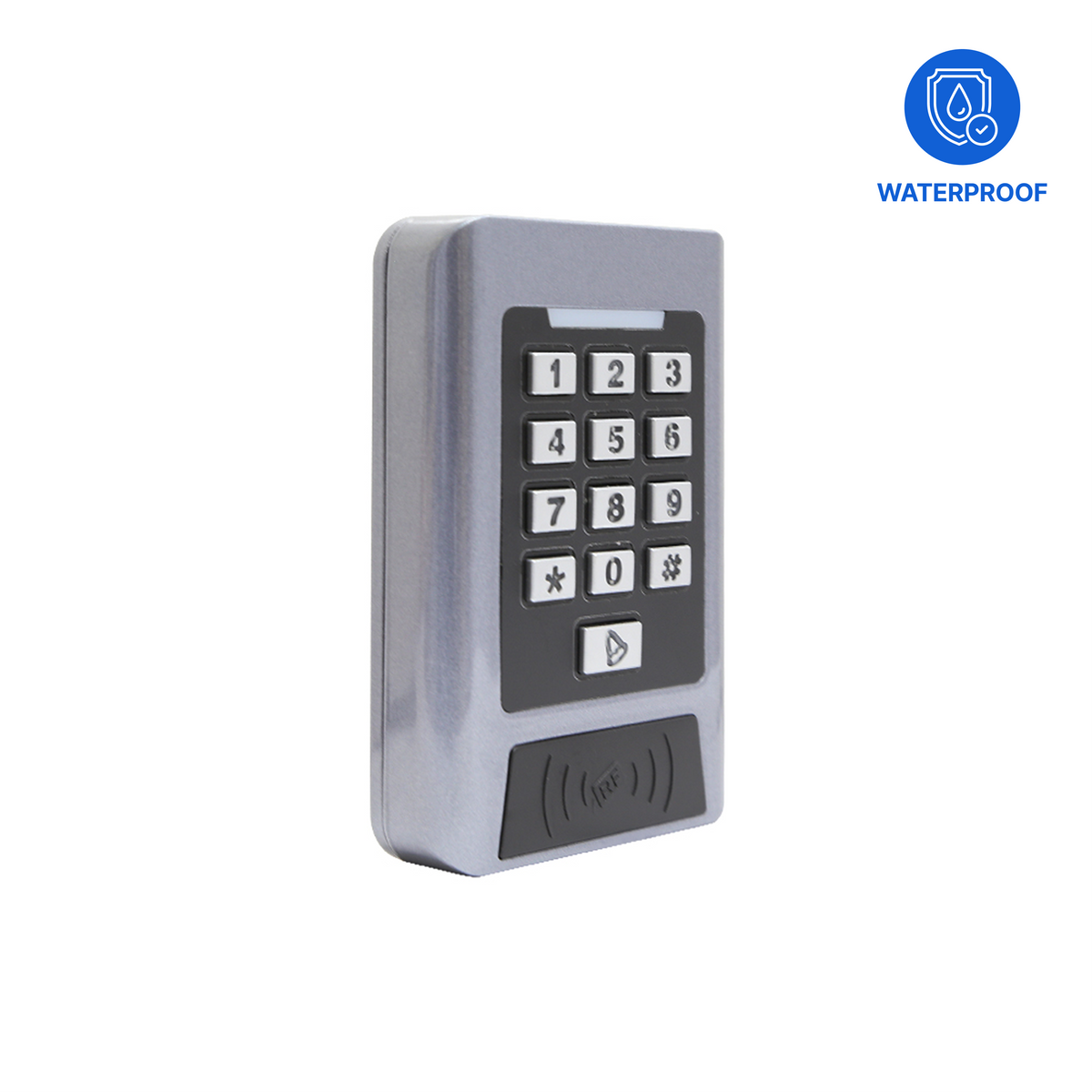

[KYPD768B] Waterproof Standalone Access Controller

Product Overview

GGH Waterproof Standalone Access Controller

The Waterproof Standalone Access Controller is designed to provide secure and flexible access management for commercial entry systems. Built with a durable metal housing and IP68 waterproof rating, this controller is suitable for indoor and outdoor installations.

It supports multiple authentication methods, including card, PIN, card-or-PIN, and card-plus-PIN operation. Designed to control up to two doors, it also supports advanced access control functions such as interlock, anti-passback, and anti-tamper protection.

Product Features

• Application: Designed for commercial access control and secure entry management systems.
• Controller Type: Standalone waterproof access controller with integrated keypad and card reader.
• Input Voltage: AC/DC 12V.
• Electric Lock Output: Two outputs, ≤1A each.
• Alarm Output: ≤1A.
• Door Bell Output: ≤1A.
• Standby Current: ≤25 mA.
• Card Reader: Built-in 125 kHz ID reader; HID available by special order.
• Card Reading Distance: 0" to 1-9/16" (0mm to 40mm).
• Authentication Modes: Card, PIN, card-or-PIN, and card-plus-PIN.
• Supported PIN Length: 4 to 6 digits.
• Card Transmission Format: Wiegand 26–37 bit.
• Keypad: Backlit keypad with selectable backlight color.
• Waterproof Rating: IP68.
• Mounting Type: Wall mount or surface mount.
• Installation Surface: Wall near controlled door openings.
• Compatibility: Suitable for electric locks, exit buttons, door contacts, alarm systems, external card readers, and access control power supplies.
• Operating Temperature: -49°F to 131°F (-45°C to +55°C).
• Operating Humidity: 0–90% relative humidity, non-condensing.
• Use: Suitable for indoor and outdoor applications.
• Operating Modes: Card Reader Mode, Single Door Mode, Double Door Single Reader Mode, Double Door Dual Reader Mode, Interlock Mode, Single Door Anti-Passback Mode, Double Door Anti-Passback Mode
• Certification: CE-EMC
