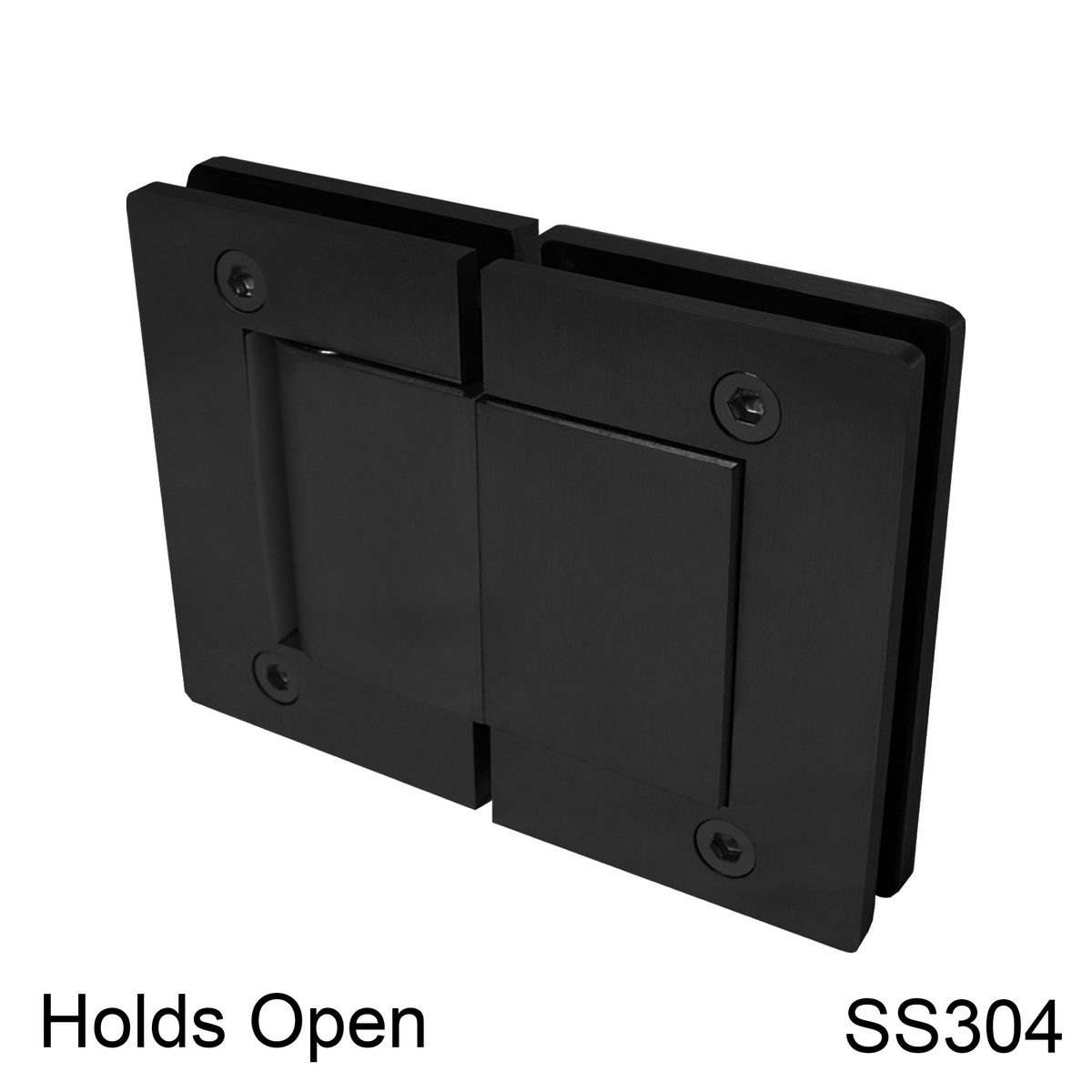

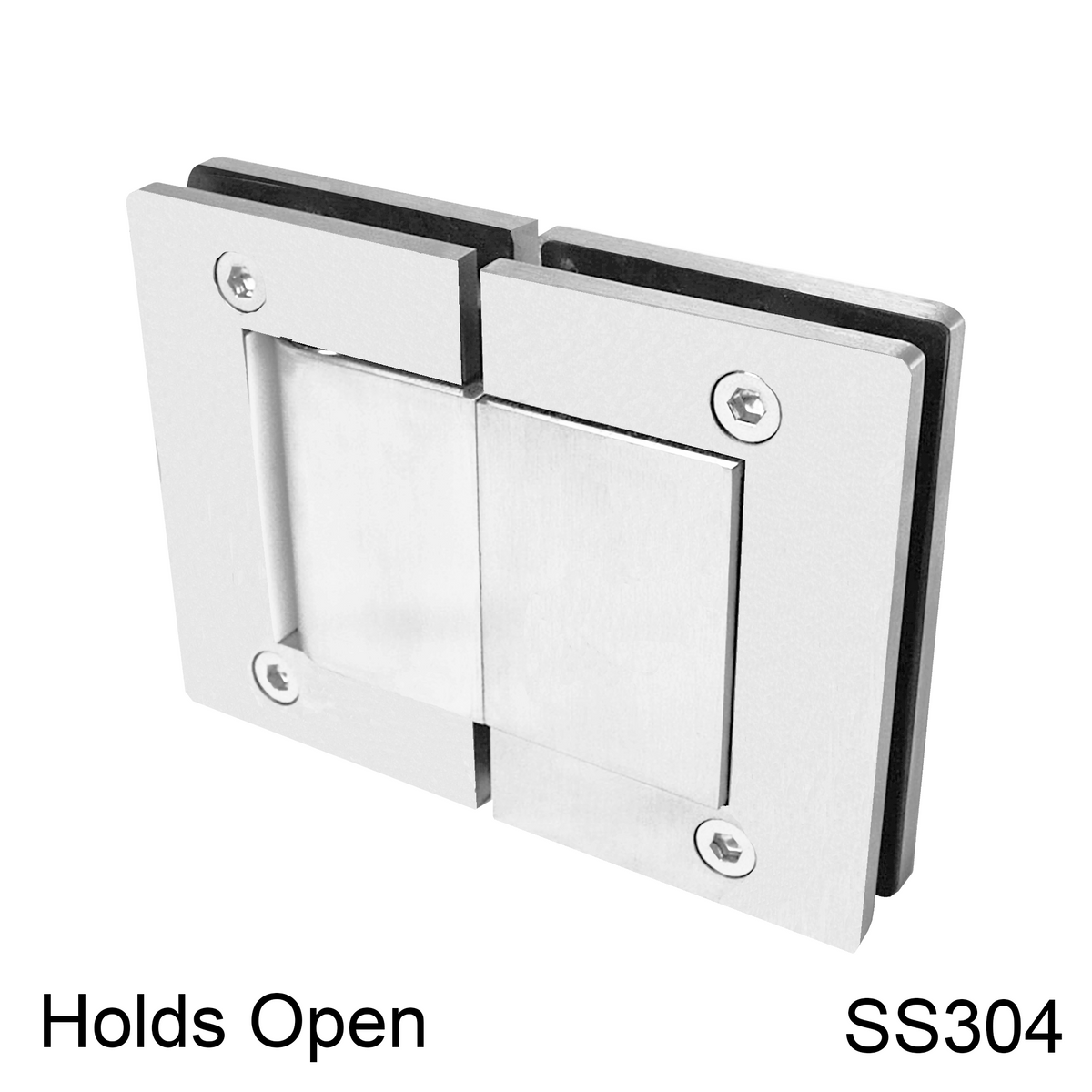

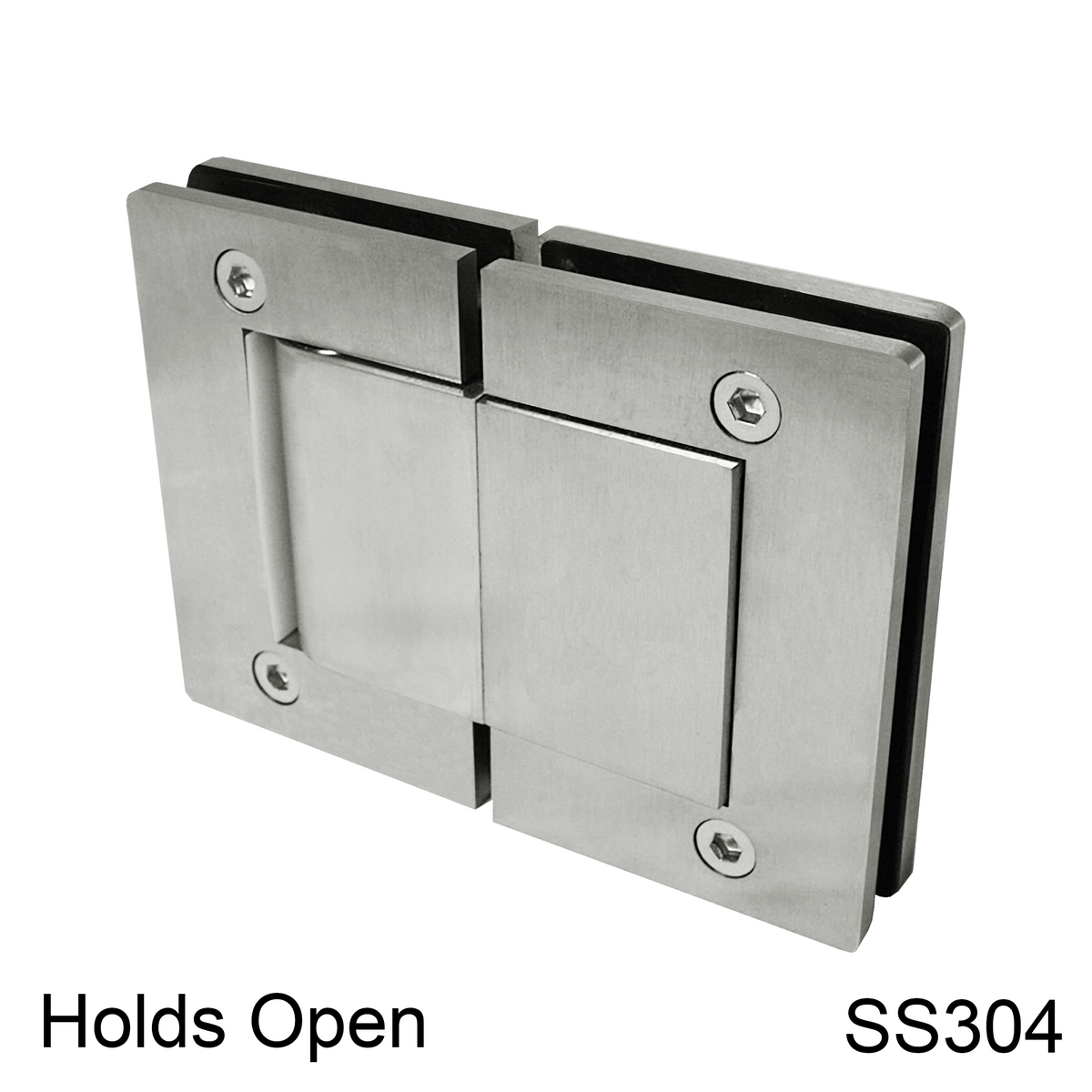

[HULK180HO-304] Hydraulic Hinge - 180° Glass to Glass - HO - Box of 2 - SS304

Product Overview

Hulk Series Hydraulic Hinge

[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]

GGH’s Hulk Series Hydraulic Hinge combines automatic soft-close functionality within a sleek glass-to-glass 180° hinge design, eliminating the need for floor-mounted or top-mounted door closers. This hold open (HO) model offers convenient door positioning at 90° while ensuring a clean floor finish by avoiding floor closer cover plates.

Engineered for durability and corrosion resistance, the Hulk Series hinge is perfect for secure, high-performance indoor installations. Each box includes a pair of hydraulic hinges, providing an ideal solution for seamless glass door applications.

Finishes Available:

Brushed Stainless

Polished Stainless

Black

Product Features

• Maximum Weight: 60KG (132Lbs)
• Maximum Height: 86" (2200mm)
• Maximum Width: 39" (1000mm)
• Glass Thickness: 5/16" to 9/16" (8 to 14 mm)
• Material: SS304
• Hinge Swings: 95º Inwards and Outwards
• Closing function: Automatic closing from 85º to 0º
• Special Feature: Holds Open at 90º(optional); Closing and latching speed adjustable.
• Cut-out required. View CAD/PDF product drawings for more details.

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)
