CRL Cologne 544 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinges

$137.11 CAD

Frais de livraison calculés lors du paiement.

Size and Finish

Service de retrait disponible à Warehouse

Habituellement prête en 2 à 4 jours

Ramassage et livraison

Pour les commandes de verre sur mesure, veuillez noter que la livraison depuis notre fournisseur prend généralement 1–2 semaines avant que nous recevions les panneaux et puissions procéder à l'exécution de la commande.

Pour les étagères de cave à vin, nous avons un délai de production de 30 jours.

Retrait sur place au 1250 rue Tellier, Laval, Québec, H7C 2H2.

Description

CRL Cologne 544 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinges +–

CRL Cologne 544 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinges

Product Overview

CRL Cologne 544 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinges. Select the required size and finish from the available variants.

Product Specifications

CRL lists torque as 60 lbf.in in its overview and 60-70 lbf.in in its specifications. For C0L544, its overview gives maximum widths of 34 in. for 3/8-in. glass and 32 in. for 1/2-in. glass; the table gives 32 in. without this distinction. Its template prints 34 in. (813 mm), an inconsistent conversion. Confirm both limits with CRL before installation.
5 Degree Pre-Set	Yes
Adjustable	No
Back Plate	Offset
Design Style	Beveled
Edge Profile	Beveled
Enclosure Type	Corner, Niche, Bathtub, Tailor Made Solutions
Glazing Thickness	3/8 in. To 1/2 in. (10 mm To 12 mm)
Height	3-15/16 in. (100 mm)
Material	Brass
Maximum Clamping Screw Torque	60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges	100 lbs. (45 kg)
Maximum Door Weight - 3 Hinges	130 lbs. (59 kg)
Maximum Door Width	32 in. (813 mm)
Mounting Type	Wall Mount
Opening Style	Swing(side)
Self-Centering	Yes
Series	Cologne
Width	2-1/4 in. (57 mm)

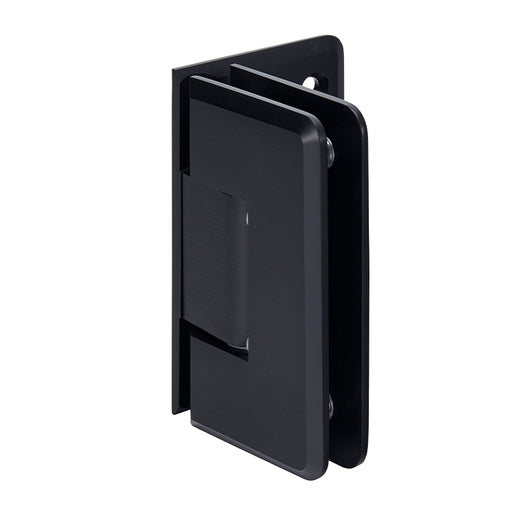

C0L5440RB	Finish/Color: Oil Rubbed Bronze
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Available in Several Beautiful Finishes 3 Year Warranty 5º Pre-Set Model (Factory Set for 5º Tighter Closure Into Shower Interior) Use Monolithic Tempered Glass Apply medium-strength threadlocker on cover plate screws CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change	They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs. STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º). Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm). Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm). Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm). Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90º In and 90º Out Closing Type: Self-Centering when within 15º of closed position. Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel Includes: Gaskets, Screws, and Glass Fabrication Dimensions Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m) Custom finishes are available on request by contacting CRL Technical Sales Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

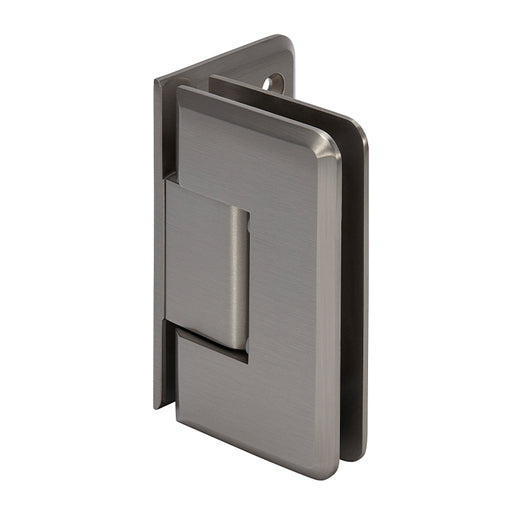

C0L544BN	Finish/Color: Brushed Nickel
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Available in Several Beautiful Finishes 3 Year Warranty 5º Pre-Set Model (Factory set for 5º Tighter Closure Into Shower Interior) Use Monolithic Tempered Glass Apply medium-strength threadlocker on cover plate screws CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change	They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs. STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º). Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm). Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm). Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm). Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90º In and 90º Out Closing Type: Self-Centering when within 15º of closed position. Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel Includes: Gaskets, Screws, and Glass Fabrication Dimensions Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m) Custom finishes are available on request by contacting CRL Technical Sales Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

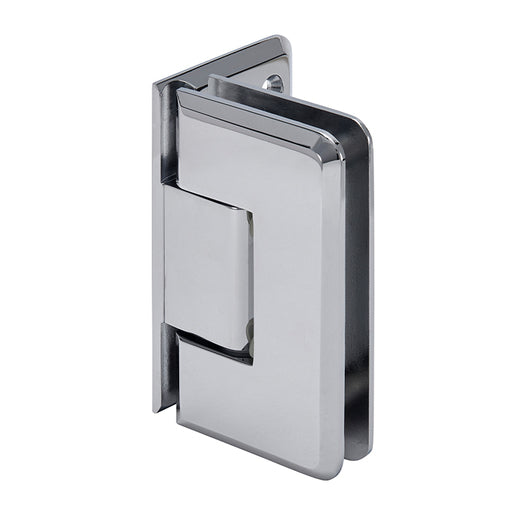

C0L544CH	Finish/Color: Polished Chrome

Technical Documents

Product Options

SKU	Size and Finish
C0L5440RB	Oil Rubbed Bronze
C0L544BN	Brushed Nickel
C0L544CH	Polished Chrome
