[HES5200C] Commercial Center Lock - Electric Strike Complete Pack

Product Overview

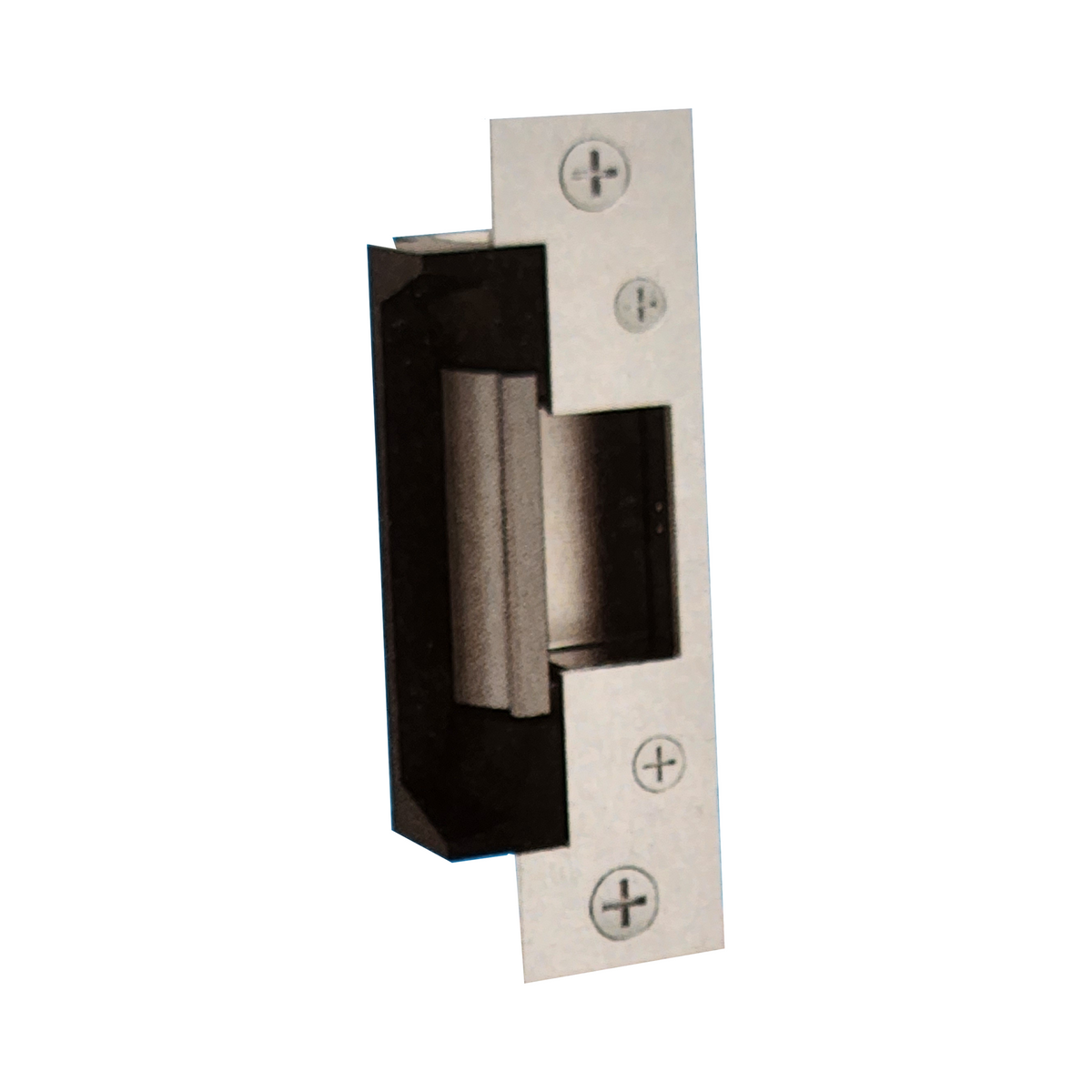

HES5200C Electric Strike Complete Pack

The HES5200C Electric Strike Complete Pack is a versatile and durable access control solution, designed for fail-safe and fail-secure applications. With a robust 500,000-cycle endurance rating, it is suitable for a wide range of commercial and security applications.

Product Features

• Fail-Safe/Fail-Secure Functionality: Field-selectable operation to meet security requirements
• Dual-Voltage Compatibility: Supports 12V or 24V DC/AC for flexible installation
• High Durability: Rated for 500,000 cycles ensuring long-lasting performance
• Adjustable Installation: In-frame horizontal adjustment allows for precise alignment
• Universal Design: Non-handed for left- or right-hand door installations
• Internally Mounted Solenoid: Provides streamlined and secure operation
• Electrical Ratings:
• 12VDC: 50 Ohms resistance, 0.24 Amps
• 24VDC: 200 Ohms resistance, 0.12 Amps
• Faceplate Dimensions:
• Length x Width: 4-7/8" x 1-1/4"
• Available Versions
• Electric Strike Kit with Latchbolt Strike Monitor
• Includes integrated monitoring for enhanced security and system feedback.
• Electric Strike Kit
• Standard version providing reliable electric strike functionality.

Technical Documents

• VIEW PDF DRAWING (PDF)

Product Options
