Deluxe Header Kit

Product Overview

The Deluxe Header Kit provides enhanced support and stability for glass panels that do not extend to the ceiling, making it an ideal solution for frameless shower and glass enclosure systems.

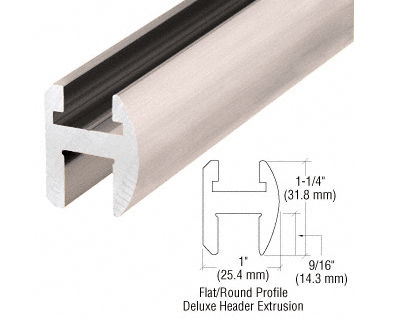

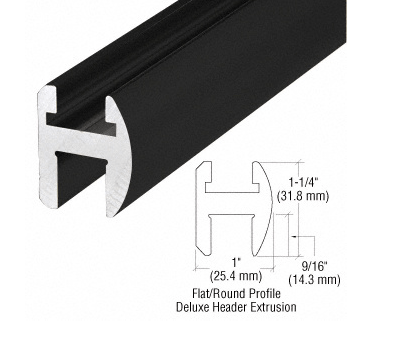

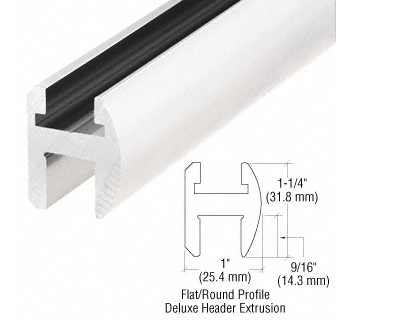

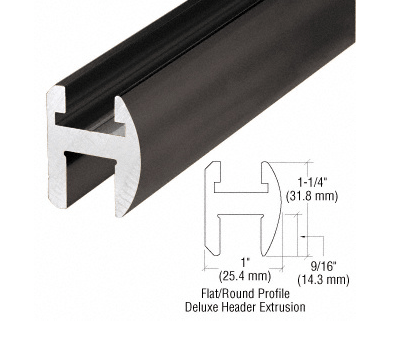

Featuring a sleek aluminum profile with a minimal 1-1/4" (32 mm) face, it reduces visual impact while maintaining structural integrity.

Designed for compatibility with multiple hinge series, it integrates seamlessly into a wide range of glass door configurations.

Product Features

• Durable construction: Aluminum extrusion with premium finishes
• Minimalist design: Slim 1-1/4" face for a clean look
• Versatile compatibility: Works with multiple hinge series
• Flexible installation: Supports various glass thicknesses
• Expandable system: Optional corner adapters available

Included Components

• 66" (1.67 m) aluminum header extrusion
• 36" (914 mm) snap-in filler for door pocket
• Vinyl inserts for 5/16" (8 mm) and 3/8" (10 mm) glass
• Two BWB2 brass wall mounting brackets

Technical Specifications

• Material: Aluminum
• Glass Thickness: 5/16", 3/8", 1/2" (8, 10, 12 mm)
• Glazing Pocket Width: 1/2"
• Available Lengths: 66", 98", 144"
• Profile Style: Flat / Curved
• Series: Deluxe
• Finish Options: Oil Rubbed Bronze, Brite Anodized, Brushed Bronze, Brushed Nickel, Matte Black

Applications

• Frameless shower enclosures
• Glass partitions
• Custom glass installations

Important Notes

• Corner adapters sold separately (90°, 135°, adjustable)
• Optional HV140 insert available for 1/4" (6 mm) glass
• Ensure compatibility with hinge system before installation
• Finish appearance may vary depending on display settings
