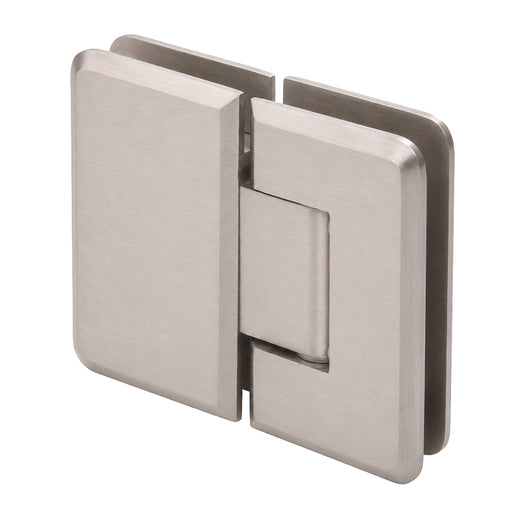

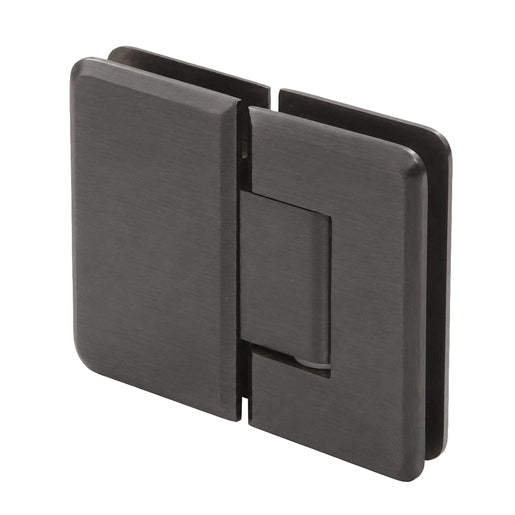

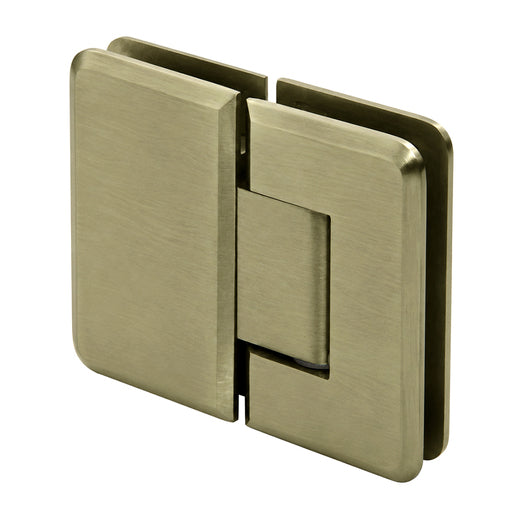

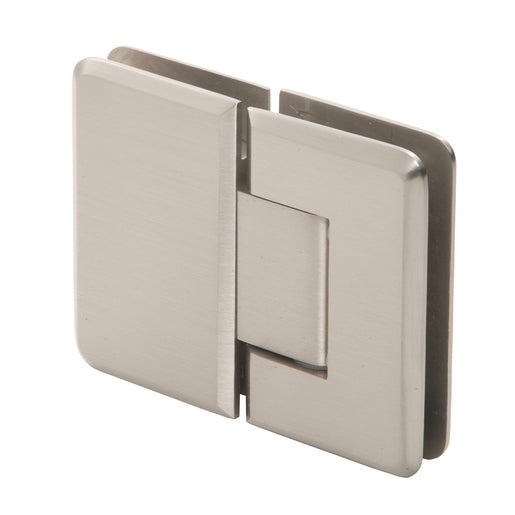

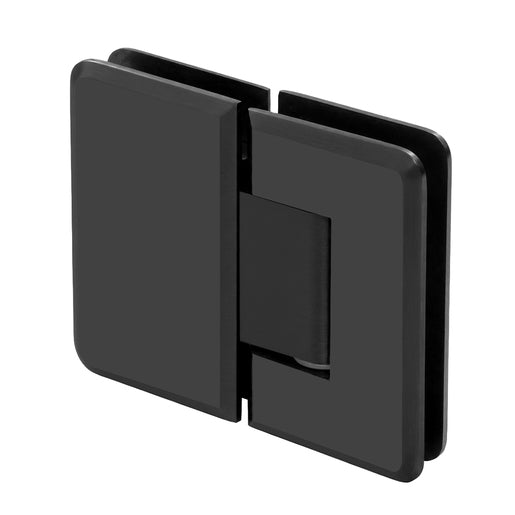

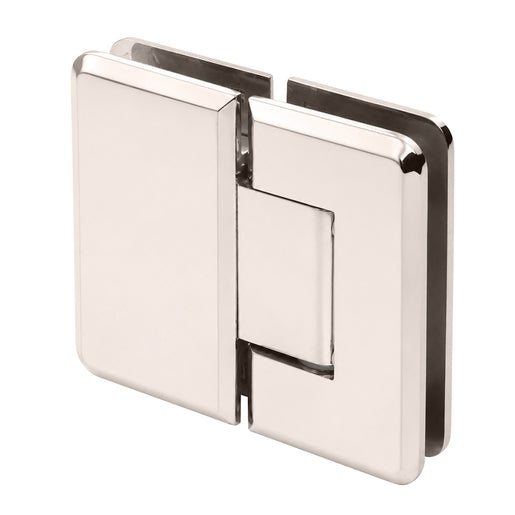

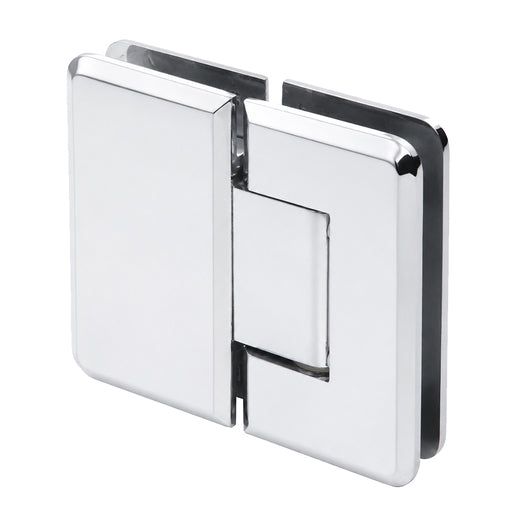

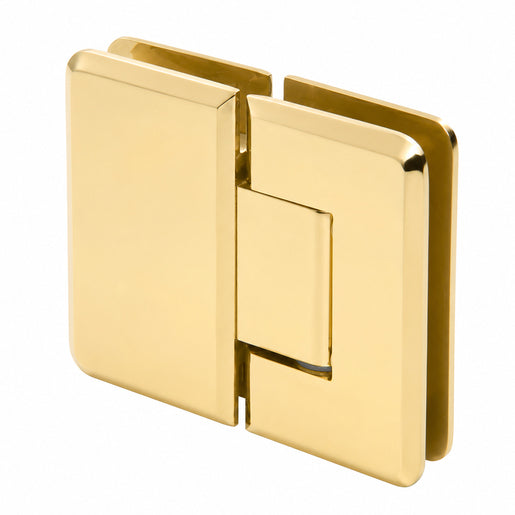

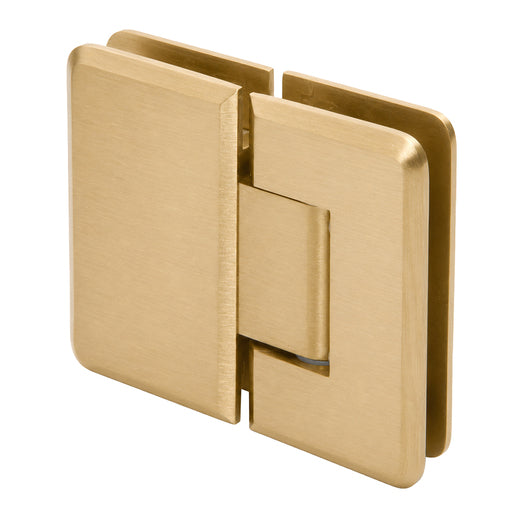

CRL Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
CRL Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge - Matte Black is backordered and will ship as soon as it is back in stock.
Description
Description
Product Details — CRL Pinnacle 180° Glass-to-Glass Hinge +–
CRL Pinnacle 180° Glass-to-Glass Hinge
Product Overview
The CRL Pinnacle 180° Glass-to-Glass Hinge features radius corners and beveled edges for a sleek appearance. Designed for 5/16" to 1/2" (8–12 mm) monolithic tempered safety glass, this self-centering hinge is ideal for frameless shower doors. It includes a reversible 5° pivot pin, allowing standard 90° closing or an 85° tighter closure into the shower interior.
Product Details
- 5 Degree Pre-Set: No
- Adjustable: No
- Edge Profile: Beveled
- Finish/Color: Matte Black
- Glass-to-Glass Angle: 180°
- Glazing Thickness: 5/16" to 1/2" (8–12 mm)
- Height: 3-1/2" (89 mm)
- Material: Brass
- Maximum Clamping Screw Torque: 60–70 lbf.in (677.9–791 cN.m)
- Maximum Door Weight - 2 Hinges: 80 lbs (36.3 kg)
- Maximum Door Weight - 3 Hinges: 120 lbs (54.4 kg)
- Maximum Door Width - 2 Hinges: 28"
- Maximum Door Width - 3 Hinges: 32"
- Mounting Type: Glass-to-Glass
- Self-Centering: Yes
- Series: Pinnacle
- Width - Door Portion: 2-3/16" (56 mm)
- Width - Sidelite Portion: 2-3/16"
Key Features
- Self-centering with reversible 5° pivot pin.
- 180° glass-to-glass standard model, factory set for standard closing position.
- Solid brass construction with stainless steel plunger tips, pins, and springs.
- Hinge swings 90° in and 90° out.
- Apply medium-strength threadlocker on cover plate screws.
- Use with monolithic tempered safety glass only.
Specifications
- Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass.
- Construction: Solid brass.
- Closing Type: Self-centering within 15° of closed position.
- Cut-Out: Required.
- Included: Gaskets, screws, and glass fabrication dimensions.
- Gasket Note: P1N13 gasket pack must be purchased separately for 5/16" (8 mm) glass.
- Replacement Hardware: P102** wall plate replacement screws; P615** cover plate replacement screws.
Pivot Pin Information
- Standard Reversible Pivot Pin: One side is marked 90°, the opposite side is marked 85°.
- Standard Model: Comes with the 90° side activated.
- Pre-Set Model: Comes set at 85° for a 5° tighter closure into the shower interior.
- Custom Pivot Pin: Available for off-angle installations up to 45°.
Product Warning
- Designed for residential or hotel shower use only.
- For non-standard applications, approval must be obtained from CRL Shower Door Technical Sales.
- Use only the template included with this hinge; cut-out dimensions may differ from other brands.
- Shipping weights are approximate. Contact customer service if exact weight is required before ordering.
- Product images and finishes may vary depending on screen settings and lighting.
