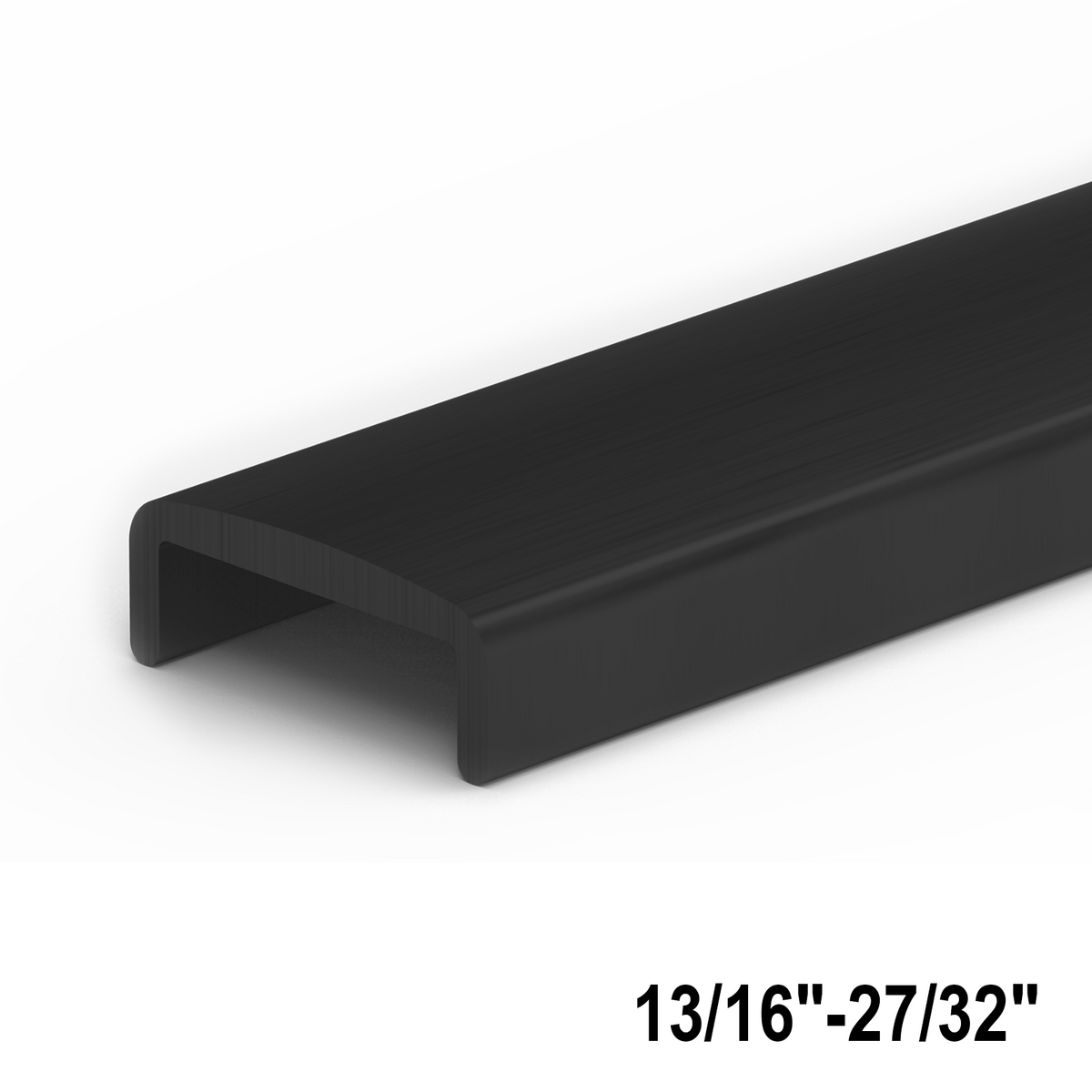

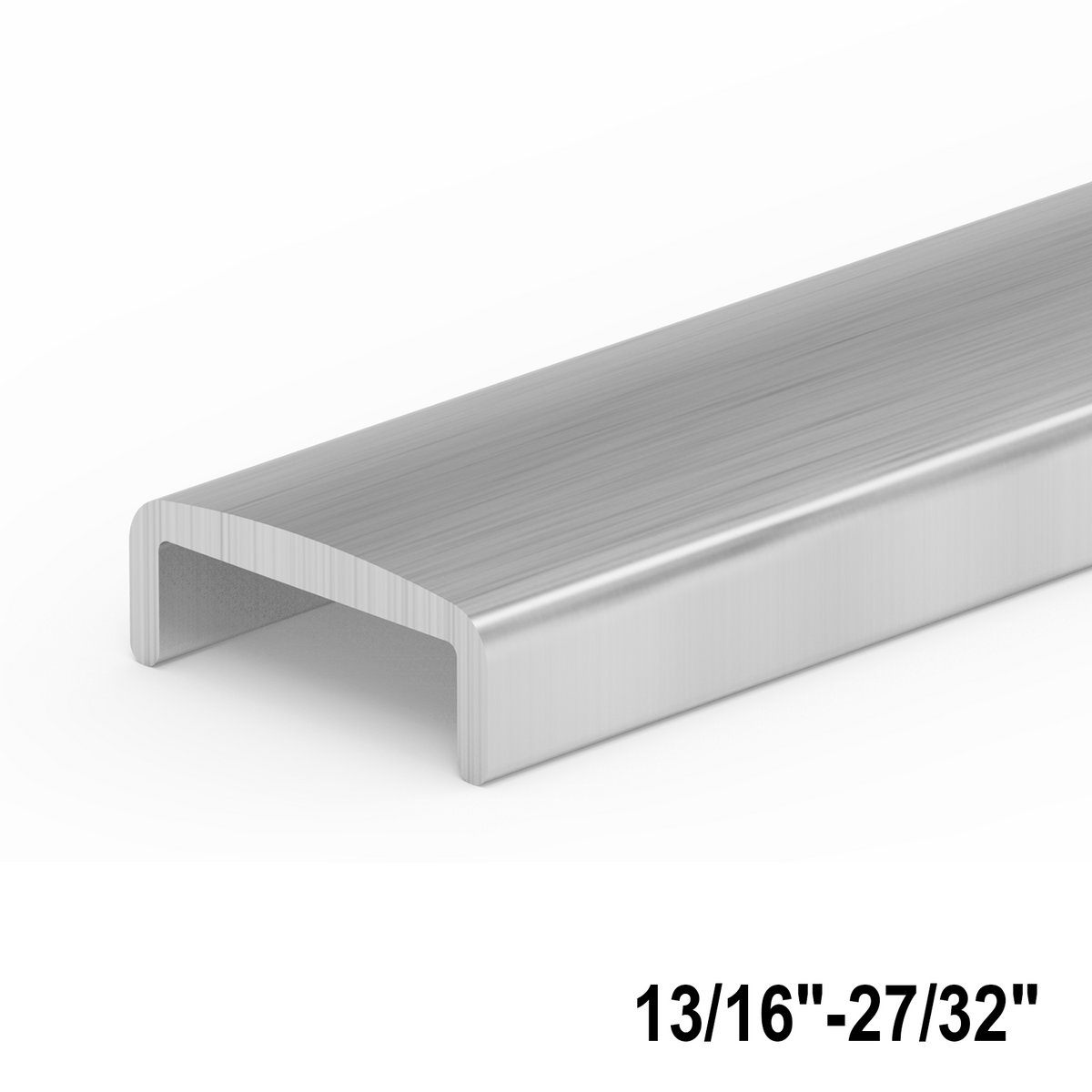

[USAC2022] Ultra Slim Cap Rail - for 20 to 22mm Glass

Product Overview

Ultra Slim Cap Rail (20 mm to 22 mm Glass) - The Edge Protection System with Class

The Ultra Slim Cap Rail offers a sleek and refined solution for protecting the exposed edges of frameless glass installations. Engineered for effortless installation and a clean finish, this cap rail is ideal for both indoor and outdoor architectural applications in residential and commercial settings.

Made from premium aluminium alloy, it attaches easily using double-sided clear adhesive tape—no drilling or glass fabrication needed.

Product Features

• Ultra-slim aluminium alloy profile
• Designed for glass thicknesses from 20 mm to 22 mm
• Standard 19 FT (approx. 5800 mm) length; custom lengths available
• 1.5 mm wall thickness
• Secured using 1 mm clear double-sided adhesive tape
• Fast, drill-free installation
• Suitable for interior and exterior use
• Available finishes:
• Brushed Anodized Aluminum
• Matte Black Anodized Aluminum
• Applications
• Frameless glass balustrades
• Pool fencing systems
• Staircase and balcony railings
• High-end residential and commercial builds

Technical Documents

• VIEW PDF DRAWING (PDF)
• VIEW CAD DRAWING (DWG)
